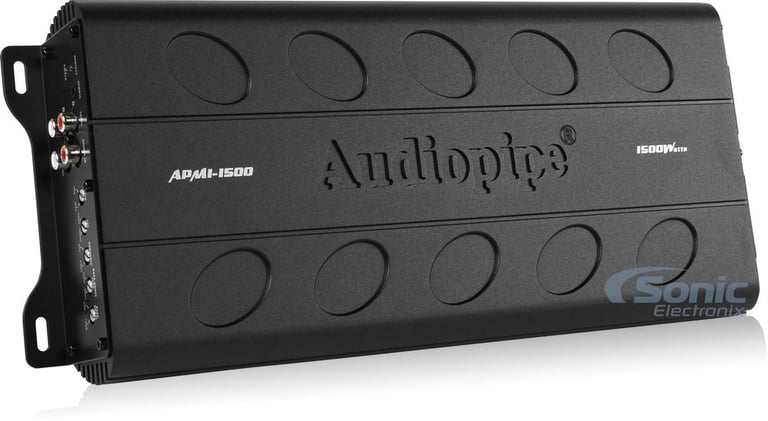

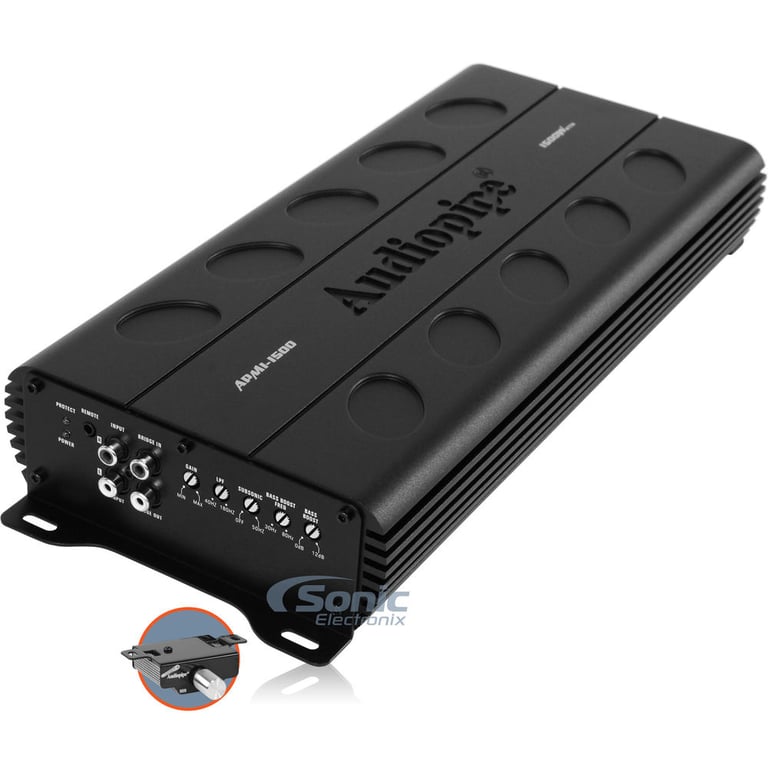

Audiopipe APMI-1500

1500W APMI Mini Series Class D Monoblock Subwoofer Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• RMS: 540W x 1 @ 4 ohm, 964W x 1 @ 2 ohm, 1414W x 1 @ 1 ohm
• Mini Design Class D Mosfet Amplifier
• Variable Bass Boost with Selectable Frequency
• Wired remote bass level control included
• 6.49" W x 13.44" L x 2.20" H

Learn more about the apmi1500

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

S2-S30 main

Alpine S2-S30

520W Peak (170W RMS) 3" S-Series Hi-Res 2-Way Coaxial 4-ohm Shallow Car Speakers

-14.32%

$119.95

List price $140.00

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

H35 main

Cerwin-Vega H35

240W Peak (80W RMS) 3.5" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$69.99

List price $83.99

Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

Product Highlights


• RMS: 540W x 1 @ 4 ohm, 964W x 1 @ 2 ohm, 1414W x 1 @ 1 ohm
• Mini Design Class D Mosfet Amplifier
• Variable Bass Boost with Selectable Frequency
• Wired remote bass level control included
• 6.49" W x 13.44" L x 2.20" H

Description


Audiopipe brand icon

Authorized dealer

General Features:

  • Audiopipe APMI Series APMI-1500
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 540 watts x 1 chan.
    • 2 ohm: 964 watts x 1 chan.
    • 1 ohm: 1414 watts x 1 chan.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Double side FR-4 PCB, high quality SMD components.

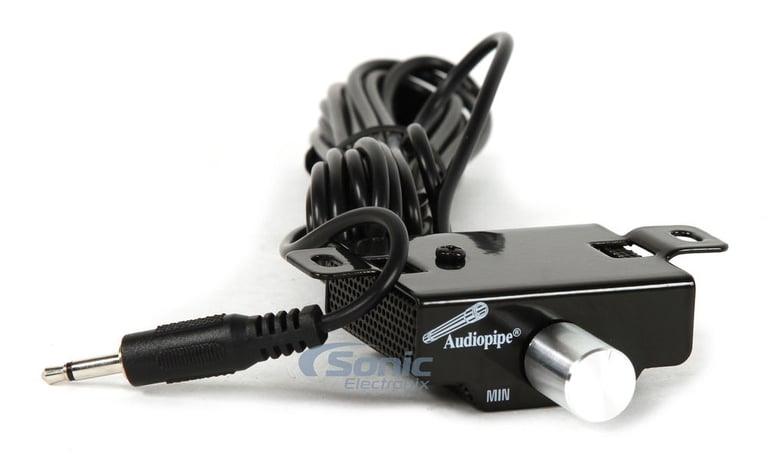

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on

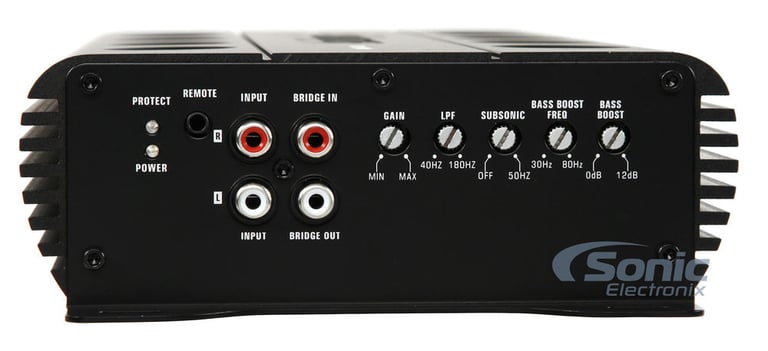

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

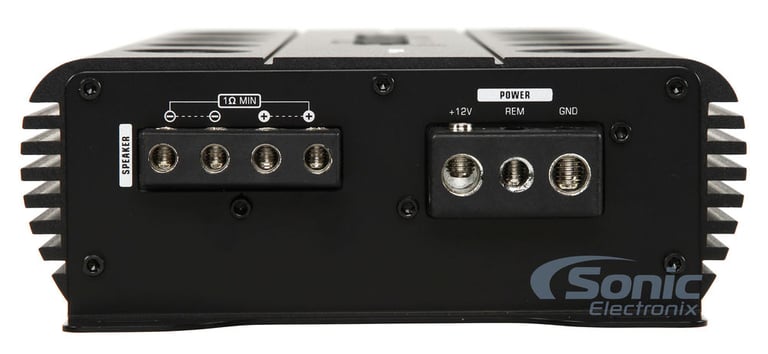

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 200mV - 5V
  • Frequency Response: 8 - 180 Hz
  • Total Harmonic Distortion (THD): <0.2%
  • Signal to Noise Ration: >70dB
  • Variable low-pass filter: 40 - 180 Hz
  • Subsonic filter: 5 - 50 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost at 30 - 80 Hz
  • Fuse Rating: 100A x 1
  • 4gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 6.49"W x 13.44"L x 2.20"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Audiopipe APMI-1500 thumbnail
(newest, current model)
Audiopipe APSM-1500 thumbnail
(previous model, replaced by Audiopipe APMI-1500)

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
540 watts x 1 channel
RMS Power @ 2 ohms
964 watts x 1 channel
RMS Power @ 1 ohm
1414 watts x 1 channel
Amplifier Specifications
Series
APMI Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
1414 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.2%
Speaker Level Inputs
No
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
5 - 50 Hz
Signal-to-Noise Ratio
>70 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMI-1500

Weight:

9.00lbs

Internal SKU:

apmi1500

Internal Product ID:

96522

Product and How-to Videos


Customer Ratings & Reviews


Audiopipe APMI-1500 thumbnail image

5 star
86%
4 star
14%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.9
Features
4.7
Design
4.5
Usability
4.7

Customer Reviews

Sort by:

Loading...

RMS SPECS ARE WRONG!!!

The amps ratings are wrong, but in a good way!

they are actually much higher than advertised!

1ohm is 2024w RMS dynamic,1458 w rms uncertified, and 1314w @ 1% thd
2 ohm is 1085w RMS dynamic, 948w rms uncertified, and 891w @ 1% thd
4 ohm is 573w RMS dynamic, 548w rms uncertified, and 526 @ 1% thd

By cam_132 on October 30, 2016

6 found this helpful


These are great lil amps for the price

I had 2 of these strapped together pushing 4 sundown SA 15s 2ohm subs and wired it all up to be .5ohms and they shocked the hell out of me. I did rig up couple computer fans cause they'd get hot at that ohm levle. Every door flexed to see lil daylight , windshield flexed so hard it would crack at anytime. I had to upgrade my electrical system and run all 0 gauge wires plus a couple spare batteries. One of the only down falls to these amps is they dont take 0 gauge wire.

By Eric on October 5, 2015

6 found this helpful


Love it

Great little amp. Running at 2 ohm stable and it doesn't ever get warm. The bass knob is a good one aswell.

By Blazed on June 23, 2015

7 found this helpful


Awesome little amplifier

This amp does what it says it will do . The only issues I have is that it runs a little warm under heavy loads. Other than than it is awesome!

By Anonymous on January 4, 2019

2 found this helpful


Great value

This amplifier works great has a lot of power clean sound it is a great bang for your buck

By Demetrius on May 15, 2017

2 found this helpful


Buy buy buy

I just used one of theses for the first time with a power acoustik mofo 15 in a 4 cubic foot box. Will will run that 15 hard. Just ran 143 decibel at the local stereo shop. My favorite thing about the amp is the remote control. If the gain on the amp is set to half the remote knob will not allow you to override the hard settings on the amp. Meaning all the way up on the remote with the gain screw set at half the amp will only push half.

By Ross on January 23, 2017 Checkmark Icon Verified purchase

1 found this helpful


Great amp

I love the mini and it's a slick design and performs very well

By Pooh on April 28, 2016

1 found this helpful




50GD small

AmmoTenna 50GD

5.5" Universal .50 Caliber Replica Antenna Mast with Adaptors (Gold)

$40.99

List price $45.99

N2 small

Massive Audio N2 Ultra-Compact Class-D Monoblock Amplifier

1600W Max (800W RMS) Nano Block Series Class-D Monoblock 1-Ohm Stable Amplifier with Adjustable Bass Boost

(13)

$109.95

List price $249.99

S2S50_2 small

Alpine S2-S50 (2-Pairs, 4-Total)

680W Peak (220W RMS) 5.25" S-Series 2-way Coaxial Car Speakers (2-Pairs)

(2)

$259.90

List price $320.00

PS-SWMCP-B-1.500 small

JL Audio PS-SWMCP-B-1.500

Four Swivel Mounting Clamps to mount onto 1.50" roll cage diameters - mounts two VeX Pods

$199.99

List price $199.99

95-3020HG small

Metra 95-3020HG

Double DIN Stereo Dash Kit for select 2016-2019 Cruze (High Gloss Black)

(2)

$51.99

List price $57.99

ICE7000.1D small

Precision Power PPI ICE7000.1D

7000W Peak (2300W RMS) Black Ice Series Class-D Strappable Monoblock 1-Ohm Stable Amplifier

(2)

$274.99

List price $439.99

MRV-M250, BAK82 small

Alpine MRV-M250 Amplifier + Free Amp Kit

250W Mono Block V-Power Class D Subwoofer Car Amplifier

(100)

$149.95

List price $219.99

PH2000W/D1 small

Earthquake Sound PH2000W/D1

2000W Max, Monoblock Class D Power House Series Digital Car Amplifier

(1)

$229.95

List price $599.00

FL300-4/4-2M small

Monster Cable FireWire Cable (FL300 4/4-2M)

6.56 Ft. (2 Meters) of High Speed IEEE 1394 FireWire Cable (4 Pin to 4 Pin)

$14.99

List price $29.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Audi A4 Quattro

2006 BMW 650i

2011 Lexus RX350

2015 Ford Explorer

2011 Ford Mustang

2001 Ford Taurus

2018 MINI Cooper

2000 Jaguar S-Type

2022 Mazda 3

2002 GMC Sierra 2500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
