Boss CXX502

250W RMS Class AB 2-Channel Chaos Exxtreme Series Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• 100W x 2 Chan. @ 4 ohm
• 250W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• 2 Ohm Stable Stereo Operation with Power Output Increase

Learn more about the cxx502

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

17
Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

38
-29.45%

$59.96

List price $84.99

P142 main

Rockford Fosgate Punch P1 P142

120W Peak (60W RMS) 4" Punch Series 2 Way Coaxial 4-ohm Speakers

17
STAGE245F main

JBL Stage2 45F (STAGE245F)

100W Peak (50W RMS) 6.5" Stage2 Gen 2 Series 2 Way Coaxial Speakers

-27.55%

$49.99

List price $69.00

Limited time!
C2-400X main

JL Audio C2-400x

70W RMS 4" C2 Series 2-Way Coaxial 4-ohm Car Speakers

9
-13.16%

$164.99

List price $189.99

Product Highlights


• 100W x 2 Chan. @ 4 ohm
• 250W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• 2 Ohm Stable Stereo Operation with Power Output Increase

Description


Boss brand icon

Authorized dealer

General Features:

  • Chaos Extreme Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • Bridged, 4 ohm: 250 watts x 1 chan.
  • Max power output: 500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

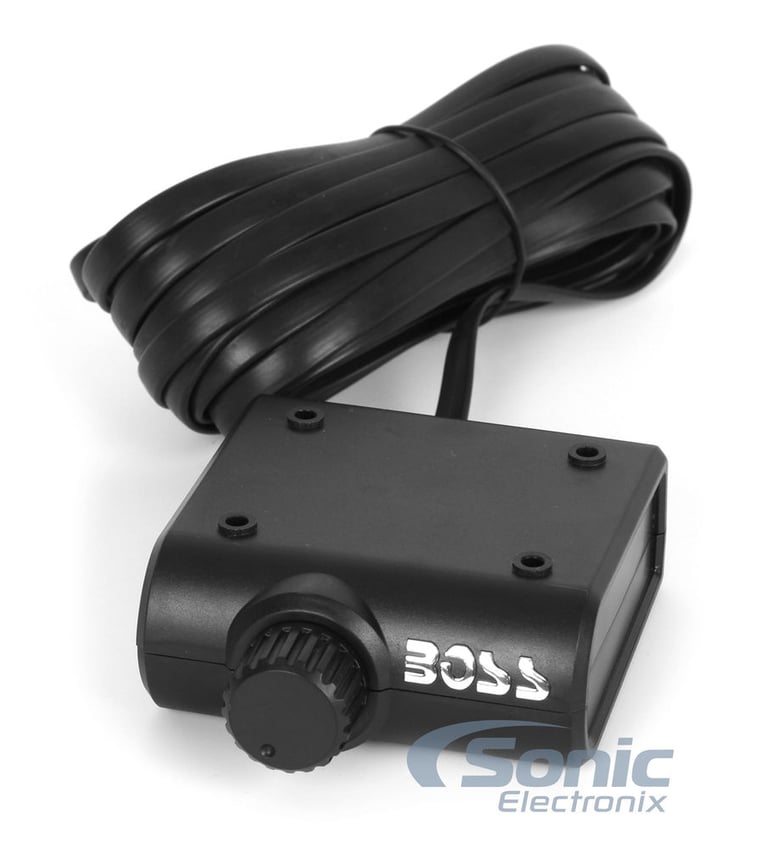

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft turn-on circuit
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Fixed high-pass filter (80 Hz)
  • Variable low-pass filter (35-160 Hz)
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 11"W x 8-1/4"L x 2-7/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Boss CXX502 thumbnail
(newest, current model)
Boss CX250 thumbnail
(previous model, replaced by Boss CXX502)

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-500.2 PRO small

Deaf Bonce Apocalypse ATOM-500.2 PRO

• 231 watts x 2 channel @ 4 ohm
• 390 watts x 2 channel @ 2 ohm
• 500 watts x 2 channel @ 1 ohm
• Bridged: 780 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$189.90

List price $189.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
Bridged RMS Power
250 watts x 1 channel
Amplifier Specifications
Series
Chaos EXXtreme Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
500 watts
Total RMS Power Output
250 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
High-Pass Crossover Frequency
80 Hz Fixed
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
103 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CXX502

Weight:

5.64lbs
