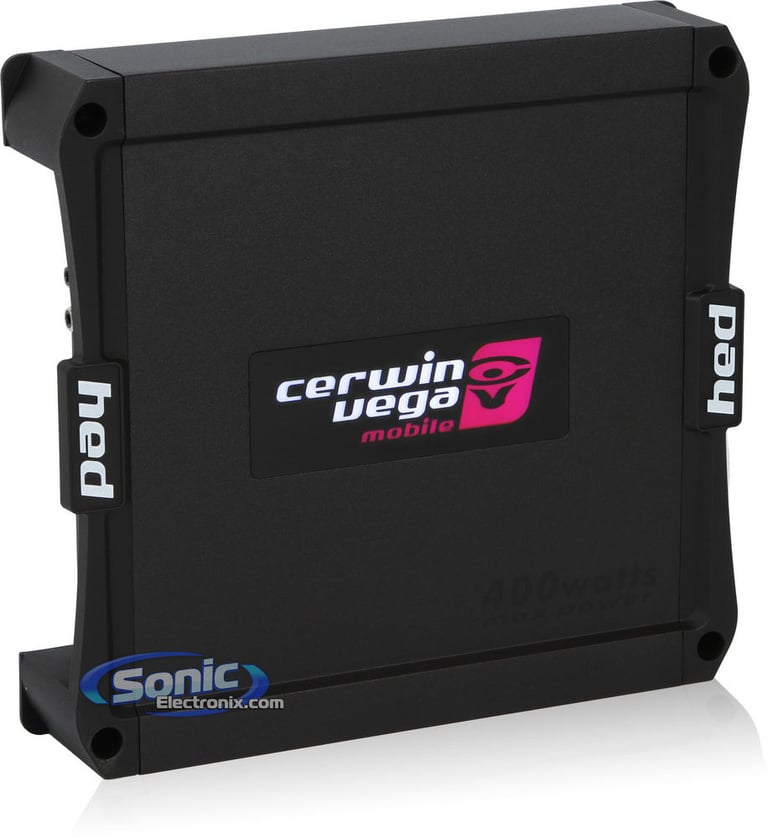

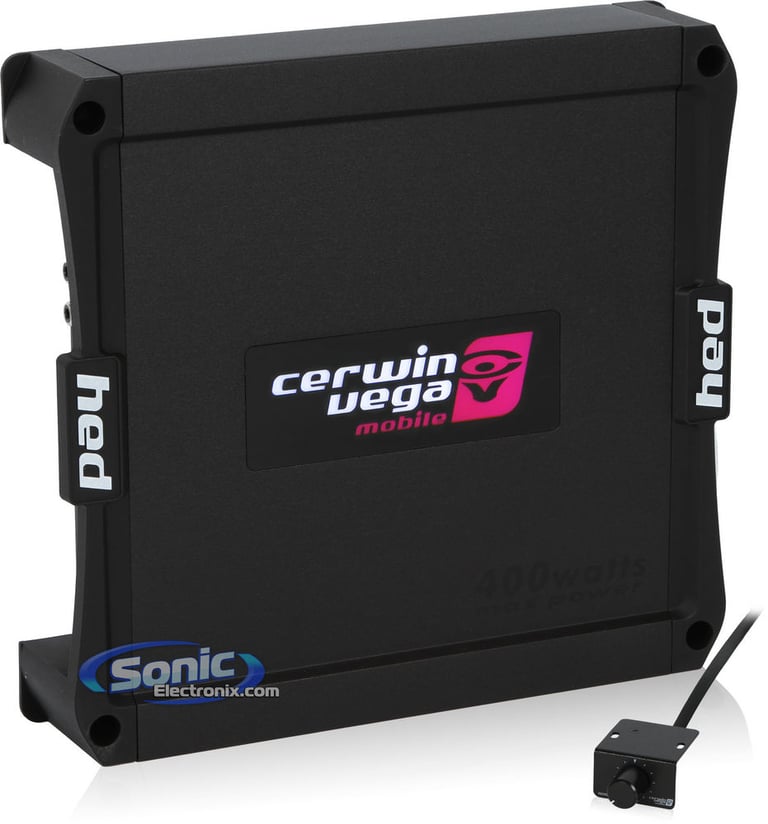

Cerwin-Vega HED3400.2

400W Max 2-Channel HED3 Series Class AB Car Power Amplifier

Product videos
highlight-star-icon

• 60W x 2 Chan. @ 4 ohm
• 120W x 2 Chan. @ 2 ohm
• 240W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation

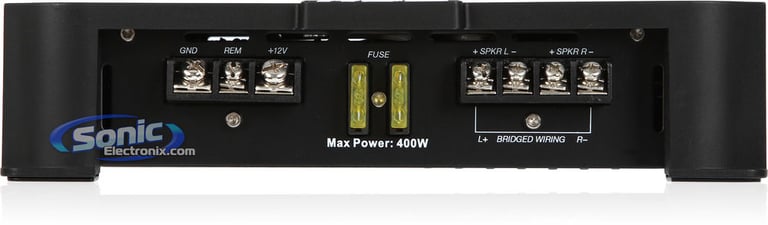

• 4 Gauge Power and Ground Inputs
• Illuminated Cerwin-Vega Badge

Learn more about the hed34002

We apologize

This item has been discontinued


Loading...
40-NI12 main

Metra 40-NI12

Antenna Adapter for select 2005-2025 vehicles from Nissan, Infiniti, Acura

31
-28.59%

$9.99

List price $13.99

70-7552 main

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

34
-15.40%

$10.99

List price $12.99

NN04B main

Scosche NN04B Wiring Harness

Install a new car stereo in select 2007-2019 vehicles from Nissan, Subaru, Chevrolet

51
-11.17%

$7.95

List price $8.95

99-7425 main

Metra 99-7425 Dash Kit

Install a new Single-DIN car stereo in select 2008-2010 Rogue

-50.02%

$14.99

List price $29.99

NI6 main

PAC NI6

Install a New Car Stereo and Retain the Factory Antenna in select 2005-2020 vehicles from Nissan, Infiniti, Suzuki

-62.50%

$9.00

List price $24.00

NDK734 main

American International NDK734

Single DIN or Double DIN Stereo Dash Kit for select 2008-2010 Rogue

1
-70.48%

$12.99

List price $44.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Product Highlights


• 60W x 2 Chan. @ 4 ohm
• 120W x 2 Chan. @ 2 ohm
• 240W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated Cerwin-Vega Badge

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • HED3 Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 120 watts x 2 chan.
    • Bridged, 4 ohm: 240 watts x 1 chan.
  • Max power output: 400 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink

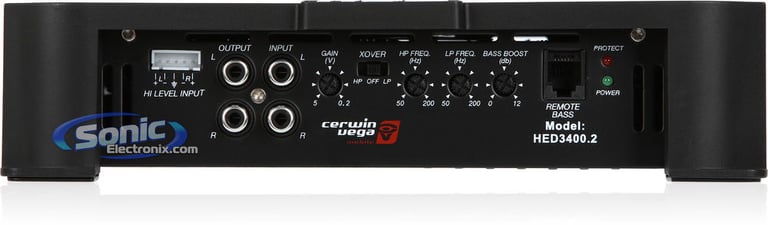

  • Input sensitivity:
    • Level: 200mV-5V
  • Variable high-pass filter (50-200 Hz, Butterworth 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, Butterworth 12 dB/octave)
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/8"W x 9-5/8"D x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
