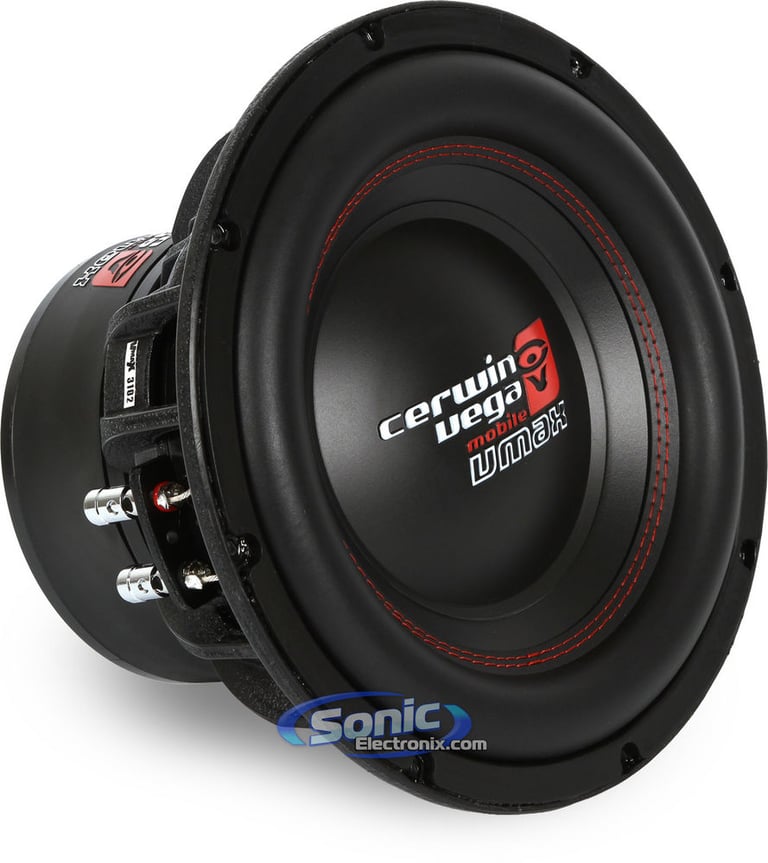

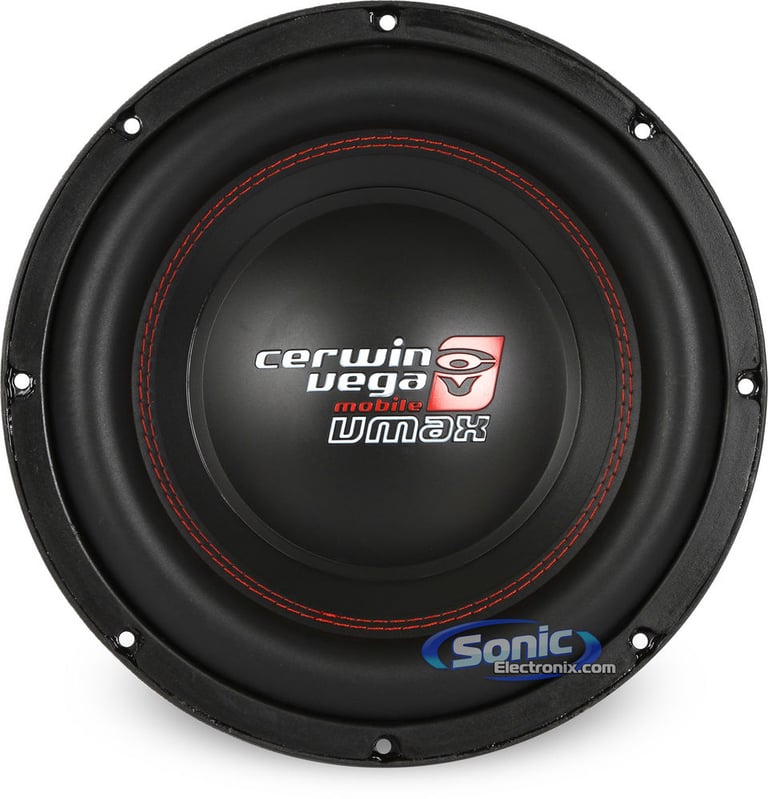

Cerwin-Vega VMAX3102

1000W 10" VMAX3 Series Dual 2 Ohm Subwoofer

Product videos
highlight-star-icon

• 1600W Max
• 1000W RMS
• Dual 2 ohm Voice Coil
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• O2 Cast Heavy Duty Aluminum Basket
• 2-1/2" High Power Dual Voice Coil

Learn more about the vmax3102

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

vpro102d thumbnail

Cerwin-Vega VPRO102D

OUR PRICE: $119.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-8602 main

Metra 82-8602 Speaker Adapter Plates

Install 6.5” or 6.75” aftermarket speakers in select 2012-2022 Model S and Model X

-46.68%

$15.99

List price $29.99

NVX Loaded BOOST Box - 2012-2020 Tesla Model S - BE-TSLAS-VCW104

For select 2012-2020 Model S - Single 10" 1000W RMS Loaded BOOST Sealed Enclosure

3
-16.67%

$469.99

List price $563.99

Product Highlights


• 1600W Max
• 1000W RMS
• Dual 2 ohm Voice Coil
• High Strength Composite Polypropylene Cone
• Butyl Rubber Surround
• O2 Cast Heavy Duty Aluminum Basket
• 2-1/2" High Power Dual Voice Coil

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 10" Dual 2 Ohm VMAX3 Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 1000 watts
  • Impedance: 2 ohm

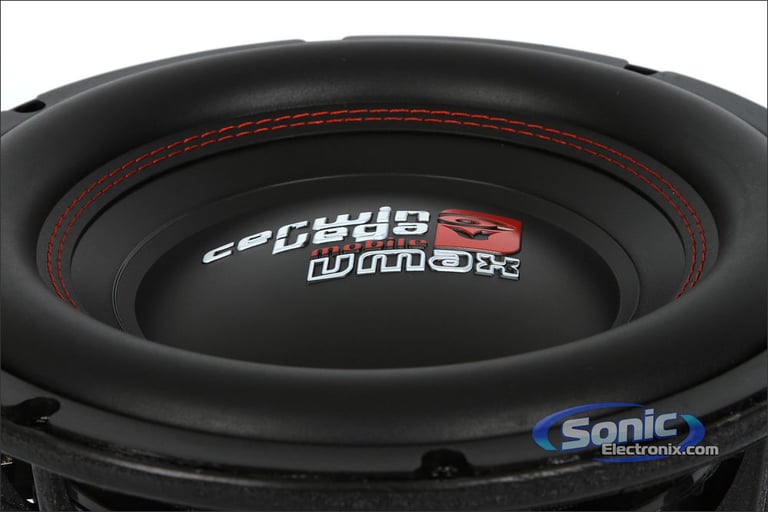

  • High strength composite polypropylene cone
  • Butyl rubber surround

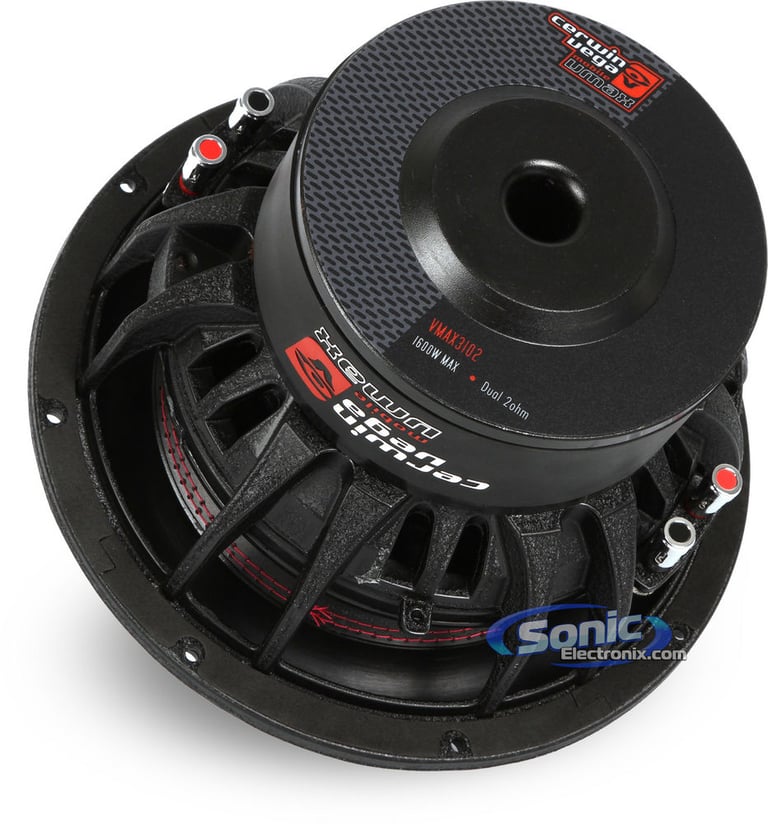

  • O2 Cast heavy duty aluminum basket
  • XFV Cross-flow window venting allows for massive heat dissipation from the voice coil
  • Pushpin terminals
  • Linear rolled spider with over-under weave design
  • 2-1/2" High power dual voice coil with rolled aluminum former
  • Resonance Frequency (Fs): 38 Hz
  • Top-mount depth: 5-3/8"
  • Sensitivity: 83 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega VPRO102D thumbnail
(newest, current model)
Cerwin-Vega VMAX3102 thumbnail
(previous model, replaced by Cerwin-Vega VPRO102D)
Cerwin-Vega VMAX102.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3102)
Cerwin-Vega VMAX102 thumbnail
(previous model, replaced by Cerwin-Vega VMAX102.2)
Cerwin-Vega VMX-10.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX102)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VMAX3102 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VMAX3102 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VMAX3102 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VMAX3102 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Vmax3 Series
Subwoofer Size
10"
Peak Power Handling
1600 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Sensitivity
83 dB
Xmax (millimeters)
11.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Butyl Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
38 Hz
Equivalent Compliance (Vas)
13.37 liters
Total Speaker Q Value (Qts)
0.476
Electrical Q Value (Qes)
0.552
Electrical Resistance of Voice Coil (Re)
3.70 ohm
Mechanical Q Value (Qms)
3.471
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMAX3102

Weight:

19.00lbs

Internal SKU:

vmax3102

Internal Product ID:

68598
