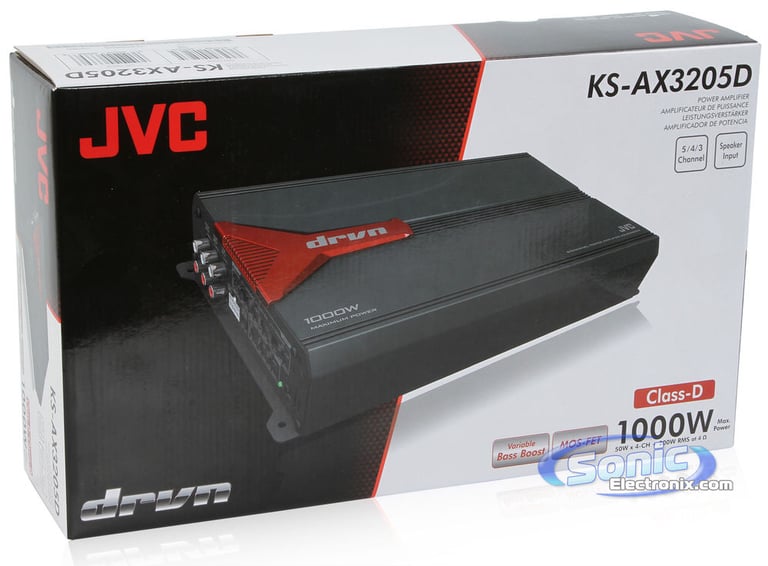

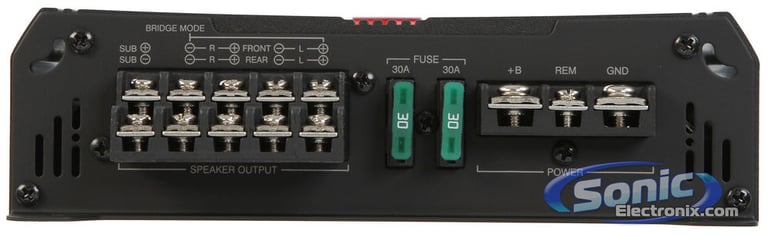

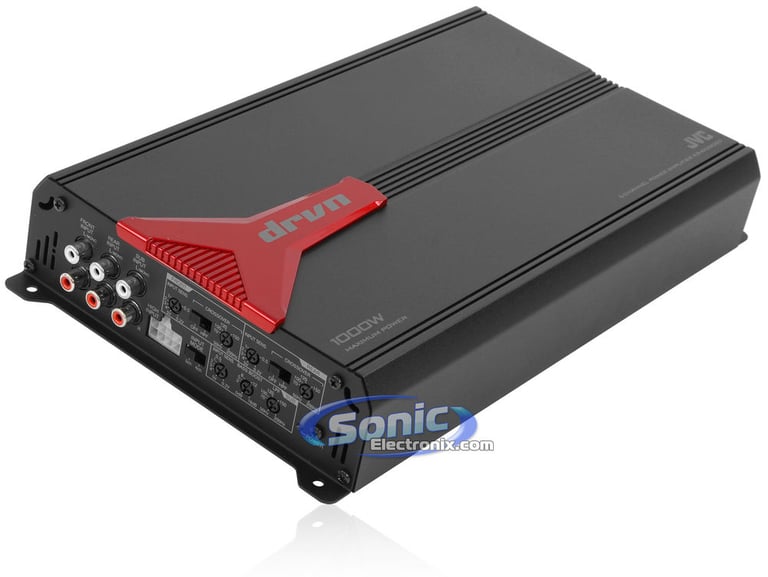

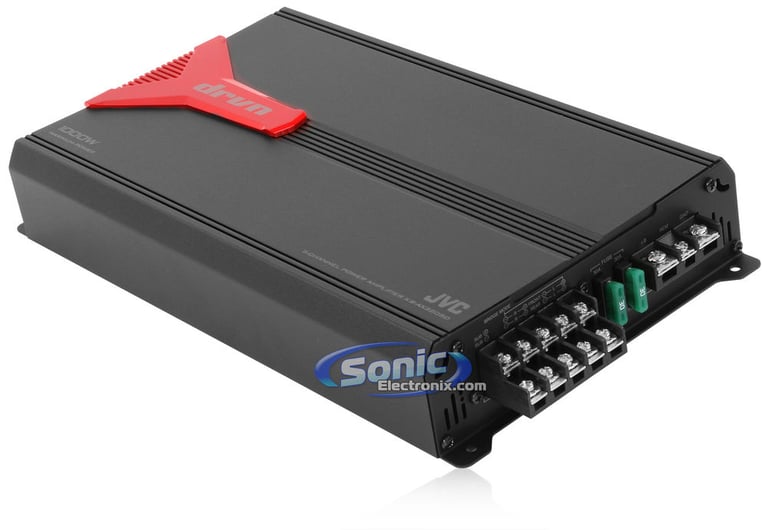

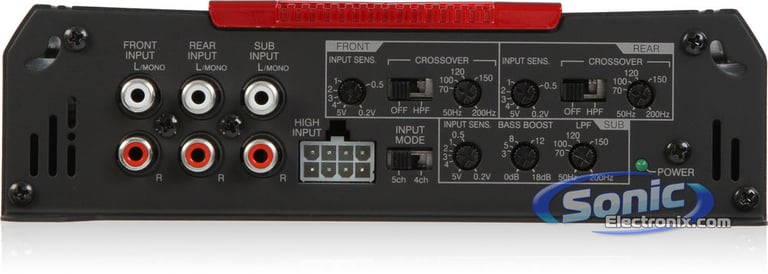

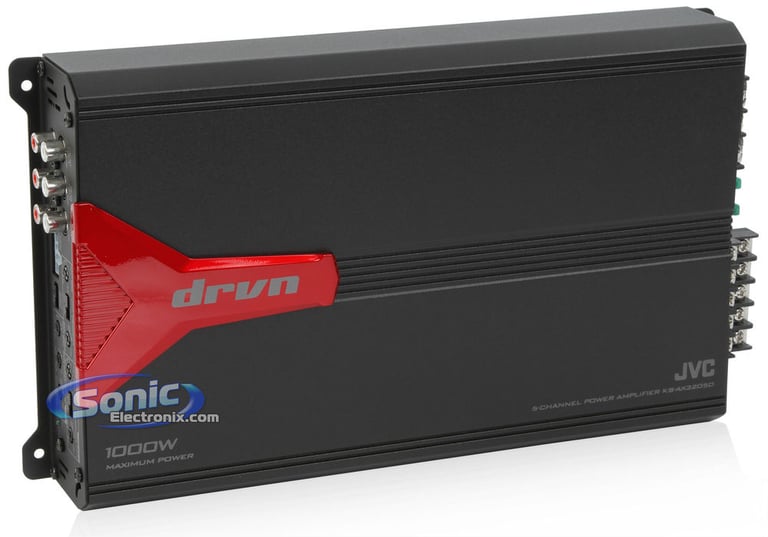

JVC KS-AX3205D 1000W 5-Channel Amp

560W RMS 5-Channel Class-D DRVN Series Car Power Amplifier

JVC
Shop all JVC
Product videos
highlight-star-icon

• Full-Range RMS: 50W x 4 @ 4 ohm, 65 x 4 @ 2 ohm
• Subwoofer RMS: 200W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• CEA-2006 Compliant
• Class D Circuitry
• Variable Bass Boost: 0 - 18 dB
• Dimensions: 13-7/16"W x 7-5/16"D x 2-1/8"H

Learn more about the ksax3205d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

ksdr3005d thumbnail

JVC KS-DR3005D

OUR PRICE: $199.95

View item

Loading...
AXBUCH-MZ6V main

Axxess AXBUCH-MZ6V

Install a New Car Stereo and Retain Backup Camera in select 2007-2015 vehicles from Mazda

-10.00%

$44.99

List price $49.99

HO6 main

PAC HO6

Install a New Car Stereo and Retain the Factory Antenna in select 2003-2016 vehicles from Honda, Mazda, Acura

-70.83%

$7.00

List price $24.00

MazK860 main

American International MazK860

Single DIN or Double DIN Stereo Dash Kit for select 2009-2013 6

-60.95%

$24.99

List price $64.00

RP4-MZ11 main

PAC RadioPro RP4-MZ11

Radio Replacement Interface With Built In Pre Programmed Steering Wheel Control Retention and Navigation Outputs for select 2006-2015 vehicles from Mazda

1
-58.05%

$158.99

List price $379.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

61
Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

DCPA723W main

Dual DCPA723W

7” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

4
-16.67%

$239.99

List price $287.99

Belva BMV712

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Phone Mirroring

23
-63.34%

$54.99

List price $149.99

Product Highlights


• Full-Range RMS: 50W x 4 @ 4 ohm, 65 x 4 @ 2 ohm
• Subwoofer RMS: 200W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• CEA-2006 Compliant
• Class D Circuitry
• Variable Bass Boost: 0 - 18 dB
• Dimensions: 13-7/16"W x 7-5/16"D x 2-1/8"H

Description


JVC brand icon

Authorized dealer

General Features:

  • DRVN Series 5-Channel Class D Car Amplifier
  • Channel 1-4 RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 65 watts x 4 chan.
    • Bridged, 4 ohm: 130 watts x 2 chan.
  • Subwoofer RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
  • Soft start turn-on
  • 5/4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 200mV-5V
    • High level: 600mV-15V
  • Variable high-pass filter (50-200 Hz, 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, 18 dB/octave)
  • Fixed subsonic filter
  • CEA-2006 compliant amplifier
  • Also found as: KSAX3205D
  • Dimensions: 13-7/16"W x 7-5/16"D x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

JVC KS-DR3005D thumbnail
(newest, current model)
JVC KS-AX3205D thumbnail
(previous model, replaced by JVC KS-DR3005D)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
65 watts x 4 channel
Bridged RMS Power
130 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Series
DRVN Series
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
560 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.04%
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
70 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-AX3205D

Weight:

7.30lbs

Internal SKU:

ksax3205d

Internal Product ID:

68872

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


JVC KS-AX3205D 1000W 5-Channel Amp thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


HDJ-1500-S small

Pioneer HDJ-1500 - Silver

Professional Swiveling DJ Style Wired Stereo Headphones with Powerful 50 mm Drivers & Carrying Pouch

$159.00

List price $189.99

No picture

Kicker 09PWG050-1 (PWG050)

Kicker 1/0 Gauge AWG Gunmetal Gray Power / Ground Cable Available by the Foot

$4.99

List price $7.99

No picture

AudioControl ACM4300 (Open Box, Complete)

300W RMS ACM Series 2 ohm Stable 4-Channel Class-D Amplifier

(1)

$264.80

List price $1049.00

SS2500.1D, BAK42 small

Autotek SS2500.1D 2500W Amplifier with Amp Kit

Autotek SS2500.1D Super Sport 2500w Mono Car Amplifier Class D+Remote+Amp Kit

(65)

$129.99

List price $359.98

1SL12-1.0-GRAY small

Sonic Sub Box: 1SL12-1.0 (GRAY CARPET)

Single 12" Sealed MDF Enclosure

(22)

$27.99

List price $59.99

EURO-KEY333 small

Xscorpion EURO-KEY333

Set of Two Head Unit Removal Keys for Most Mercedes, Audi, & VW Vehicles

(11)

$2.99

List price $5.99

ZRX3216.1D small

Hifonics Zeus ZRX3216.1D

3200 Watt Monoblock Zeus Series Super Class D 1-Ohm Stable Subwoofer Amplifier - (Zeus 3200 Watt)

(11)

$249.99

List price $619.99

AVIC-8201NEX small

Pioneer AVIC-8201NEX

Double-DIN In-Dash Navigation AV Car Stereo with 7” WVGA Capacitive Touchscreen Display with Android Auto and Apple Carplay

(1)

$699.99

List price $1500.00

RS-255-EDP+ small

Excalibur RS-255-EDP+

2-Way Remote Start Keyless Entry System w/ 1 Button Extended Range Remote

$79.99

List price $199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Mazda 6

2003 Isuzu Ascender

2011 Audi TT

1975 Ford Bronco

2008 Audi A3

2005 BMW X3

2014 Ford Explorer

2015 MINI Cooper

2017 Subaru Legacy

2006 BMW M3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
