Orion CO2400.1D

2400W Max Cobalt Series Class D Monoblock Car Amplifier

Orion
Shop all Orion
Product videos
highlight-star-icon

• RMS: 400W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total Peak Power: 2400W
• CEA-2006 Compliant
• Bass Boost: 0-18 dB
• Class D Circuitry
• Dimensions: 13-9/16"L x 7-1/2"W x 2"H

Learn more about the co24001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


• RMS: 400W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total Peak Power: 2400W
• CEA-2006 Compliant
• Bass Boost: 0-18 dB
• Class D Circuitry
• Dimensions: 13-9/16"L x 7-1/2"W x 2"H

Description


Orion brand icon

Authorized dealer

General Features:

  • Cobalt Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Max power output: 2400 watts
  • MOSFET power supply

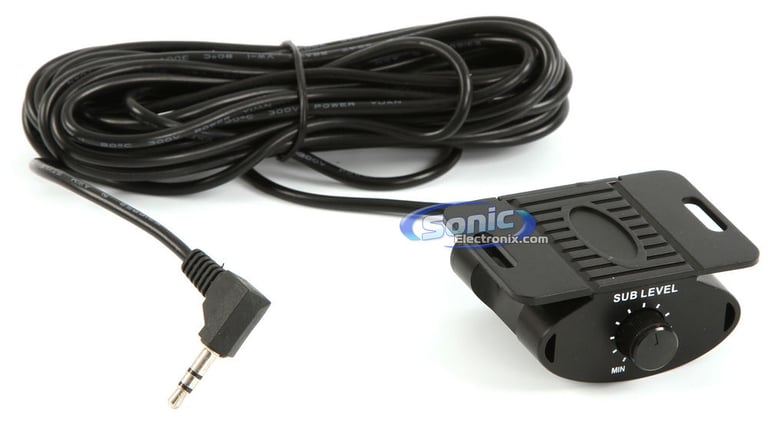

  • Wired bass remote control included
  • Tri-mode and bridgeable operation
  • LED power and protect indicators
  • Illuminated blue LED stripe design
  • Variable bass boost (0-18 dB)
  • Mono channel operation
  • 3-Way system protection circuitry (thermal, short circuit, and overload)
  • Heavy duty aluminum alloy convection heatsink
  • Input sensitivity (150mV-5V)
  • Variable low-pass filter (15-400 Hz)
  • Subsonic filter (25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-30,000 Hz
  • Dimensions: 14-15/16"L x 7-1/2"W x 2"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
Any Gauge with use of Ring Terminal AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
15 - 400 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CO2400.1D

Weight:

7.50lbs

Internal SKU:

co24001d

Internal Product ID:

69450

Product and How-to Videos


Customer Ratings & Reviews


Orion CO2400.1D thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
4
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Damn good amp

Best amp for value haven't cut off not once and still going got two pioneer champion series Pro 12's on it and it bangs

By Omar on December 16, 2013

9 found this helpful


Orion CO2400.1D

Have one with 3 R.F. shallow 12's 1 ohm. sounds very clean and has alot of power.

By Jdub on November 27, 2014

6 found this helpful


This bumps

really easy install sounds great . Hooked up to a kinetic battery and a soundqubed hds3.15 , they hear me coming from a mile away

By Jean on January 1, 2015

4 found this helpful
