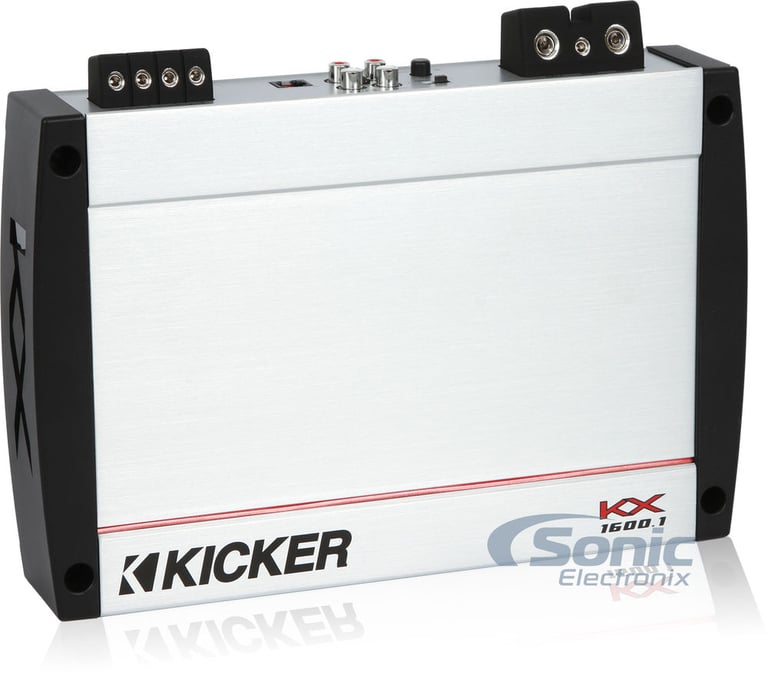

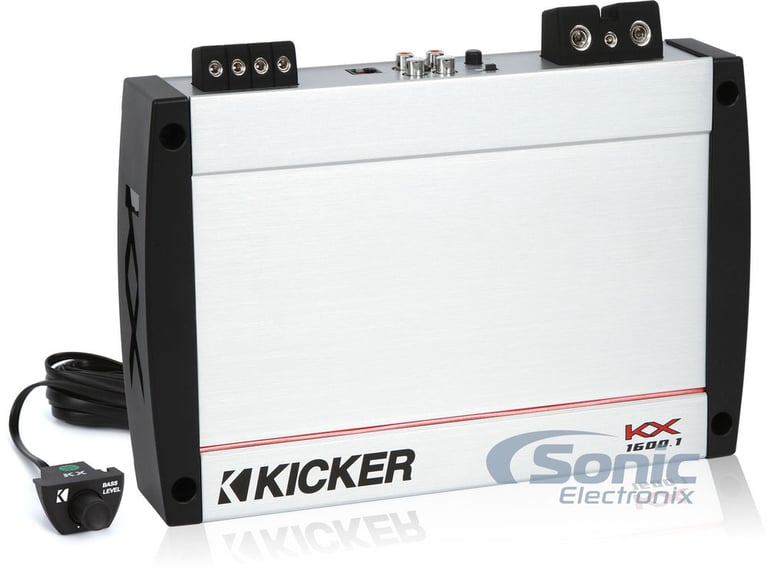

Kicker KX1600.1 (40KX1600.1)

1600W RMS KX Series Monoblock Class D Car Power Amplifier

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• RMS: 800W x 1 @ 4 ohm, 1600W x 1 @ 2 ohm
• Total Peak Power: 3200W
• CEA-2006 Compliant
• Kick EQ+ Bass Boost: 0-18 dB from 20-80 Hz
• Magnetic Panel Covers Controls
• Dimensions: 8-5/16"W x 11-3/16"L x 2-1/8"H

Learn more about the 40kx16001

We apologize

This item has been discontinued


Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

AXLOC-TY3 main

Axxess AXLOC-TY3

2-Channel 110W Line Output Converter with Gain Controller for select 2018-2025 vehicles from Toyota with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
72-8109 main

Metra 72-8109 Speaker Wiring Harness

Install New Speakers in select 2018-2024 vehicles from Toyota

5
-30.79%

$8.99

List price $12.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

OEMADAPT6.5 main

DS18 OEMADAPT6.5

Universal 6.5" Speaker Mounting Adapters

Club 64 main

JBL Club 64 (JBLSPKCB64)

360W Peak (120W RMS) 6.5" Club Series 2 Way Coaxial 3-ohms Speakers

2
-21.44%

$109.95

List price $139.95

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


• RMS: 800W x 1 @ 4 ohm, 1600W x 1 @ 2 ohm
• Total Peak Power: 3200W
• CEA-2006 Compliant
• Kick EQ+ Bass Boost: 0-18 dB from 20-80 Hz
• Magnetic Panel Covers Controls
• Dimensions: 8-5/16"W x 11-3/16"L x 2-1/8"H

Description


Kicker brand icon

Authorized dealer



KX400.1

Small Footprint, Insane Output

KX Amplifiers set the curve for smaller chassis footprints, with the largest model measuring at only 15-1/2 inches long. KICKER amps feature an optimized circuit layout for the most efficient use of components, the smallest footprint and clearest sound quality. Their cosmetic style is sharp as well, with magnetic panels covering control settings and glass fiber-composite end panels for a clean, stealth look that’s even UV-protected.

The highest-grade components and surface-mount technology under the high-mass heat sink allow our amps to perform at a level others fail to reach. Double-sided fiberglass circuit boards, Litz-wound transformers that minimize power loss and maximize transfer, TO218 output devices for high-current switching, buffered RCA outputs on bass amps, angled custom-tooled power connectors – the details make our amplifiers the most reliable, high-performing audio equipment in the industry.


Tuning Options

High-Grade Components, Sleek Tuning Magnetic Door

KX monoblock amps use a Class-D, boost-converter power supply for the highest sound quality and efficiency. Boost-converter technology allows KX.1 amps to achieve a typical efficiency near 80 percent, significantly beyond standard amp power supplies. That, along with the adaptability to use fewer internal parts, allows for a smaller bass-amp size, the coolest operation, optimum reliability and overall excellent performance. Full-range models utilize Class D-IC power, which provides superior efficiency, exceptional sonic performance and the compact size.

An included remote level control provides bass volume from the dash. Users can take advantage of built-in crossovers and adjustable KickEQ processing for dialing in perfect sound, and a variable subsonic filter provides subwoofer protection from potentially damaging lowest frequencies. A three-second turn-on delay eliminates additional interference, red over/under voltage LEDs, and auto-reset protection are some of the other conveniences utilized by dependable KICKER amps.




Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)

Save on the Open Box Version:
Available Now - CLICK HERE

Kicker Always Exceeds Rated Power

General Features:

  • KX Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 chan.
    • 2 ohm: 1600 watts x 1 chan.
  • Max power output: 3200 watts x 1 chan.

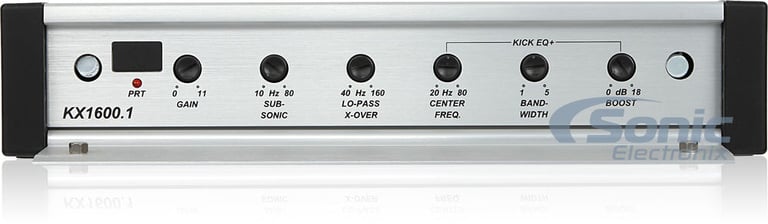

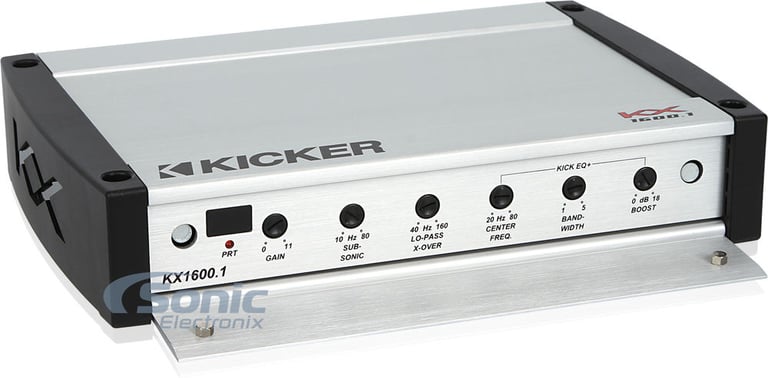

  • Variable Kick EQ+ Bass Boost (0-18 dB Selectable 20-80 Hz, Variable Q: 1-5)

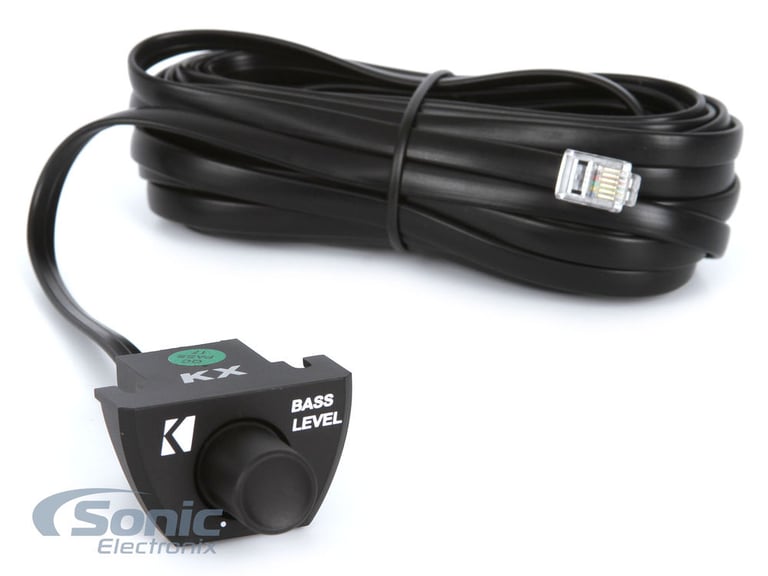

    • Wired remote bass level control included
    • Kick EQ+ is designed to let you fine tune your bass boost - the possibilities are practically endless
    • Selectable boost frequency from 20-80 Hz gives you control of the boosted frequency - typically this is fixed at 45 Hz on most amplifiers
    • Q Factor: 1-5 let's you narrow or expand the width of the selected bass frequency
  • High-efficiency regulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation

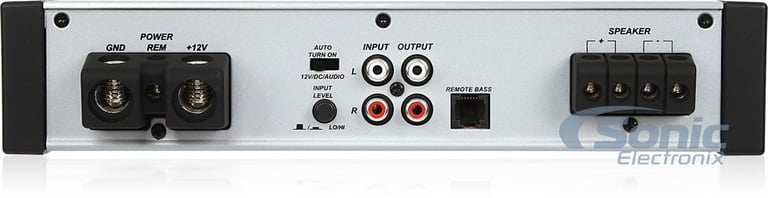

  • Preamp RCA outputs to daisy chain multiple amps
  • Equipped with FIT (Fail-Safe Integration Technology) to accept output from virtually any source
  • FIT’s lab-grade, balanced differential inputs offer best possible noise rejection
  • Double-sided fiberglass circuit board
  • Built-in crossovers and adjustable KickEQ for dialing it in
  • DC offset or 12v remote auto turn-on modes
  • Angled custom-tooled power connectors
  • Stylish magnetic panels cover controls and glass-fiber composite end panels
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty high-mass aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (40-160 Hz, 24 dB/octave)
  • Variable low-pass filter (10-80 Hz, 24 dB/octave)
  • Frequency Response: 10-160 Hz
  • CEA-2006 compliant amplifier
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 8-5/16"W x 11-3/16"L x 2-1/8"H
  • Authorized Internet Dealer
  • 2-Year Manufacturer's Warranty (extends to 3 years when purchased with a Kicker PKD1 wiring kit)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1600 watts x 1 channel
Amplifier Specifications
Series
KX Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3200 watts
Total RMS Power Output
1600 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 160 Hz
Subsonic Filter
10 - 80 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

40KX1600.1

Weight:

8.50lbs

Internal SKU:

40kx16001

Internal Product ID:

69512

Product and How-to Videos


  • KX Amplifier Introduction Part 2 Setting gains
  • KX Amplifier Introduction Part 3 Setting The Low Pass Crossovers
  • KX Amplifier Introduction Part 4. Setting Kick eq plus
  • KX Amplifier Introduction Part 1
  • Kicker KX Car Amplifiers (Mono, 2, 4, & 5 Channel Amps) | CES 2013
  • Kicker KX Car Amplifiers | New Amp for 2013
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Kicker KX1600.1 (40KX1600.1) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great amp

I love this amp. I have one pushing 2 kicker L7 12 inch speakers that are rated at 1500 watts each and 750 watts rms and it shakes my windshield and will make your ears bleed. In other words awesome.

By Anonymous on April 10, 2019

6 found this helpful


CLEAN POWER

RAN A TON OF AMP VIA HI LEVEL THIS TAKES THE CAKE WITHOUT A DOUBT WORTH THE MONEY ITS CLEAN INSTANT START NO POPS SOUND IS WARM AND CLEAN FROM SUBS AND POWERFUL

By holly on June 6, 2017

6 found this helpful




44-EC72 small

Metra 44-EC72 Antenna Extension

72" Universal Antenna Extension Cable

$12.99

List price $14.99

40KXM400.2 small

Kicker 2-Channel Marine Amplifier - KXM400.2 (40KXM400.2)

400W RMS KXM Series 2-Channel Class D-IC Stereo Bridgeable Marine Power Amplifier

(2)

$249.95

List price $399.95

db840DVC small

Polk Audio db840DVC (FREE Upgrade to 2017 Model)

180W 8" db Series Dual 4 ohm Marine Certified Subwoofer

(18)

$75.00

List price $209.99

TXX-AP10B small

Audiopipe TXX-AP10B

10" Dual 4 ohm iPipe Subwoofer (Black)

$99.99

List price $199.99

07TC104+08ZX300.1 small

Kicker 07TC104 + Kicker 08ZX300.1

Loaded 10" Vented Truck Box with 1 Comp Sub + Matching Monoblock Amplifier

(1)

$251.99

List price $389.99

CY-PA4003U small

Panasonic CY-PA4003U

4-Channel Amplifier

(1)

$104.99

List price $179.99

DQ-61 BLACK small

AudioControl DQ-61 (Espresso Black)

6 Channel Line Out Converter with Signal Delay, AccuBass, and EQ, with 5-year warranty*!

(2)

$299.99

List price $479.99

VIBE425 small

Lanzar VIBE425 Viberant Series

$159.99

List price $319.99

11ZX5001 small

Kicker ZX500.1 (11ZX500.1)

500W RMS Class D Monoblock ZX Series Amplifier

(4)

$204.95

List price $349.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Land Rover LR4

2002 Daewoo Lanos

1980 Ford Pinto

1995 Eagle Vision

1990 Ford Escort Pony

2011 Buick Regal

2022 Toyota Corolla

2008 Jeep Commander

2001 Lotus Esprit

1990 Mazda MPV

Vehicle
Store
Delete

2023 Can-Am Defender PRO XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
