Name: JL Audio XD1000/1v2-Refurbished
Brand: JL Audio
SKU: ls-xd10001v2-obc9
Price: 659.99 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

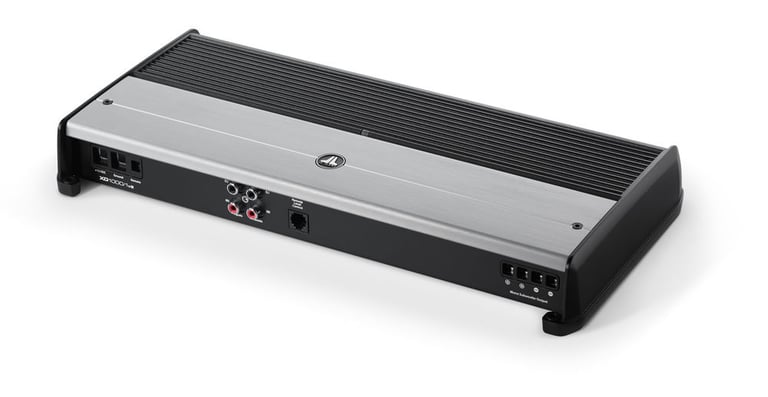

JL Audio XD1000/1v2-Refurbished Image 1 — JL Audio XD1000/1v2-Refurbished

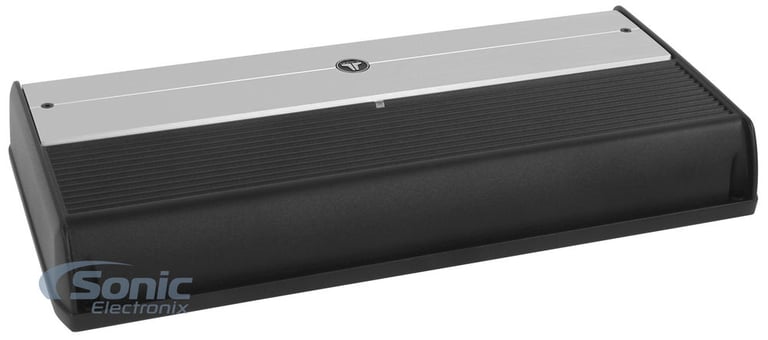

JL Audio XD1000/1v2-Refurbished Image 2 — JL Audio XD1000/1v2-Refurbished

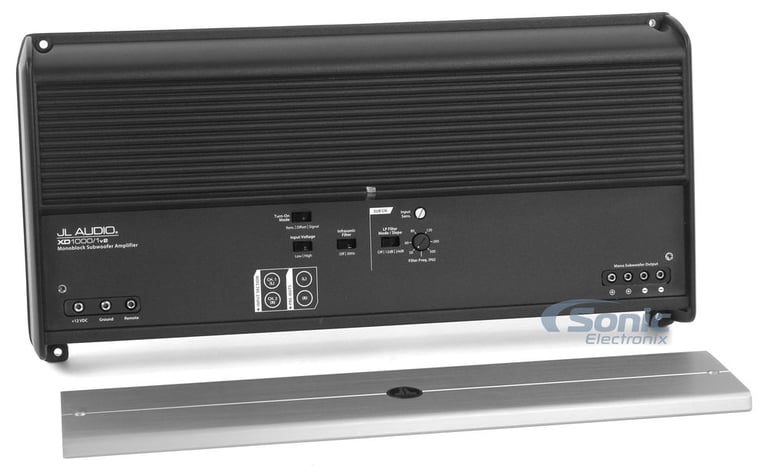

JL Audio XD1000/1v2-Refurbished Image 3 — JL Audio XD1000/1v2-Refurbished

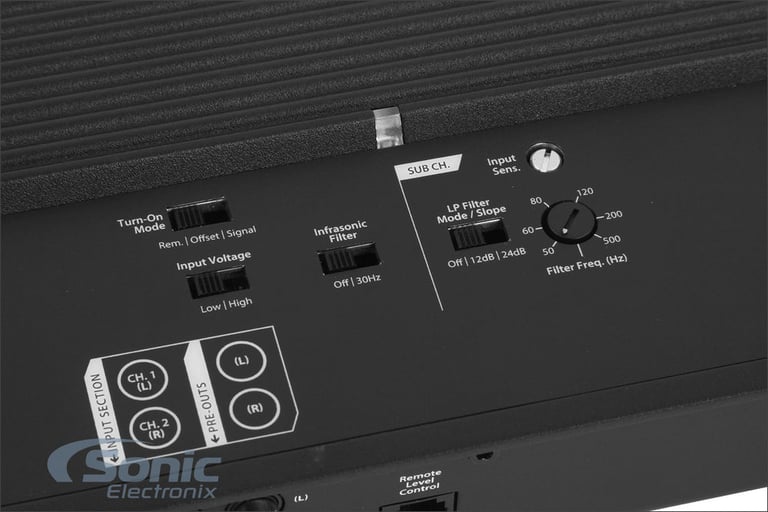

JL Audio XD1000/1v2-Refurbished Image 4 — JL Audio XD1000/1v2-Refurbished

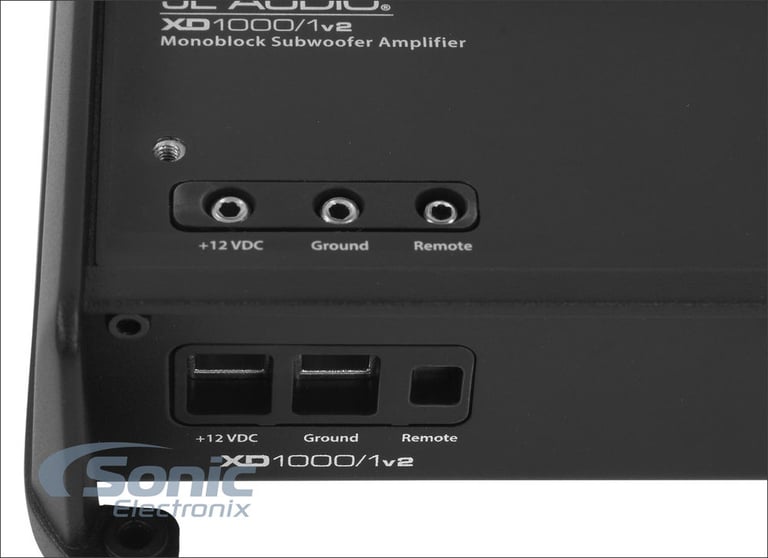

JL Audio XD1000/1v2-Refurbished Image 5 — JL Audio XD1000/1v2-Refurbished

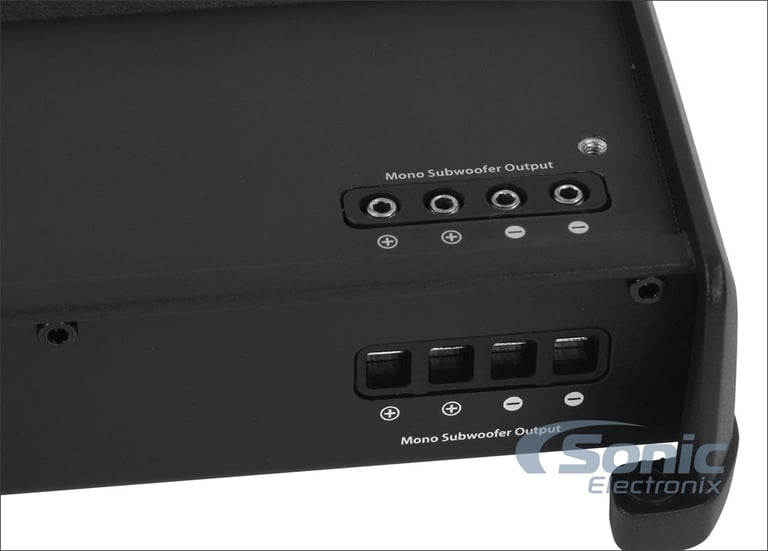

JL Audio XD1000/1v2-Refurbished Image 6 — JL Audio XD1000/1v2-Refurbished

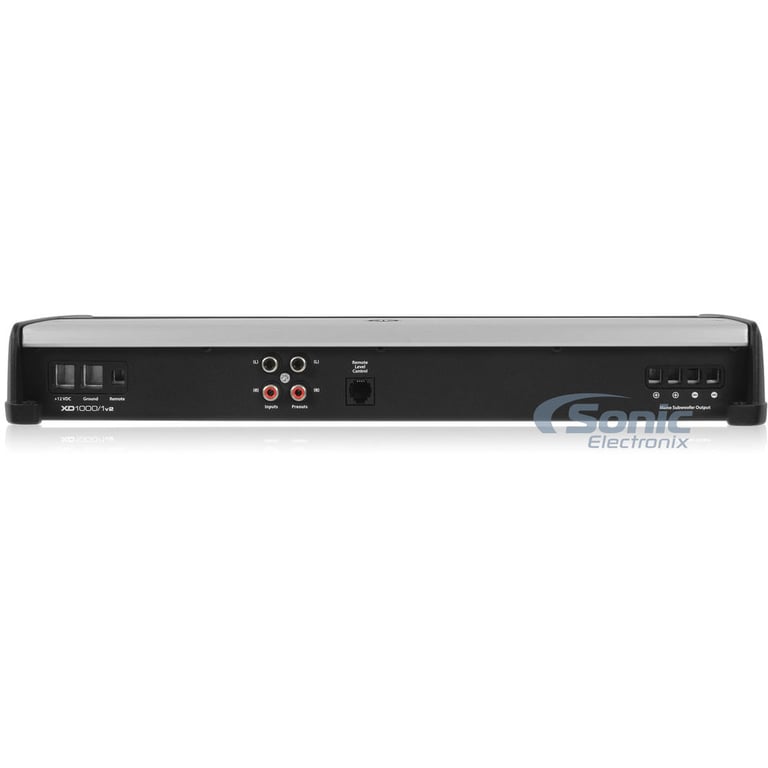

JL Audio XD1000/1v2-Refurbished Image 7 — JL Audio XD1000/1v2-Refurbished

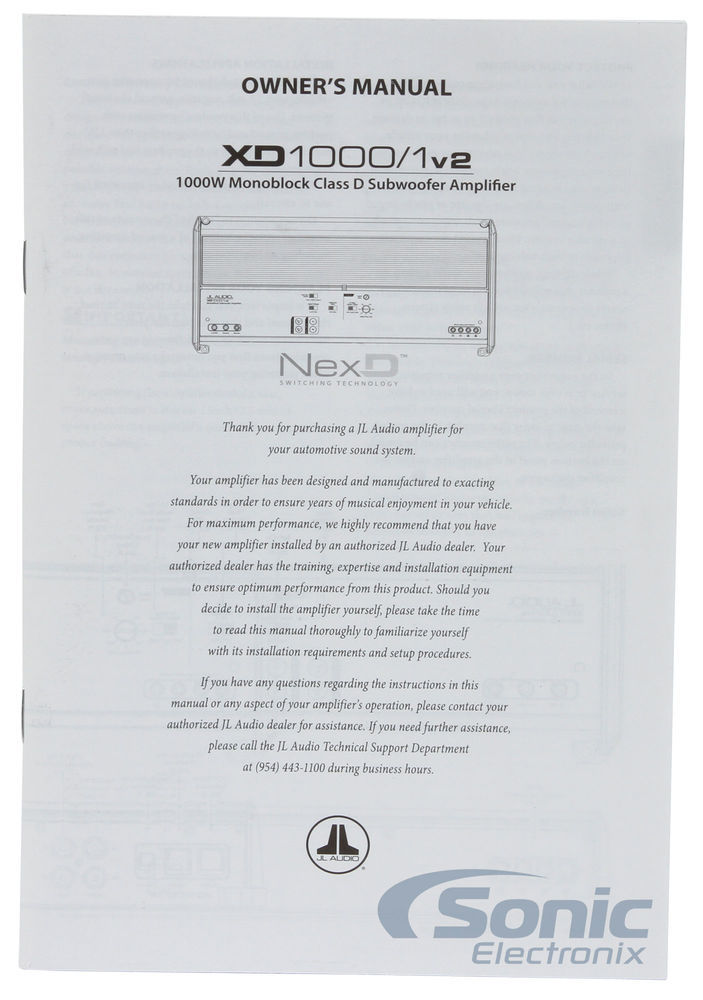

JL Audio XD1000/1v2-Refurbished Image 8 — JL Audio XD1000/1v2-Refurbished

JL Audio XD1000/1v2-Refurbished Image 9 — JL Audio XD1000/1v2-Refurbished

Product highlights

• RMS: 600 W x 1 @ 4 ohm, 800 W x 1 @ 3 ohm, 1000 W x 1 @ 2 ohm
• NexD Switching Technology
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• Selectable Low-Pass Filter Slope: 12 dB or 24 dB
• Detented, Calibrated Filter Freq. Potentiometer

Learn more about the ls-xd10001v2-obc9

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Item Condition - Refurbished:
A Refurbished product has been professionally restored to working order. Typically this means that the product has been inspected, cleaned, and repaired to meet manufacturer specifications. The product may or may not be in its original packaging and could be in a plainly labeled simple box. The manufacturer or refurbisher warranty must apply and should be included in the product description or comments. Any parts or accessories that are not included will also be detailed in the product description. Refurbished items are sometimes referred to as "certified repaired," "recertified," or "remanufactured."

General Features:

XDv2 Series Class D Monoblock Amplifier
RMS Power Rating @14.4V:

4 ohm: 600 watts x 1 chan.
3 ohm: 800 watts x 1 chan.
2 ohm: 1000 watts x 1 chan.
1 ohm: ----------N/A----------

RMS Power Rating @12.5V:

4 ohm: 500 watts x 1 chan.
3 ohm: 650 watts x 1 chan.
2 ohm: 800 watts x 1 chan.
1 ohm: ----------N/A----------

NexD High Speed Switching Class D Technology
Wired HD-RLC remote level control available, sold separately
LED power (green), over-current (yellow) and protect (red) indicators
Advanced Rollback Protection
Dual-Range Differential Balanced Input Section
Buffered pass-through preamp RCA outputs
Selectable turn-on modes: REM / Offset / Signal

+12 V Remote Turn-On: Traditional remote lead wire, from headunit
DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)

Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
3-way protection circuitry (thermal, overload, and speaker short protection)
Detented, Calibrated Filter Freq. Potentiometer
12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover
Input sensitivity:

Low level: 800mV - 8V
High level: 200mV - 2V

Frequency Response: 7 - 500 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: >83 dB
Damping Factor @ 4 ohm: >1000 / 50 Hz
Selectable Infrasonic Filter: Off / 30 Hz
Selectable Low-Pass Filter Slope: 12 dB or 24 dB
Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
Fuse Rating: 80A x 1 inline (not supplied)
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Weight: 8.50 lb
Dimensions: 7.09"W x 14.73"L x 2.05"H
Authorized Internet Dealer
2 Year Manufacturer's Warranty

Check out the JL Audio XD1000/1v2 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

600 watts x 1 channel

RMS Power @ 2 ohms

1000 watts x 1 channel

Amplifier Specifications

Series

XD-v2 Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 500 Hz

Subsonic Filter

Off - 30 Hz

Signal-to-Noise Ratio

>83 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio HD-RLC

Fuse Rating

80A X 1 In-Line Fuse Recommended

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

2 years

Labor Warranty Duration

2 years

Warranty Provider

Manufacturer
