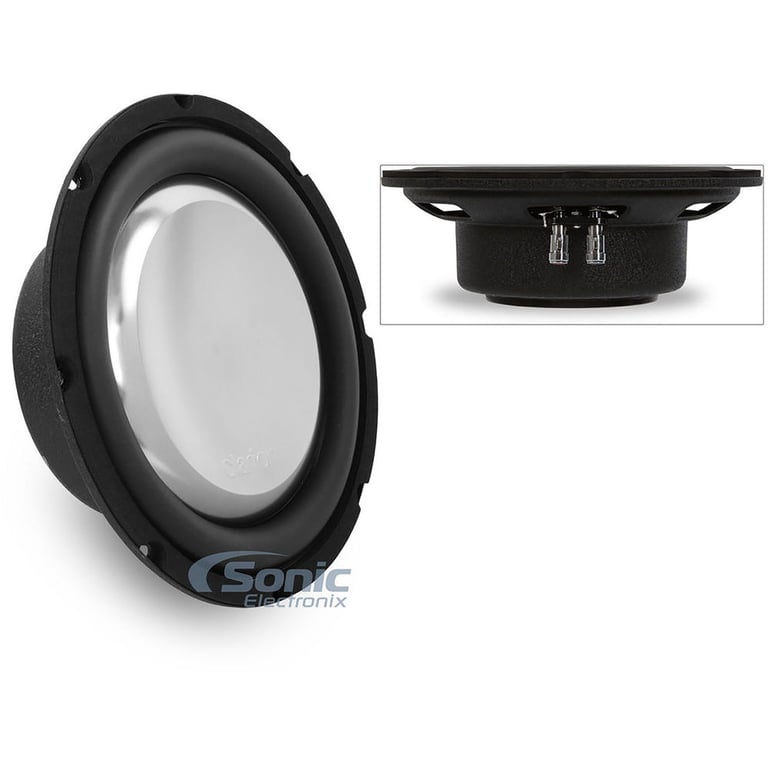

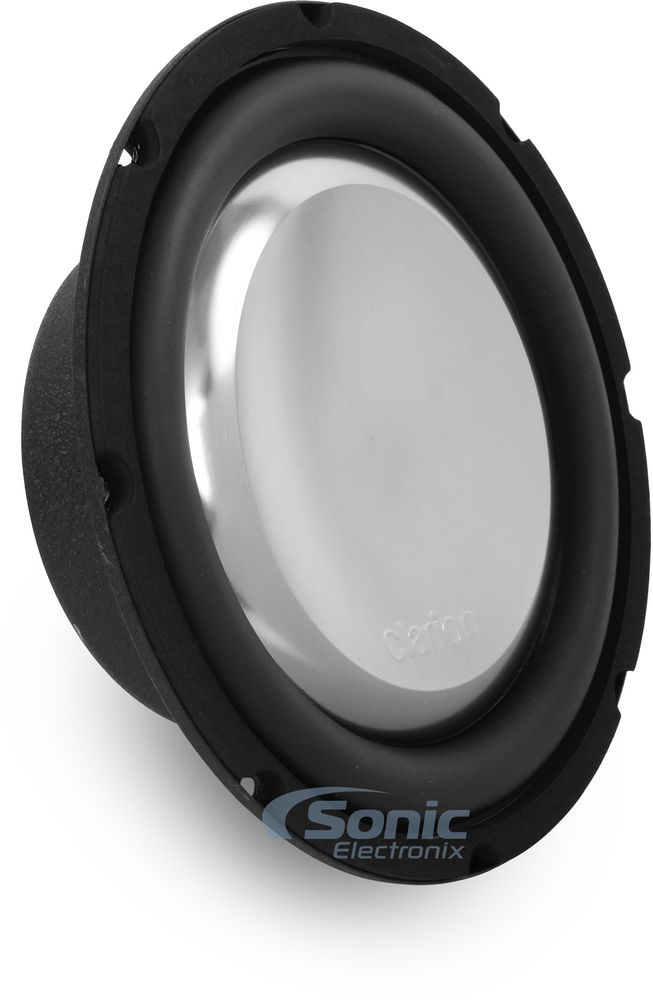

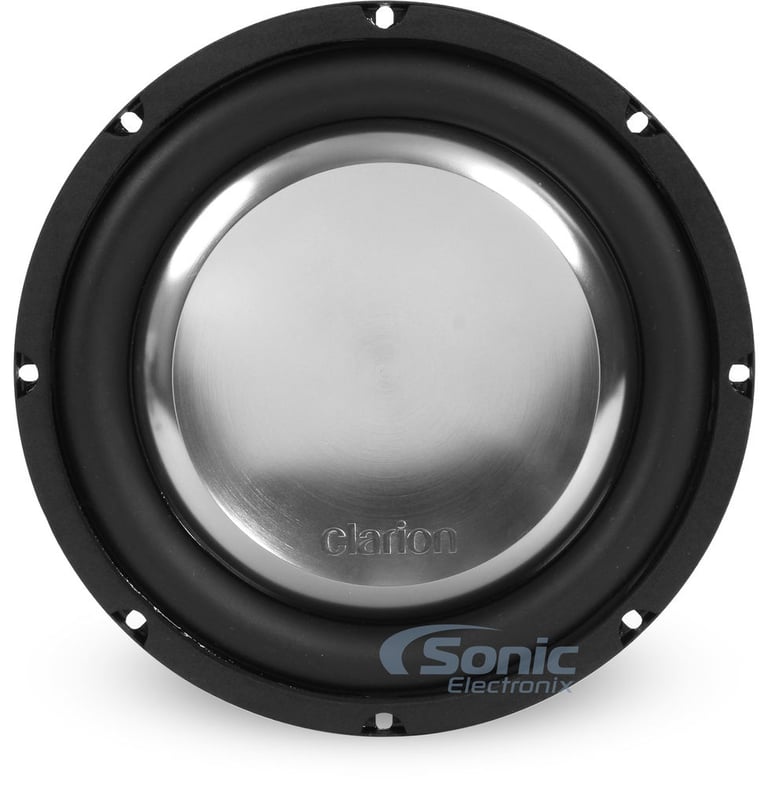

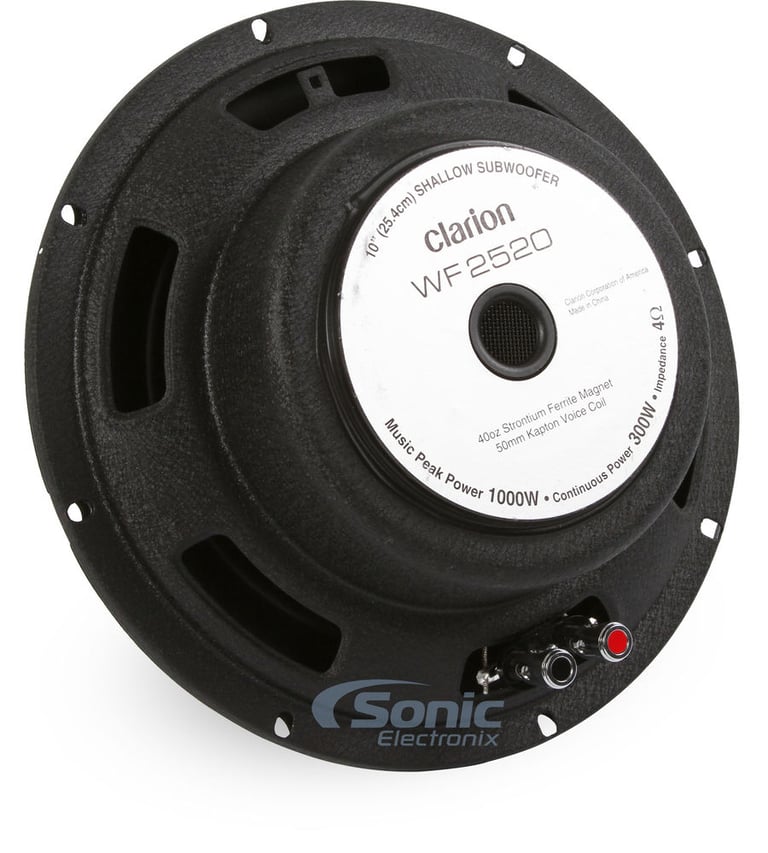

Clarion WF2520

300W 10" WF Series Shallow Mount Single 4 Ohm Subwoofer

Clarion
Shop all Clarion
Product videos
highlight-star-icon

• 1000W Peak
• 300W RMS
• Single 4 ohm Voice Coil
• Reinforced SPP Cone
• Nitrile Butadiene Rubber High Excursion Surround
• Hyper Extended Rear Vented Pole Piece
• Linear Cotton Spider with Integrated Tinsel Leads
• Spring Loaded Push Terminals

Learn more about the wf2520

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-25.50%

$298.00

List price $399.99

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

XAV-AX3200, BLPCAM2 main

Sony XAV-AX3200 with License Plate Camera

6.95" Double-DIN Touchscreen Digital Multimedia Receiver with License Plate Backup Camera

72
-32.40%

$337.99

List price $499.98

Product Highlights


• 1000W Peak
• 300W RMS
• Single 4 ohm Voice Coil
• Reinforced SPP Cone
• Nitrile Butadiene Rubber High Excursion Surround
• Hyper Extended Rear Vented Pole Piece
• Linear Cotton Spider with Integrated Tinsel Leads
• Spring Loaded Push Terminals

Description


Clarion brand icon

Authorized dealer

Best Bang for Your Buck!
Clarion WF2520
Clarion
WF2520
Kenwood KFC-XW1000F
Kenwood
KFC-XW1000F
10"
Subwoofer Size
Shallow Mount
Subwoofer
CEA-2031
Speaker Rating
Top-Mount
Depth
3-1/8" 3-3/8"
RMS
Power Handling
300 Watts 250 Watts
Sale
Price
$79.99 $109.95


General Features:

  • 10" Single 4 Ohm WF Series Shallow Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 300 watts
  • Reinforced SPP cone
  • Nitrile butadiene rubber high excursion surround
  • Hyper extended rear vented pole piece
  • Linear cotton spider with integrated tinsel leads
  • Custom shallow stamped steel powder coated basket

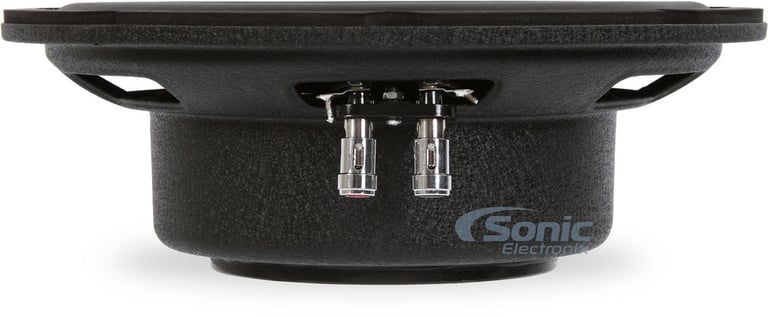

  • Spring loaded push terminals
  • Heavy duty black aluminum voice coil
  • Aluminized IPP dust cap
  • Top-mount depth: 3-1/8"
  • Sensitivity: 85 dB
  • Also available in Dual-4ohm: Clarion WF2520D
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer


Product history:

Clarion WF2520 thumbnail
(newest, current model)
Clarion WF2510 thumbnail
(previous model, replaced by Clarion WF2520)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Clarion WF2520 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Clarion WF2520 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Clarion WF2520 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Clarion WF2520 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
WF Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
40 - 1000 Hz
Sensitivity
83 dB
Xmax (millimeters)
5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Reinforced SPP Cone
Woofer Surround
Nitrile Butadiene Rubber NBR
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Optimum Sealed Box Volume
0.45 cubic feet
Maximum Sealed Box Volume
0.70 cubic feet
Minimum Ported Box Volume
0.40 cubic feet
Optimum Ported Box Volume
0.60 cubic feet
Maximum Ported Box Volume
0.80 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/8"
Cutout Diameter
9-7/32"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
45 Hz
Equivalent Compliance (Vas)
16.004 liters
Total Speaker Q Value (Qts)
0.737
Electrical Q Value (Qes)
0.844
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

WF2520

Weight:

8.00lbs

Internal SKU:

wf2520

Internal Product ID:

69692

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews


Clarion WF2520 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.9
Design
5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Sounds great, good value

Sounds good, has plenty of power to to sound great in a crew cab truck.

By Joshua on September 29, 2014

26 found this helpful


excellent subwoofer

Excellent product, very good quality, sounds excellent, I refer to anyone who wants quality sound.

By Rodrigo on January 2, 2014

24 found this helpful


Impresive

Finally got these Clarion subs hooked up.
They are installed in a MTX Thunderform in a '02 Dakota R/T CC.
Powered them with a Kenwood Mono Block amp KAC-8101D.
I lined the inside of the Thunderform with Dyna Mat.
Very Impressed with the smooth sound from these units.
I was not looking for the big "boom boom" sound that you a lot of now a days, just nice smooth bass to balance out the listening experience.
I would recommend these subs to anyone.

By Kota 360 on August 2, 2014

22 found this helpful


Great speakers at a great price!

Bought a new touch-screen stereo for my truck and wanted to add a box, amp, and speakers. Got recommendations on several brands and tried to find a good price with a reputable company. Sonic Electronix completely delivered! Thank you!

By Kevin on May 8, 2015

21 found this helpful


thumps

this is a great sub it hits hard for a shallow mount with a great value i have it bridged on my amp and i love it getting another soon

By charles on October 3, 2013

16 found this helpful


Damn good bass for the size and price.

I've always been skeptical on the shallow subs, assuming they were inferior to the full sized/deep subs... but once I installed this sub into the shallow box also purchased here, I was throughly shocked and impressed.
It's powered by a Memphis 400 at 4ohms.
My goal was for it and the amp to be hidden in my spare tire location, under the trunk floor, invisible through the window of my hatchback.
It hits very hard notes and surprised the hell out of me, even sounding better than my ported 12" Rockford P2 it replaced!
I'd definitely suggest it to anyone looking for a budget, name brand, shallow/incognito setup.

Would've given all 5stars if it came in a 2ohm option.

By Kenneth on April 15, 2016 Checkmark Icon Verified purchase

11 found this helpful


Great Speakers Great Value

The following review is for a previous version (WF2510).

I decided to up grade my subs, I made a good choice they rock!!

By tc2010tc on March 13, 2013

4 found this helpful




iC-PIOP small

PAC iC-PIOP

PAC iPod+ Adapter for Pioneer P-Bus Units, Charges and Sends Audio Signal Only (no head unit controls)

(11)

$31.96

List price $39.95

R1G-12 small

Rockford Fosgate Prime R1G-12

12" Prime R1 Stamped Mesh Grille Insert for R1 12" Subwoofer Trim Rings

(3)

$19.99

List price $31.99

WF2510 small

Clarion WF2510

10" Single 4 ohm Shallow Mount WF Series Car Subwoofer

(1)

$79.99

List price $179.99

SGRU-15 small

JL Audio SGRU-15

15" Custom-Engineered Protective Steel Mesh Subwoofer Grille

$33.99

List price $35.99

THDFKKP 2 12 small

Ground Shaker THDFKKP 2 12

12" Dual Ported/Vented Solo-Baric Pro Subwoofer Enclosure

$109.95

List price $269.95

THDFP 2 10 small

Ground Shaker THDFP 2 10

10" Dual Ported/Vented Solo-Baric Pro SUV Subwoofer Enclosure

$191.95

List price $261.00

TS-D10LS2 small

Pioneer TS-D10LS2

1300W Peak (350W RMS) 10" D-Series Single 2-ohm Shallow Car Subwoofer

$153.00

List price $260.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Land Rover Range Rover Evoque

2003 Chevrolet Corvette

1986 Ford EXP

1981 Ford Bronco

2012 Lincoln MKX

2002 Ford Escape

2001 BMW 525i

1983 Buick LeSabre

1997 GMC C3500

1992 Audi 100

Vehicle
Store
Delete

2000 Harley Davidson FXSTD/I Softail Deuce

1996 Honda GL1500I Gold Wing Interstate

2007 Harley Davidson FXDSE Screamin Eagle Dyna

2011 Harley Davidson FLHTK Electra Glide Ultra Limited

Vehicle
Store
Delete

2022 Can-Am Defender MAX HD9 DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
