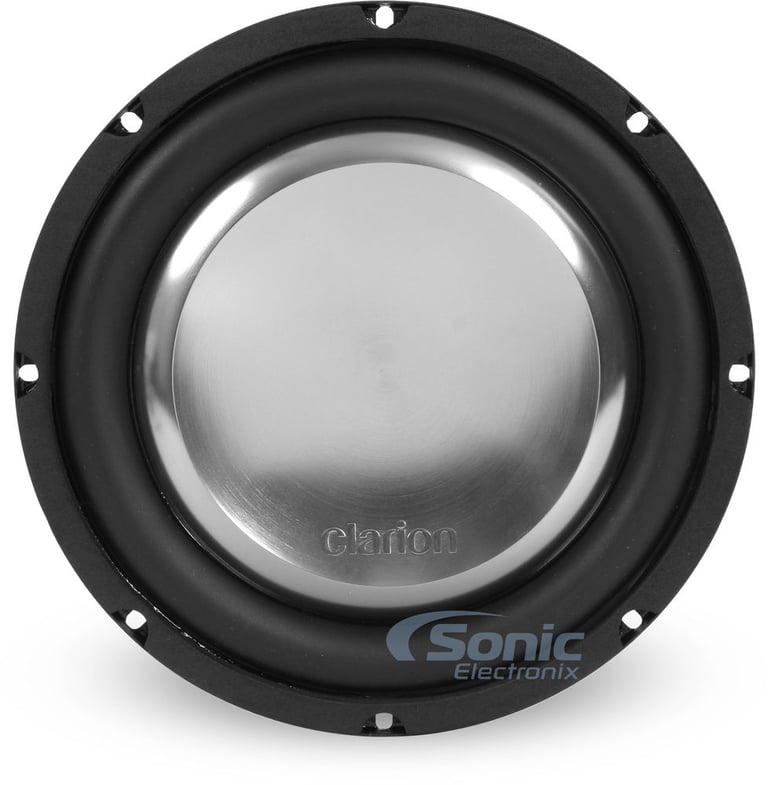

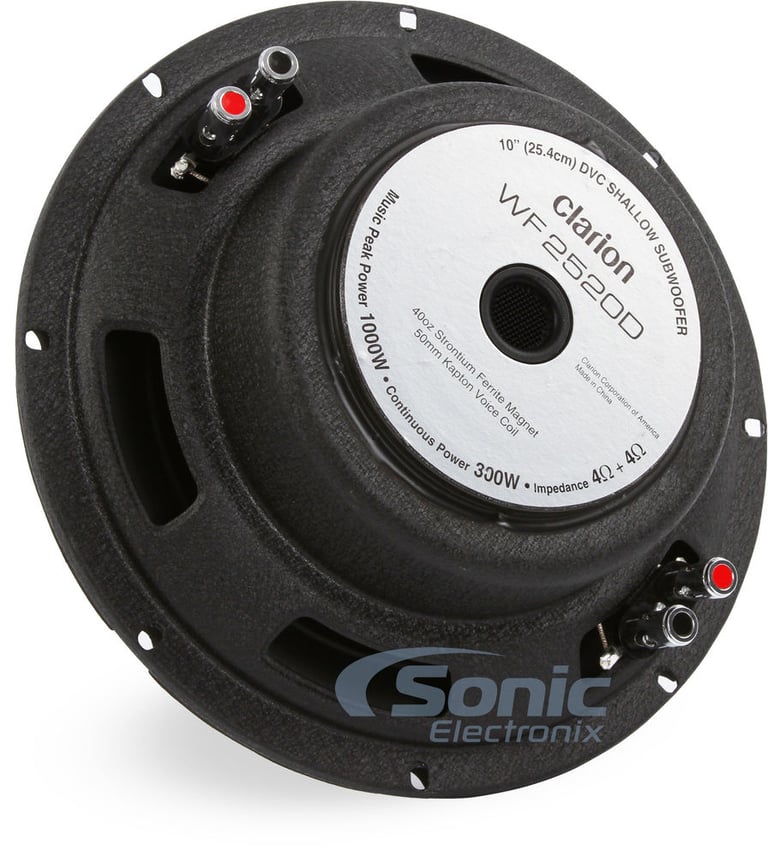

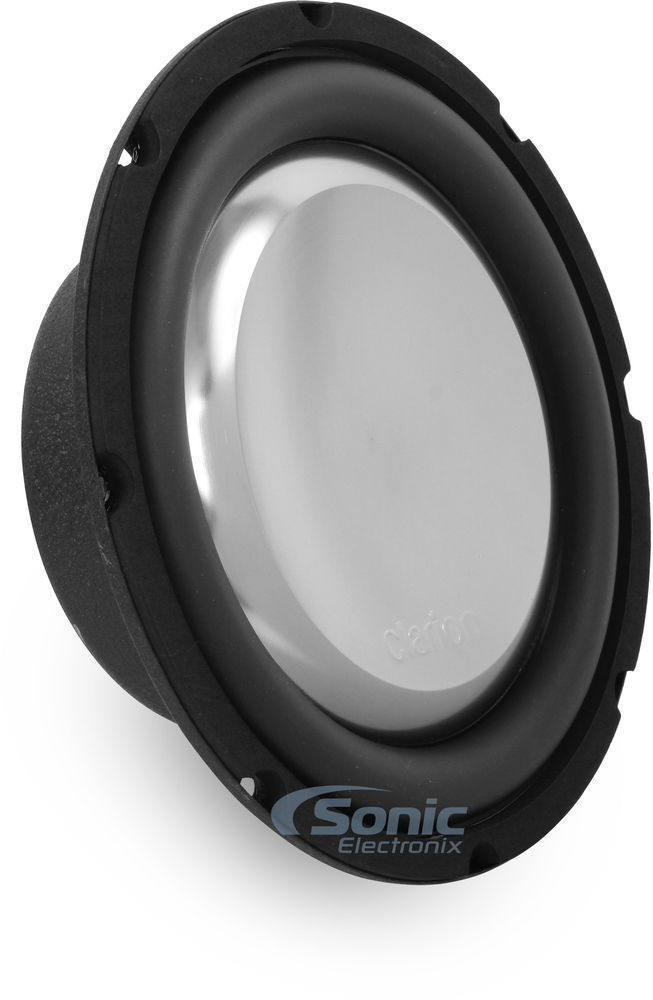

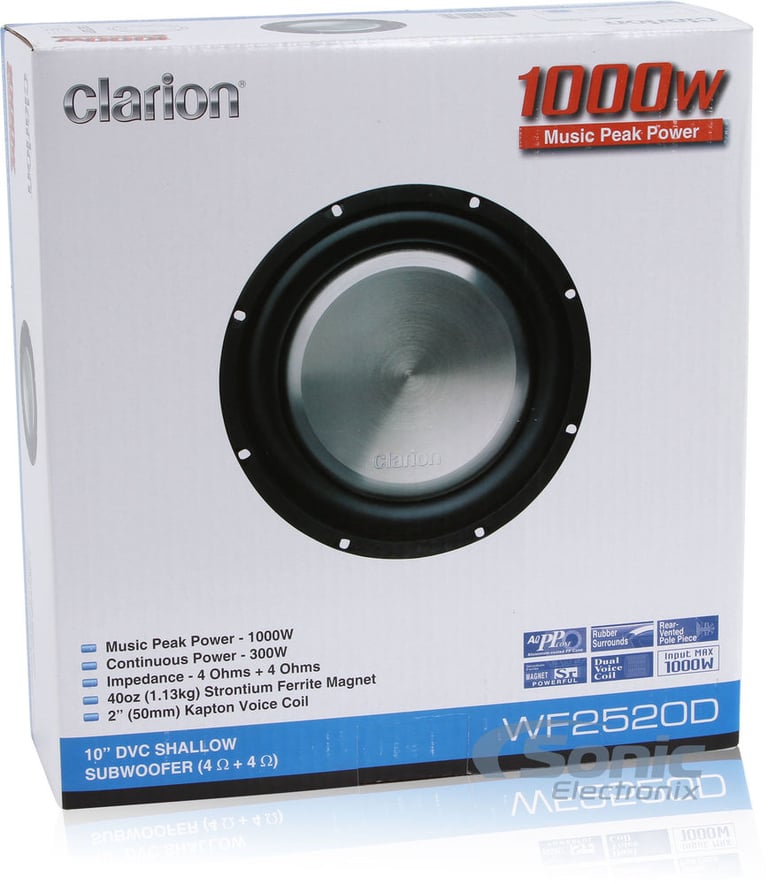

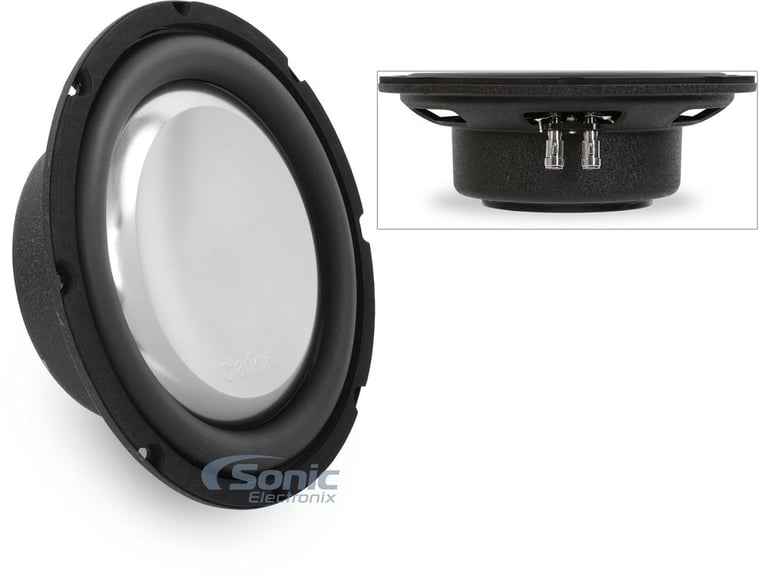

Clarion WF2520D

300W 10" WF Series Shallow Mount Dual 4 Ohm Subwoofer

Clarion
Shop all Clarion
Product videos
highlight-star-icon

• 1000W Peak
• 300W RMS
• Dual 4 ohm Voice Coil
• Reinforced SPP Cone
• Nitrile Butadiene Rubber High Excursion Surround
• Hyper Extended Rear Vented Pole Piece
• Linear Cotton Spider with Integrated Tinsel Leads

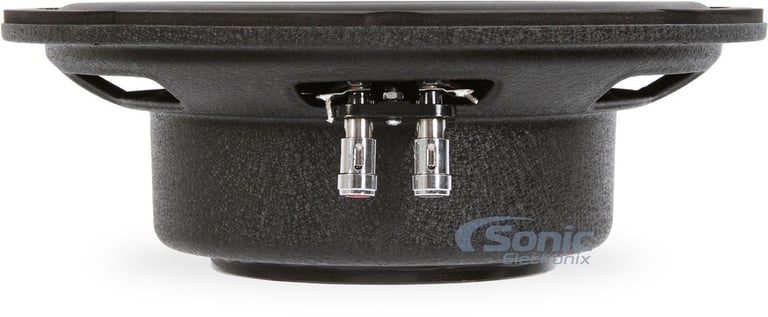

• Spring Loaded Push Terminals

Learn more about the wf2520d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


• 1000W Peak
• 300W RMS
• Dual 4 ohm Voice Coil
• Reinforced SPP Cone
• Nitrile Butadiene Rubber High Excursion Surround
• Hyper Extended Rear Vented Pole Piece
• Linear Cotton Spider with Integrated Tinsel Leads
• Spring Loaded Push Terminals

Description


Clarion brand icon

Authorized dealer

Best Bang for Your Buck!
Clarion WF2520D
Clarion
WF2520D
Pioneer TS-SW2502S4
Pioneer
TS-SW2502S4
10"
Subwoofer Size
Shallow Mount
Subwoofer
3-1/8"
Mount Depth
300 Watts RMS
Power Handling
CEA-2031
Speaker Rating
Sale
Price
$74.99 $89.99


General Features:

  • 10" Dual 4 Ohm WF Series Shallow Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 300 watts
  • Reinforced SPP cone
  • Nitrile butadiene rubber high excursion surround
  • Hyper extended rear vented pole piece
  • Linear cotton spider with integrated tinsel leads
  • Custom shallow stamped steel powder coated basket
  • Spring loaded push terminals
  • Heavy duty black aluminum voice coil
  • Aluminized IPP dust cap
  • Top-mount depth: 3-1/8"
  • Sensitivity: 85 dB
  • Also available in Single-4ohm: Clarion WF2520
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 Clarion WF2520D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Clarion WF2520D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Clarion WF2520D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Clarion WF2520D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
WF Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
40 - 1000 Hz
Sensitivity
83 dB
Xmax (millimeters)
5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Reinforced SPP Cone
Woofer Surround
Nitrile Butadiene Rubber NBR
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Optimum Sealed Box Volume
0.45 cubic feet
Maximum Sealed Box Volume
0.70 cubic feet
Minimum Ported Box Volume
0.40 cubic feet
Optimum Ported Box Volume
0.60 cubic feet
Maximum Ported Box Volume
0.80 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/8"
Cutout Diameter
9-7/32"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
45 Hz
Equivalent Compliance (Vas)
20.168 liters
Total Speaker Q Value (Qts)
0.912
Electrical Q Value (Qes)
1.085
Electrical Resistance of Voice Coil (Re)
7.2 ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

WF2520D

Weight:

8.50lbs

Internal SKU:

wf2520d

Internal Product ID:

69693

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box

Customer Ratings & Reviews


Clarion WF2520D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

good sound

I put this in my homies truck powered off a RF amp 300 rms n a tiny .55 sealed box with some pollyfill sub sounds real clean n hits pretty good givin the tiny space n its right outa the box. Never really was a clarion fan till I got this sub and the 12 in regular wg3020 in a .9 sealed also with pollyfill both subs sound great n both r built pretty well.

By jocelyn on March 13, 2014

34 found this helpful


Awesome sound

I have 2 of these little monsters hooked up to a Kicker cx1200.1 and they rock. If you like hard crisp bass with no reverb these are the ticket. Going to buy another set. make sure to build you enclosure to correct specs. .45 cf sealed and you will not be disappointed.

By Donnie on September 2, 2014

26 found this helpful
