Name: Alpine MRV-F300 Open Box Complete
Brand: Alpine
SKU: ls-mrvf300-obc6
Price: 129.95 USD
Availability: Discontinued

by Alpine

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

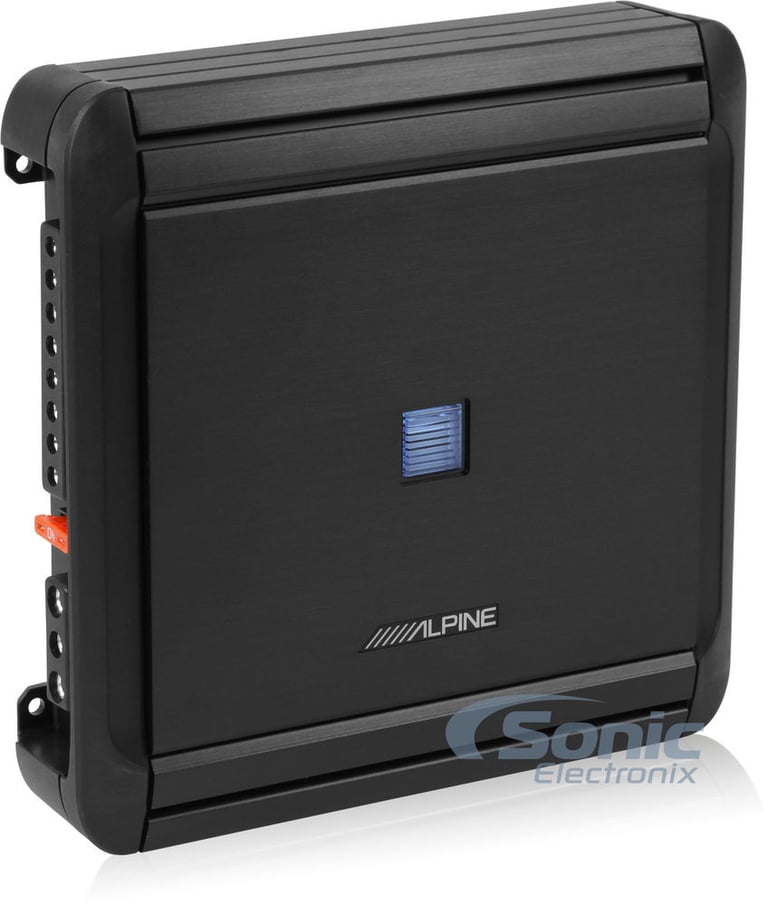

Alpine MRV-F300 Open Box Complete Image 1 — Alpine MRV-F300 Open Box Complete

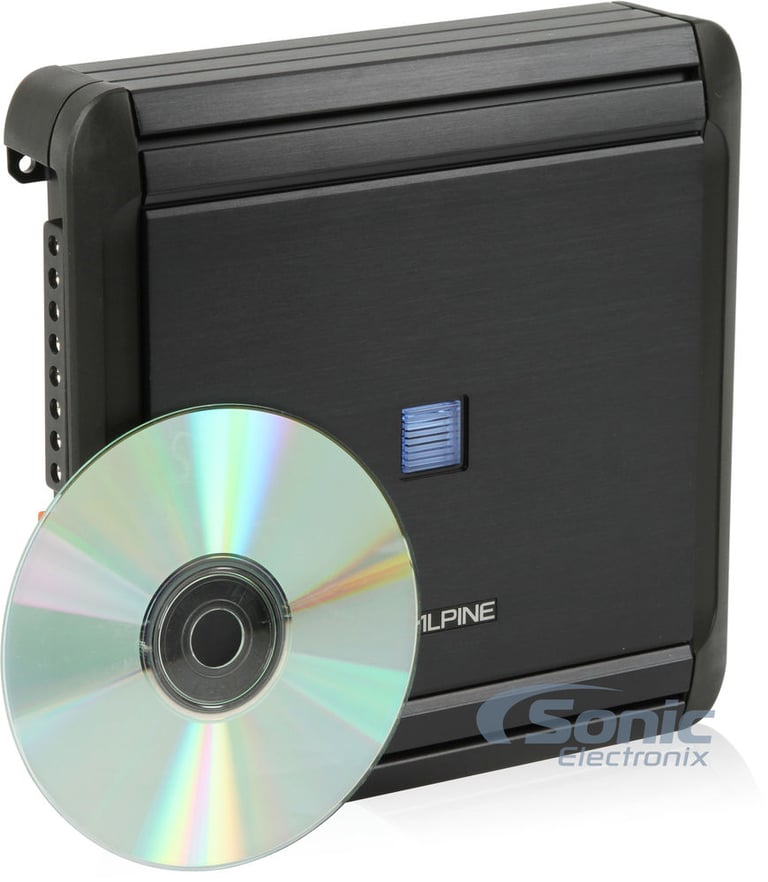

Alpine MRV-F300 Open Box Complete Image 2 — Alpine MRV-F300 Open Box Complete

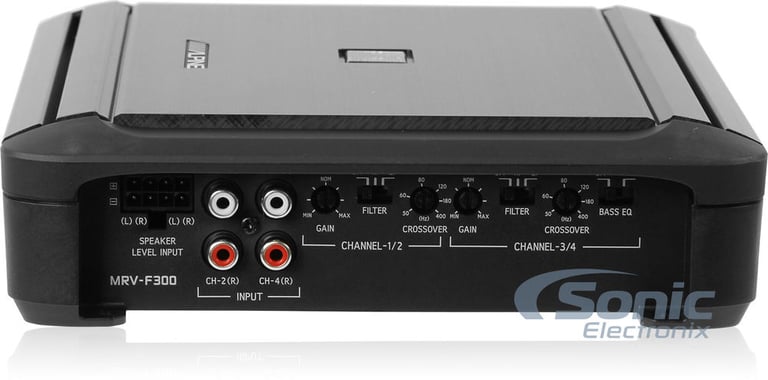

Alpine MRV-F300 Open Box Complete Image 3 — Alpine MRV-F300 Open Box Complete

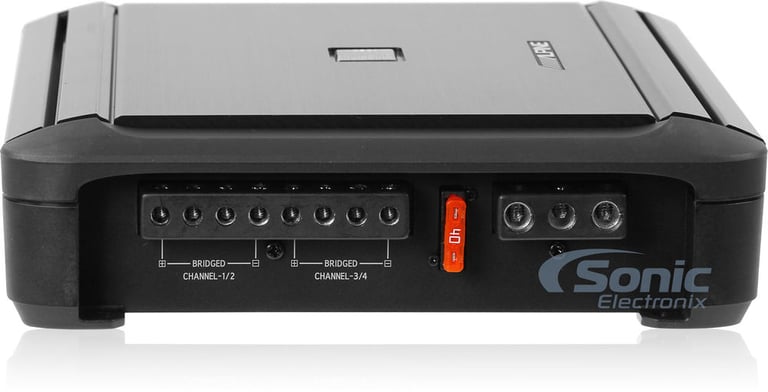

Alpine MRV-F300 Open Box Complete Image 4 — Alpine MRV-F300 Open Box Complete

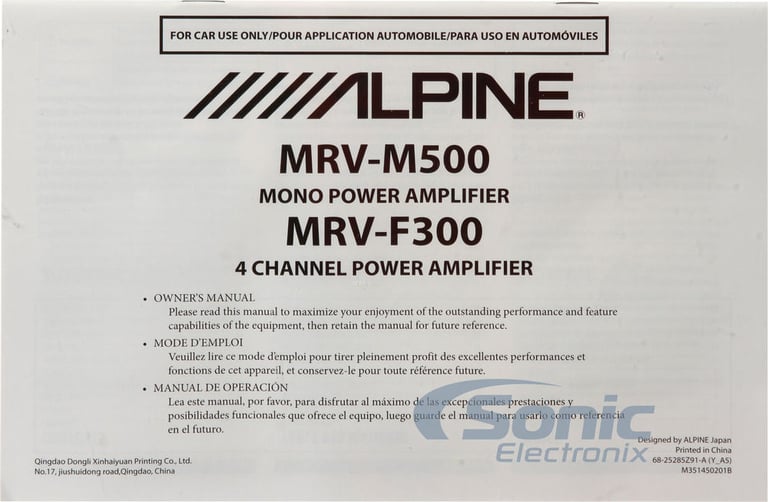

Alpine MRV-F300 Open Box Complete Image 5 — Alpine MRV-F300 Open Box Complete

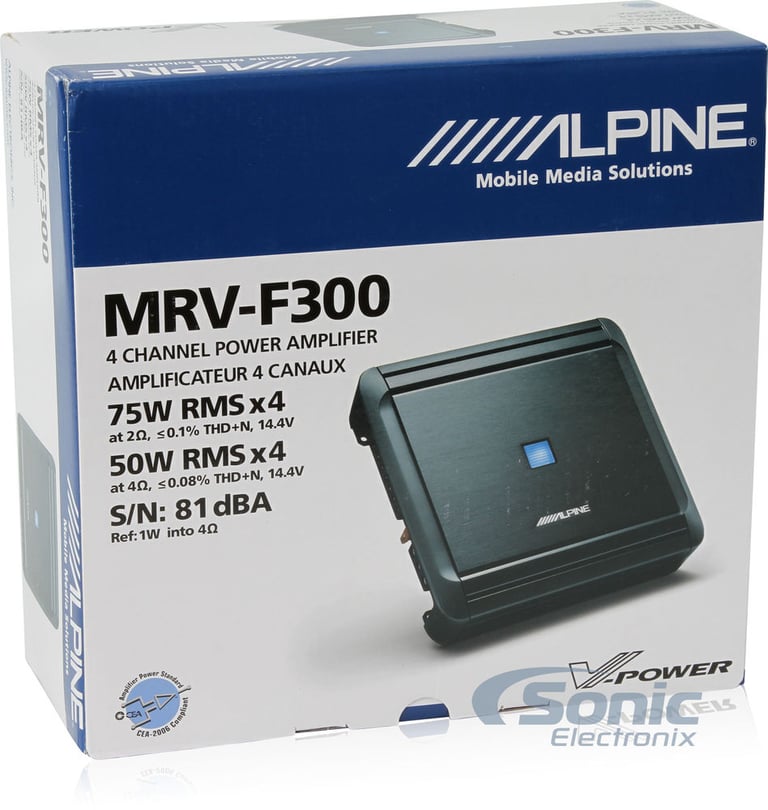

Alpine MRV-F300 Open Box Complete Image 6 — Alpine MRV-F300 Open Box Complete

Product highlights

• Item Condition: Open Box Complete
• RMS Power: 50W x 4-Chan. @ 4 ohm, 75W x 4-Chan. @ 2 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Same Power in a 40% Smaller Chassis

Learn more about the ls-mrvf300-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

A part that is fully functional but shows no sign of use outside of installation.

General Features:

V-Power Series 4-Channel Class D Car Amplifier
RMS Power Rating:

4 ohm: 50 watts x 4 chan.
2 ohm: 75 watts x 4 chan.
Bridged, 4 ohm: 150 watts x 2 chan.

Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Selectable Bass Boost (0 or +12 dB bass boost at 50 Hz)
Soft start turn-on
4/3/2 or Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Low level: 200mV-4V
High level: 500mV-10V

Variable high-pass filter (50-400 Hz, 12 dB/octave)
Variable low-pass filter (50-400 Hz, 24 dB/octave)
CEA-2006 compliant amplifier
8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 7-7/8"W x 7-7/8"L x 2-3/16"H
Authorized Internet Dealer
90 Day Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Series

V Power Series

Amplifier Class

Number of Channels

4-Channel

Total RMS Power Output

300 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.03%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 400 Hz

Low-Pass Crossover Frequency

50 - 400 Hz

Signal-to-Noise Ratio

98 dB

Bass Boost

Selectable 0/+12 dB

Remote bass/level controller

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
