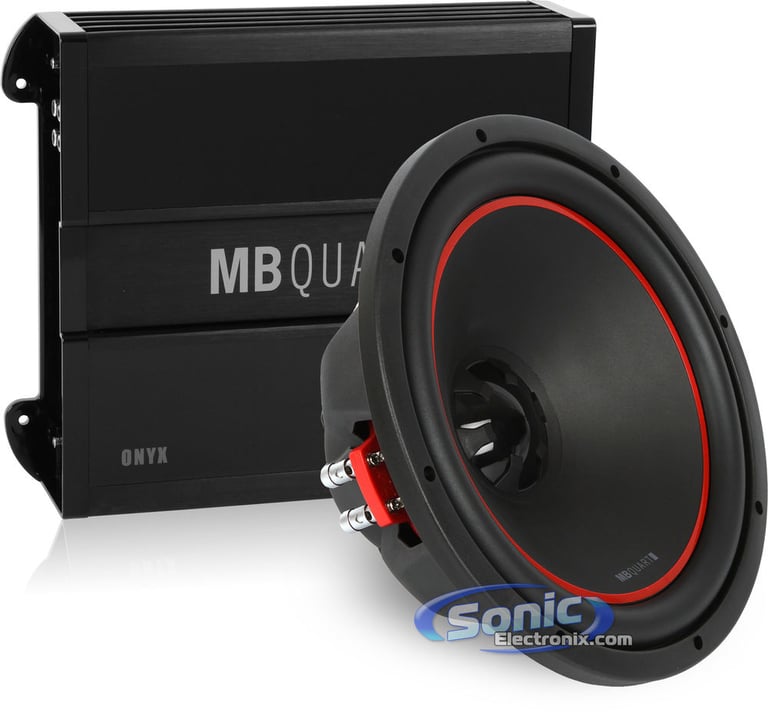

175W MB Quart Bass Bundle

MB Quart 175W 12" Subwoofer + MB Quart 400W Amplifier

MB Quart
Shop all MB Quart
highlight-star-icon

• 12" Dual 4-Ohm Onyx Series Subwoofer
• 350W Max
• Frequency Response: 35-250 Hz
• Onyx Series 2-Channel Car Amplifier
• Variable Bass Boost
• Preamp RCA Outputs to Daisy Chain Multiple Amps

Learn more about the onx2100_owc304

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

11
-38.81%

$20.80

List price $33.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

206
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Infinity REF-6532ex (REF6532EXAM)

330W Peak (110W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

8
-38.47%

$79.99

List price $130.00

Description


MB Quart brand icon

Authorized dealer

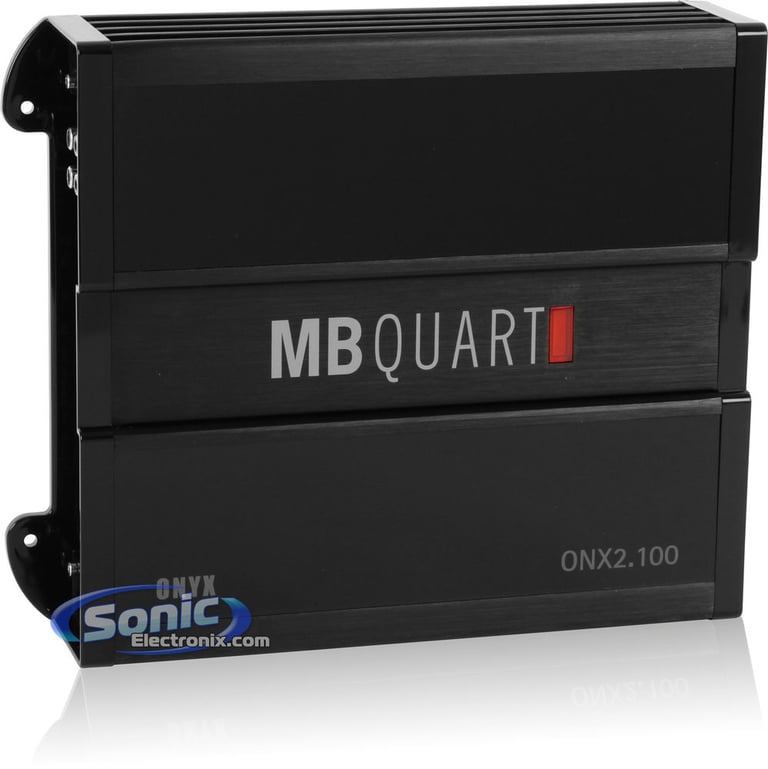

MB Quart ONX2.100

400W ONYX Series 2-Channel Amplifier (ONX-2.100)
Quantity: 1

  • ONYX Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 200 watts x 2 chan.
    • Bridged, 4 ohm: 400 watts x 1 chan.
  • CEA-2006 compliant amplifier
  • PWM (Pulse Width Modulated) MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz
  • 2/1 channel operation
  • Unbalanced RCA input jack
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Piano black gloss finish with illuminated logo
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation

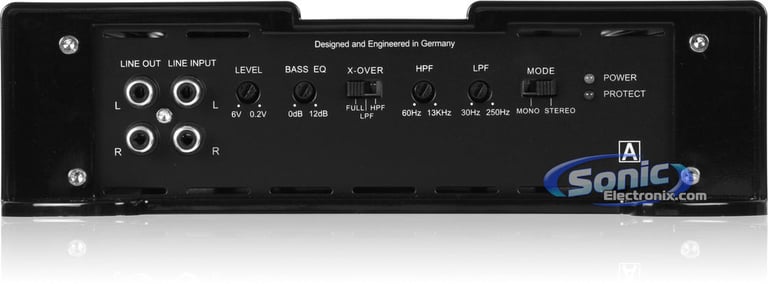

  • Silver-plated RCA level inputs

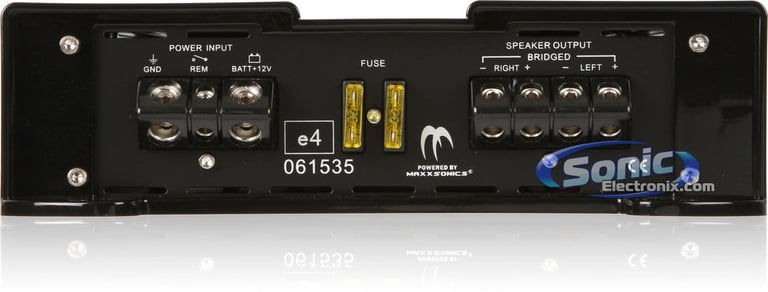

  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable high-pass filter (60-13,000 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 11-3/4"L x 9"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

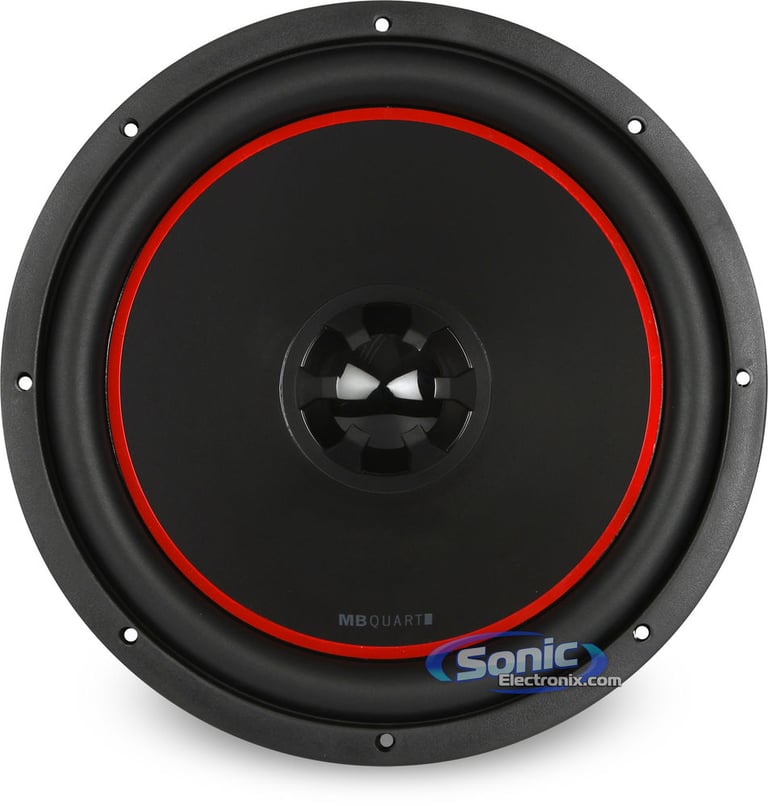

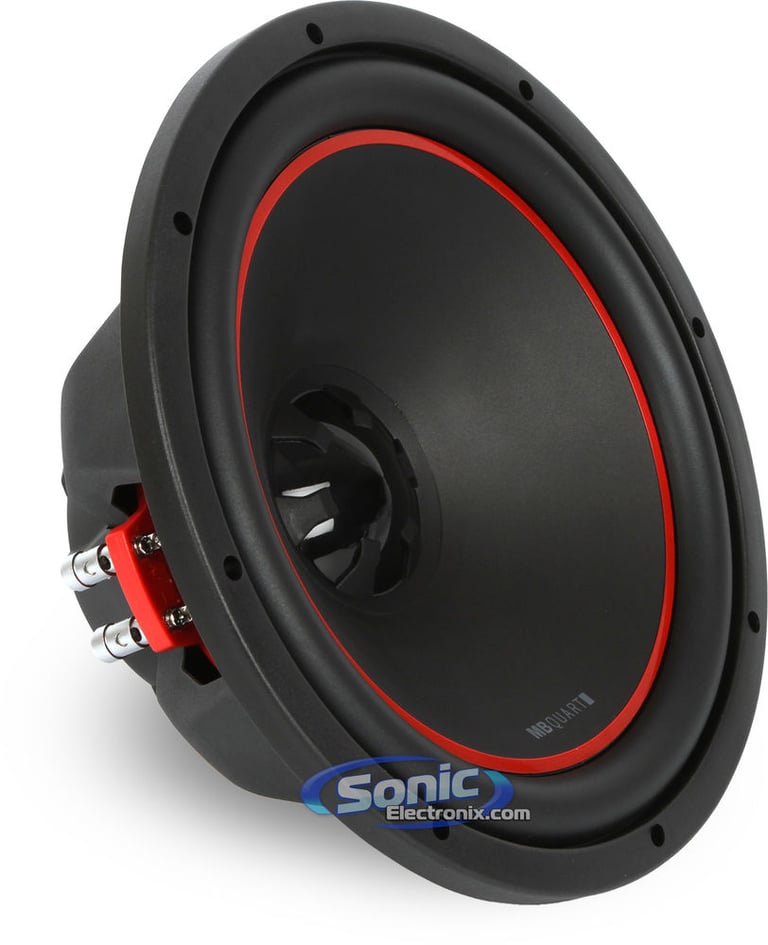

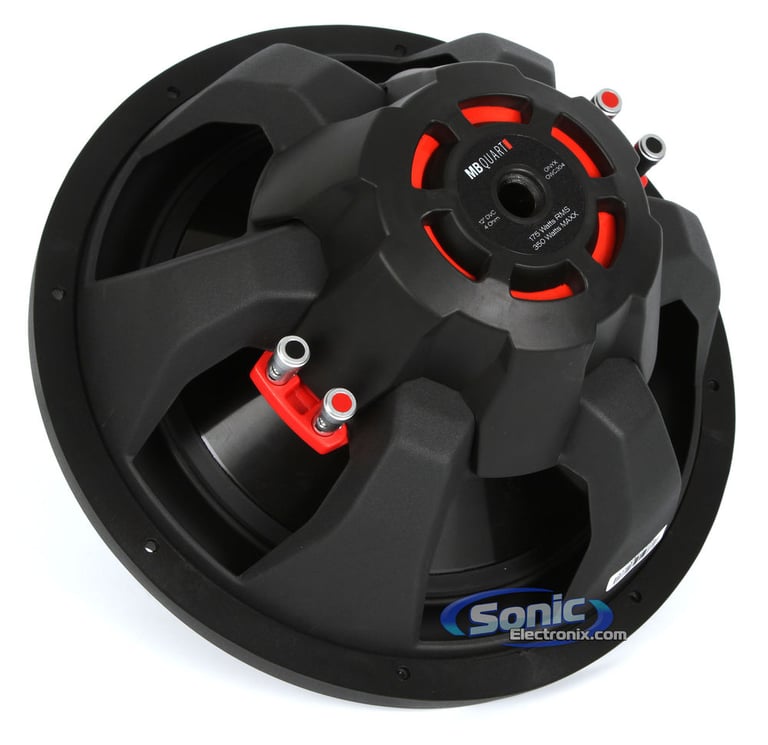

MB Quart OWC304

175W 12" Onyx Series Dual 4 ohm Subwoofer
Quantity: 1

General Features:

  • 12" Dual 4 Ohm Onyx Series Subwoofer
  • Power Handling:
    • Peak: 350 watts
    • RMS: 175 watts
  • Impedance: 4 ohm
  • Injection molded polypropylene cone
  • UV Resistant butyl rubber surround
  • Deep drawn heavy gauge stamped steel basket
  • Heavy duty textured powder coat finish
  • Red treated Nomex spiders
  • Push & Insert Style speaker terminals
  • Anti-resonant magnet cover
  • 1.5" High temperature aluminum voice coil
  • Heat-dispersing vented pole plate
  • Frequency response: 35-250 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Sensitivity: 84.6 dB
  • Top-mount depth: 6-1/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
