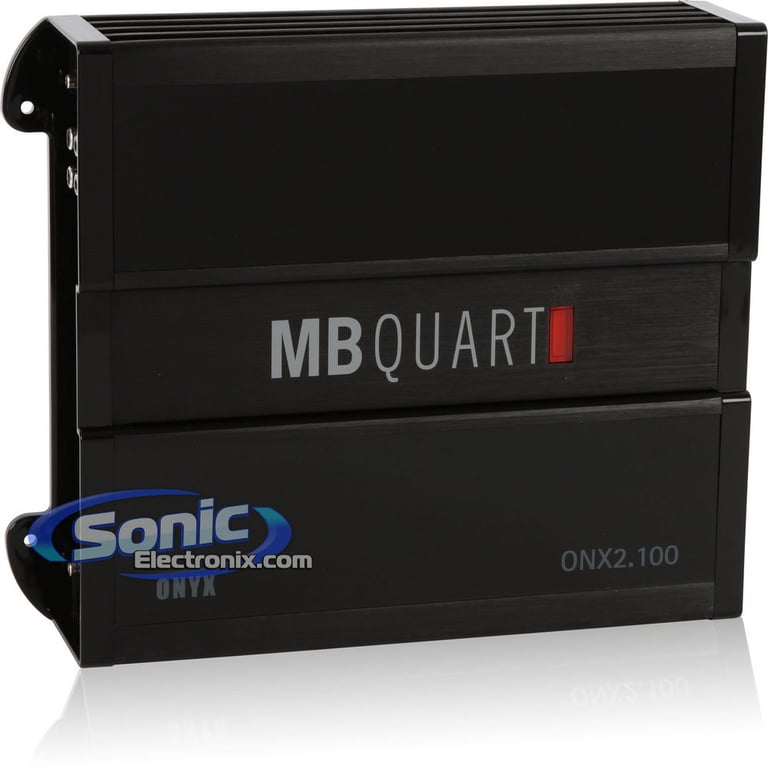

MB Quart ONX2.100

400W ONYX Series 2-Channel Amplifier (ONX-2.100)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• ONYX Series 2-Channel Class A/B Car Amplifier
• 4 ohm: 100 watts x 2 chan.
• 2 ohm: 200 watts x 2 chan.
• Bridged, 4 ohm: 400 watts x 1 chan.
• PWM (Pulse Width Modulated) MOSFET Power Supply

Learn more about the onx2100

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


• ONYX Series 2-Channel Class A/B Car Amplifier
• 4 ohm: 100 watts x 2 chan.
• 2 ohm: 200 watts x 2 chan.
• Bridged, 4 ohm: 400 watts x 1 chan.
• PWM (Pulse Width Modulated) MOSFET Power Supply

Description


MB Quart brand icon

Authorized dealer

Success is a Measurement of Quality and Power

The success of any car audio amplifier depends on system quality and construction, ease of installation and configuration, and sound enhancing features. MB Quart engineers built the all new Onyx series amplifiers from the ground up to be an affordable amplifier with the audiophile and performance enthusiast in mind. This series is composed of value-packed class A/B amplifiers that boast affordability without sacrifice to power or quality. All Onyx Amplifiers come clothed in a beautiful new age piano black finish which accents interiors and brings a whole new level of sophistication to swallow. To match, the line of Onyx Speakers shows off the same piano black finish applied to their polypropylene cone woofers. It’s a perfect match every time.

Speaking of features, Onyx amplifiers bring the full tuning spectrum to your fingertips with variable high-pass, low-pass and subsonic filters built-in. To increase endurance, MB Quart designed Onyx amplifiers with military grade printed circuit boards and built-in system diagnostics that keep these amps running strong. High speed MOSFET output devices are used in the power supply to give you the best watts-per-dollar ratio. It’s not hard to see how success has been written all over these amplifiers, though with a piano finish that looks that good, we know you will be staring.

  • ONYX Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 200 watts x 2 chan.
    • Bridged, 4 ohm: 400 watts x 1 chan.
  • CEA-2006 compliant amplifier
  • PWM (Pulse Width Modulated) MOSFET power supply
  • LED power (green) and protect (red) indicators

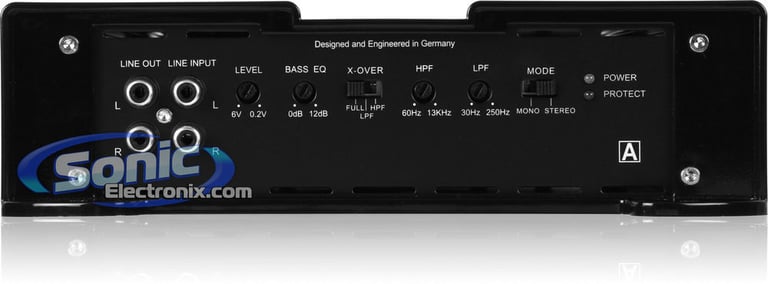

  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz
  • 2/1 channel operation
  • Unbalanced RCA input jack
  • Preamp RCA outputs to daisy chain multiple amps

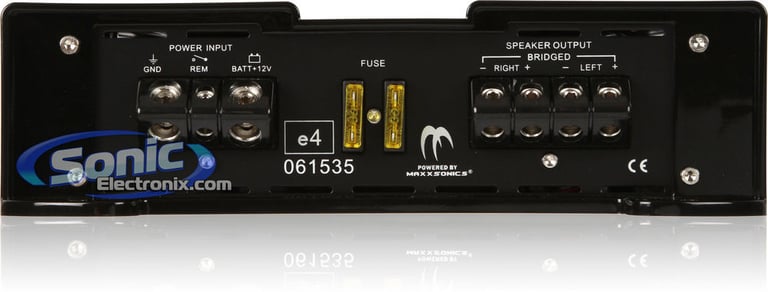

  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Piano black gloss finish with illuminated logo
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable high-pass filter (60-13,000 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 11-3/4"L x 9"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
Bridged RMS Power
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 13,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>92 dB
Channel Separation
>80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ONX2.100

Weight:

7.35lbs

Internal SKU:

onx2100

Internal Product ID:

44472

Product and How-to Videos


Customer Ratings & Reviews


MB Quart ONX2.100 thumbnail image

5 star
56%
4 star
44%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
4.7
Features
4.3
Design
4.7
Usability
4.5

Customer Reviews

Sort by:

Loading...

Mb quart amps are loud!

Have this amp wired to a 12 at 4 ohm mono and it sounds great. Rattles my car but not so bad I can't use the mirrors. Excellent amp from an even better place sonic!!!

By david on January 27, 2014

35 found this helpful


great product

I'm using these as front speakers in my RX-8 with an MB Quart 4-channel amp. They handle the power very well and provide a excellent sound quality.

By John on April 2, 2013

33 found this helpful


smooth looking

Very nice amplifier, nice weight and unique look. Very satisfied so far, hasn't gotten warm yet

By Thomas on January 7, 2014

33 found this helpful


Great CEA rated amp for the money.

I recently purchased this amp as a gift for my fiancee and I would have to say that its a great starter amp for the money. I have a polk audio 1540mm 15" subwoofer hooked up to this amp bridged at 4-ohms and it hits hard and accurate so I believe the rated 400-watts rms bridged.

Pros:
> Nice piano black gloss finish
> cea rated
> silver plated terminals (silver is a better conductor than gold or platnuim.
>small so its easy to mount in discreet areas like under a seat etc...
>low THD at Rated RMS Power 0.05%
> 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)

Cons:
> no speaker level inputs
>setting gain lpf and hpf is a little tricky sense its not a digital read just an analog knob.

All in all, A great amp for only
$70-90 and is CEA rated. Just make sure to set your gain properly with a multimeter or an o-scope.
If you have any questions I will gladly answer them :)

By Whitefox on July 3, 2013

32 found this helpful


Awesome amp!

Got this hooked up to my Sony 12" Xplod sub bridged at 400 watts and it's awesome! It replaced am MTX TC4004 which is only 200 watts bridged. Major difference. I was able to raise the output level on my Maxxsonics MX3 all the way up and it has increased my db output. I don't pay attention to the voltage settings printed on equipment. They're pretty much for reference only so I always go by my ears when setting my levels. There's no distortion and it has increased my overall sound. I have an ONYX 4.80 on the way to use on my highs as well. My one complaint would be the plastic mounting feet but it's a good thing they use plastic because I mounted the amp to the back of my seat which is metal. The beautiful piano black paint gives it a sweet look. I've always been a fan of Maxxsonics equipment and have maintained the MB QUART reputation. Definitely recommend this amp!

By Dwaine on March 3, 2013

32 found this helpful


MB Quart Amplifier

I purchased 3 of these amplifiers and am quite pleased with the output they provide. the sound is strong, clean and warm. I am just a guy that likes good music, not anyone that is looking to beat down the neighbor's house with a trunk full of subs. You can't go wrong with these amps and the price is amazing for what you get.

By Ace on February 13, 2013

32 found this helpful


wrong info

To the other reviewer, this amp is 200 watts at 4 ohm and 400 watts at 2 ohms. Please get your facts correct before you write a review.

By nemo on July 15, 2012

32 found this helpful


I like it

Bought this in the first place for a pair of 6x9 speakers in my old car, but now powering an 8" at 200w rms in my new car. It hits good and I'll probably be buying another of the same sub and i'm confident the amp will have no problem.

By Eric on November 16, 2014

30 found this helpful


Great amp for the $$!!!

I have this amp running a set of MB Quart PVL268 components in my Ford Escape. The amp has plenty of power and the sound quality is great for a amp of this price. The quality is top notch as well. My only complaint is the glossy finish. Its a fingerprint magnet. I highly recommend this amp to anyone looking to power a set of good components or some subs. It does put out 400 watts rms x 1 @ 4ohms, & maybe a little more. I hooked it up to a Alpine Type R that was 600 watts rms & it pushed it every bit as good as my friends Hifonics 600 watt monoblock...

By Jeremy on May 11, 2013

29 found this helpful


To the prior review...

But is says 400 watts rms "bridged"... For the 1st review are you using it bridged and does it really perform as 400 watt rms bridged amp for a sub?

By Orlando on July 30, 2012

30 found this helpful




2H12-1.5-GRAY small

Sonic Sub Box: 2H12-1.5 (Gray)

Dual 12" Hatchback MDF Enclosure

(9)

$44.99

List price $69.99

DA1-500.2 small

MB Quart DA1-500.2

500W 2-Channel Discus Series Full Range Car Amplifier

(1)

$78.97

List price $169.99

7260001 small

Weber 7260001

Summit S-460 Built-In Stainless Steel Natural Gas Grill with Center-Mounted Thermometer

$1799.99

List price $2299.99

RS10A-HP small

Bazooka RS10A-hp

$209.99

List price $459.99

8616 small

Naztech Ultima Alpine White Size 3 (8616)

Universal White Vertical Cell Phone Case with Magnetic Flip Cover

$7.49

List price $34.99

No picture

Kicker KX-Series 02KX500.2

$269.99

List price $599.99

2HK12-2.7 small

Sonic Sub Box: 2HK12-2.7 (BLACK)

Dual 12" Hatchback Kicker MDF Enclosure

(3)

$39.99

List price $199.99

PRO21200B small

Absolute PRO 21200B (PRO21200B - Black)

1200W Max, 2-Channel PRO Digital Series Amplifier

(3)

$109.99

List price $299.99

DSC-280 small

MB Quart DSC 280

320W RMS, Class A/B 2-Channel Discus Series Amplifier (DSC280)

(2)

$79.99

List price $279.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1965 Cadillac DeVille

1969 Cadillac DeVille

1967 Cadillac DeVille

2002 Lexus IS300

2000 Mazda MPV

2015 Ford Escape

1963 Buick Electra

1966 Cadillac Eldorado

2012 Buick Verano

2011 Volkswagen Eos

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
