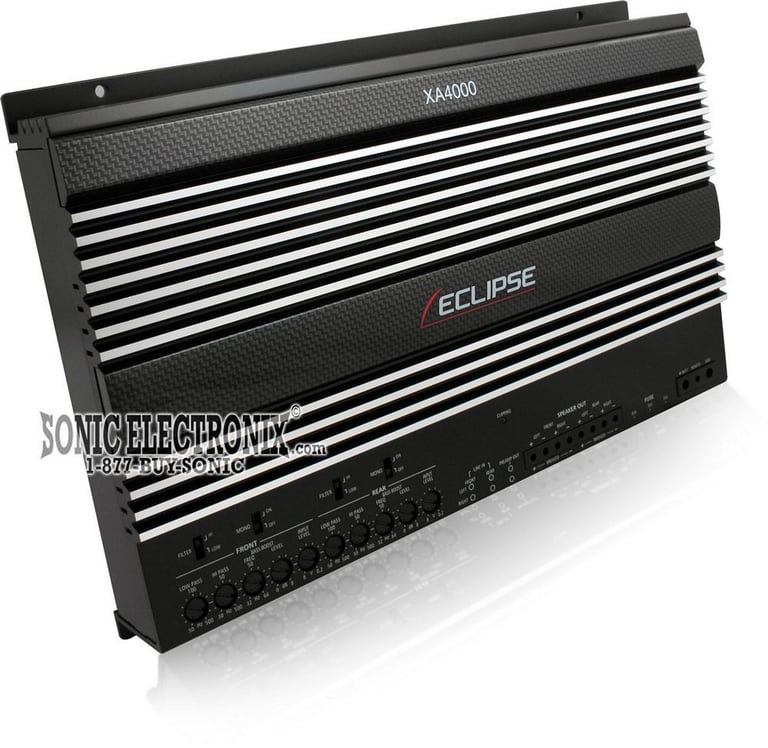

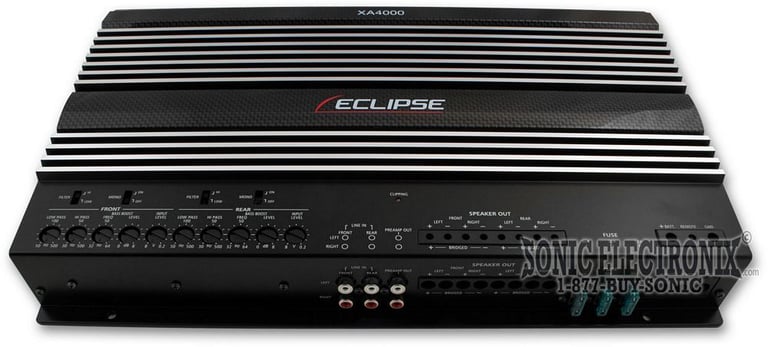

** CLOSEOUT!! ** Eclipse XA4000

4-Channel Class D ICEpower Technology Amplifier

Eclipse
Shop all Eclipse
Product videos
highlight-star-icon

840 watts peak • 125W RMS x 4 chan. @ 4 ohm • 175W RMS x 4 chan. @ 2 ohm • High current, high efficiency FET power supply • "Easy Tune" top-mounted controls

Learn more about the xa4000

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

xa4200 thumbnail

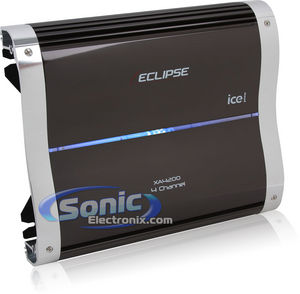

Eclipse XA4200

OUR PRICE: $249.99

View item

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

SBK929GB main

American International SBK929GB

Single DIN or Double DIN Stereo Dash Kit for select 2015-2024 vehicles from Subaru (Gloss Black)

2
-64.08%

$22.99

List price $64.00

40-SB10 main

Metra 40-SB10

Antenna Adapter for select 2005-2025 vehicles from Subaru

7
-26.68%

$10.99

List price $14.99

AXBUCH-SB1 main

Axxess AXBUCH-SB1

Install a New Car Stereo and Retain Factory Backup Camera in select 2015-2023 vehicles from Subaru with 7" Screens

-10.53%

$33.99

List price $37.99

AXUSB-SUB2 main

Axxess AXUSB-SUB2

Factory USB Port Retention Adapter in select 2015-2025 vehicles from Subaru

-11.43%

$30.99

List price $34.99

95-8907HG main

Metra 95-8907HG Dash Kit

Double DIN Stereo Dash Kit for select 2015-2021 vehicles from Subaru

2
-46.82%

$24.99

List price $46.99

SWRSU-38C main

Crux SWRSU-38C

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2015-2020 vehicles from Subaru

-35.71%

$108.00

List price $168.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Product Highlights


840 watts peak • 125W RMS x 4 chan. @ 4 ohm • 175W RMS x 4 chan. @ 2 ohm • High current, high efficiency FET power supply • "Easy Tune" top-mounted controls

Description


  • 4-Channel Class D ICEpower full-range Class D operation with controls for level, crossover, low frequency boost and high/low pass filter adjustments.
  • RMS Power Output
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 175 watts x 4 chan.
    • Bridged, 4 ohm: 350 watts x 2 chan.
  • Output terminals allow multiple in-line unit installations.
  • Clipping indicator LED
  • Very high efficiency rate with low current draw.
  • Dimensions: 10-3/16"D x 15-3/4"W x 2-5/16"H
  • 1-year SonicElectronix.com warranty

Product history:

Eclipse XA4200 thumbnail
(newest, current model)
Eclipse XA4000 thumbnail
(previous model, replaced by Eclipse XA4200)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
175 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
350 watts x 2 channel
Amplifier Specifications
Number of Channels
4-Channel
Total RMS Power Output
700 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 Pair
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
18 dB @ 18 Hz
Signal-to-Noise Ratio
> 90 dB
Bass Boost
0 - 8 dB
Fuse Rating
30A x 3

Item Details


Manufacturer:

Model Number:

XA4000

Weight:

12.00lbs

Internal SKU:

xa4000

Internal Product ID:

7471
