Open Box, Great - RE Audio USX-65KV.1-OB (LS-usx65kv1-OB) 2200W RMS Class DE

by RE Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

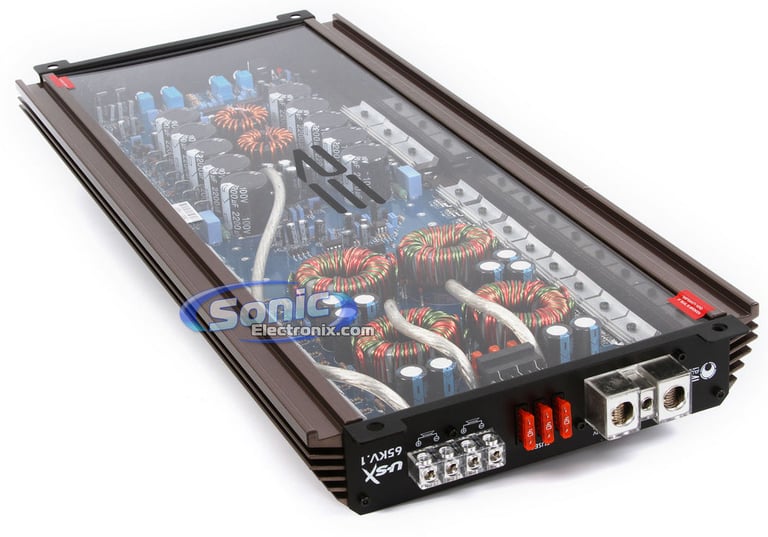

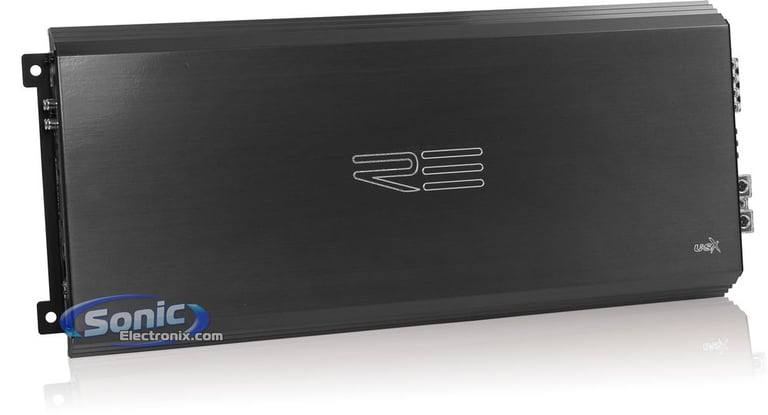

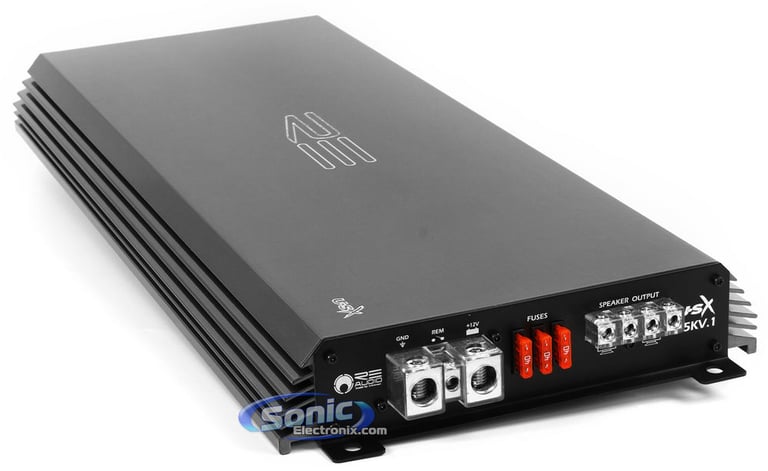

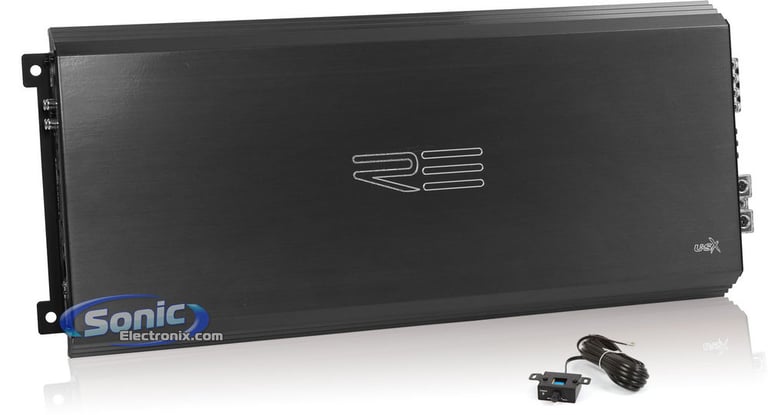

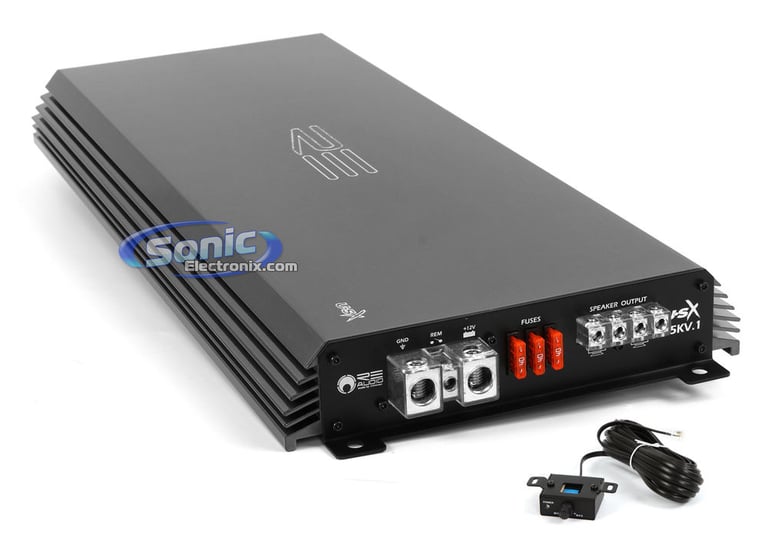

RE Audio USX-65KV.1 Open Box Image 1 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 2 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 3 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 4 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 5 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 6 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 7 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 8 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 9 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 10 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 11 — RE Audio USX-65KV.1 Open Box

RE Audio USX-65KV.1 Open Box Image 12 — RE Audio USX-65KV.1 Open Box

Product videos

Product highlights

• RMS: 750W x 1 @ 4 ohm, 1350W x 1 @ 2 ohm, 2200W x 1 @ 1 ohm
• Total Peak Power: 3000W
• 3-Way Protection Circuitry
• Bass Boost: 0 - 20 dB
• Class D Circuitry
• Dimensions: 9-11/16"W x 22-3/4"L x 2-1/16"H

Learn more about the LS-usx65kv1-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

USX Series Monoblock Class DE Car Amplifier
RMS Power Rating:

4 ohm: 750 watts x 1 chan.
2 ohm: 1350 watts x 1 chan.
1 ohm: 2200 watts x 1 chan.

Max power output: 4400 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +20 dB bass boost at 45 Hz)
MLT (Multi-Link Technology) capable - allows master/slave mode to have multiple amplifiers powering one speaker
New stability filter design for reduction in noise
Platinum plated RCA inputs and connectors
Auto-bridge feature

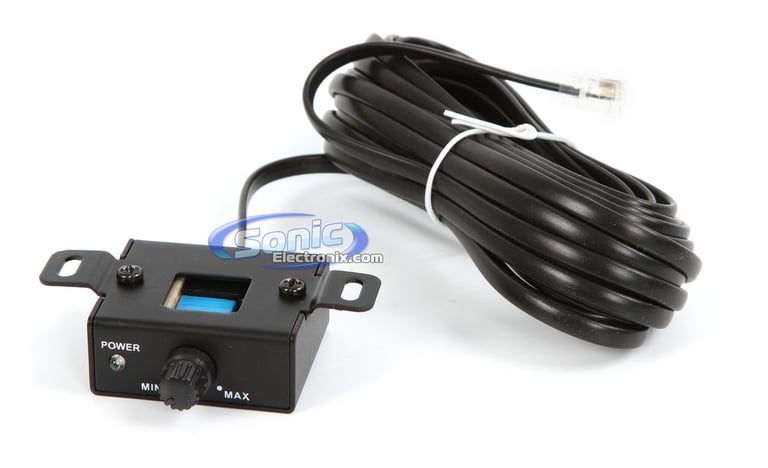

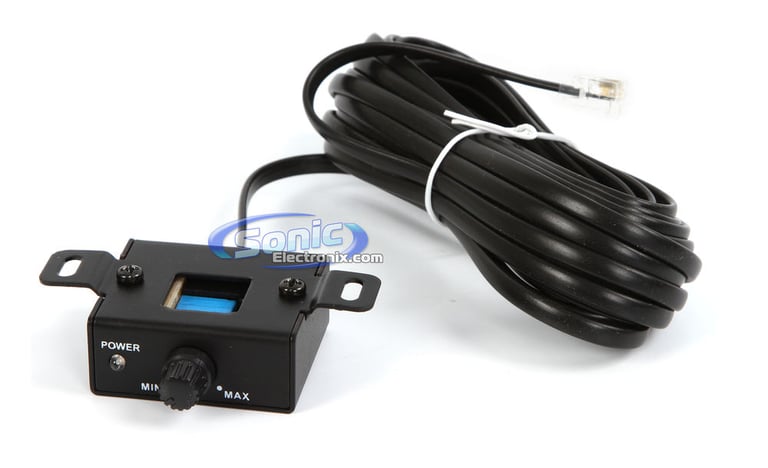

Wired bass knob included
Soft start turn-on
Mono channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Input sensitivity:

Level: 200mV-8V

Variable low-pass filter (40-250 Hz, 24 dB/octave)
Variable subsonic filter (15-40 Hz, 24 dB/octave)
1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Fuses: 3x External 40A Fuses, 3x Internal 40A Fuses
Dimensions: 9-11/16"W x 22-3/4"L x 2-1/16"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

750 watts x 1 channel

RMS Power @ 2 ohms

1350 watts x 1 channel

RMS Power @ 1 ohm

2200 watts x 1 channel

Amplifier Specifications

Series

USX Series

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

4400 watts

Total RMS Power Output

2200 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.1%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Full (AP)

Low-Pass Crossover Frequency

40 - 250 Hz

Subsonic Filter

15 - 40 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 20 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 6

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

RE Audio USX-65KV.1 Open Box thumbnail image

Overall rating distribution

5 star		0%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		0
Value		0
Features		0
Design		0
Usability		0

Customer Reviews

Sort by:

Sorry, no reviews found
