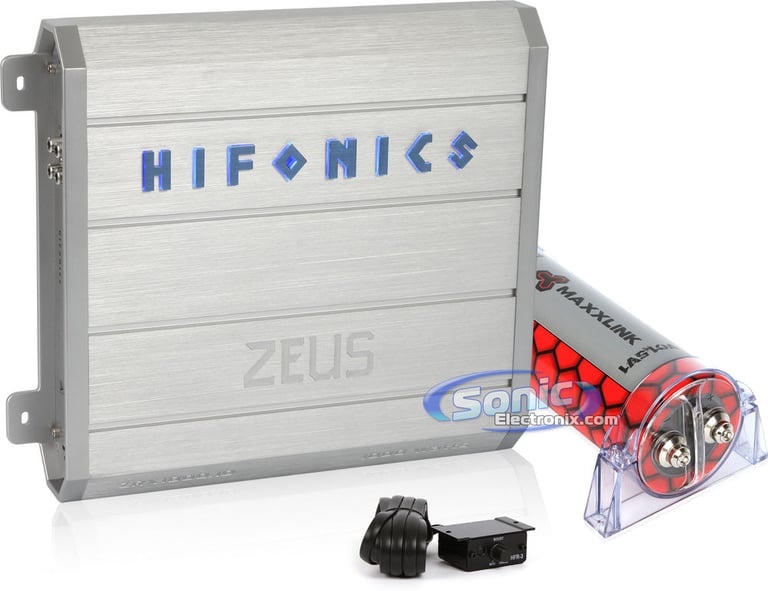

Hifonics ZRX1000.1D + Maxxlink 1.5 Farad Capacitor

1000W Max Class D Monoblock Zeus Series Amplifier with Maxxlink 1.5 Farad Capacitor

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 4 ohm: 475 watts x 1 chan.
• 2 ohm: 750 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• 1.5 Farad Capacitor Perfect for Systems up to 1500 Watts

Learn more about the zrx10001d_vc15v1

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


• 4 ohm: 475 watts x 1 chan.
• 2 ohm: 750 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• 1.5 Farad Capacitor Perfect for Systems up to 1500 Watts

Description


Hifonics brand icon

Authorized dealer

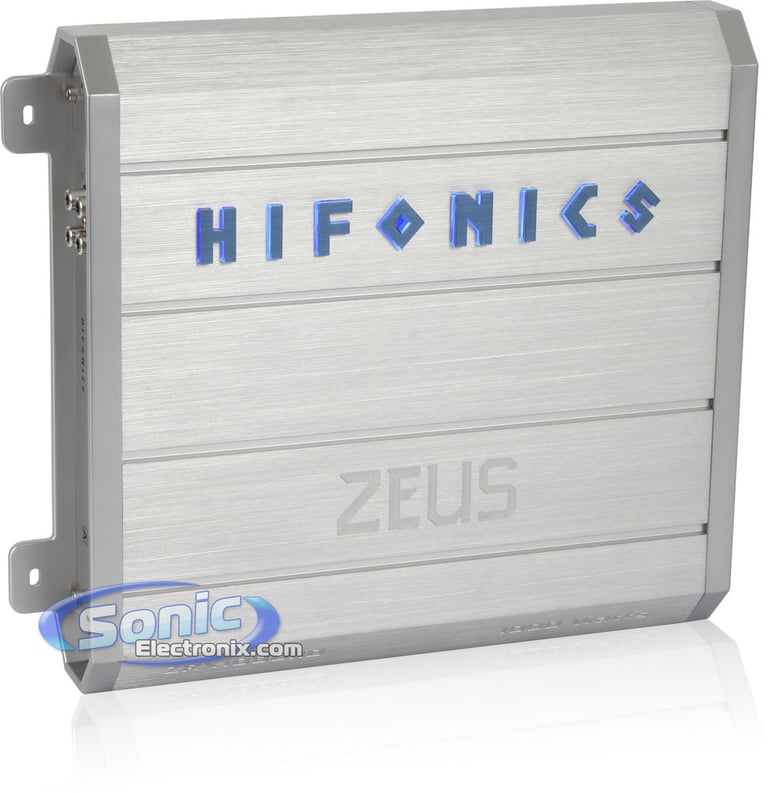

Hifonics Zeus ZRX1000.1D

1000W Max Class D Monoblock Zeus Series Amplifier
Quantity: 1

  • Zeus Series Single Channel Monoblock Class D Car Amplifier
  • Max Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Max power output: 1000 watts
  • Pulse Width Modulated (PWM) MOSFET power supply
  • LED power (blue) and protect (red) indicators

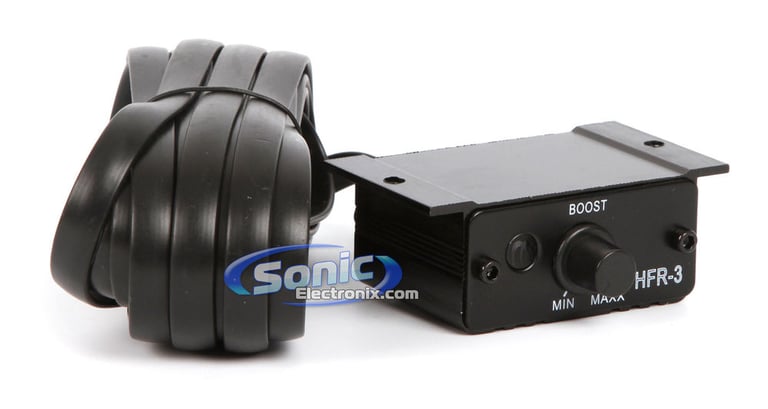

  • Wired HFR-3 remote bass level control included
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

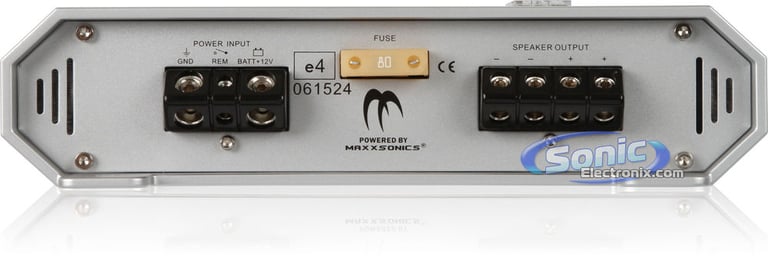

  • Dual 12 gauge speaker terminals simplify hookup
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals

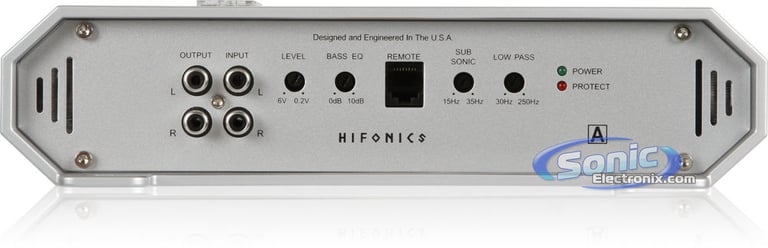

  • Input sensitivity:
    • Variable level: 200mV-6V
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz)
  • Damping factor: >200
  • Frequency response: 15-250 Hz
  • Dimensions: 12"L x 10-1/16"W x 2-7/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

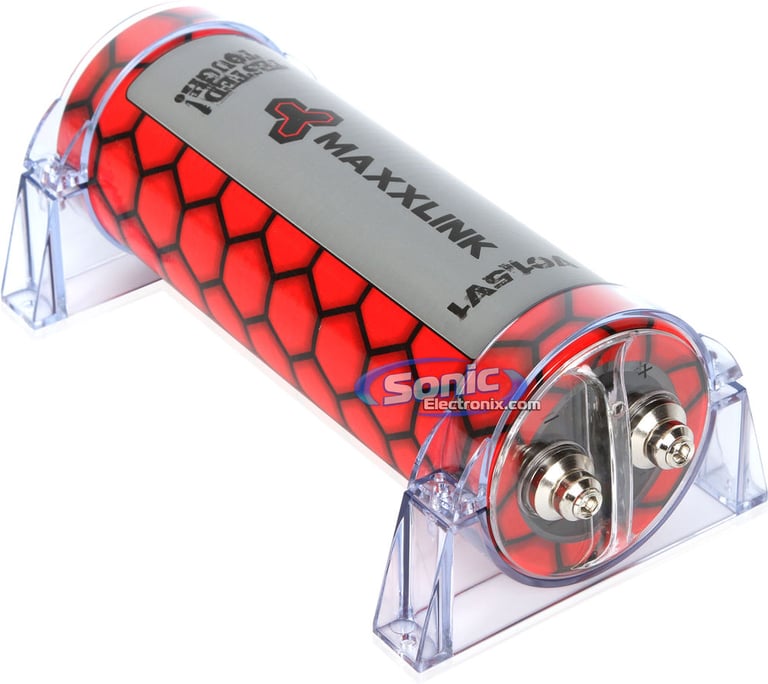

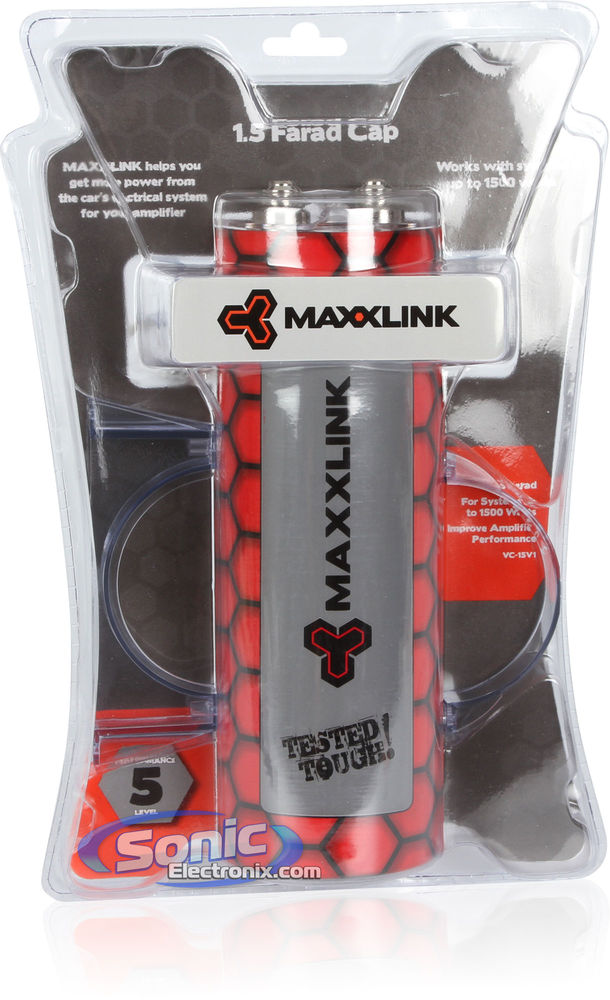

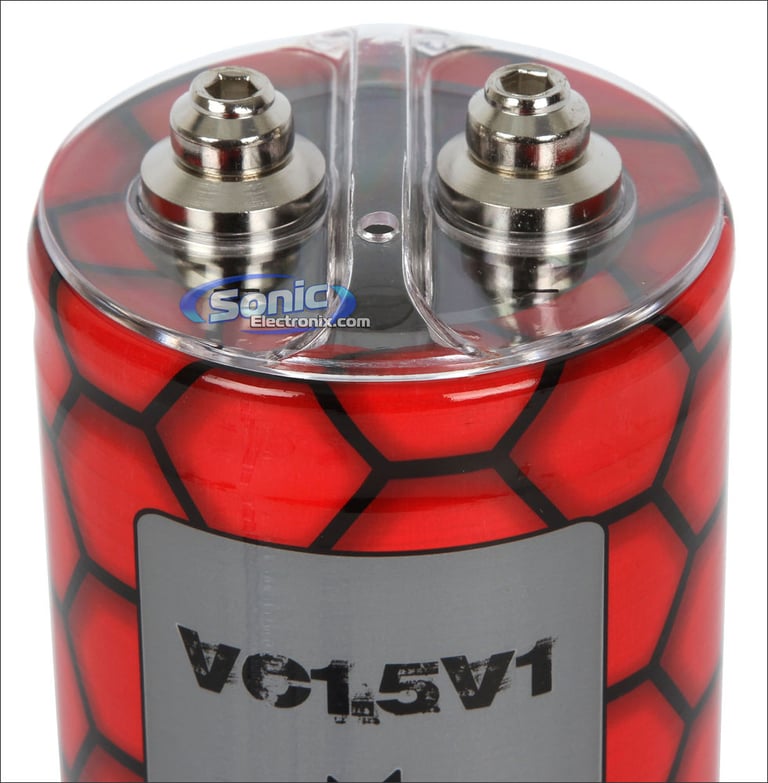

Maxxlink VC1.5V1

1.5 farad capacitor Perfect for Systems up to 1500 Watts
Quantity: 1


General Features:

  • 1.5 Farad Capacitor Perfect for Systems up to 1500 Watts

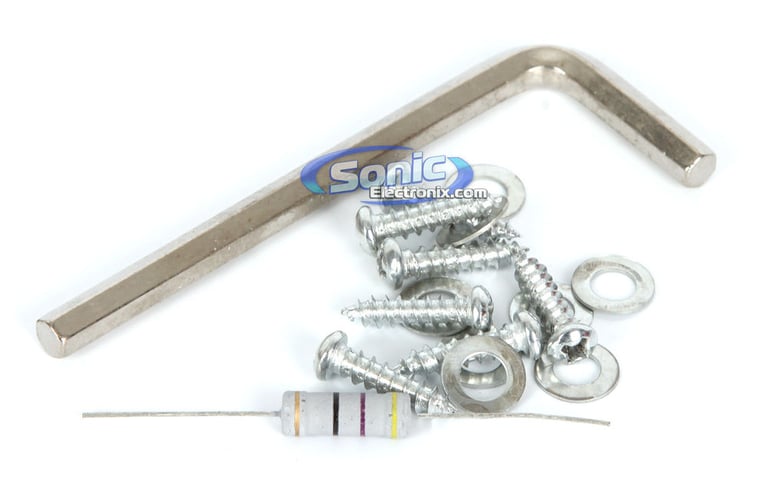

  • Integrated allen bolt for quick hookup
  • Easy two-piece mounting system
  • Delivers additional power on-demand for improved amplifier performance
  • Also found as: MaxxlinkVC15V1
  • Dimensions: 3"D x 9"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Extend your Maxxsonics Amplifiers Warranty:

When purchasing your Maxxlink capacitor also consider purchasing one of their V3 and V2 amplifier kits. They can extend the factory warranty of your Maxxsonics amplifier by an additional six months to a full year. When you add a Maxxlink amp kit to your purchase of a qualifying amplifier from Maxxsonics brands such as MBQuart, Hifonics, Autotek and Crunch you can extend the factory warranty buy six months with V2 amplifier kits, and a year for the V3 amplifier installation kits! V1 Ampkits do not extend any of Maxxsonics amplifiers warranties.


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(14)

$199.99

List price $287.99

Specifications & Details


Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
Any Gauge with use of Ring Terminal AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
<0.1 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX1000.1D_VC1.5V1

Weight:

11.90lbs

Internal SKU:

zrx10001d_vc15v1

Internal Product ID:

75397

Product and How-to Videos


Customer Ratings & Reviews


Hifonics ZRX1000.1D + Maxxlink 1.5 Farad Capacitor thumbnail image

5 star
73%
4 star
12%
3 star
12%
2 star
0%
1 star
4%



Durability
4.4
Value
4.6
Features
4.5
Design
4.4
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great product

The following review is for ZRX1000.1D, which is a part of the bundle you are viewing.

Powers my 12in alpine type r just fine. Crisp and clean with no clipping and no over heating. The lights that go with the beat of the music is a cool touch.

By Dallas on March 10, 2014

17 found this helpful


Geat

The following review is for VC1.5V1, which is a part of the bundle you are viewing.

for high outpu and great sound qualit I would buy this again and agai

By brandvdub on January 27, 2014

14 found this helpful


POWER FROM THE GODS!!!

The following review is for ZRX1000.1D, which is a part of the bundle you are viewing.

I got this to replace a crunch I had powering two kenwood 12s in a ported box and even though its rated at 750 rms at 2 ohms my two kenwood have more than enough power going thru them rated a 400 rms each can't wait to put two more to run it at 1ohm smaller kenwoods though to match the 1000 rms perfect!! King kong in the trunk!!! Love hifonics and I apreciate sonicelectronix very much!!!! The durability is still a question it's only been a few weeks but it's been AWESOME!!!!!

By sergio on June 12, 2012

14 found this helpful


Very nice amp

The following review is for ZRX1000.1D, which is a part of the bundle you are viewing.

Very well built, beautiful amp. I would highly recommend this to anyone. Pushes an 8" L7 too well.

By Daniel on May 7, 2012

15 found this helpful


Great Amp

The following review is for ZRX1000.1D, which is a part of the bundle you are viewing.

This is a great amp would buy again great price!!!

By Dennis on May 4, 2012

15 found this helpful


do not buy didnt work

The following review is for VC1.5V1, which is a part of the bundle you are viewing.

this product is not working never once worked in my vehicle could not get it to work at all even installed by a professional in stereo installation

By will on April 10, 2014

11 found this helpful


ballin

The following review is for ZRX1000.1D, which is a part of the bundle you are viewing.

The zues 1000.1D is a great product if ur lookin for power i run 2 12's off of mine and im puttin 15's to sham allday doesnt really get hot its never cut out on me once all in all id buy another one if i ever need to.

By sonny on March 16, 2014

13 found this helpful


So far so good

The following review is for ZRX1000.1D, which is a part of the bundle you are viewing.

After what seemed like months of searching for the perfect Class D amplifier, I got frustrated, so many too choose from, I knew exactly what my subs needed so I contacted Sonic. Rob R. was a great deal of help with making my final decision and ultimately purchase. This amp is very user friendly, even if you don't know what you're doing, the detailed instructions that come with it should help the newest of noobs. Love the clean clear rumbling bass I get out of the ZRX1000.1D. Before my purchase I knew nothing of Hifonics, now I'm in love. Sonic Electronix is tha shiznit, will be purchasing all my car audio needs (wants) from this site, from now on. If you're in need of 1000w RMS DO NOT HESITATE...... order this amp. You will NOT be disappointed!!!

By Mike G on October 22, 2012

12 found this helpful


ballin

The following review is for ZRX1000.1D, which is a part of the bundle you are viewing.

The zues 1000.1D is a great product if ur lookin for power i run 2 12's off of mine and im puttin 15's to sham allday doesnt really get hot its never cut out on me once all in all id buy another one if i ever need to.

By sonny on March 16, 2014

12 found this helpful


Value

The following review is for VC1.5V1, which is a part of the bundle you are viewing.

It was not long ago a cap like this was $150. $28 is more than a bargain.
It really helps to understand what this cap will do for you. Don't expect it to stop lights dimming with a 1kw amp. There's three situations this item is a must buy.
1. You have a car system that you added a sub and 300-500w amp. You listen at levels that have strong bass, not so much it's heard outside the car. It is enough to dim lights some on bass hits. The cap will take the initial hit so it's not so hard on the car's alternator.
2. If you use a CB amp up to 1000w it helps the same way and also acts as a filter of sorts often eliminating noise and squeal tendencies.
3. When using a DC switching supply in the house, this cap will usually eliminate the voltage stutter. A switching supply can freak out when a sudden or extended draw is demanded. You have to cut it off and back on or cut off everything running on it. Again, cap acts as a filter of sorts.
Understanding what a cap can and can't do will make for way more satisfaction.

By rollingradios on February 24, 2014

10 found this helpful




CXP20AC-TN small

MTX Audio Thunderform CXP20AC-TN (Charcoal, Amplified)

Chevrolet Extra Cab 1999-2006, Amplified 2 10" 4 ohm Car Specific Thunderform Subwoofer Enclosure

$699.95

List price $799.95

DRXP20AC-TN small

MTX Audio Thunderform DRXP20AC-TN (Charcoal, Amplified)

Dodge Ram Extra Cab 1994-2001, Amplified 2 10" 4 ohm Vehicle Specific Thunderform Sub Enclosure

$699.95

List price $799.95

AW1206T small

Audiobahn AW1206T

12" Flame Q (AW 1206T) Subwoofer

(38)

$139.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1999 Dodge Viper

2004 Ford Expedition

2012 Ford Transit Connect

1982 Audi 5000

2011 Volkswagen Golf

2009 Cadillac STS

2020 Subaru Forester

2005 Buick Rainier

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
