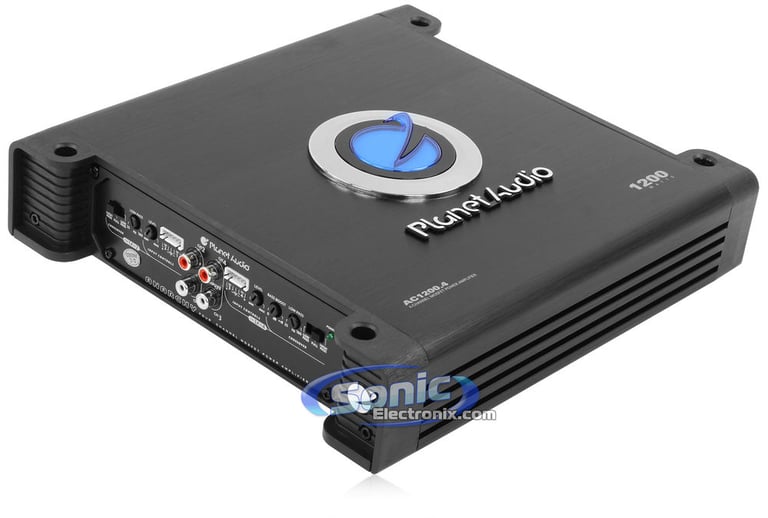

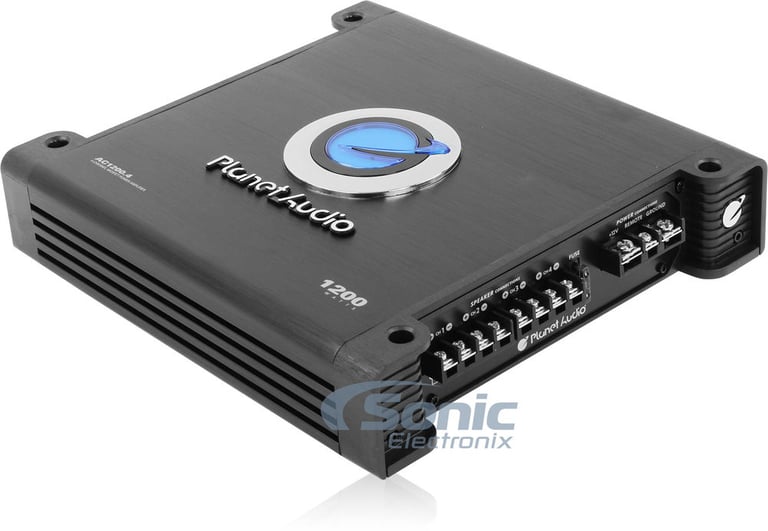

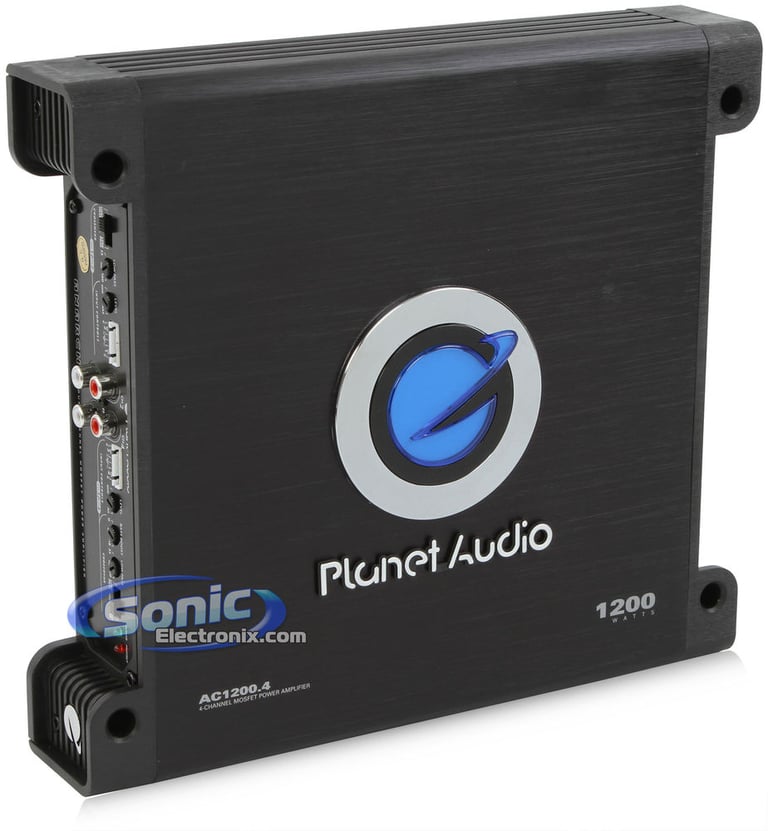

Planet Audio AC1200.4

1200W Anarchy Series 4-Channel Class A/B Power Amplifier

3
Planet Audio
Shop all Planet Audio
Product videos
highlight-star-icon

• RMS: 113W x 4 @ 4 ohms, 225W x 4 @ 2 ohms
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET Power Supply
• Variable Bass Boost
• Heavy Duty Black Anodized Heatsink For Heat Dissipation
• Dimensions: 10"W x 11"L x 2-5/16"H

Learn more about the ac12004

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• RMS: 113W x 4 @ 4 ohms, 225W x 4 @ 2 ohms
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET Power Supply
• Variable Bass Boost
• Heavy Duty Black Anodized Heatsink For Heat Dissipation
• Dimensions: 10"W x 11"L x 2-5/16"H

Description

Planet Audio

Authorized dealer

Planet Audio Authorized Dealer

General Features:

  • Anarchy Series 4-Channel Class A/B Power Amplifier
  • RMS Power Rating:
    • 4 ohms: 113 watts x 4 chan.
    • 2 ohms: 225 watts x 4 chan.
    • Bridged, 4 ohms: 450 watts x 2 chan.
  • Max power output: 1200 watts
  • Pulse Width Modulated MOSFET power supply

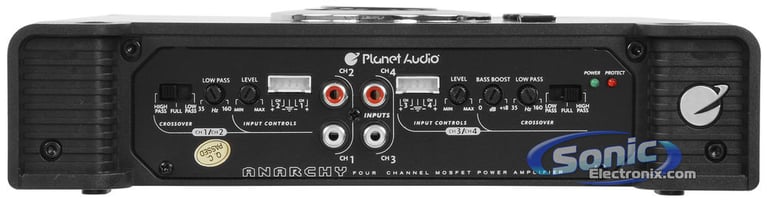

  • Speaker-level (high-level) inputs
  • Variable low pass crossover
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4 or 2 channel operation
  • Remote turn on/off circuit
  • Variable input gain control
  • Thermal and speaker short protection circuitry
  • Heavy duty black anodized heatsink for extreme heat dissipation
  • Variable high-pass filter: (80 Hz, 24 dB/octave)
  • Variable low-pass filter (40-90 Hz, 24 dB/octave)

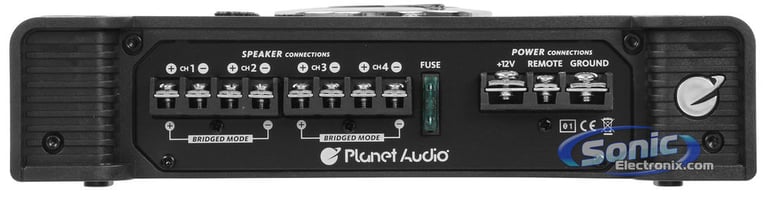

  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10"W x 11"L x 2-5/16"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
300 watts x 4 channel
Bridged RMS Power
600 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Anarchy Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
1200 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 90 Hz
Signal-to-Noise Ratio
102 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

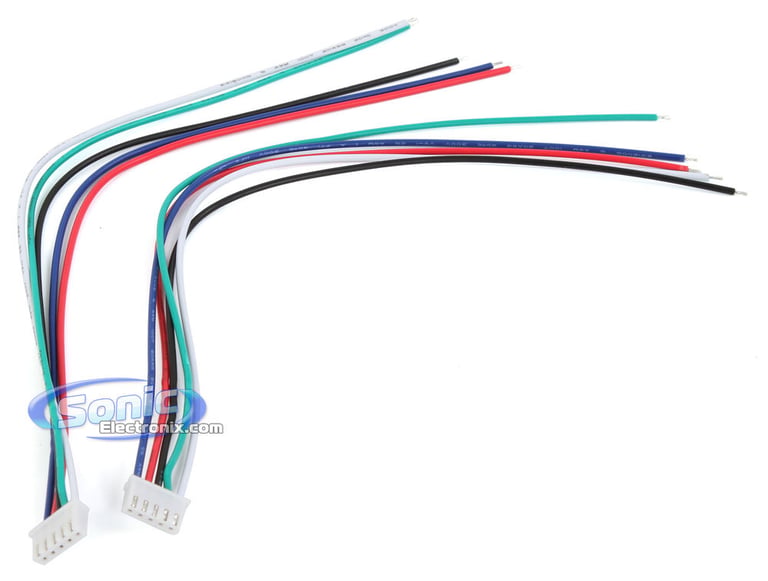

High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Planet Audio

Model Number:

AC1200.4

Weight:

10.00lbs

Internal SKU:

ac12004

Internal Product ID:

75674

Product and How-to Videos

Customer Ratings & Reviews

Planet Audio AC1200.4
3
Rate or review product
5 star
33%
4 star
67%
3 star
0%
2 star
0%
1 star
0%
Durability
4.4
Value
4.7
Features
4.4
Design
4
Usability
4.7
Sort by:
Loading...

Good price. good amp

I bought this to run 4-6.5" kicker door speakers. Gain is under half and it sounds great! I have plans to upgrade to 4 6x9s later. I'm sure this amp has the power. I'd buy again. An adjustable high pass filter would have been better but I can't complain for the value.

By busted knuckles on August 13, 2015

13

found this helpful.
Helpful? Report abuse

Nice Amp

This is a simple to use amplifier for a beginner. I like the flexibility of the tuning. Overall it meets my expectations.

By JB on January 3, 2018 checkmarkIcon Verified purchase

11

found this helpful.
Helpful? Report abuse

Planet Audio AC1200.4 - IT ROCKS!!

I use this to power a pair of 6 1/2" door and a pair of 6"x9" rear speakers. Pushing mostly rock and metal, I am very impressed with the thick/solid/clear full range that does not distort at volume levels other amps do. The sound blends so well with my subs, I'll be rockin' hard and giving a horns up to Planet Audio! For the money, you can't beat this.

Also, a few corrections to to the Sonic Electronix description:
225 W X 4 RMS @ 2 ohm
113 W X 4 RMS @ 4 ohm
450 W X 2 RMS Bridged @ 4 ohm
The high pass filter is FIXED - 80 Hz

http://www.planetaudiousa.com/auto/car-audio-sound-system-auto-4-channel-amplifier-planet-audio-ac1200-4/

By Gary on August 3, 2016 checkmarkIcon Verified purchase
