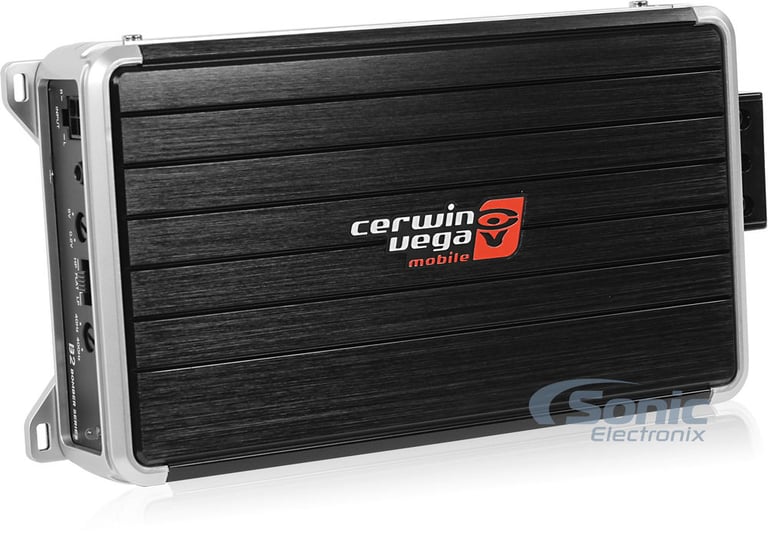

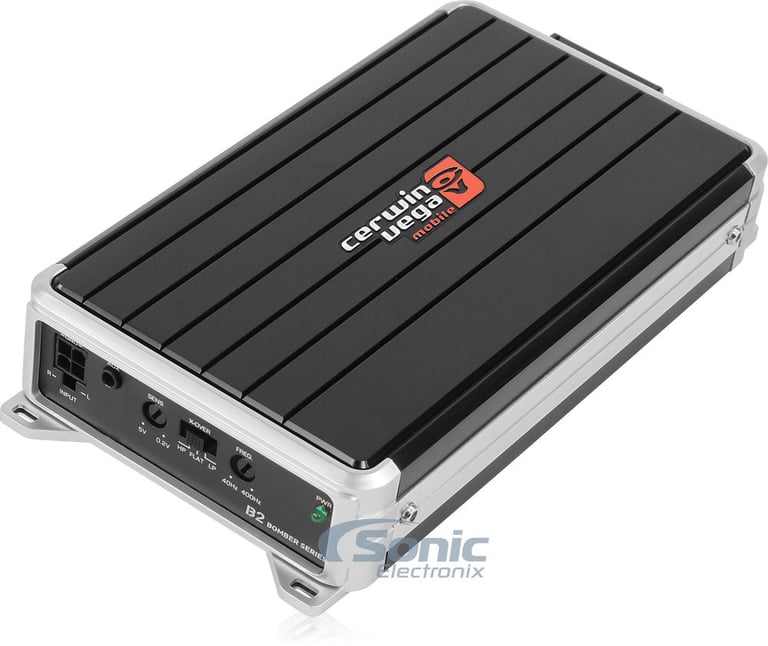

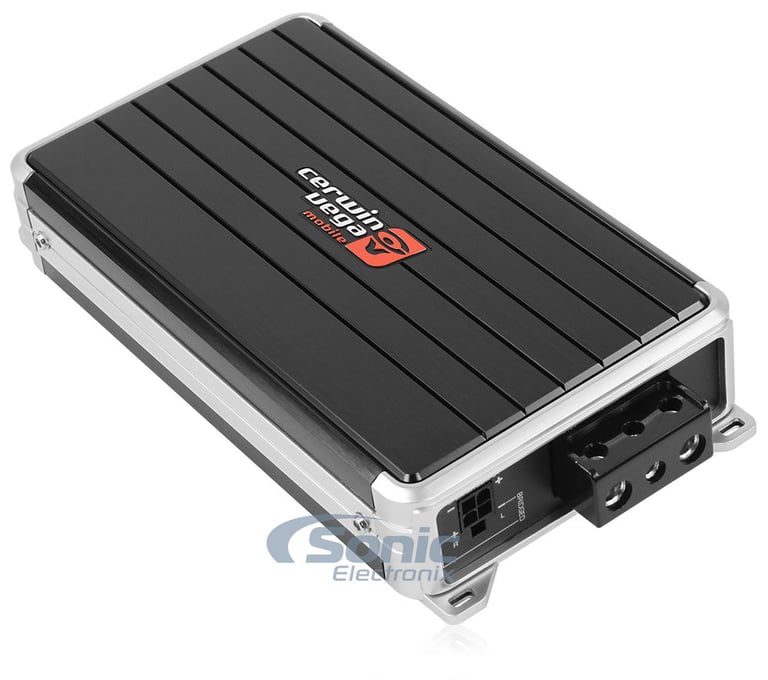

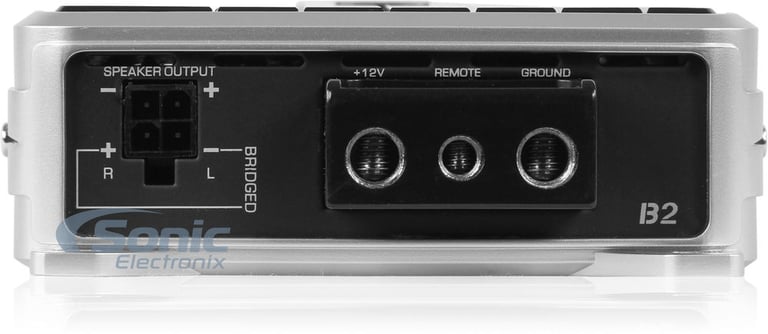

Cerwin-Vega B2

500W 2-Channel Bomber Series Class D Digital Amplifier

Product videos
highlight-star-icon

• RMS Power: 150W x 2 @ 4 ohm, 250W x 2 @ 2 ohm
• Auxiliary for use when RCA connections are not available
• Ultra Compact High Density Aluminium Alloy Chassis
• Direct FET Power Mosfet Output Stage
• Dimensions: 1.4"W x 4.02"L x 6.61"H

Learn more about the b2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• RMS Power: 150W x 2 @ 4 ohm, 250W x 2 @ 2 ohm
• Auxiliary for use when RCA connections are not available
• Ultra Compact High Density Aluminium Alloy Chassis
• Direct FET Power Mosfet Output Stage
• Dimensions: 1.4"W x 4.02"L x 6.61"H

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • Bomber Series 2-Channel Class D Digital Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 250 watts x 2 chan.
    • Bridged, 4 ohm: 500 watts x 1 chan.
  • Ultra compact high density aluminium alloy chassis
  • Direct FET Power Mosfet Output Stage
  • IC audio driver provides superior overload protection

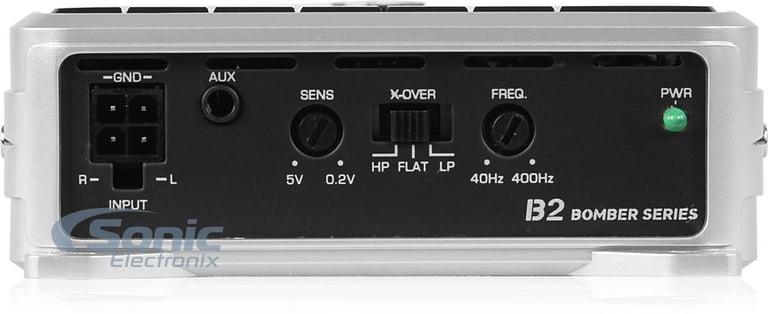

  • Switchable Crossover
    • Flat
    • Low-pass filter: 40 - 400 Hz
    • High-pass filter: 40 - 400 Hz
  • Frequency Response: 10 - 35,000 Hz
  • Total Harmonic Distortion: 0.5%
  • Signal to Noise Ration: 85 dBA @1w
  • Damping Factor: >250 (50Hz @ 4Ω
  • Auxiliary for use when RCA connections are not available
    • For MP3 Players, iPhone or Android Smartphones, etc..
    • Only connect AUX OR RCA input, not both
  • 8 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 4.02"W x 6.99"L x 1.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

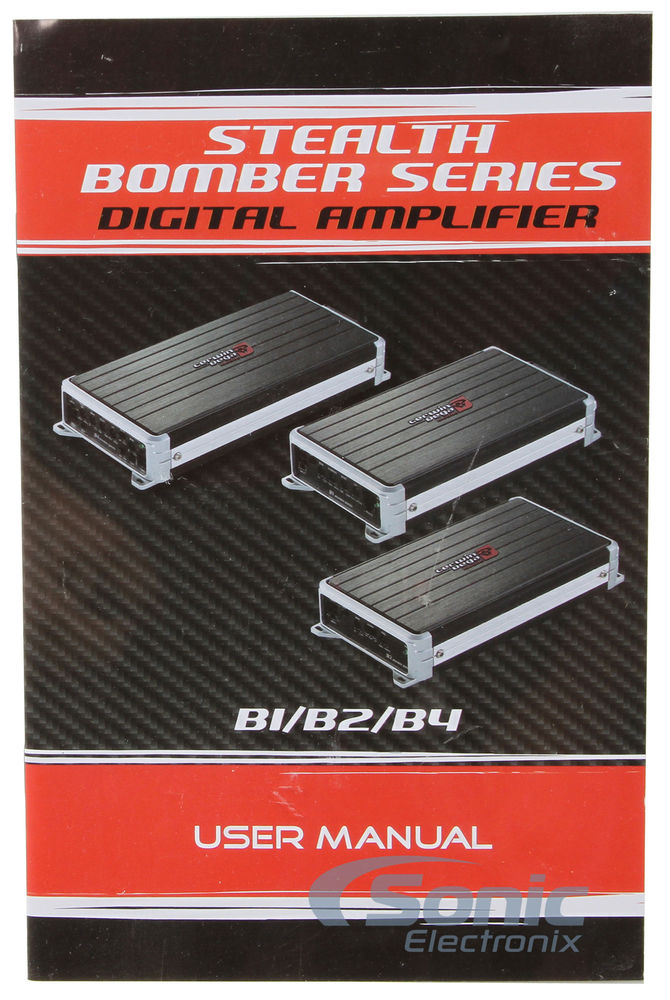

Check out the Cerwin-Vega B2 Owner's Manual

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
250 watts x 2 channel
Bridged RMS Power
500 watts x 1 channel
Amplifier Specifications
Series
Bomber Series
Amplifier Class
D
Number of Channels
2-Channel
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

B2-2

Weight:

2.20lbs

Internal SKU:

b2

Internal Product ID:

76853

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega B2 thumbnail image

5 star
80%
4 star
0%
3 star
0%
2 star
20%
1 star
0%



Durability
4.2
Value
4.4
Features
4.4
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Blew up

I must have made a mistake. Unit is no good

By Trip on October 1, 2015

6 found this helpful


Cerwin-Vega B2

this amp is very easy to set up and very powerful, you will be thrilled!

By Anonymous on May 31, 2018 Checkmark Icon Verified purchase

3 found this helpful


Impressive...

...and seems to be holding up quite well considering its installed in a heavily, and roughly used, high end ATV...sounds good and gets quite loud with 4, decent 6"x9" three ways, running the amp at 2 ohms, then using the AUX input and a cable to a smart phone.

Bang for the buck, it's a great amp...will be buying more for a future project...

By RG on October 27, 2015

4 found this helpful


Cerwin Vega got it to work! Nice

! I found a challenge because it is on my motorcycle I have another amp and was trying to enhance my bass response. After flushing a bit I had a challenge with wiring but after a time, I figured it out! And the unit performs well. And is adjustable and I found it performing good nice sound, it seems to be a strong amplifier. I have a powered subwoofer in addition, but be reminded there's not much room on a motorcycle! How is this performing a car? I don't know, but I think it's a pretty good product.

By Trip on October 8, 2015

3 found this helpful


Excellent

Great power in a small package. Ideal for dad's that need trunk room but still want some boom.

By r.j on October 29, 2015
