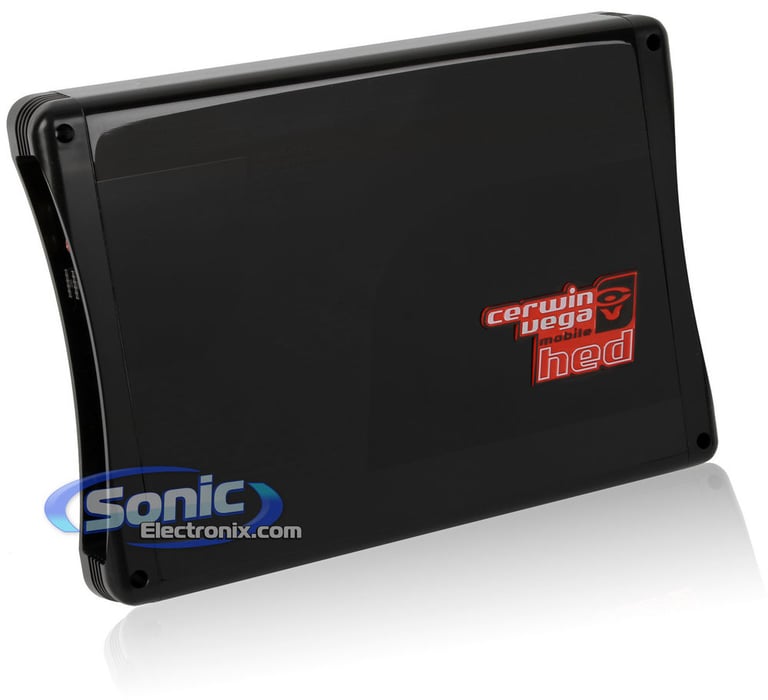

Cerwin-Vega HED600.4

600W HED Series 4-Channel Class AB Car Amplifier

Product videos
highlight-star-icon

• 40W RMS x 4-Chan. @ 4 ohm
• 75W RMS x 4-Chan. @ 2 ohm
• 150W RMS x 2-Chan. @ 4 ohm Bridged
• PWM MOSFET Power Supply
• 12dB Vega Bass Boost
• Low/High Level Inputs
• Variable Low/High Pass Filters
• Balanced/Unbalanced Speaker Inputs

Learn more about the hed6004

We apologize

This item has been discontinued


Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

99-3012G-LC main

Metra 99-3012G-LC

Single/Double-DIN Dash Installation Kit for select 2012-2016 Sonic

1
-40.68%

$104.99

List price $176.99

HRN-HRR-GM2 main

iDataLink Maestro HRN-HRR-GM2 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2010-2020 vehicles from Chevrolet, GMC

-13.04%

$79.99

List price $91.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

CVMPCL6.5 main

Cerwin Vega CVMPCL6.5 (Sold Individually)

200W Peak (100W RMS) 6.5" Stroker Pro Series Full Range 4-ohm Speakers

9
-16.67%

$99.99

List price $119.99

660BRGB main

Boss Elite 660BRGB

Double DIN CD Receiver with Bluetooth (Black)

4

Product Highlights


• 40W RMS x 4-Chan. @ 4 ohm
• 75W RMS x 4-Chan. @ 2 ohm
• 150W RMS x 2-Chan. @ 4 ohm Bridged
• PWM MOSFET Power Supply
• 12dB Vega Bass Boost
• Low/High Level Inputs
• Variable Low/High Pass Filters
• Balanced/Unbalanced Speaker Inputs

Description


Cerwin-Vega brand icon

Authorized dealer

Affordable Power with Cerwin-Vega HED Amplifiers

Cerwin-Vega's HED600.4 4-channel HED series amplifier is the perfect solution when looking to amplify two sets of speakers or even two HED124 single 4 ohm subwoofers at the bridged impedance. This amplifier features both low-level RCA inputs and high-level speaker inputs giving it the versatility to be integrated into any vehicle regardless of the car audio system being used. The HED amplifier is equipped with low and high-pass filters to better fine tune all the frequencies in your car audio system and thus get the best sound reproduction possible and that better suits your personal needs. The Vega Boost will add 0-12dB bass boost that can be controlled conveniently from the front of the vehicle with an additional remote bass level control. With a high density alloy heatsink for heat dissipation and 3-Way System Protection circuitry, this HED amplifier will continue to play safely for long periods of time without causing damage to any device or even to its self. So if you want power and efficiency at an affordable price then look no further than the HED600.4 Cerwin-Vega car amplifier.

  • HED Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Max power output: 600 watts
  • PWM MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 Channel operation

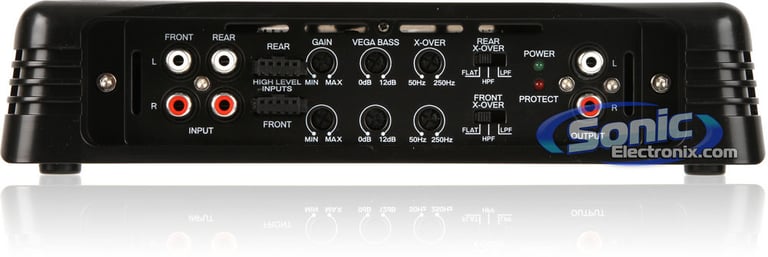

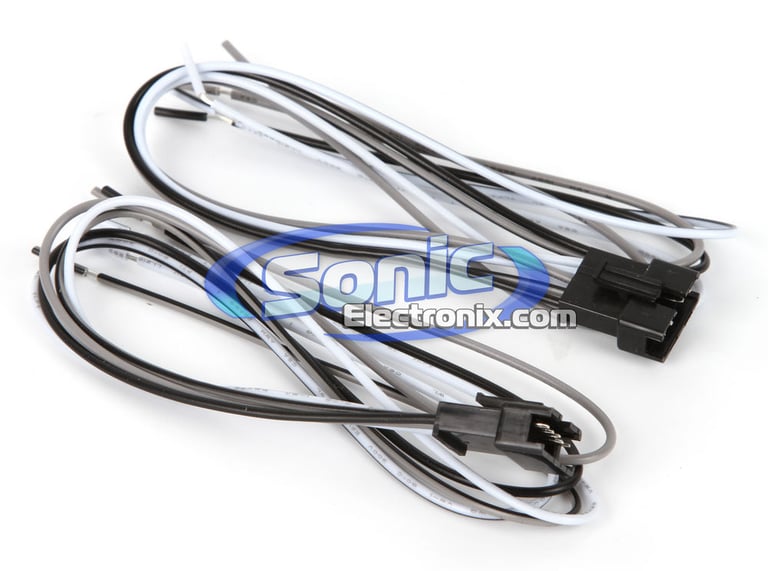

  • Rear/Front speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry
  • High-density aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs

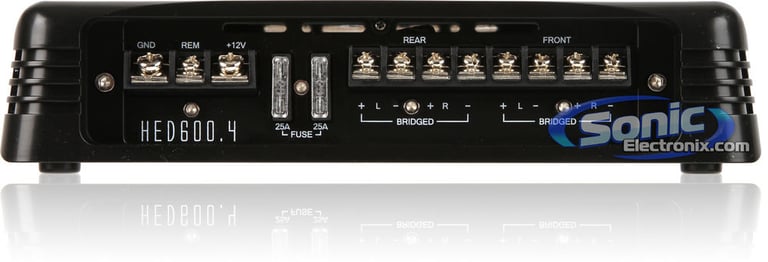

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 113mV-5.3V
    • High level: 3.65V-20V
  • Crossover selection switch
  • Variable high-pass filter (50-250 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Damping factor: >134 at 50 Hz
  • Frequency response: 10-91,000 Hz
  • Dimensions: 12-3/4"L x 9-7/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Series
HED3 Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
112 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED600.4

Weight:

8.90lbs

Internal SKU:

hed6004

Internal Product ID:

39683

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega HED600.4 thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

perfect power.

I like this amp so much i bought 2. (for later use.)
Replaced 94 Z28 Bose system with this
Hed600.4 (40 w x4 sounds excellent. )
Hed500.1 (250w x1 nice thump)
Hed65c in front x 4 (Also bought 4 Hed65 for later use)
Hed 104 sub in trunk.
Kenwood KIV BT901 deck (22w x4 rms)

I call it my 21st century upgrade and o what a beautiful sound.

I love cerwin vega and also have a set of AT-15's in my house for the
last 20+ years and never herd anything to compare yet.
Best sound, best boom, cleanest sounding speakers I have ever herd.
HANDS DOWN. I would buy cerwin vega socks if they made them.
GO VEGA
I will say i have heard some complaints, i don't believe they had enough
power to speakers. I have 120w kenwood speakers and deck in plough
truck and they sound muffled. Guess where the second
HED600.4 amp and HED65 speakers are going. Ploughing was never
so much fun.
REMEMEBR

By Tom on July 30, 2012

12 found this helpful


Clear choice.

This amp has lots of punch. 40w/ channel may not sound like much but it sure sounds good on (4) HED65v speakers.

By Thomas on December 13, 2012

12 found this helpful


Very satisfied.

After comparing specs and prices for dozens of amps, I purchased the C-V HED600.4. I found the power more than adequate; clean and loud. The size turned out to be a perfect fit under the seat of my F-150. Installed it myself with no problem. Very pleased.

By 2 Bruskis on July 26, 2012

10 found this helpful


CV HEAD EQUIPMENT FOR MY TRUCK

THESE GUYS I HIGHLY RECOMMEND PROMPT DELIVERY AND GREAT EQUIPMENT ALL PACKED NICELY, THANKS WILL DEFINITELY USE YOU AGAIN. THANKS

By EDDY on April 18, 2014

8 found this helpful


It's a good 4 ch amp

I love cerwin vega new to their amps though I was impressed to see that it has a built in cooling fan I have my componets, 3 sets of tweeters and a set of 6x9s ran of of it and the amp does it's job with a little help of a memphis equilizer to really fine tune everything so far I'm satisfied. A little side note it doesn't like cheap rca cables I had some t spec rca cables and they were quickly replaced with some skar rca cables.

By alexander on March 11, 2014

8 found this helpful


Nice sounds.....

I added a second HED 600.4 amp and bridged to 150w rms- 300w max x 4 speakers.
Also upgraded to 60th anniversary component 6.5". They are higher watts, 75w rms- 150w max.
They sound great. I do NOT turn it full throttle. It hurts.
I took the 40w 6.5" I replaced and made one large speaker that has 4 tweeters x 4 mid range and one 10" 500w sub. 36" high x 24" wide box painted kubota orange.(I have a B2650) So of corse now I need another 600.4 and another size for the sub for one channel.... Shop speaker....,,, I can hardly wait.... I'm thinking video monitor.... and new usb kenwwod deck in a birds eye maple wooden box on top,,,hmmm On the cover of the rolling stones,,,lol

By Tom on February 2, 2022




PM282B small

Rockford Fosgate PM282B

400W 8" 2-Way Punch Series Full Range Coaxial Marine Speaker - Black

(1)

$369.99

List price $499.99

13W1v2-8 small

JL Audio 13W1v2-8

13.5" Single 8 ohm W1v2 Series Car Subwoofer

$219.95

List price $249.95

No picture

Audiopipe APDL-2504

640W Dealer Line Series 4-Channel Class AB Car Amplifier

$0.00

List price $0.00

10IX500.1 small

Kicker IX500.1 (10IX500.1)

500W RMS, Monoblock Class D IX Series Amplifier (IX5001)

(14)

$189.99

List price $449.95

AXM-I5USBFL1 small

Axxess AXM-I5USBFL1

Flat Tangle Free Apple Lighning To USB Cable

(2)

$13.99

List price $25.99

MRVBM-77P small

Crux MRVBM-77P

Multimedia Integration Interface for select 2011-2025 vehicles from BMW, MINI with CIC-High (NBT) 6-Pin LVDS Connector and 6.5", 8.8", 10.2" Monitors

$506.25

List price $787.50

99-5814S small

Metra 99-5814S

Single DIN or Double DIN Stereo Dash Kit for select 2008-2012 Escape and Mariner and Tribute (Silver)

(6)

$64.99

List price $72.99

CD-iU50 small

Pioneer CD-iU50

USB-to-iPod Adapter for Pioneer and Pioneer Premier In-Dash Car Stereos

(4)

$23.99

List price $34.99

VG06BPL small

Victor Fitness VG06BPL

Black/Pink Size Large - Leather Weightlifting Gloves

$10.99

List price $39.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2020 Kia Optima

1995 Lexus SC300

1981 Dodge St Regis

2023 Genesis G70

2018 Mazda 3

2014 Chevrolet Sonic

1997 Ford Taurus

2012 Nissan Armada

2018 Porsche Cayenne

2011 Kia Optima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
