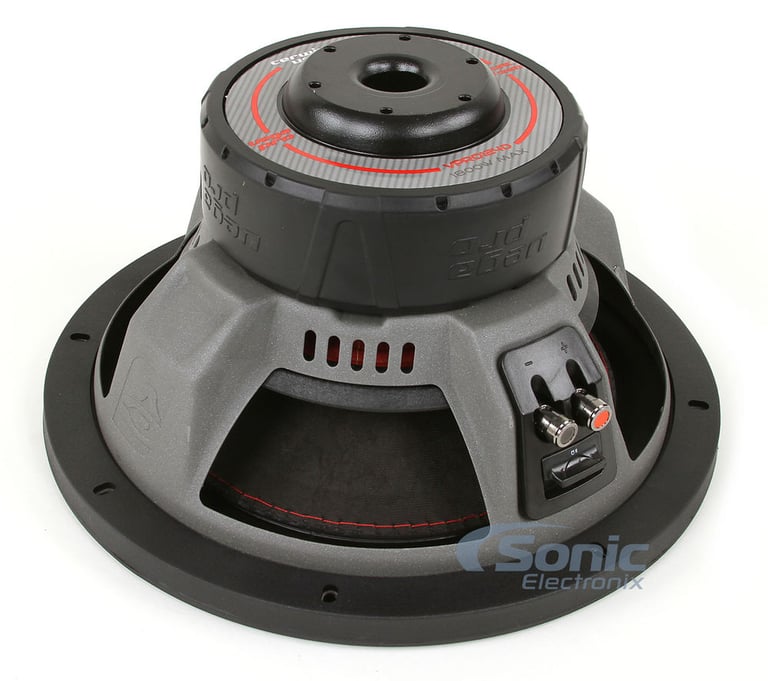

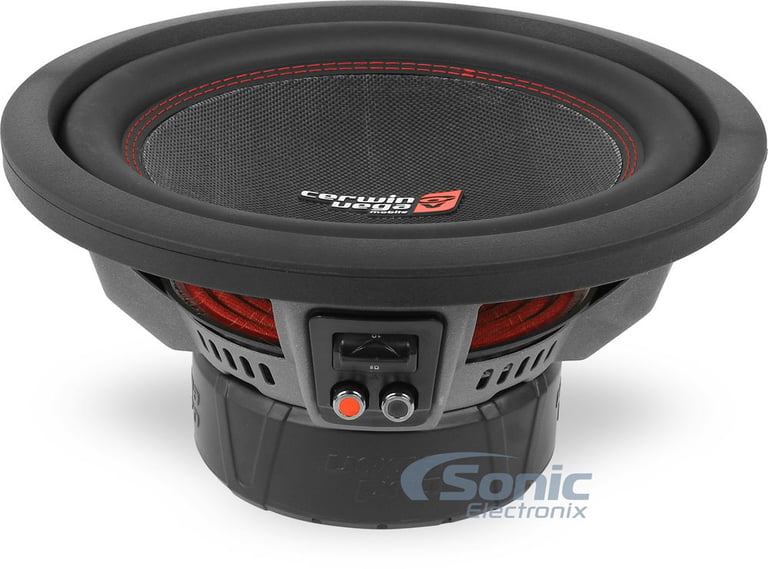

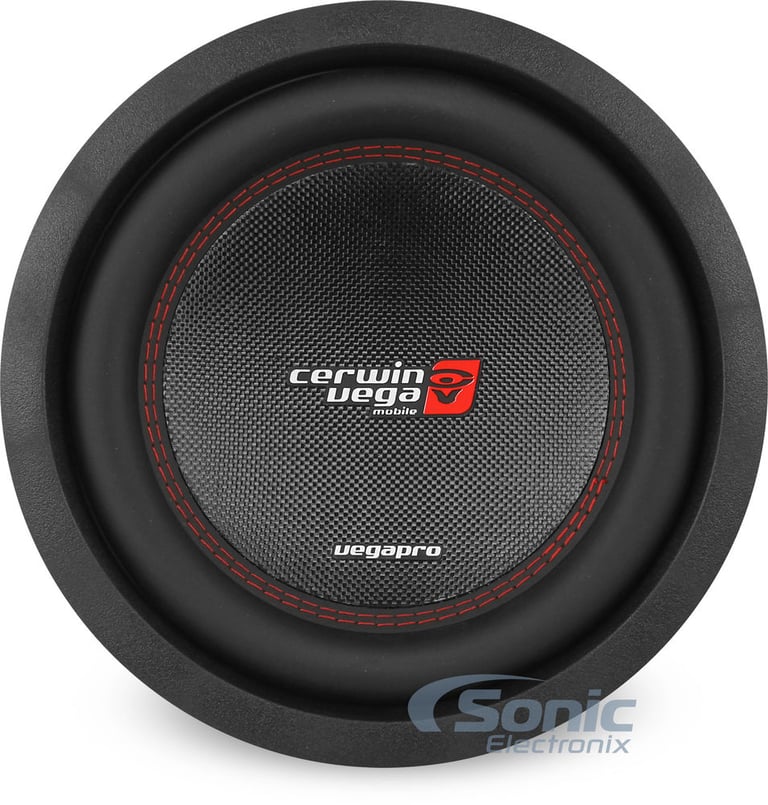

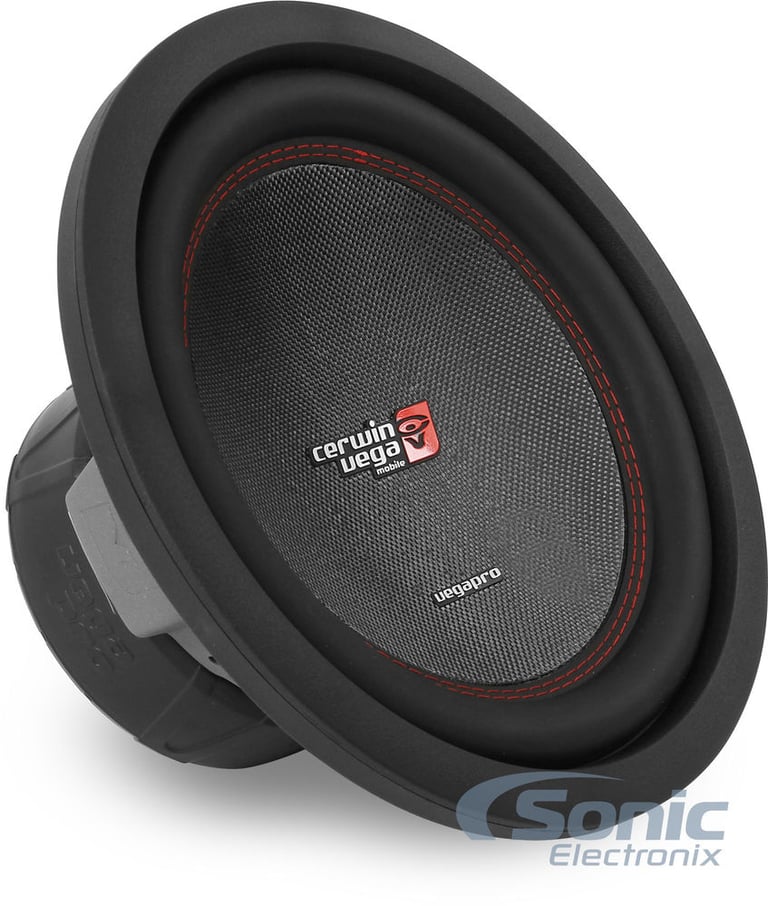

Cerwin-Vega VPRO124D

1500W 12" Vega Pro Series Dual 4 Ohm Car Subwoofer

Product videos
highlight-star-icon

• Peak Power: 1500W
• RMS Power: 750W
• High Power Stitched Tensile Leads Embedded in Double Progressive Spiders
• Double Stitched Black Santoprene Surround
• Proprietary Stamped Cast Basket Design
• Sensitivity: 84.6 dB

Learn more about the vpro124d

We apologize

This item has been discontinued


Loading...
DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Product Highlights


• Peak Power: 1500W
• RMS Power: 750W
• High Power Stitched Tensile Leads Embedded in Double Progressive Spiders
• Double Stitched Black Santoprene Surround
• Proprietary Stamped Cast Basket Design
• Sensitivity: 84.6 dB

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 12" Vega Series Dual 4 Ohm Car Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • High power stitched tensile leads embedded in double progressive spiders
  • Double stitched black santoprene surround
  • Optimized high power double-stacked motor structure
  • Proprietary stamped cast basket design

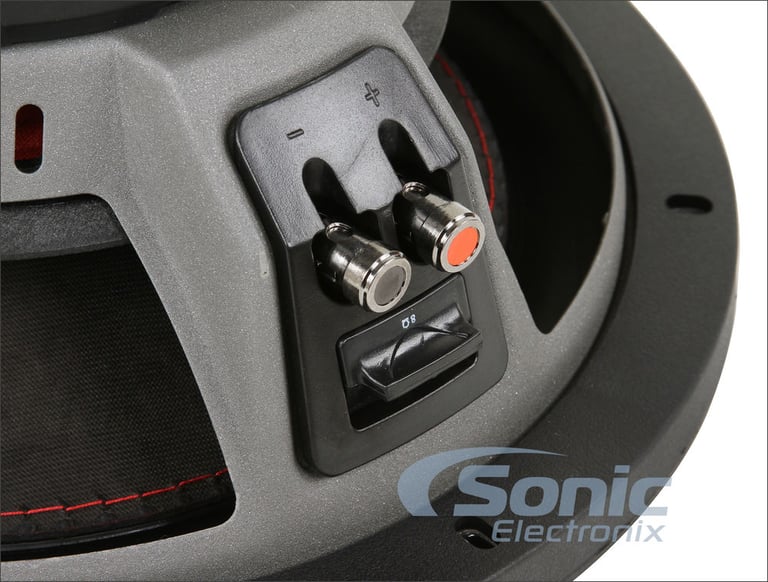

  • Proprietary horizontal mounted terminal
  • High power integrated impedance selector
  • Vented pole piece and voice coil gap for maximum cooling
  • Top-mount depth: 5.98"
  • Mounting Diameter: 10.7"
  • Sensitivity: 84.6 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega VPRO124D-2 thumbnail
(newest, current model)
Cerwin-Vega VMAX3124 thumbnail
(previous model, replaced by Cerwin-Vega VPRO124D)
Cerwin-Vega VMAX124.2 thumbnail
(previous model, replaced by Cerwin-Vega VMAX3124)
Cerwin-Vega VMAX124 thumbnail
(previous model, replaced by Cerwin-Vega VMAX124.2)
Cerwin-Vega VMX-12.4 thumbnail
(previous model, replaced by Cerwin-Vega VMAX124)
Cerwin-Vega VMX12DVC thumbnail
(previous model, replaced by Cerwin-Vega VMX-12.4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VPRO124D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VPRO124D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VPRO124D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VPRO124D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
PRO Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
84.6 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Santoprene Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5.98"
Cutout Diameter
10.7"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.2 Hz
Equivalent Compliance (Vas)
40.9 liters
Total Speaker Q Value (Qts)
0.645
Electrical Q Value (Qes)
0.69
Electrical Resistance of Voice Coil (Re)
4.0 ohm
Mechanical Q Value (Qms)
9.5
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VPRO124D-2

Weight:

19.40lbs

Internal SKU:

vpro124d

Internal Product ID:

76873

Product and How-to Videos


Customer Ratings & Reviews


Cerwin-Vega VPRO124D thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Vega Pro Knocks!

This woofer had some good specs compared to others that I wanted to buy. The staff at Sonic had good things to say about this so I gave it a shot.....Got it hooked up to 500W rms and this thing knocks for blocks! I want to get one more but waiting to get a new amp with more power. It has a really cool terminal to change impedance with out wires too! I highly recommend this woofer that wants to be louder than his buddies with over priced big name brands. Im a Cerwin Vega fan for sure now.

By Brian on July 17, 2014

23 found this helpful


Perfect bass

I purchased 2 of these and they bang I got them in my single cab pickup in a seal box but I'm thinking of ordering 2 more and cutting into the bed and doing a blow through I would highly recommend these subs by far the nicest cerwin Vegas I've owned for the price

By marcos on August 11, 2015 Checkmark Icon Verified purchase

10 found this helpful


Great Value

Needed decent bass on a budget, this sub had good specs for the price, and I liked the looks and Cerwin Vega name (even though it's hardly the same company as the old-school stuff).

Installed two in a dual (separate chamber) 12" ported enclosure, with approx 1.7cu. ft NET volume each, tuning is approx 36-37hz. This is close to the recommended size by the manufacturer. Did some box modeling in WinISD beforehand and it's clear that a ported enclosure favors SPL (for this driver) over sound quality-- huge gains between 30-45hz boosts SPL/volume enormously over a sealed box. Great for volume/output, not the best for sound quality-- I would suggest tuning as low as possible (28-30hz), which will reduce the peak somewhat and give greater low frequency extension below 35hz.

I'm pleased with the results-- I've heard subs that sound better, and have heard subs that get louder. The catch is none of them were this affordable. It's a good mix of SPL and SQ-- gets PLENTY loud and the SQ is decent enough for most any type of music I listen to. If you're on a budget, these are an excellent value.

I'm running an Audiopipe APMI-1500 amp-- at 12V, it is probably putting out about 550-600W/ch. clean power to each sub. At max volume (without distortion) the subs get warm, but I've not smelled any voice coil burning and the subs don't show any signs of being overworked at that power level.

Given that it's in a ported enclosure, a subsonic filter is a must, because the driver will unload below tuning frequency. I have mine set at 35hz so that it tapers volume off below that frequency. If you don't set one, you'll likely damage the sub suspension, or even bottom the sub out.

This driver has a 10.7" cutout which makes it rather small for a 12"-- the benefit is that it fits in most any 12" enclosure, but the cone area isn't as large as some other 12" subs-- but then the larger 12" subs sometimes require you to cut out a larger opening. So this attribute is not a good or bad thing, just something to be aware of. Just looking at it, it almost looks like a large 10" sub-- which was probably just what I needed because as it is, the box I bought just BARELY fits in my trunk.

As long as these hold up well (time will tell) I'd recommend giving them a shot. I haven't used enough subs in this price range to say whether these are the BEST 12" sub for the money, but I can certainly say you can do a whole lot worse. Glad I bought them.
