Autotek ATA1200.1

1200W Max Monoblock Class AB Car Amplifier

Autotek
Shop all Autotek
Product videos
highlight-star-icon

• Max Power: 600W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Frequency Response: 15 - 150 Hz
• Preamp RCA outputs to daisy chain multiple amps

Learn more about the ata12001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• Max Power: 600W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm
• Total Peak Power: 1200W
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Frequency Response: 15 - 150 Hz
• Preamp RCA outputs to daisy chain multiple amps

Description


Autotek brand icon

Authorized dealer

General Features:

  • ATA Series Monoblock Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

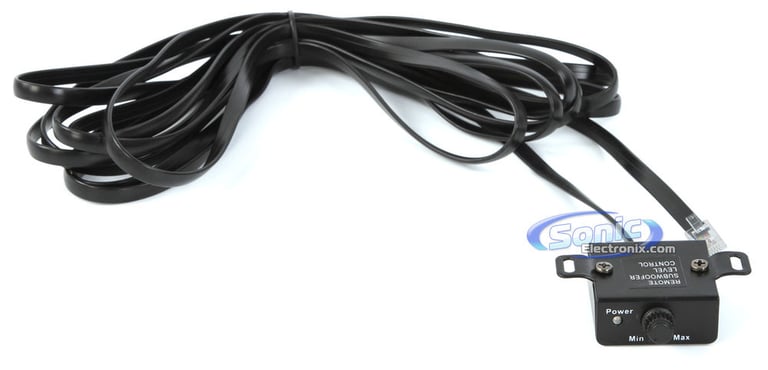

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink and high-density split-dome convection heat-sink for extreme heat dissipation
  • Input sensitivity: 20 0mV - 6V
  • Frequency Response: 15 - 150 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Variable low-pass filter: 40 - 150 Hz
  • Subsonic filter: 15 - 55 Hz
  • Variable Bass Boost: 0 to + dB bass boost at 45 Hz
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.45"W x 9.05"L x 2.08"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
600 watts x 1 channel
Peak Power @ 2 ohms
1200 watts x 1 channel
Peak Power @ 1 ohm
Not Stable
Amplifier Specifications
Series
ATA Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
Not Specified by Manufacturer
Maximum Input Gauge Size
Any Gauge with use of Ring Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 150 Hz
Subsonic Filter
15 - 55 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATA1200.1

Weight:

6.92lbs

Internal SKU:

ata12001

Internal Product ID:

76964

Product and How-to Videos


Customer Ratings & Reviews


Autotek ATA1200.1 thumbnail image

5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.4
Design
4.4
Usability
4.8

Customer Reviews

Sort by:

Loading...

decent

Its a good amp I just don't like that wen I plug in the remote it drops the gains about to percent other than that I have it hooked up to two jbl 1000s and it hit pretty hard

By luis on July 25, 2014

27 found this helpful


great amp

Bought this amp for my son for Christmas .This amp is very nice and puts out clean power, love the bass remote knob.They are pushing 2 12" MTX Terminators 2 ohm and slam.my only complaint is when the bass remote is connected you lose about 2 dbs or so so I fine tuned it without the remote then connect it back.also wished the autotek logo lite up blue but that just my opinion. Over all Sonic Electronix is a great company to buy from!

By cbizzy on January 24, 2015

24 found this helpful


Awesome deal

Really love this product, came in fast and got it for a really great deal!

By Riley on July 7, 2015

11 found this helpful


Great Power

This is a great products and has many features that come along with it. The only downside is that it get hot fast when you crank up the bass.

By Ken on August 2, 2015

7 found this helpful


autotek ata 1200.1 & massive audio 84 hippo

very happy with this product using it in my lexus ls430 also massive audio 84 hippo subwoofer autotek ata 1200.1 amp doing the job well .will buy more from you guys thanks

By big l on October 7, 2015

2 found this helpful
