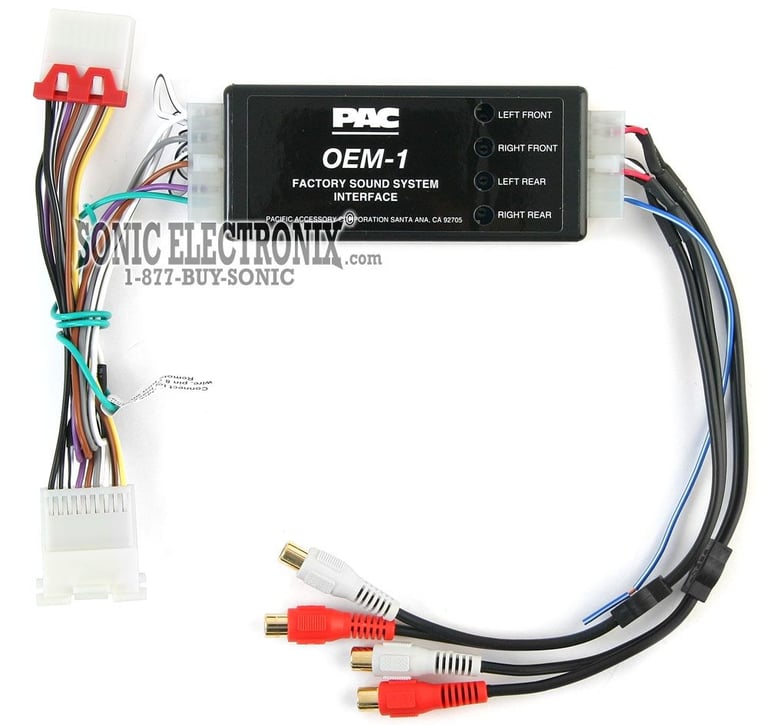

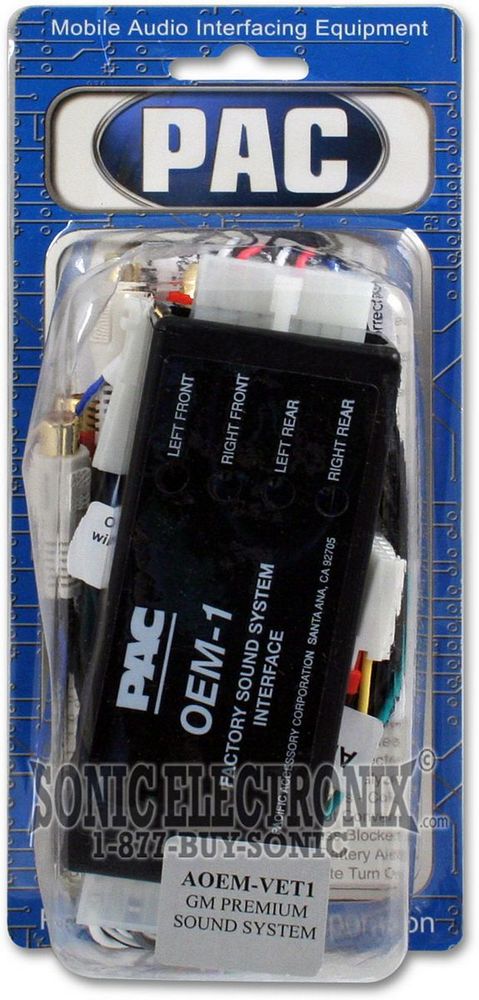

PAC AOEM-VET1

System Interface Kit to Add an Amp or Replace the Factory Amplifier in a 1997-2004 Chevrolet Corvette with Premium Delco/Bose System

PAC
Shop all PAC
highlight-star-icon

• Replacement/Addition Of Amp In 1997-2004 Chevrolet Corvette With Premium Delco/Bose Sound System
• 4 Channel Interface
• 16/18 Pin

See compatible vehicles Learn more about the aoemvet1

We apologize

This item has been discontinued


Loading...
PCM-3 main

Crux PCM-3

Rear-View Integration Interface for select 2009-2025 vehicles from Porsche with PCM-3 or PCM-3.1 Systems

-35.71%

$372.60

List price $579.60

Limited time!
XAV-AX6000 main

Sony XAV-AX6000

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

10
-21.71%

$548.00

List price $699.99

Description


PAC brand icon

Authorized dealer

Product Features:

  • Interface allows for the replacement or addition of an amplifier in a 1997-2004 Chevrolet Corvette with a premium Delco/Bose sound system.
  • Transformer isolated
  • 20 - 20,000 Hz
  • 4 Channel Interface
  • Output connector: 16 Pin
  • Input connector: 18 Pin
  • 1-year Manufacturer's warranty

This AOEM Kit Includes the following:

Connections:

  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange - Dash Light Dimmer/Illumination
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe - Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2010 Porsche Cayenne is not compatible. Change vehicle or See list of compatible similar products


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00


Best selling similar products

AXLOC-CH5 small

Axxess AXLOC-CH5

• Active 2-Channel Line Output Converter
• Designed to provide 2-channels of low-level audio
• Includes gain level controller to adjust the overall output
• Compatible with select 2011-2025 vehicles from Ram, Dodge, Jeep with non-amplified systems

(10)

$93.99

List price $104.99

APSUB-CH41 small

PAC APSUB-CH41

• Amplifier and subwoofer integration interface for select 2013-2024 vehicles from Ram, Jeep, Dodge
• Compatible with amplified vehicle systems
• Provides 2-channel non-fading output
• For use with an aftermarket amplifier and subwoofer
• Delivers 5V RMS pre-amp output with bass equalization and level control

$239.00

List price $329.00

APSUB-CH42 small

PAC APSUB-CH42

• Amplifier and subwoofer integration interface for select 2021-2026 vehicles from Ram, Jeep, Dodge
• Compatible with amplified vehicle systems
• Provides 2-channel non-fading output
• For use with an aftermarket amplifier and subwoofer
• Delivers 5V RMS pre-amp output with bass equalization and level control

$239.00

List price $329.00

AXDSPX-ETH1 small

Axxess AXDSPX-ETH1

• Plug and Play T-harness for faster installation
• For select 2019-2024 vehicles from Chevrolet, GMC, Cadillac
• Designed for Ethernet amplifiers
• Designed to be used with factory radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

(3)

$517.99

List price $613.99

AOEM-FRD24 small

PAC AOEM-FRD24

• Amplifier integration interface for select 2003-2014 vehicles from Ford, Lincoln, Mercury
• Compatible for vehicles without amplified THX and Sony systems
• 4-channel RCA output
• Linear 20-20000 Hz sound reproduction
• For use with an aftermarket amplifier

(26)

$56.99

List price $129.00

AXDSPX-GMM50 small

Axxess AXDSPX-GMM50

• Plug and Play T-harness for faster installation
• For select 2010-2021 vehicles from Chevrolet, GMC, Cadillac
• Designed for MOST amplified systems
• Designed to be used with factory radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$638.99

List price $709.99

AXLOC-FD2 small

Axxess AXLOC-FD2

• Active 2-Channel Line Output Converter
• Designed to provide 2-channels of low-level audio
• Includes gain level controller to adjust the overall output
• Compatible with select 2011-2025 vehicles from Ford with non-amplified systems

(3)

$93.99

List price $104.99

AP4GM71 small

PAC AP4-GM71

• Amplifier integration interface for select 2019-2025 vehicles from Chevrolet, GMC, Cadillac
• Vehicle must be amplified and with a factory Bose system
• Provides a 6-channel pre-amp output
• Delivers 5V RMS pre-amp output with bass equalization and level control

(4)

$479.00

List price $549.00

AP4-CH41 small

PAC AP4-CH41 R.2

• Amplifier integration interface for select 2013-2023 vehicles from Ram, Jeep, Dodge
• Provides 2-channel non-fading output
• For use with an aftermarket amplifier
• Delivers switchable 4-volt or 5-volt RMS pre-amp output

(4)

$419.00

List price $499.00

Specifications & Details


Features
Main Harness Function
Install an Aftermarket Car Amplifier & Connect to Factory Radio
Premium Harness Features
Compatible Premium Audio Systems
Delco
Standard Bose
Factory System Amplification
Amplified
Non-Amplified
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

PAC

Model Number:

AOEM-VET1

Weight:

0.75lbs

Internal SKU:

aoemvet1

Internal Product ID:

7713

Customer Ratings & Reviews


PAC AOEM-VET1 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.7
Design
4.4
Usability
4.4

Customer Reviews

Sort by:

Loading...

PAC AOEM-VET1

Great product. Easy to understand and use. Operates exactly as described.

By Wes on July 21, 2009

15 found this helpful


PAC AOEM-VET1

This unit worked great for connecting my ipod to the stock radio in my '02 Z06. Installation was easy but I've worked on cars for a long time.

The only thing missing that I would like to see in future updates to the product would be a way to turn it off at the iPod plug so it doesn't drain the battery constantly charging the iPod. When you don't drive your car everyone, leaving something plugged in and charging for several days isn't practical.

By 416ciZ06 on September 28, 2009

14 found this helpful


2004 C5 Corvette Install - GREAT!

I installed this guy in my '04 Corvette (with the stock Bose audio head unit) with no problems at all. Works like a charm! I'm using it with an iPod Nano (tucked inside the center console flip-up tray, controlled remotely from my steering wheel with the Scosche controlFREQ IPNRFCR), and also a SiriusXM radio, via a short 3.5m 2-1 splitter cable.

By ScubaGuy on April 17, 2012

11 found this helpful
