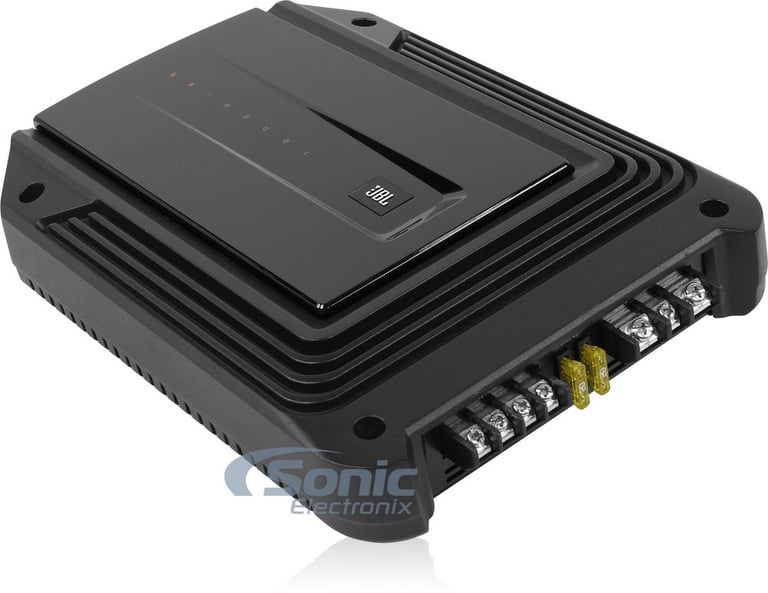

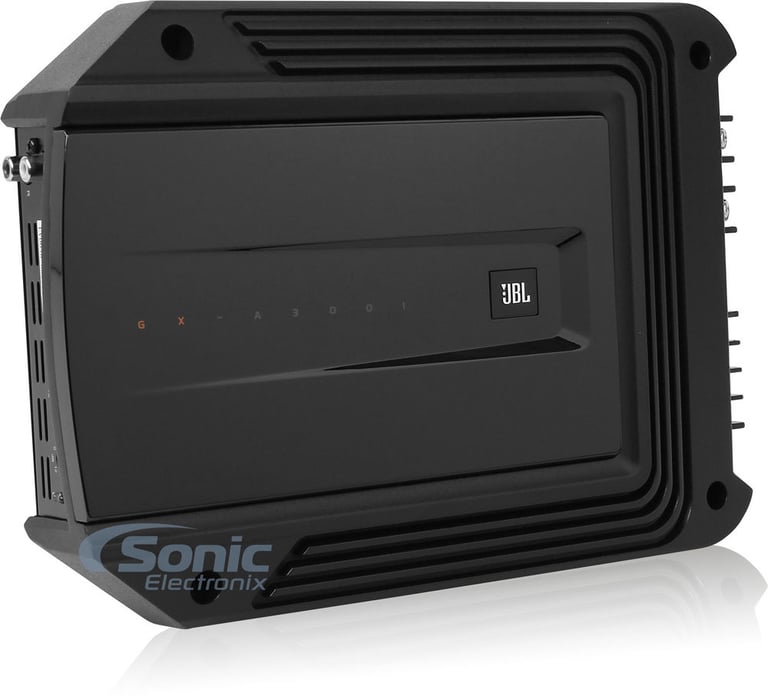

JBL GX-A3001 415W Monoblock GX Series Subwoofer Amplifier

GX Series Class D Subwoofer Amplifier

JBL
Shop all JBL
Product videos
highlight-star-icon

• 200 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Max power output: 415 watts
• Speaker-level (high-level) inputs
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Nickel-plate RCA, Speaker and Power/Ground connections
• Variable low-pass filter: 32 - 320 Hz, 12 dB/octave

Learn more about the gxa3001

We apologize

This item has been discontinued


Loading...
70-1743 main

Metra 70-1743 Wiring Harness

Install a new car stereo in select 1987-1996 vehicles from Mitsubishi, Dodge, Eagle

3
99-7000 main

Metra 99-7000 Dash Kit

Install a new Single-DIN car stereo in select 1985-1996 vehicles from Mitsubishi, Dodge, Eagle (Black)

-11.77%

$29.99

List price $33.99

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13

Product Highlights


• 200 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Max power output: 415 watts
• Speaker-level (high-level) inputs
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Nickel-plate RCA, Speaker and Power/Ground connections
• Variable low-pass filter: 32 - 320 Hz, 12 dB/octave

Description


JBL brand icon

Authorized dealer




The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • GX Series Monoblock Class D Subwoofer Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
  • Max power output: 415 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on

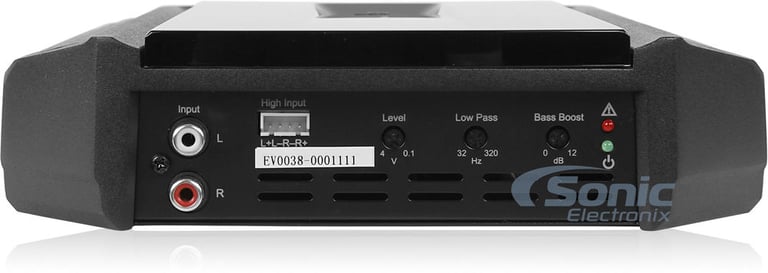

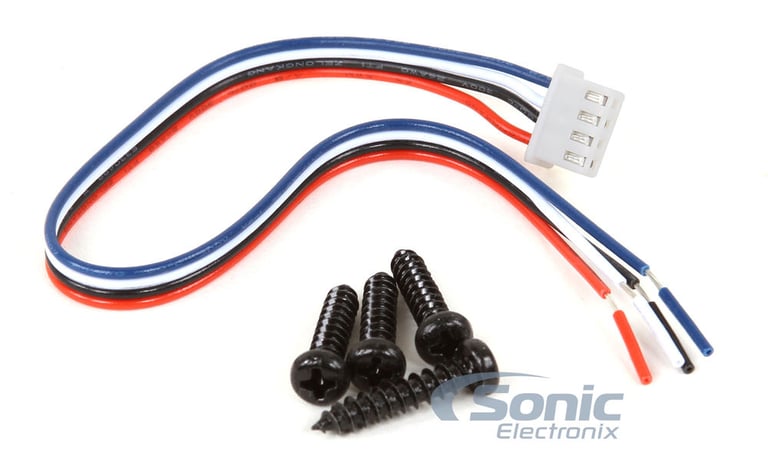

  • Speaker-level (high-level) inputs

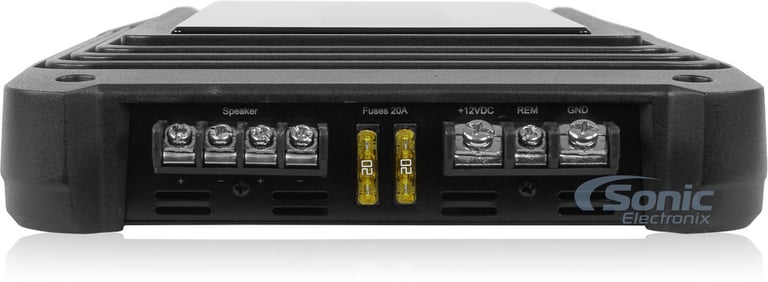

  • Nickel-plate RCA, Speaker and Power/Ground connections
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 200mV - 20V
  • Frequency Response: 10 - 320 Hz
  • Total Harmonic Distortion (THD): <1.0%
  • Signal to Noise Ration: >98dB
  • Signal to Noise Ration: >75dB (2V @ 4 ohm)
  • Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Fuse Rating: 20A x 2
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11-7/16"W x 8-1/8"L x 2-1/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

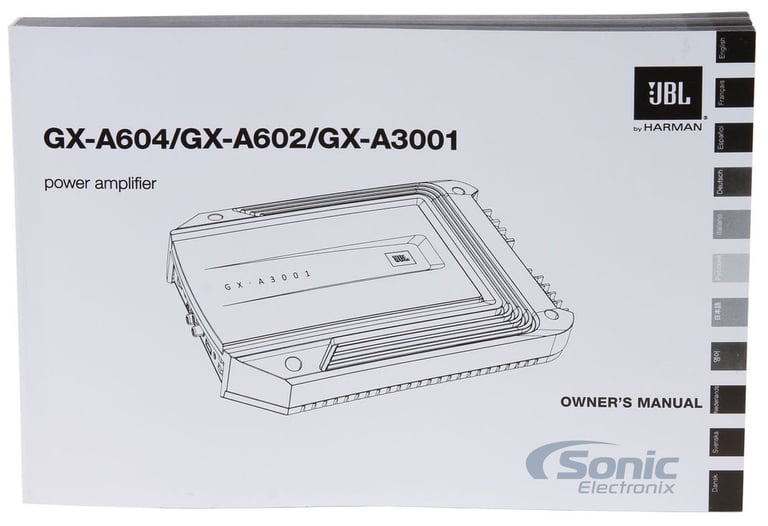

Check out the JBL GX-A3001 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
415 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
>98 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GX-A3001

Weight:

6.80lbs

Internal SKU:

gxa3001

Internal Product ID:

79188

Product and How-to Videos

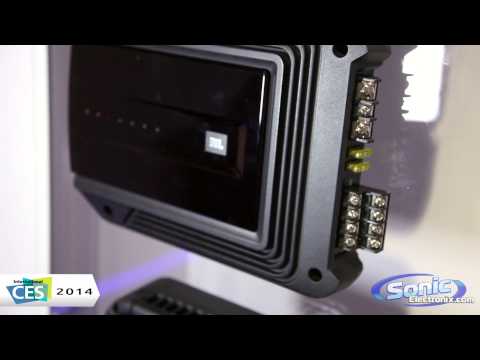

  • JBL GX Series Amplifier | CES 2014
  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


JBL GX-A3001 415W Monoblock GX Series Subwoofer Amplifier thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.7
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome amp

This amp provides clean clear power. If you are using this amp in the specified power range, you will not be let down. Highly recommend this amplifier!

By Jacob on May 8, 2018 Checkmark Icon Verified purchase

15 found this helpful


Perfect

I thought it was a great deal,. I got the amp and sub for my stepdaughter, i never hear them, unless she pulling in or leaving. She says she loves them, so there you go.

By mike on September 1, 2016

15 found this helpful


JBL GX-A3001 415W Monoblock GX Series Subwoofer Amplifier

Wow that is a nice amp. Well worth the money
Adds bass and pumps two subs paralleled with ease.

By Anonymous on May 13, 2018

14 found this helpful
