Name: Soundstream TN5.950D OPEN BOX COMPLETE
Brand: Soundstream
SKU: LS-tn5950d-OBCra224321
Price: 209.95 USD
Availability: Discontinued

by Soundstream

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Soundstream TN5.950D OPEN BOX COMPLETE Image 1 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 2 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 3 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 4 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 5 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 6 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 7 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 8 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 9 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 10 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 11 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 12 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 13 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 14 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE Image 15 — Soundstream TN5.950D OPEN BOX COMPLETE

Soundstream TN5.950D OPEN BOX COMPLETE-video

Product videos

Product highlights

Item is used and has Installation marks
• RMS Power: 85W x 4/270W x 1 @ 4 ohm, 130W x 4/430W x 1 @ 2 ohm
• Total Peak Power: 950W
• High and Low Pass Filters
• Dimensions: 6.875" W x 12.625" L x 1.75" H

Learn more about the LS-tn5950d-OBCra224321

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition: Open Box Complete

Item is used and has Installation marks.

General Features:

Tarantula NANO Series 5-Channel Class AB/D Car Amplifier
Includes Class D Full Range SMT circuitry
RMS Power Rating:

4 ohm: 85 watts x 4 chan. and 270 watts x 1 chan.
2 ohm: 130 watts x 4 chan. and 430 watts x 1 chan.
Bridged, 4 ohm: 230 watts x 2 chan.

Max power output: 950 watts

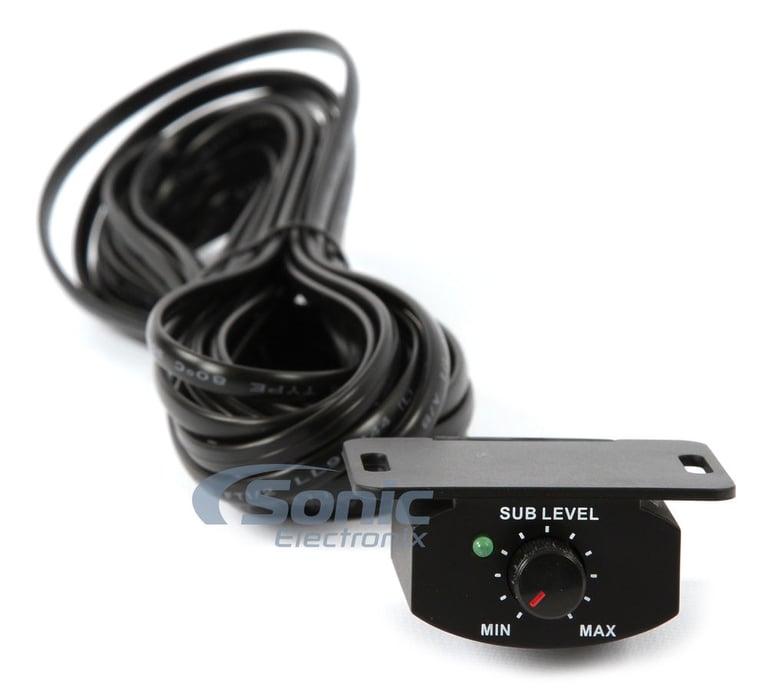

Dash mounted remote gain control
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
Double sided composite epoxy PCB
5/4/3/2 or Mono channel operation
Delayed on/off circuit
Variable high-pass filter

Front: 50-4,000 Hz, 3dB/octave
Rear: 50-4,000 Hz, 3dB/octave

Variable low-pass filter

Front: 250-4,000 Hz, 3dB/octave
Rear: 45-450 Hz, 3dB/octave

Subsonic crossover: 10-50 Hz
Signal to noise ratio: 100dB
Tri-mode capable
Three-way protection circuitry
8 gauge power and ground wiring is required for installation

Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

Dimensions: 6.875"W x 12.625"L x 1.75"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

85 watts x 4 channel

RMS Power @ 2 ohms

130 watts x 4 channel

Bridged RMS Power

230 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

270 watts x 1 channel

RMS Power @ 2 ohms

430 watts x 1 channel

Amplifier Specifications

Series

Tarantula-NANO Series

Amplifier Class

AB / D

Number of Channels

5-Channel

Total Peak Power Output

950 watts

Total RMS Power Output

430 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

Speaker Level Inputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 4000 Hz

Low-Pass Crossover Frequency

45 - 450 Hz

Subsonic Filter

10 - 50 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 12 dB

Fuse Rating

40A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
