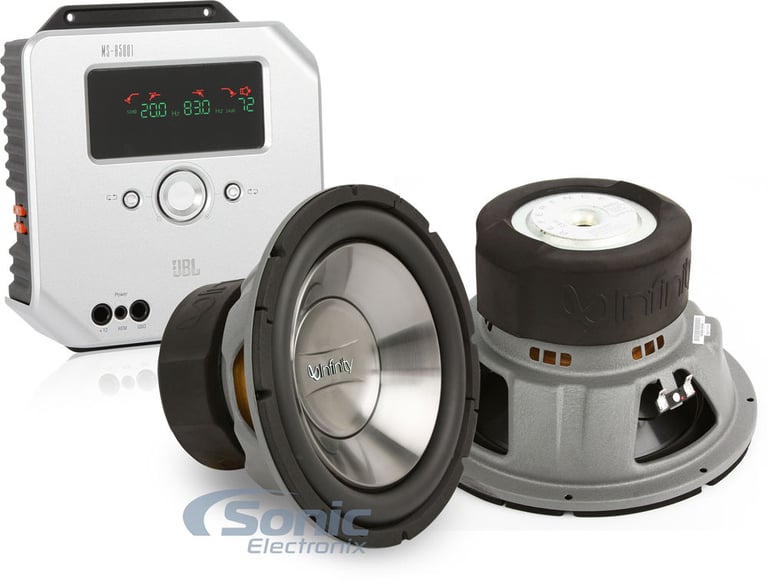

The JBL - Infinity "Harman" Bass Package

500W JBL MS Series Amplifier + Pair of 275W Infinity Reference Subwoofers

JBL
Shop all JBL
Product videos
highlight-star-icon

• Perfect for Any Sound System Lacking Bass
• JBL Digital Amplifier and 2 10" Subwoofers
• Get the Most from Your Sound System

Learn more about the msa5001_2_1060w

We apologize

This item has been discontinued


Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

72-9301 main

Metra 72-9301

Install New Car Speakers in select 1990-2013 vehicles from Mitsubishi, Toyota, Hyundai

5
-46.70%

$7.99

List price $14.99

95-8240B main

Metra 95-8240B Dash Kit

Install a new Double-DIN car stereo in select 2004-2009 Prius (Matte Black)

-51.93%

$24.99

List price $51.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Lowest price in 30 days
VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-16.67%

$99.99

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

DSK 170.3 main

Hertz DSK 170.3

320W Peak (160W RMS) 6.75” Dieci Series 2-way 4-way Component Speakers System

1
-13.05%

$199.99

List price $230.00

Product Highlights


• Perfect for Any Sound System Lacking Bass
• JBL Digital Amplifier and 2 10" Subwoofers
• Get the Most from Your Sound System

Description


JBL brand icon

Authorized dealer

The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.

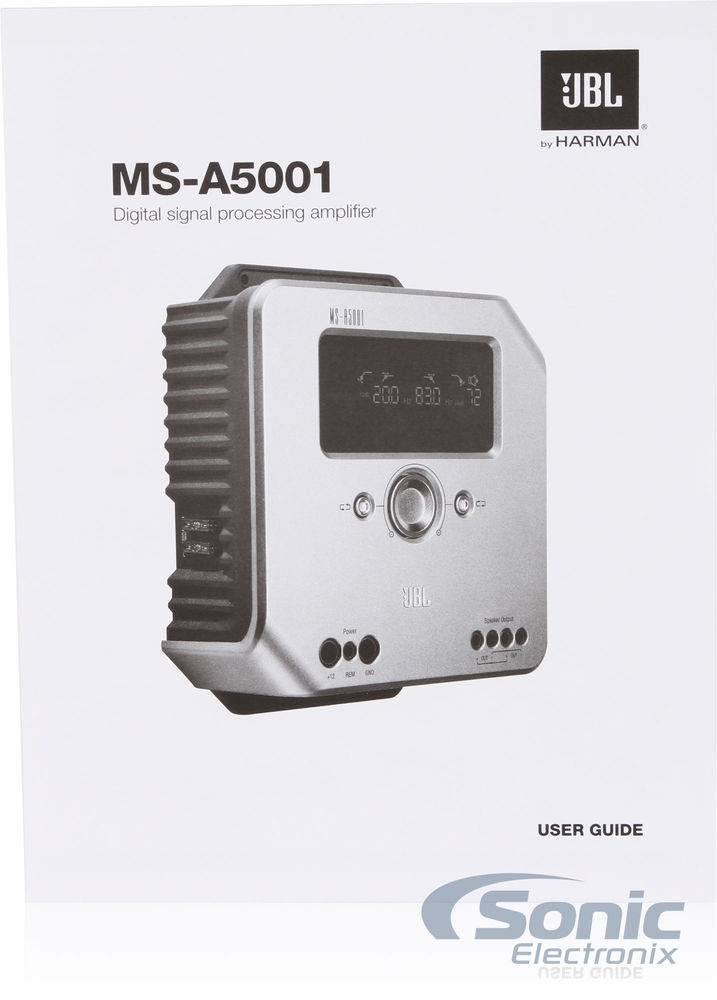

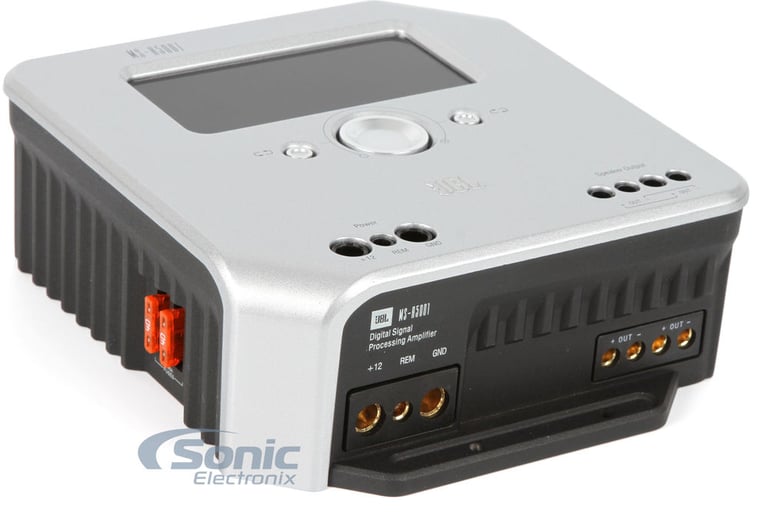

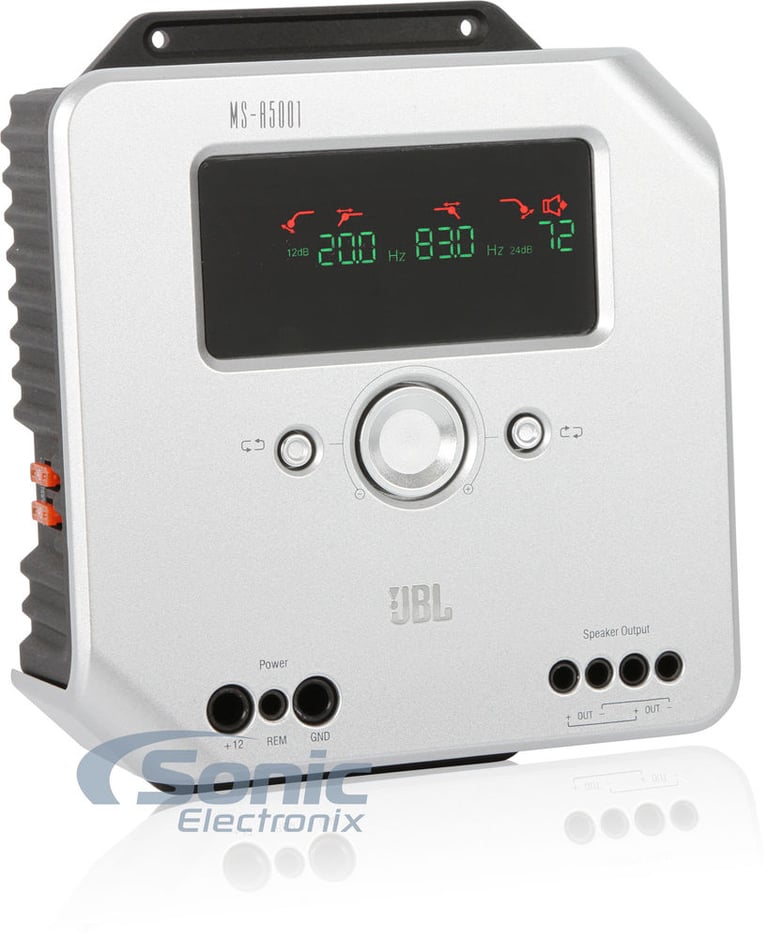

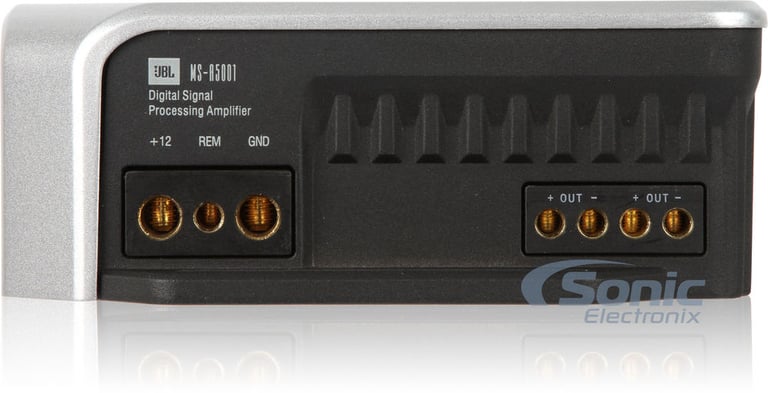

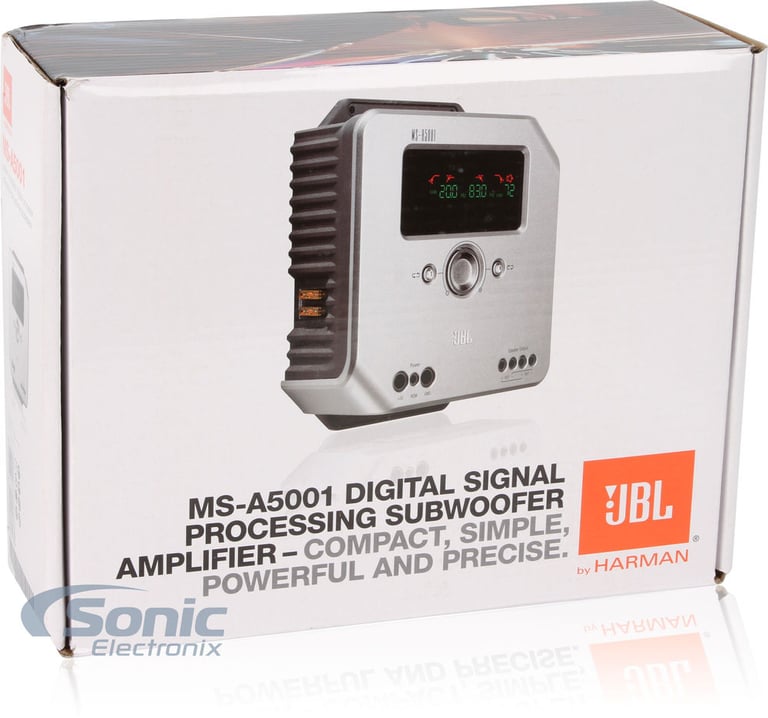

JBL MS-A5001

Tested at 750W RMS on our Amp Dyno! (Rated 500W RMS by JBL), 1-Channel Monoblock Class D Car Amplifier with Digital Input Mixer and Graphical Status Display
Quantity: 1

General Features

  • MS Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 468 watts x 1 chan.
    • 2 ohm: 692 watts x 1 chan.
  • Digital signal processing amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
  • Built-in display shows tone and gain settings
  • Soft Start Turn-on
  • Mono channel operation
  • "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Digital input-mixer control eliminates the need for Y adapters
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • CD for system setup included
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Level: 100mV-15V
  • Variable low-pass filter (20-270 Hz, 6, 12, or 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-270 Hz
  • Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
  • 8-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

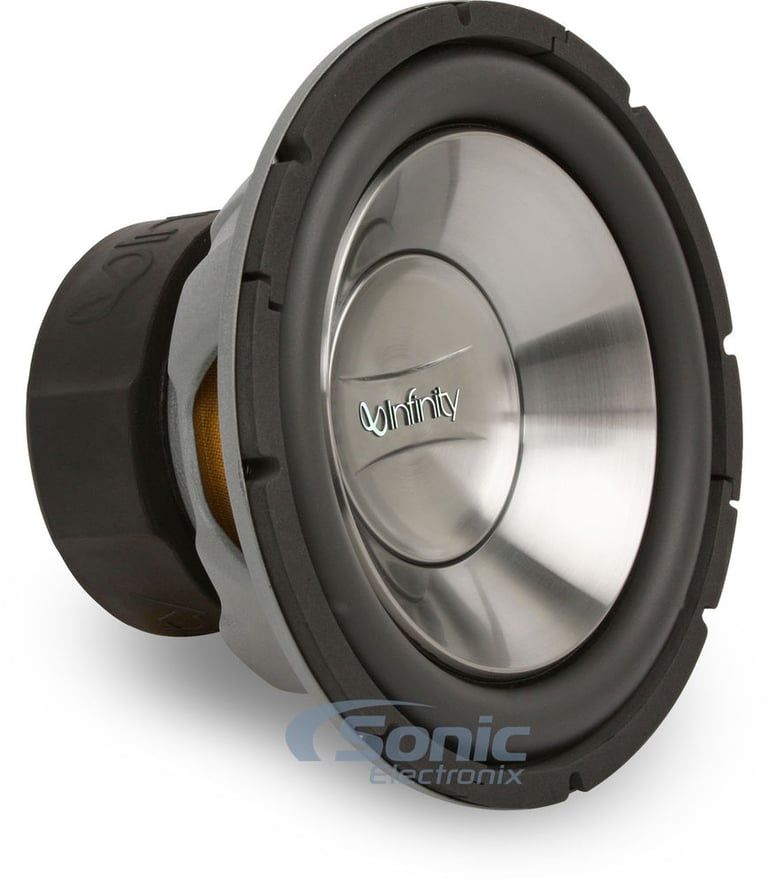

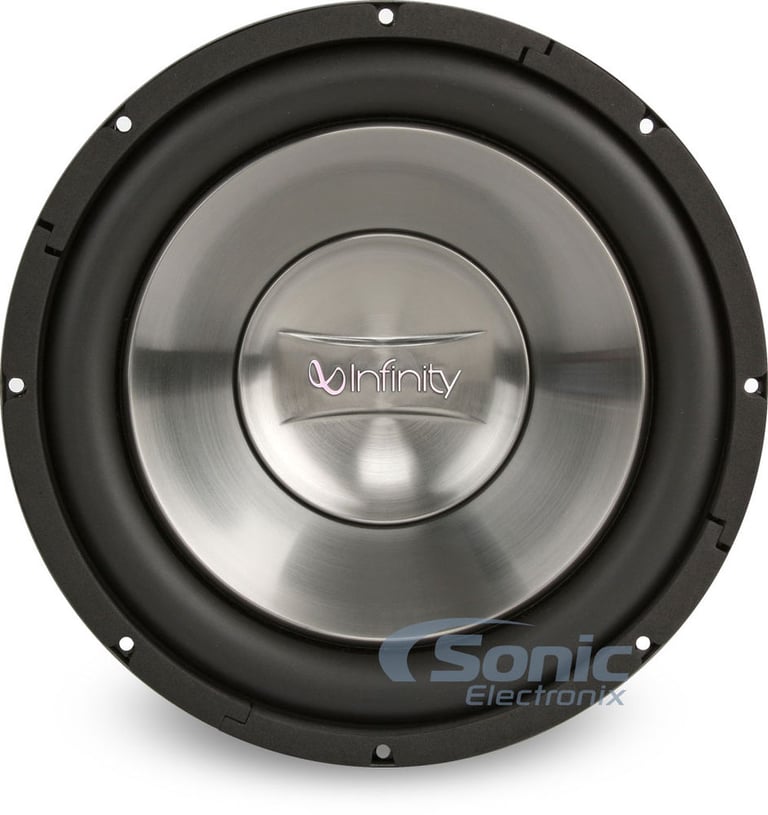

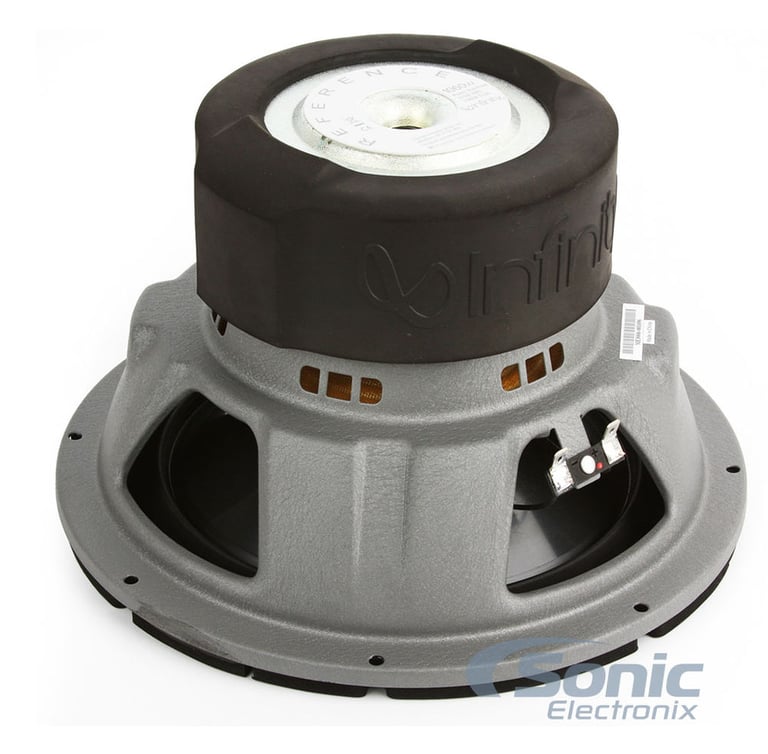

Infinity Reference 1060W

275W 10" Reference Series Single 4 ohm Subwoofer
Quantity: 2

General Features:
  • 10" Single 4 Ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 275 watts
  • Impedance: Single 4 Ohm
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • 2" Voice coil
  • Also found as: REF1060W
  • Frequency response: 25-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 5-7/8"
  • Cutout Diameter: 9-1/4"
  • Authorized Internet Dealer
  • 1 year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
20 - 270 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
Reference Series
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
275 watts
Peak Power Handling
1100 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Sensitivity
91 dB
Frequency Response
25 - 400 Hz
Xmax (millimeters)
13 mm
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

MS-A5001-2

Weight:

38.00lbs

Internal SKU:

msa5001_2_1060w

Internal Product ID:

81034

Product and How-to Videos


Customer Ratings & Reviews


The JBL - Infinity

5 star
80%
4 star
14%
3 star
6%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

good product

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I have no complaints this product is great i would recommend This to anyone looking for easy Setup .

By frank on January 13, 2015

94 found this helpful


Great seller

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I advise!! Fast shipping!! I received my amp perfect!!

By JPFURCN on October 13, 2014

91 found this helpful


Simply Awesome

The following review is for MS-A5001, which is a part of the bundle you are viewing.

When I saw this amp and read up on it I had to have it. It's a lot of bang for the buck. Setup is scary simple. The digital circuitry and class D design is clean and second to none. I have this paired with a JBL P1224 in a ported box and it is much louder than I expected. Very nice.

By Geege on July 13, 2011

90 found this helpful


JBL MS A5001

The following review is for MS-A5001, which is a part of the bundle you are viewing.

This Amp is beautifully designed, easy to use and set up! I have it running one 10" JL W1 in a small sealed enclosure in my 2014 4runner. Power is clean and plenty of it. I highly recommend it for its design, flexibility, and clean power!

By Tony on September 20, 2014

86 found this helpful


Serious power, I love the amp for the value

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I paired this with two 10" GTO JBL 528 subs wired in parallel, 4 ohm, and it hits so freaking hard, my jeep bounces! Seriously, this is a great amp for the cost. I also own JL Audio and can't tell the difference.

By Scott on January 14, 2015

86 found this helpful


Nice Amplifier!

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I am using this for a pair of Pioneer TS-W260S4 subwoofers and a Kenwood Excelon 998 in a 2003 F-150.

This was a huge improvement over the OEM installation, and I am really enjoying the punch that these deliver!

The installation and setup of the amplifier went well enough without any major issues.

By Mr Sparkie on September 11, 2014

81 found this helpful


great little amp

The following review is for MS-A5001, which is a part of the bundle you are viewing.

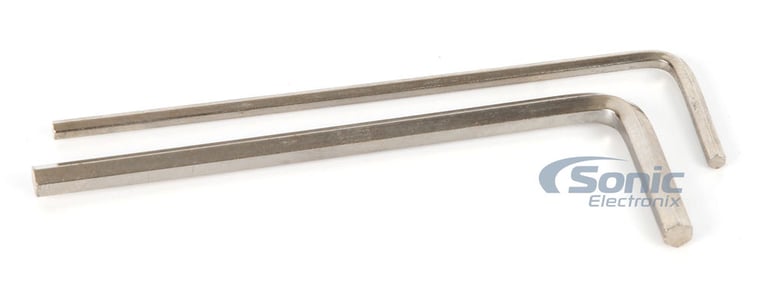

The shipping was fast and packaged appropriately. The only minor inssue I ran into during installation was the remote input. The input had a 1.5 hex instead of 2.5, so the supplied Allen wrench wouldn't fit. I would suggest reading the book a couple of times b4 setup. I have it pushing a Fi Audio X10 in a 1.3 ported enclosure tuned at 33hz. It sounds better than when I had the kicker zx750.1 pushing it. I'll have to update this review once I have it for awhile to give opinion on durability.

By Rolando on February 17, 2015

78 found this helpful


Awesome features

The following review is for MS-A5001, which is a part of the bundle you are viewing.

Purchased this amp for the features. Upon arrival, it did not work. I hooked up my Kicker and completely forgot about it. Sonic has a great warranty, so I sent it back- even after the warranty had expired. They gave me another even, so I hooked it up and mounted it on the box, as my box has an amp rack. I blew the screen. It still works great but I can't change anything on the amp as I cant see what I am doing without the digital display. Shame on me for that one!

By Jason on December 27, 2014

76 found this helpful


jbl ms-a5001

The following review is for MS-A5001, which is a part of the bundle you are viewing.

Awesome amp for the money. Pushing 2 rockford fosgate p1. Sounds amazing.

By jensen on May 12, 2014

78 found this helpful


great amp

The following review is for MS-A5001, which is a part of the bundle you are viewing.

This amp is great easy to use and set up nothin bad to say about it

By lil a on April 2, 2015

73 found this helpful




REV 10 B-XV2 small

Wet Sounds REV 10 B-XV2 (Black)

1200W 10" Revolution Series Marine Tower Speakers w/ X Mount Hardware

(1)

$1449.99

List price $1449.99

MSA4‐1300D, 45KM654x2 small

Power Acoustik MSA4‐1300D with (4) Kicker 45KM654

Marine Grade 4-Channel Amplifier + (4) Marine 6.5" Speakers

(3)

$424.12

List price $599.97

DEH-X7800BHS small

Pioneer DEH-X7800BHS

Single DIN Bluetooth CD Car Stereo Receiver with Built in HD Radio

(2)

$129.99

List price $249.99

DRA1850.1D_KFC-W3013P_BAK42 small

1800W Kenwood + Crunch Bass Package

Pair of Kenwood KFC-W3013PS 12" KFC Series Subs + Crunch DRA1850.1D Mono Amp + Amplifier Kit

$232.07

List price $649.98

No picture

Pioneer AVH-220EX (Open Box, Complete)

Double DIN Bluetooth In-Dash DVD/CD Digital Media Car Stereo Receiver w/ 6.2" WVGA Touchscreen Display

$200.00

List price $259.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Toyota Prius

2010 Land Rover LR4

2001 Chevrolet Silverado 1500 HD

2012 Volkswagen Golf

2020 Buick Enclave

2005 Mitsubishi Lancer

1986 Isuzu Pickup

2013 Audi A3

2014 Audi TT

1978 Dodge D/W Series

Vehicle
Store
Delete

2021 Harley Davidson FLRT Freewheeler

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
