Name: Audiopipe APCL-1004 Open Box Complete
Brand: Audiopipe
SKU: ls-apcl1004-obc6
Price: 109.99 USD
Availability: Discontinued

by Audiopipe

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

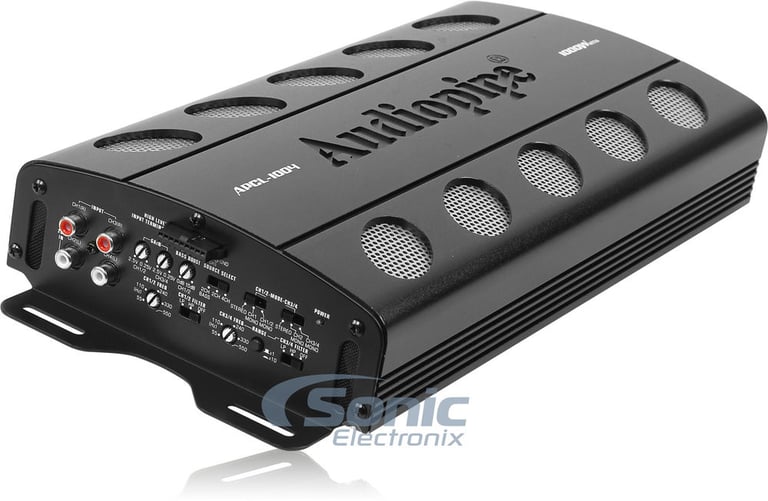

Audiopipe APCL-1004 Open Box Complete Image 1 — Audiopipe APCL-1004 Open Box Complete

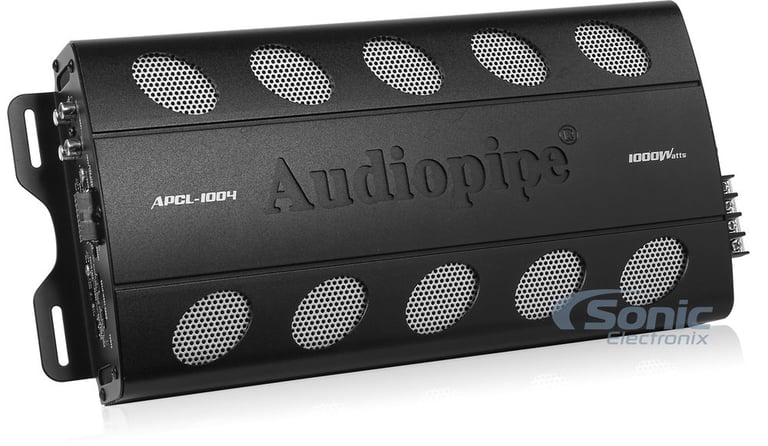

Audiopipe APCL-1004 Open Box Complete Image 2 — Audiopipe APCL-1004 Open Box Complete

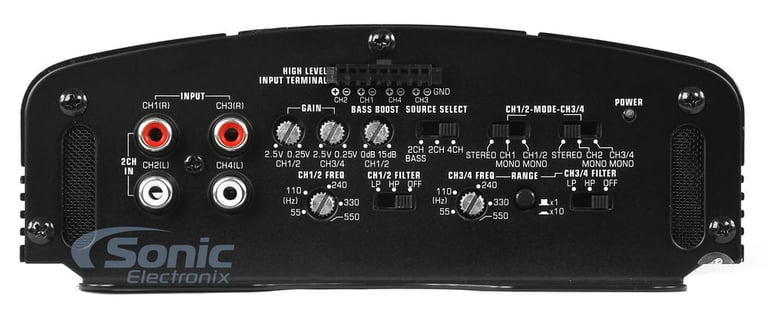

Audiopipe APCL-1004 Open Box Complete Image 3 — Audiopipe APCL-1004 Open Box Complete

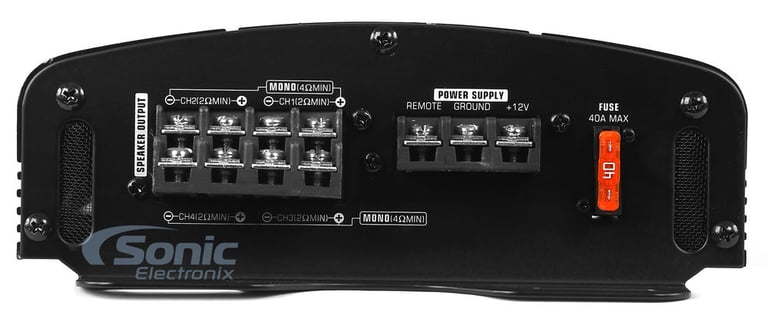

Audiopipe APCL-1004 Open Box Complete Image 4 — Audiopipe APCL-1004 Open Box Complete

Audiopipe APCL-1004 Open Box Complete Image 5 — Audiopipe APCL-1004 Open Box Complete

Audiopipe APCL-1004 Open Box Complete Image 6 — Audiopipe APCL-1004 Open Box Complete

Product highlights

• Item Condition: Open Box Complete
• RMS Power: 50W x 4 @ 4 ohm, 100W x 4 @ 2 ohm
• Total Peak Power: 1000W
• Adjustable High and Low Pass Crossovers
• High Quality Aluminum Heat Sink
• Dimensions: 6.9" W x 13.1" L x 2.16" Ha

Learn more about the ls-apcl1004-obc6

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Quality without the Cost

The Audiopipe Consumer Line series amplifiers were reengineered from the ground up in 2012 to provide plenty of high quality power for even the highest end sound system while keeping their footprint as compact as possible. Audiopipe didn’t skimp on the internals of these amps, the Consumer Line features the finest in electronic protection circuitry to protect against harmful short circuits, thermal overloads and overheating. These premium choice amplifiers are sure to impress.

Oversized Toroids for Oversized Sound

The Consumer Line amplifiers are built with performance in mind, and a quick look under the hood of these amplifiers reveal oversized toroids. These toroids (basically just wire coils) help to regulate the voltage in the amplifier. By overbuilding them, Audiopipe ensures that every CL series amp puts out even, consistent power for the best possible sound, and the longest life from your components.

The Finest in Heat Dissipation

When redesigning the Consumer Line series, Audiopipe took great care in designing an amplifier that would not overheat. These amps feature a high quality aluminum heat sink with cooling fins running along each side and grills embedded in the top plate to ensure outstanding heat dissipation and prevent any unwanted heat related shutdowns.

High Level Convenience

Audiopipe’s multi-channel Consumer Line amplifiers feature high level inputs (or speaker level inputs) to allow much simpler installations. High level inputs eliminate the need for RCA cables and line output converters by picking up the audio signal directly from the speakers in your car. They are ideal for use with factory radios that do not have RCA outputs to run amplifiers.

A part that is fully functional but shows no sign of use outside of installation.

General Features:

Consumer Line Series 4-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 50 watts x 4 chan.
2 ohm: 100 watts x 4 chan.
Bridged, 4 ohm: 150 watts x 2 chan.

Max power output: 1000 watts
Variable Bass Boost (0 to +15 dB bass boost at 45 Hz)
LED power (green) indicator
4/2 channel operation
Input sensitivity:

Low level: 250mV-2.5V

Input sensitivity speaker level:

Low level: 500mV-5V

Speaker-level (high-level) inputs
Variable high-pass filter (55-550 Hz, 24 dB/octave)
Variable low-pass filter (55-550 Hz, 24 dB/octave)
Overload, short circuit and thermal system protection
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
4 gauge power and ground wiring is required for installation

Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

Dimensions: 6.9"W x 13.1"L x 2.16"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

What's in the Box?

APCL-1004 4-Channel Amplifier

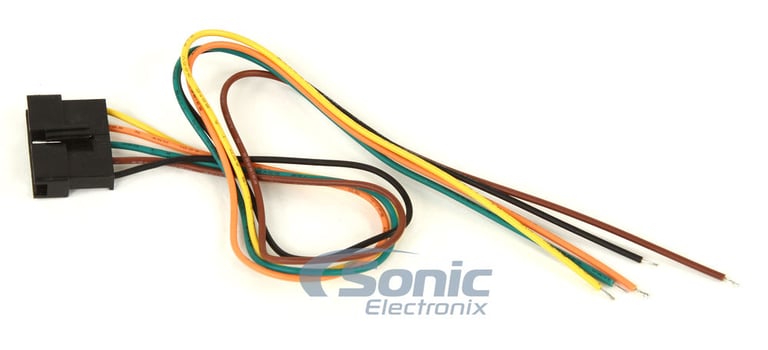

High Level Input Adapter
User Guide

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Bridged RMS Power

150 watts x 2 channel

Amplifier Specifications

Series

Consumer Line Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1000 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

55 - 550 Hz

Low-Pass Crossover Frequency

55 - 550 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 15 dB

Remote bass/level controller

Fuse Rating

40A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
