Name: Audiopipe APCL-1504 OPEN BOX COMPLETE
Brand: Audiopipe
SKU: LS-apcl1504-OBCra219503
Price: 119.99 USD
Availability: Discontinued

by Audiopipe

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

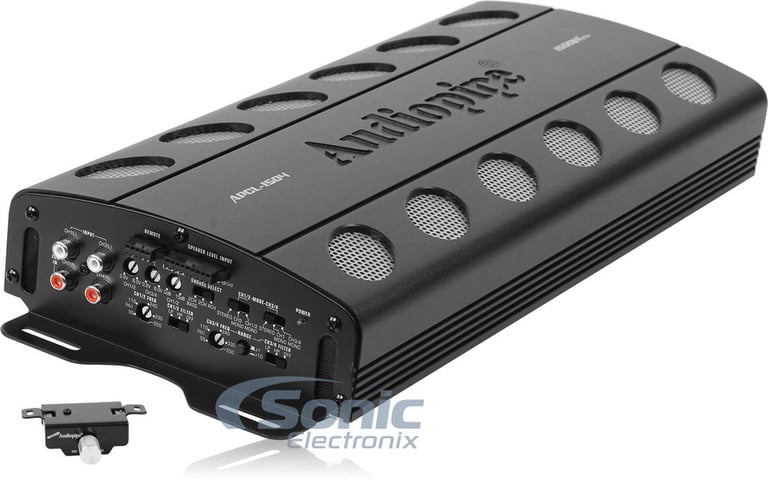

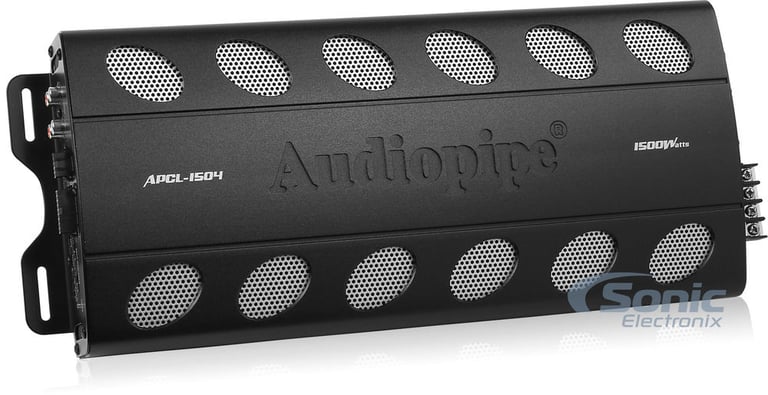

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 1 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 2 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 3 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 4 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 5 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 6 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 7 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 8 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 9 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 10 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 11 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 12 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 13 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 14 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 15 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE Image 16 — Audiopipe APCL-1504 OPEN BOX COMPLETE

Audiopipe APCL-1504 OPEN BOX COMPLETE-video

Product videos

Product highlights

• RMS Power: 75W x 4 @ 4 ohm, 125W x 4 @ 2 ohm, 225 x 2 @ 4 ohm, Bridged
• Total Peak Power: 1500W
• Variable High and Low Pass Crossovers
• High Quality Aluminum Heat Sink
• Dimensions: 7" W x 15" L x 2.2" H

Learn more about the LS-apcl1504-OBCra219503

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Quality without the Cost

The Audiopipe Consumer Line series amplifiers were reengineered from the ground up in 2012 to provide plenty of high quality power for even the highest end sound system while keeping their footprint as compact as possible. Audiopipe didn’t skimp on the internals of these amps, the Consumer Line features the finest in electronic protection circuitry to protect against harmful short circuits, thermal overloads and overheating. These premium choice amplifiers are sure to impress.

Oversized Toroids for Oversized Sound

The Consumer Line amplifiers are built with performance in mind, and a quick look under the hood of these amplifiers reveal oversized toroids. These toroids (basically just wire coils) help to regulate the voltage in the amplifier. By overbuilding them, Audiopipe ensures that every CL series amp puts out even, consistent power for the best possible sound, and the longest life from your components.

The Finest in Heat Dissipation

When redesigning the Consumer Line series, Audiopipe took great care in designing an amplifier that would not overheat. These amps feature a high quality aluminum heat sink with cooling fins running along each side and grills embedded in the top plate to ensure outstanding heat dissipation and prevent any unwanted heat related shutdowns.

High Level Convenience

Audiopipe’s multi-channel Consumer Line amplifiers feature high level inputs (or speaker level inputs) to allow much simpler installations. High level inputs eliminate the need for RCA cables and line output converters by picking up the audio signal directly from the speakers in your car. They are ideal for use with factory radios that do not have RCA outputs to run amplifiers.

General Features:

Item Condition: Open Box Complete

Item has been installed and used
Consumer Line Series 4-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 75 watts x 4 chan.
2 ohm: 125 watts x 4 chan.
Bridged, 4 ohm: 225 watts x 2 chan.

Max power output: 1500 watts

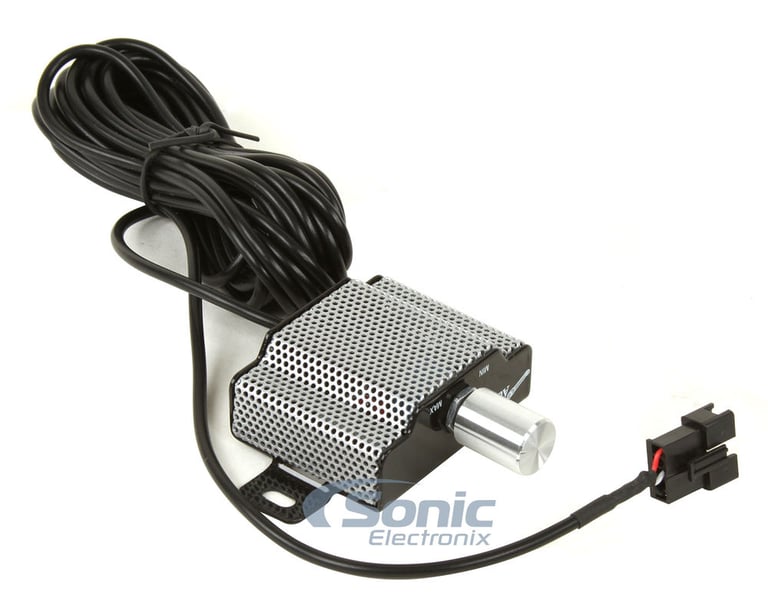

Wired remote bass level control included
Variable Bass Boost (0 to +15 dB bass boost at 45 Hz)
4,2 or Mono channel operation

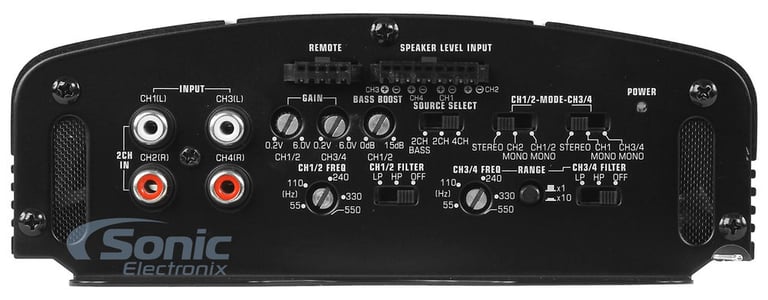

Input sensitivity:

Low level: 200mV-6V

Input sensitivity speaker level:

Low level: 500mV-12V

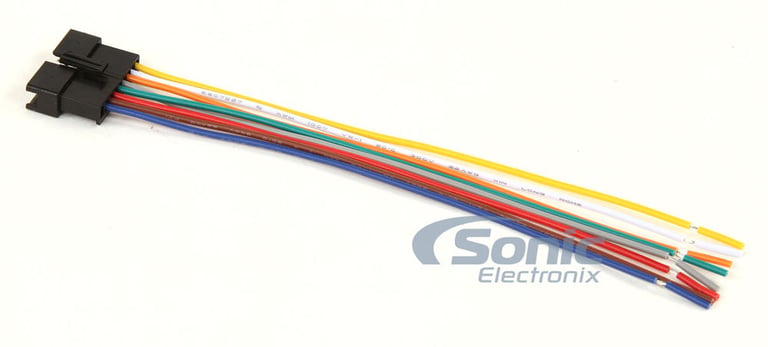

Speaker-level (high-level) inputs
Variable high-pass filter (55-5,500 Hz, 12 dB/octave)
Variable low-pass filter (55-5,500 Hz, 12 dB/octave)
Low profile construction with aluminum heat sink
Overload, short circuit, thermal and low voltage protection
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
4 gauge power and ground wiring is required for installation

Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

Dimensions: 7"W x 15"L x 2.2"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

125 watts x 4 channel

Bridged RMS Power

225 watts x 2 channel

Amplifier Specifications

Series

Consumer Line Series

Amplifier Class

A/B

Number of Channels

4-Channel

Total Peak Power Output

1500 watts

Total RMS Power Output

450 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 15 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
