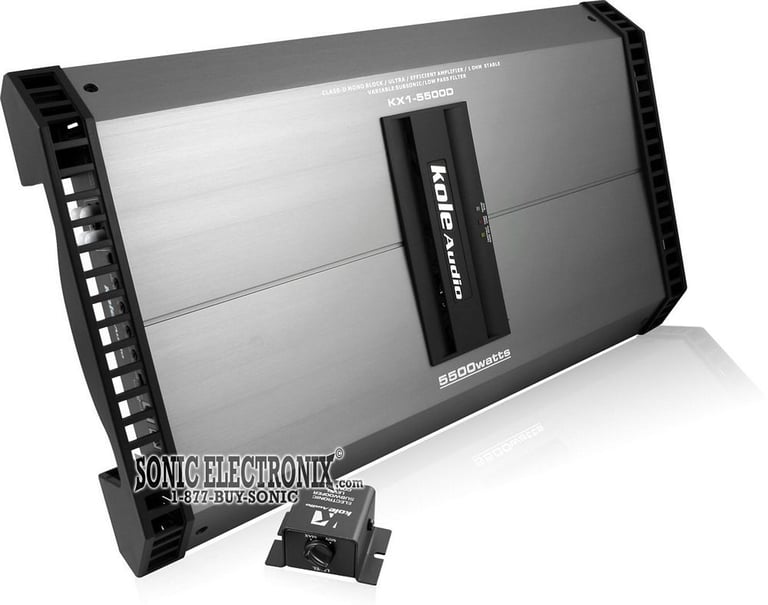

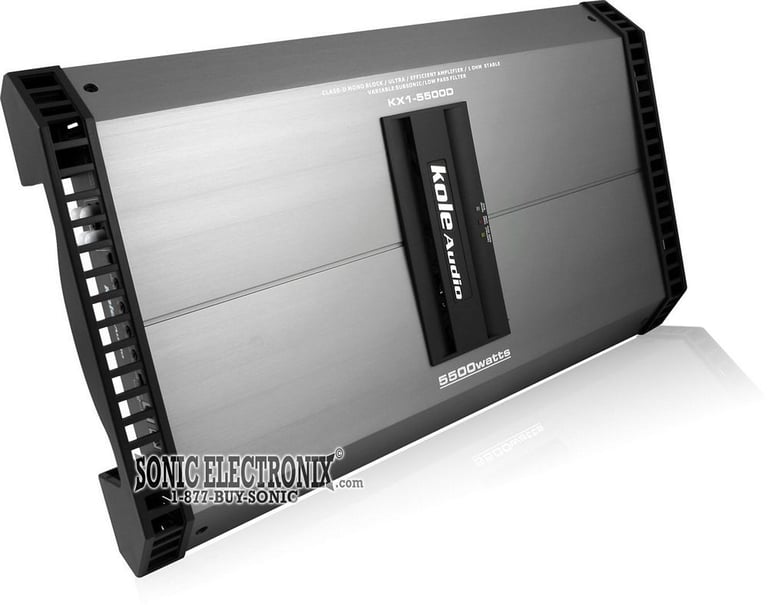

Kole Audio KX1-5500D R/B

5500W Max, KX Series Class D Monoblock Amplifier

Product videos
highlight-star-icon

KX Series Class D Monoblock Car Amplifier • 1700W x 1 chan. @ 4 ohm • 2500W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 1 ohm • Fully regulated PWM MOSFET power supply • Preamp RCA outputs • Nickel-plated screw terminals

Learn more about the LS-kx15500d-RB

We apologize

This item has been discontinued

Product Highlights


KX Series Class D Monoblock Car Amplifier • 1700W x 1 chan. @ 4 ohm • 2500W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 1 ohm • Fully regulated PWM MOSFET power supply • Preamp RCA outputs • Nickel-plated screw terminals

Description


Kole Audio brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • KX Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1700 watts x 1 chan.
    • 2 ohm: 2500 watts x 1 chan.
    • 1 ohm: 3200 watts x 1 chan.
  • Max power output: 5500 watts x 1 chan.
  • Fully regulated PWM MOSFET power supply

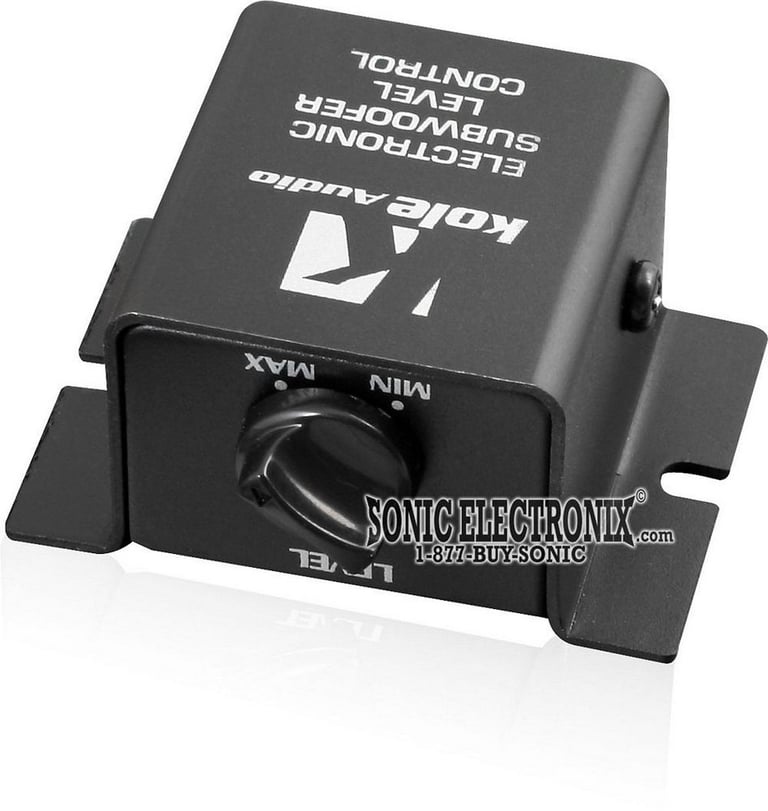

  • Wired remote bass level control included
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
  • High speed digital circuitry
  • Bridging synchronization capable
  • Preamp RCA outputs
  • 4-way Protection circuitry
  • System distress indicator
  • 1 ohm Stable
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-150 Hz)
  • Subsonic Filter (60-200 Hz)
  • Frequency response: 15-150 Hz
  • Dimensions: 17.5"L x 11.7"W x 2.2"H
  • 4/8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • Item Condition: Factory Refurbished
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1700 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
RMS Power @ 1 ohm
3200 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5500 watts
Total RMS Power Output
3200 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 5
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KX1-5500D-RB

Weight:

18.00lbs

Internal SKU:

LS-kx15500d-RB

Internal Product ID:

20859

Product and How-to Videos


Customer Ratings & Reviews


Kole Audio KX1-5500D R/B thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

AMAZING!

This is by far the BEST amplifier I've owned. It's powering two 12" Orion HCCA's, and while it is under-powering the subs it is VERY clear, and enough bass that it takes awhile re-learning to breathe when they hit. When it comes time for a new amp, it will be another Kole Audio. I put one in my wife's Blazer, but it's the 620w and it's just as good! Any amp from Kole is worth the money.

By Justin on March 11, 2010

4 found this helpful
