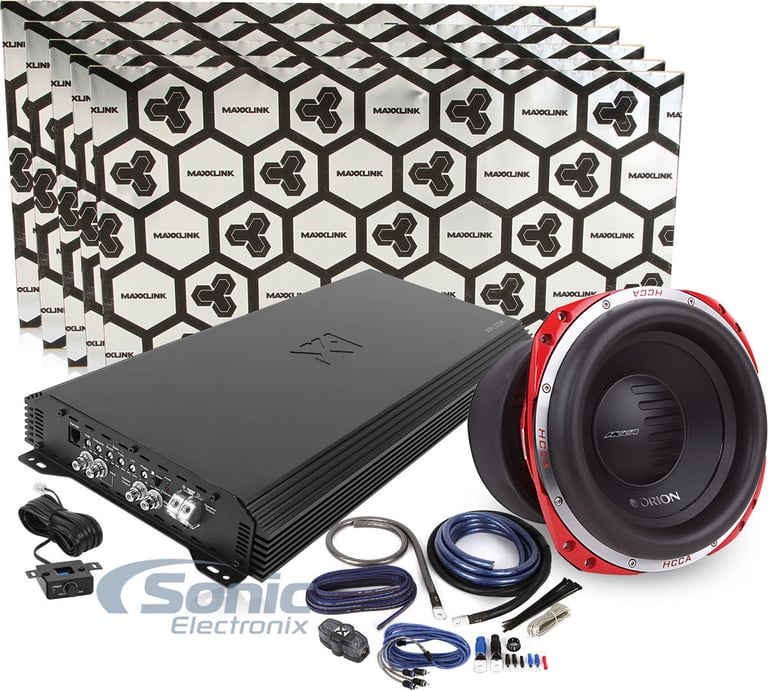

2000 Watt HCCA Bass Package

Product Features

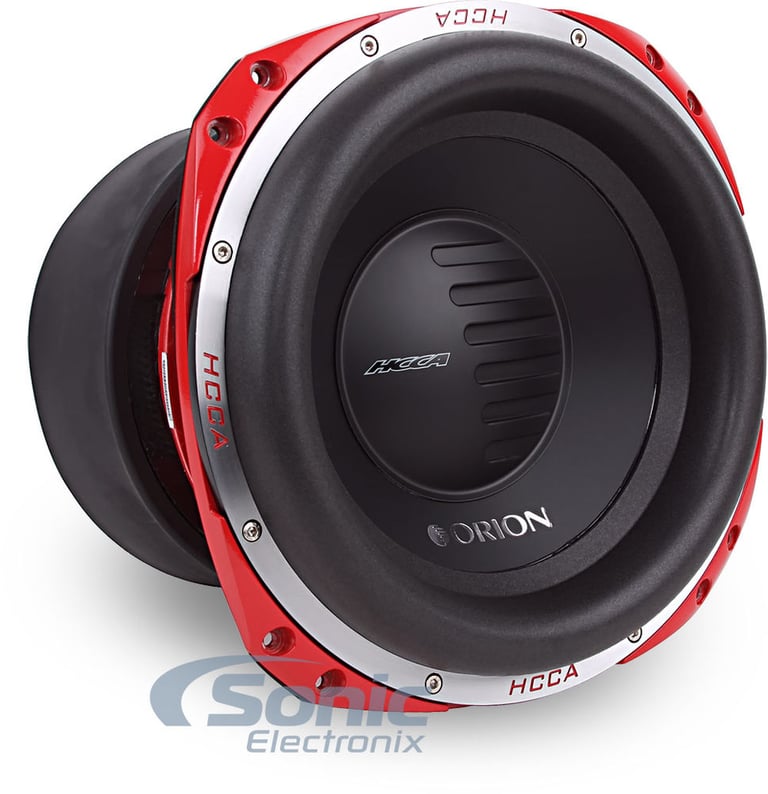

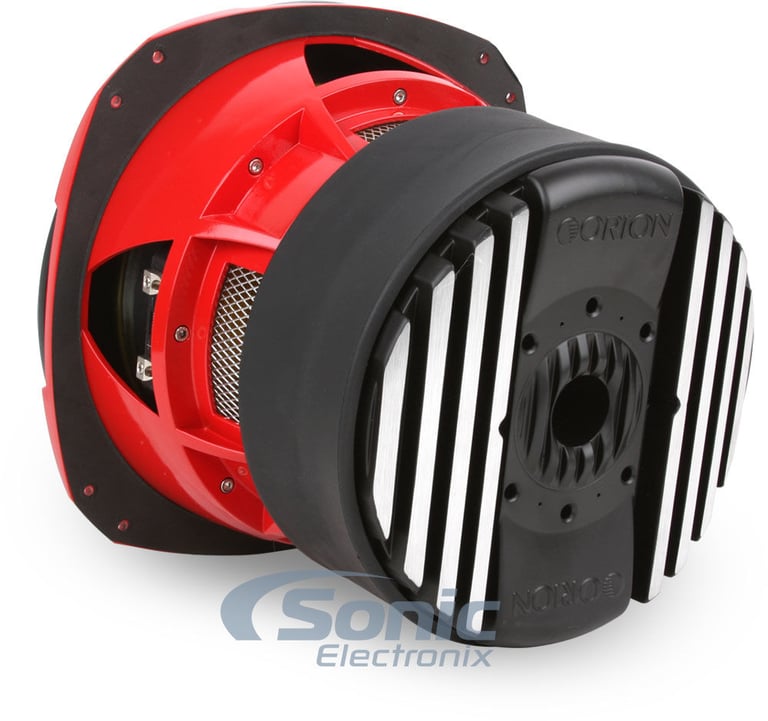

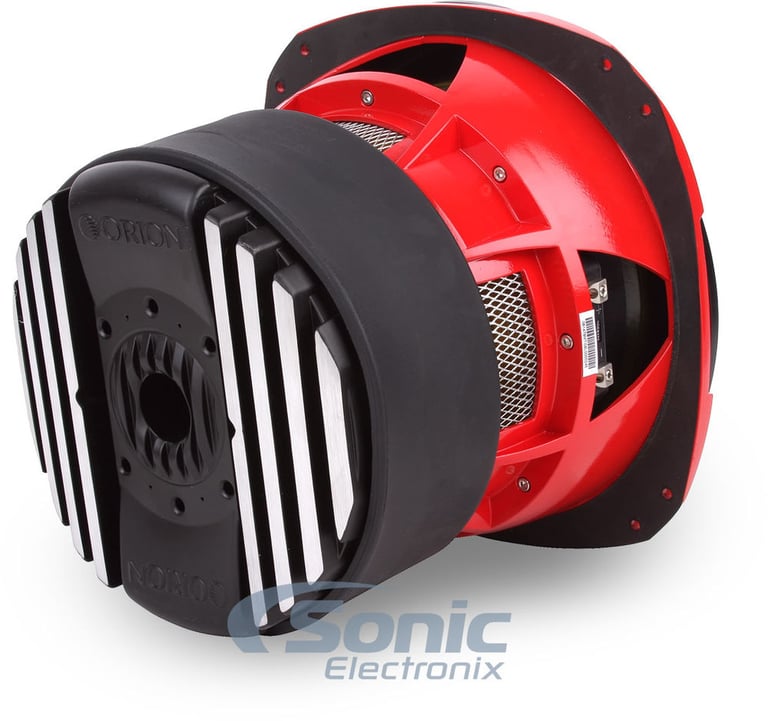

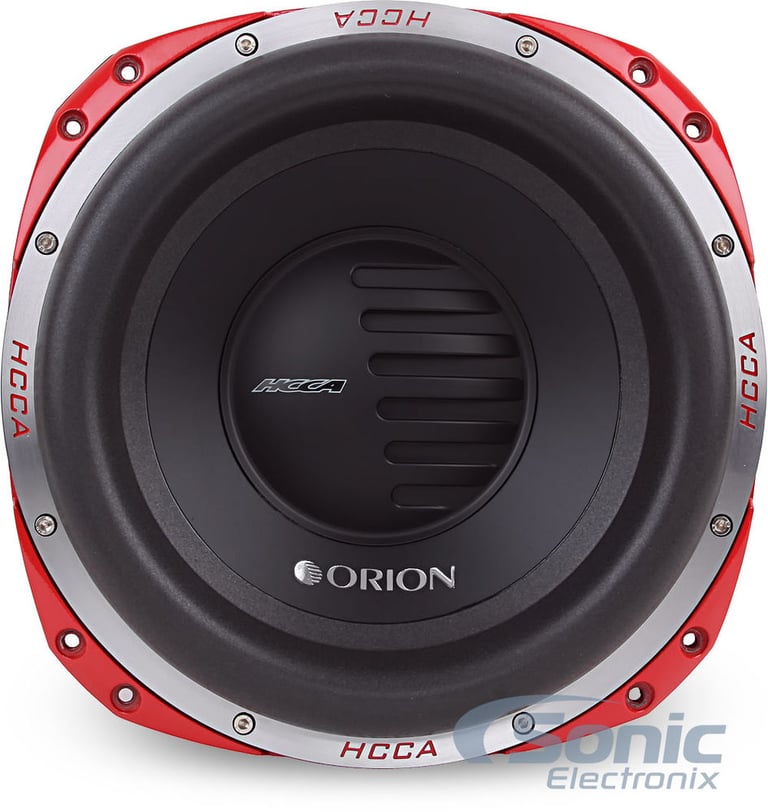

• 12" Dual 2 ohm HCCA Series Competition Subwoofer
• Power Handling:
• Peak: 4000 watts
• RMS: 2000 watts
• Polypropylene cone woofer
• Rubber tri-radius symmetrical surround
• Dual flat conex spiders with loop stitched tinsel leads
• Enhanced voice coil cooling systems
• High temperature PAARC (Polyester Amide, Amide Resin Coated) Voice coil
• Dual 2 ohm copper wound voice coil on aluminum former
• Also found as: HCCA12.2, HCCA-12.2
• Sensitivity: 84 dB
• If you blow the subwoofer, there is a replacement cone kit that allows you to easily swap out the blown/burned voice coil and surround with a new one. The replacement kit allows you to keep the magnet and basket, therefore saving money as you do not need to buy a new sub.

General Features:

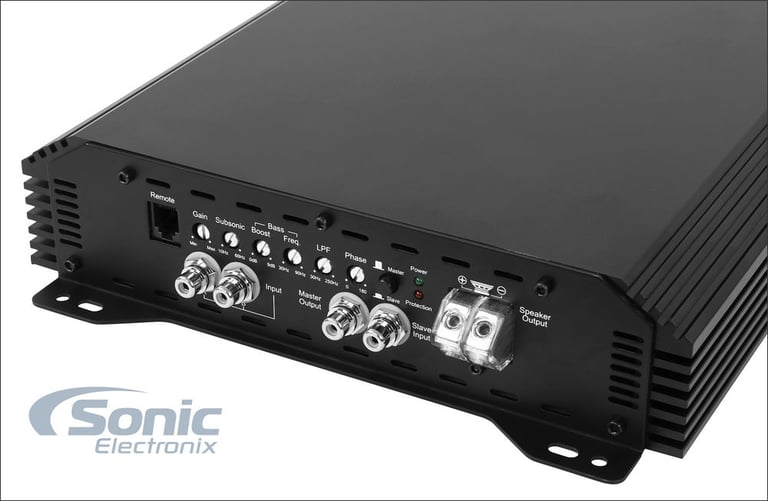

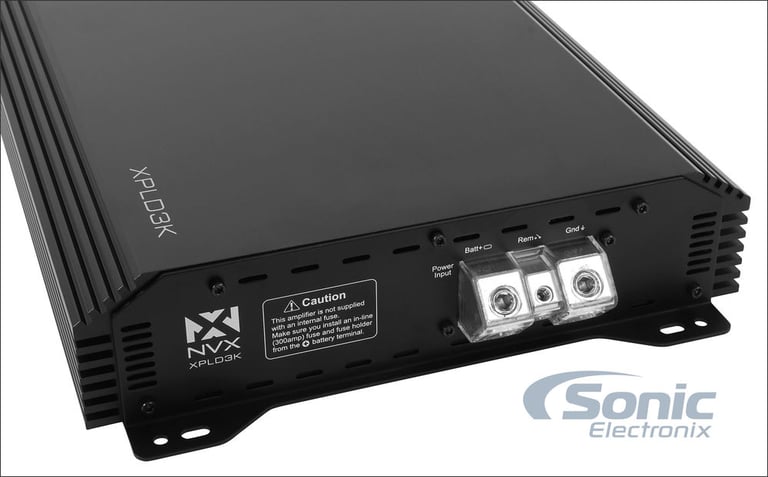

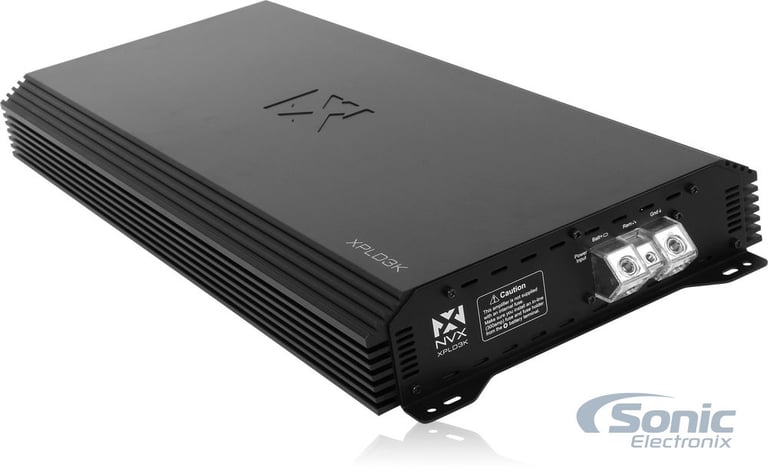

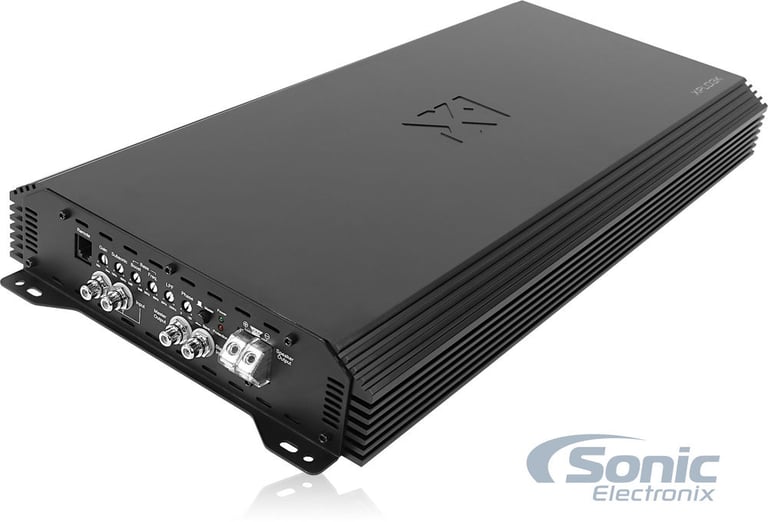

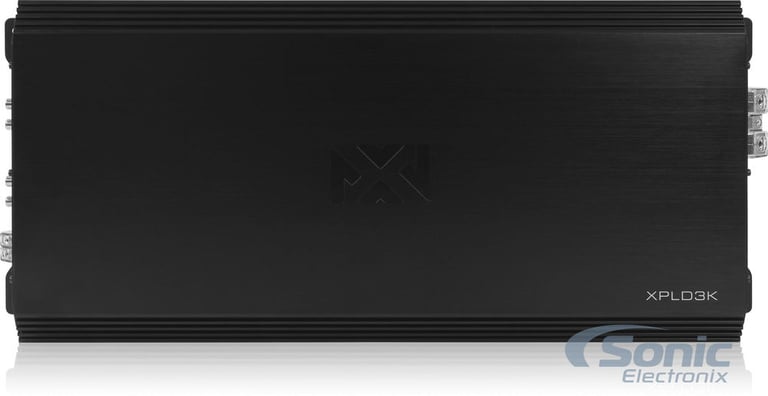

• Class D Monoblock Amplifier with Bass Remote
• RMS Power Rating:
• 4 ohm: 1020 watts x 1 chan.
• 2 ohm: 1900 watts x 1 chan.
• 1 ohm: 3000 watts x 1 chan.
• Dual Pulse Width Modulated (PWM) MOSFET power supply

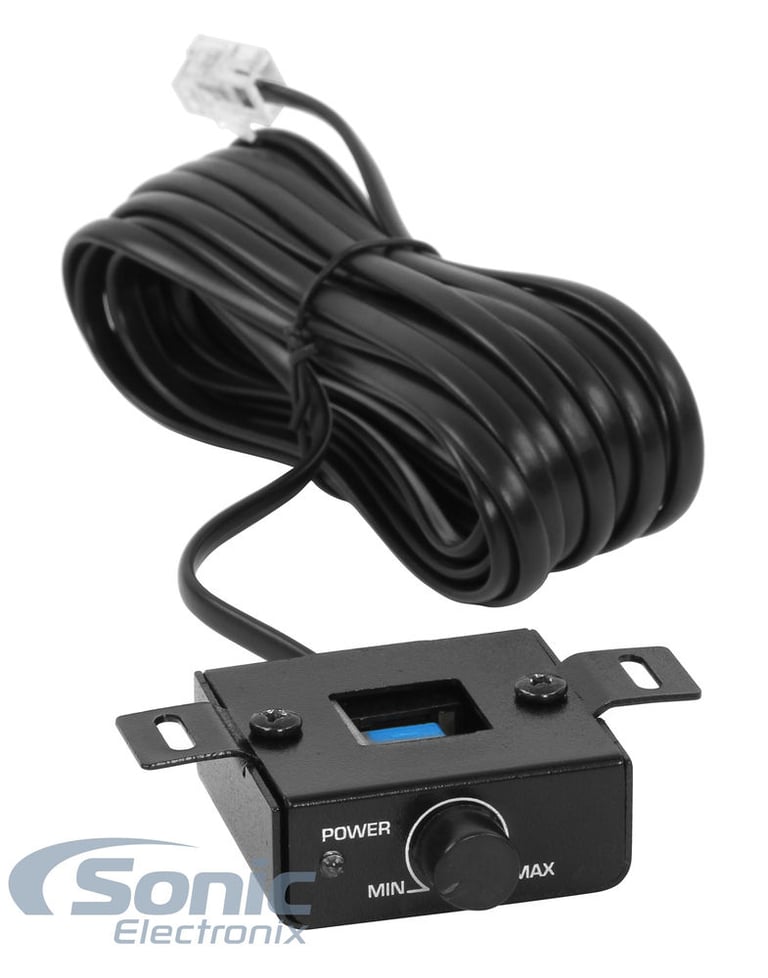

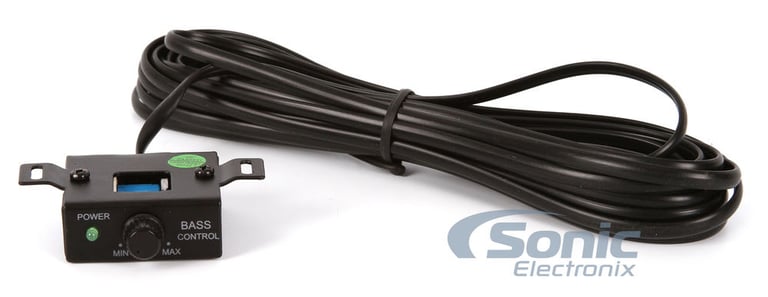

• Wired remote bass level control included
• Mono channel operation
• Master and slave input to combine multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

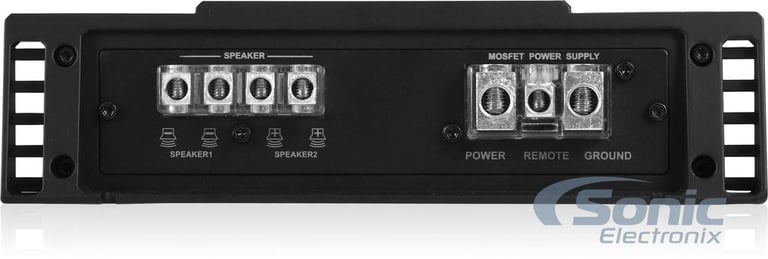

• Dual speaker terminals simplify the hookup of multiple speakers

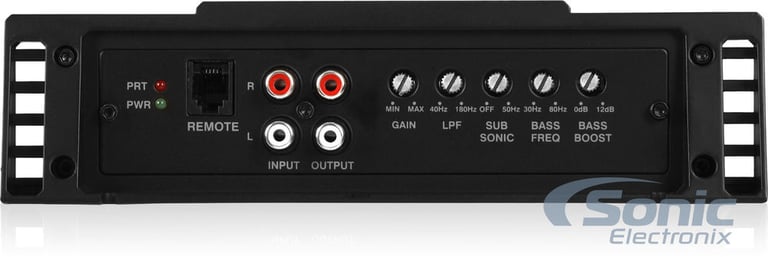

• Variable subsonic filter (10-30 Hz, 24 dB/octave)
• Variable low-pass filter (30-250 Hz, 24 dB/octave)
• Input Sensitivity: 200mV-6V
• Frequency response: 10-350 Hz
• Heavy duty aluminum alloy heat-sink
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• LED power (green) and protect (red) indicators
• Heavy duty copper layer double sided epoxy PCB
• 0/1 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 10"W x 20.5"L x 2.5"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Amplifier Kit Features:

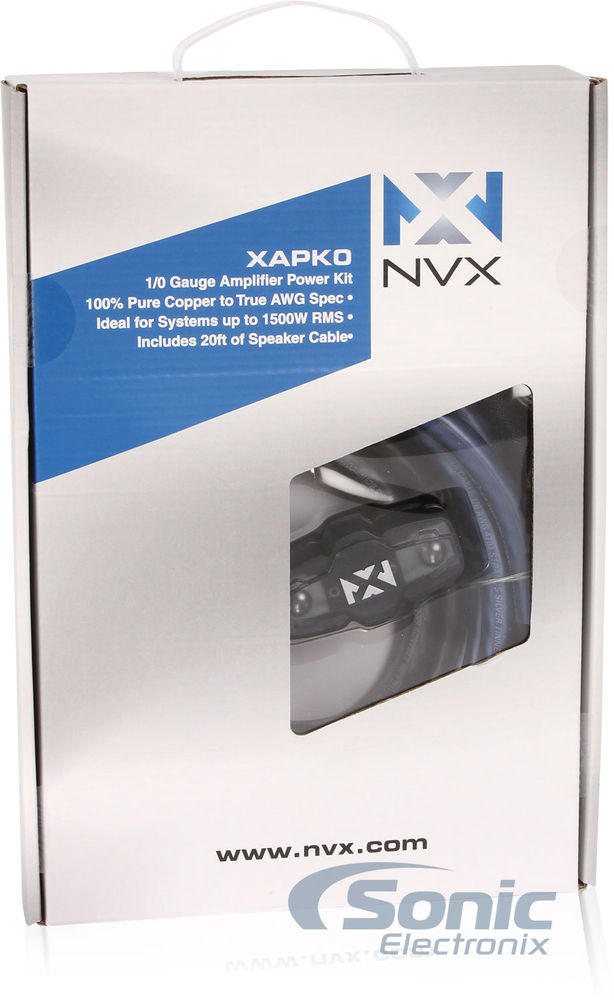

• 1/0 Gauge Power Amplifier Installation Kit
• Designed specifically for car audio systems over 1000 watts RMS

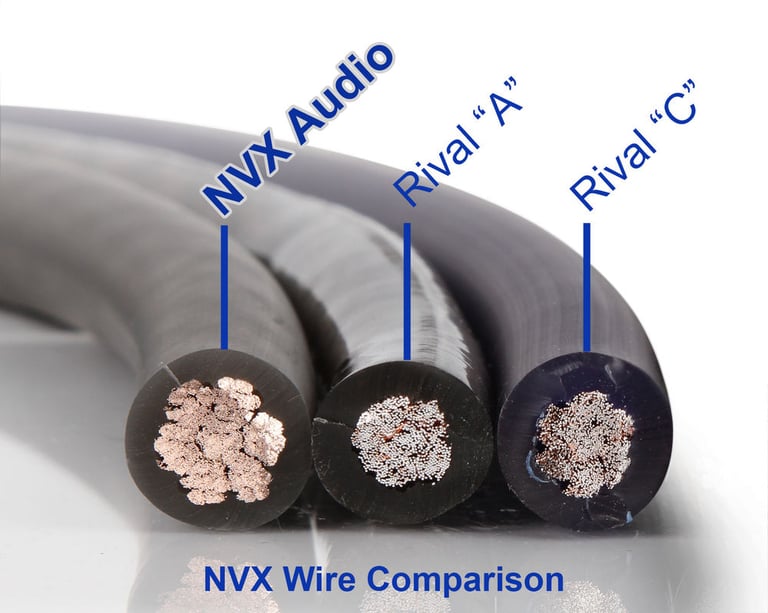

• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• The solid brass and satin-chromed ANL/Mini-ANL Fuse Holder offers ideal protection for high powered systems
• Strand Count: 4704
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Kit includes:

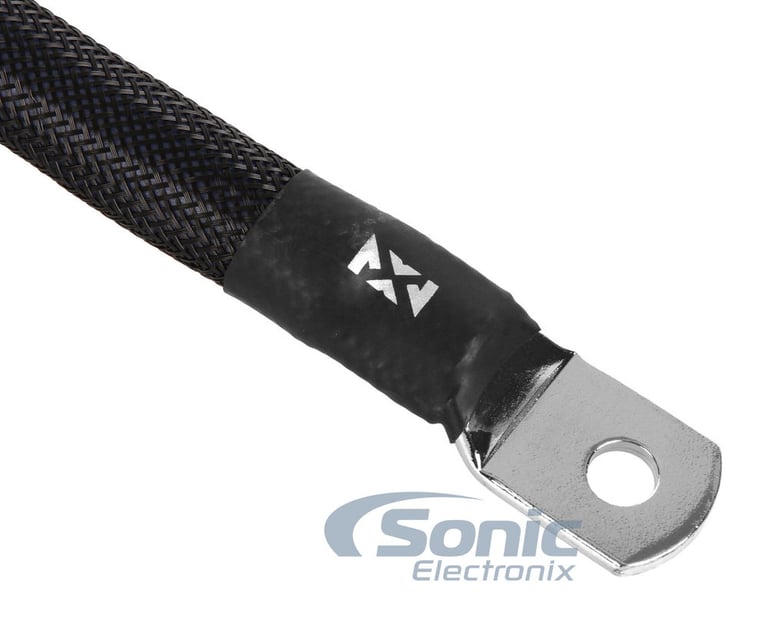

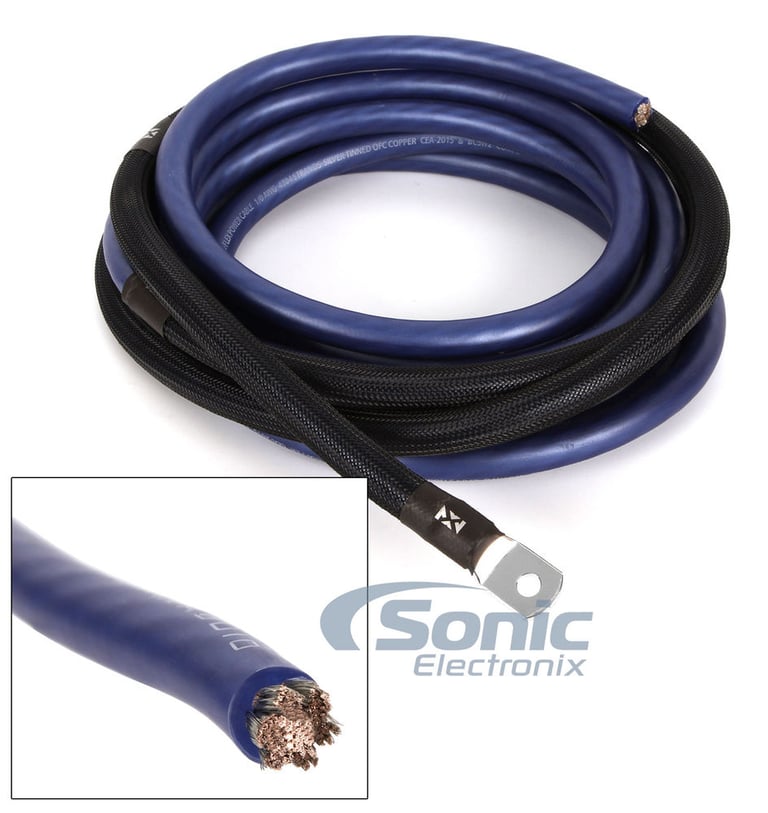

1. 20 ft. (6.1 meters) Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

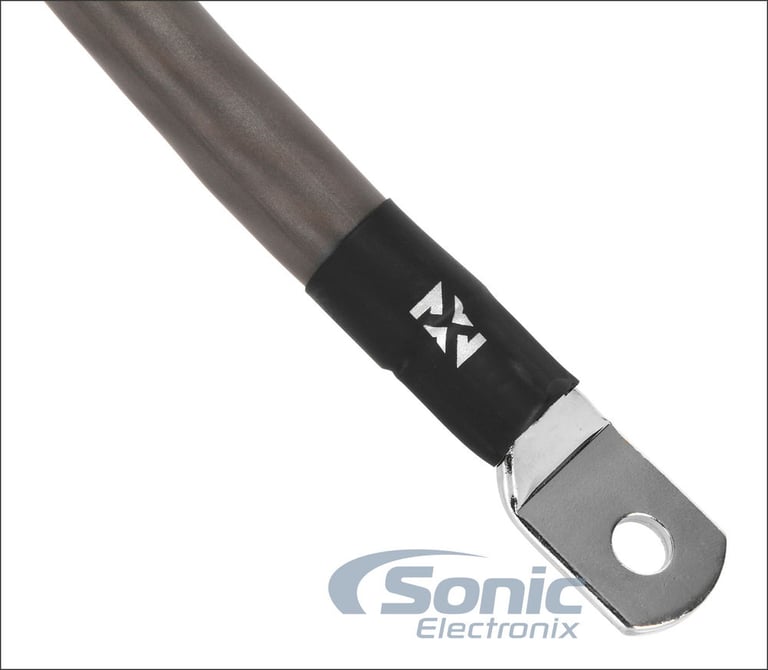

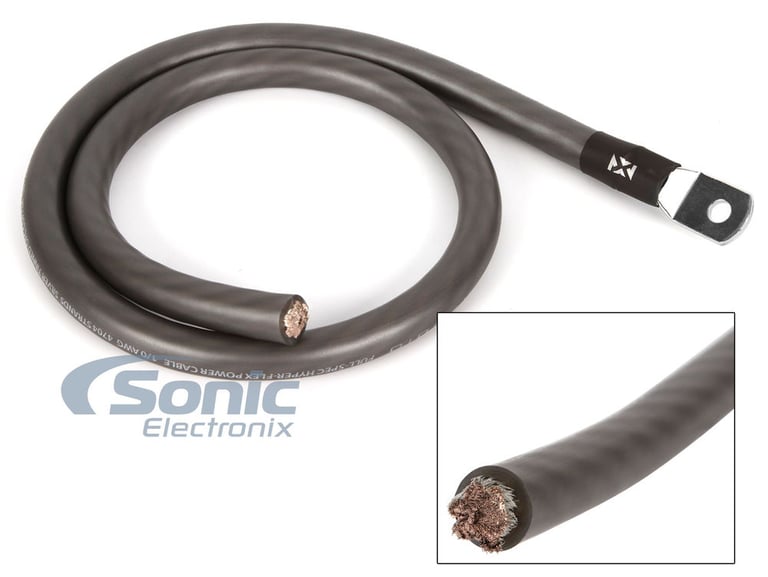

2. 3 ft. (.91 meters) Frosted Gray 1/0 gauge ground wire with seamless crimp ring terminal

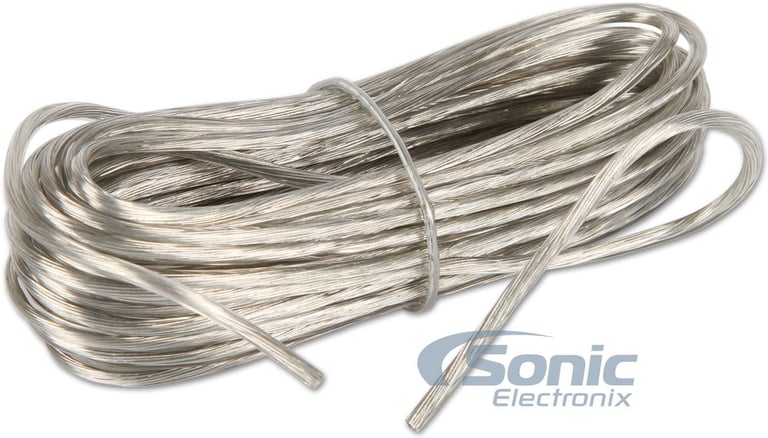

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

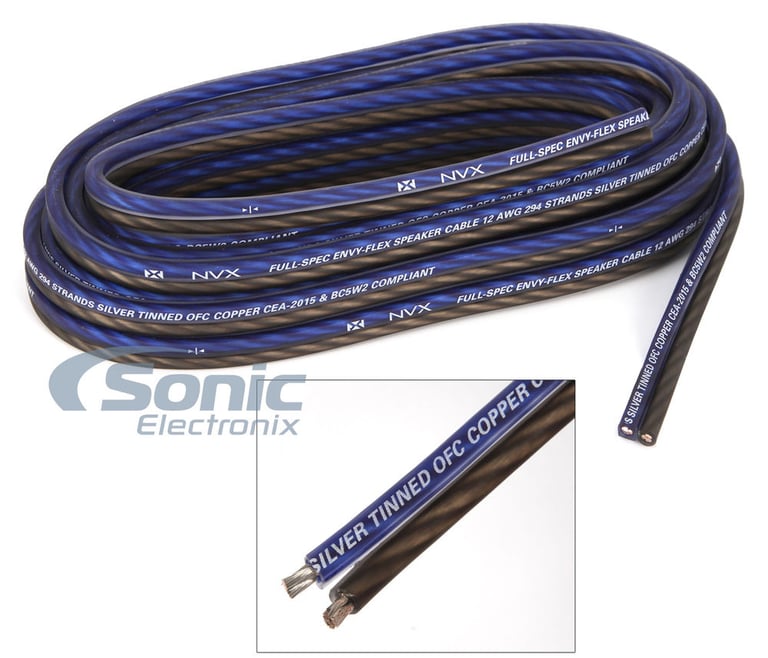

4. 20 ft. (12.2 meters) Frosted Gray/Blue 12 gauge speaker wire

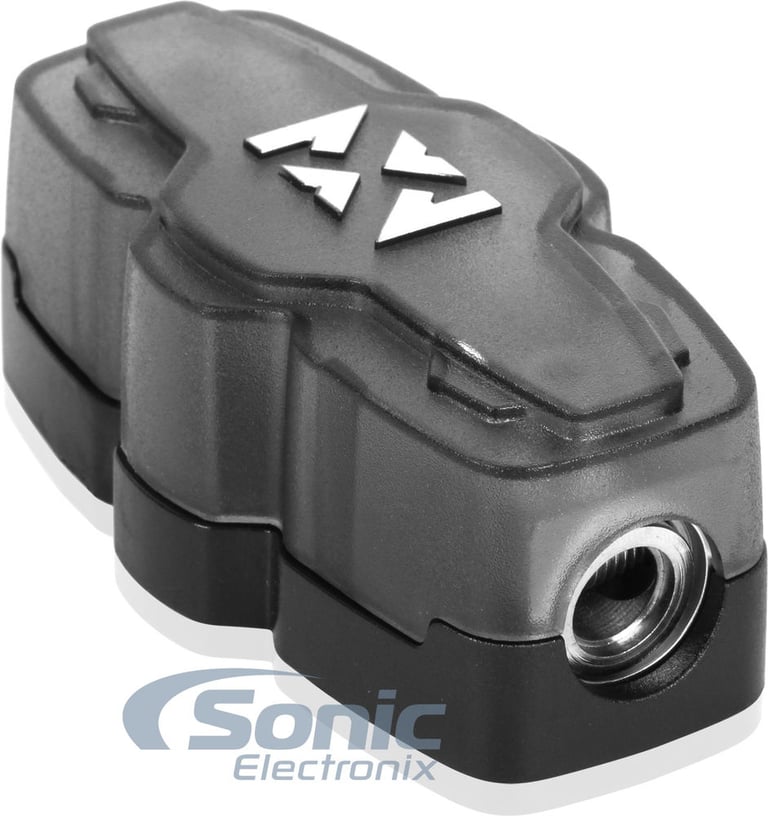

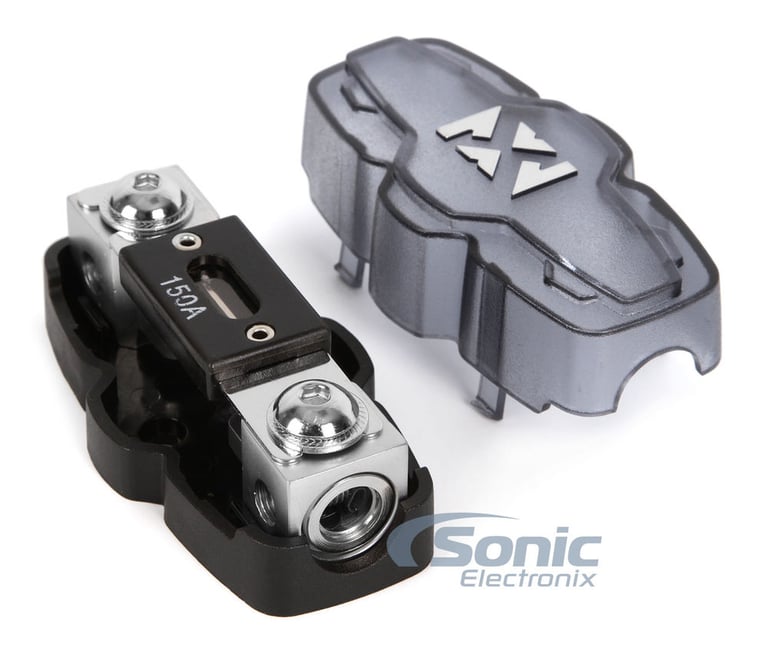

5. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 150 amp ANL fuse

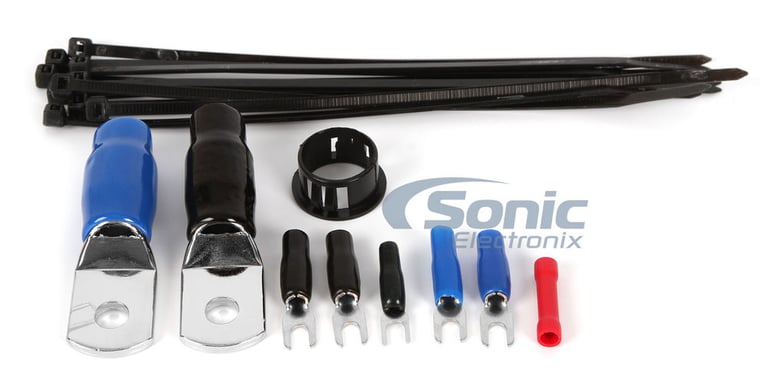

6. One 1/2" black rubber firewall grommet
7. Two 1/0 gauge spade terminals
8. Two black 12 gauge nickel-plated spade lugs
9. Three blue 12 gauge nickel-plated spade lugs
10. One black 18 gauge spade terminal
11. Two 18 gauge red butt connector
12. Ten 6" black zip ties

General Features:

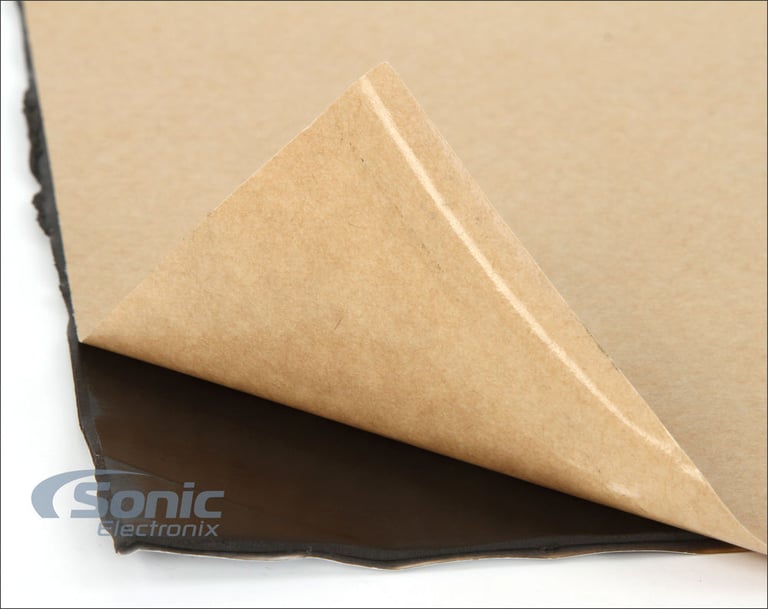

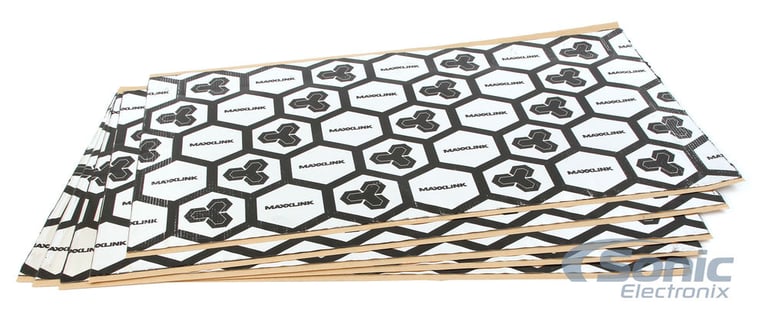

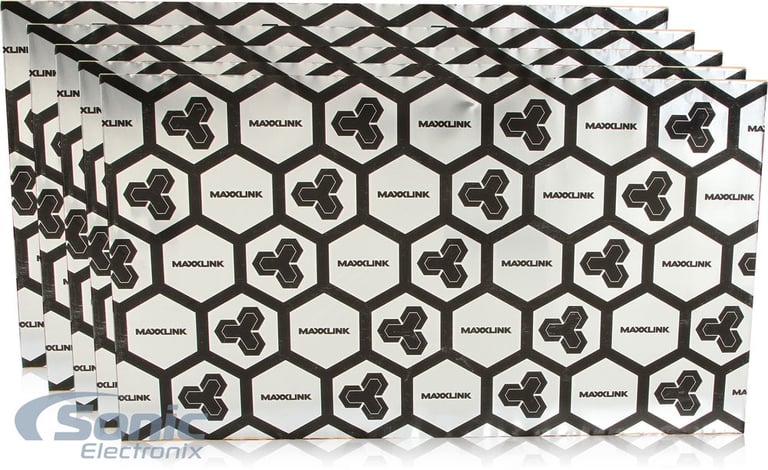

• Five 18" x 32" pieces of sound dampening material
• 20 square feet total

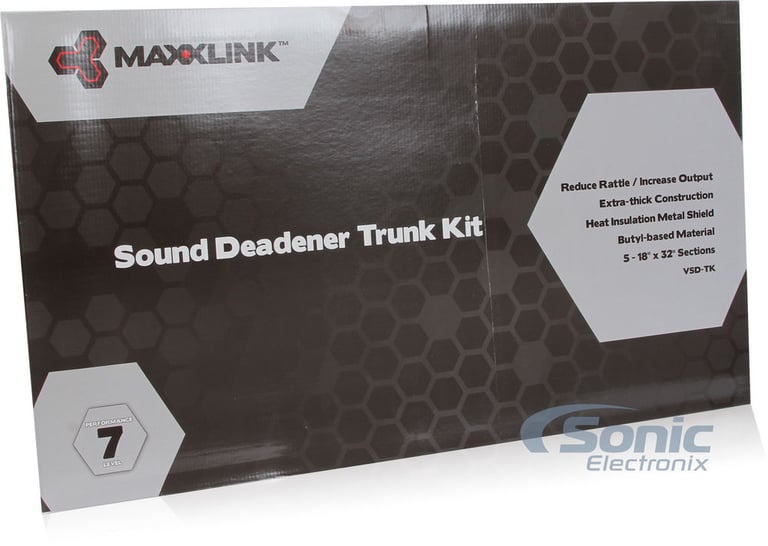

• Vehicle/car trunk sound damping kit
• Made from butyl-based material
• Retains flexibility in any climate
• Conforms to nearly any angle
• Bonds to almost any surface
• Eliminates road noise
• Reduce unwanted rattles
• Increases sound quality and output
• Extra thick construction
• Heat insulation metal shield
• Complete car kit also available
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Features:

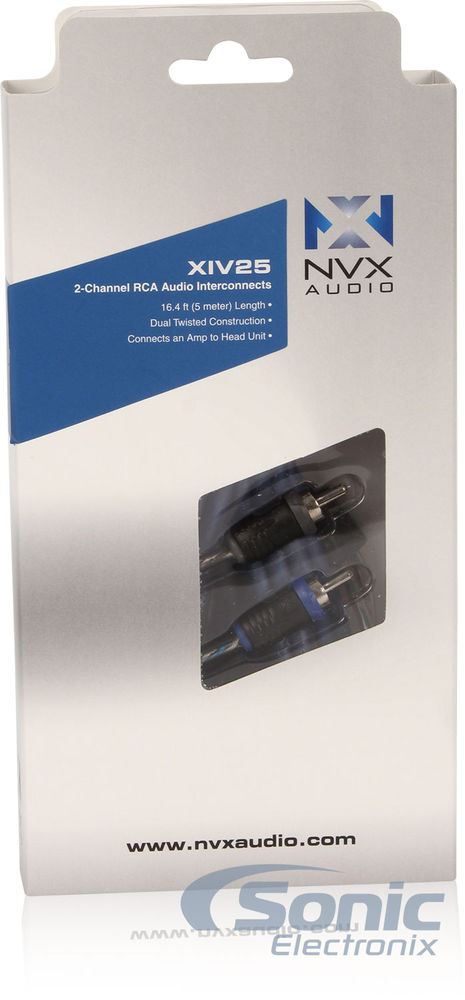

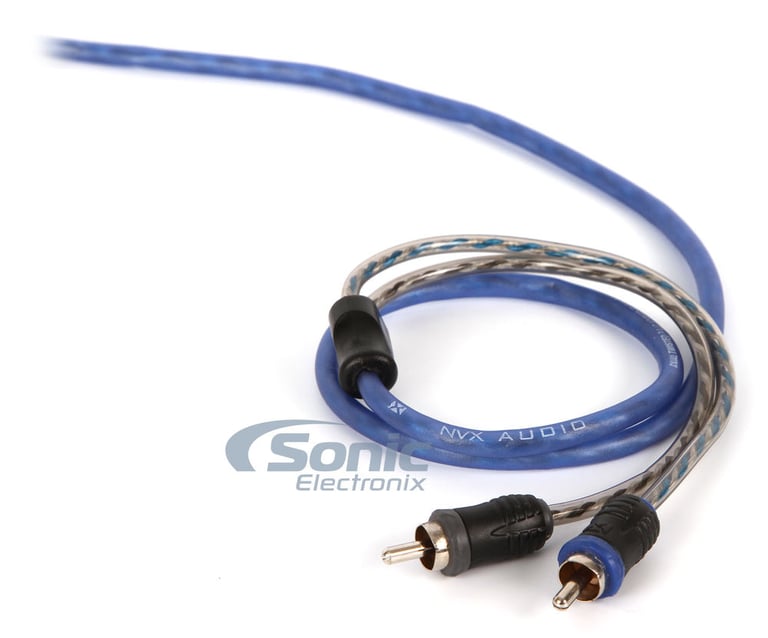

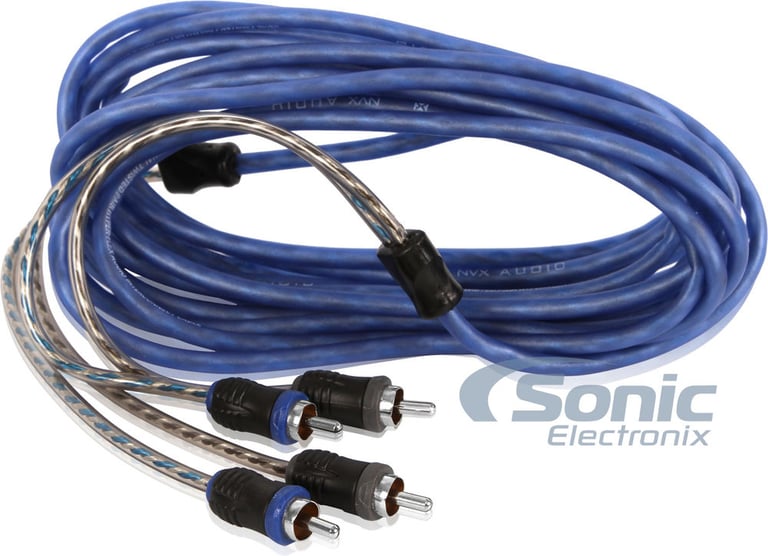

• V-Series Twisted RCA
• 2-Channel Interconnect Cable
• Frost blue jacket
• Dual injection nickel plated split RCA ends
• Dual Twisted Pair Hyper-Flex technology for better signal transfer
• Length: 5m (16.40 ft)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
