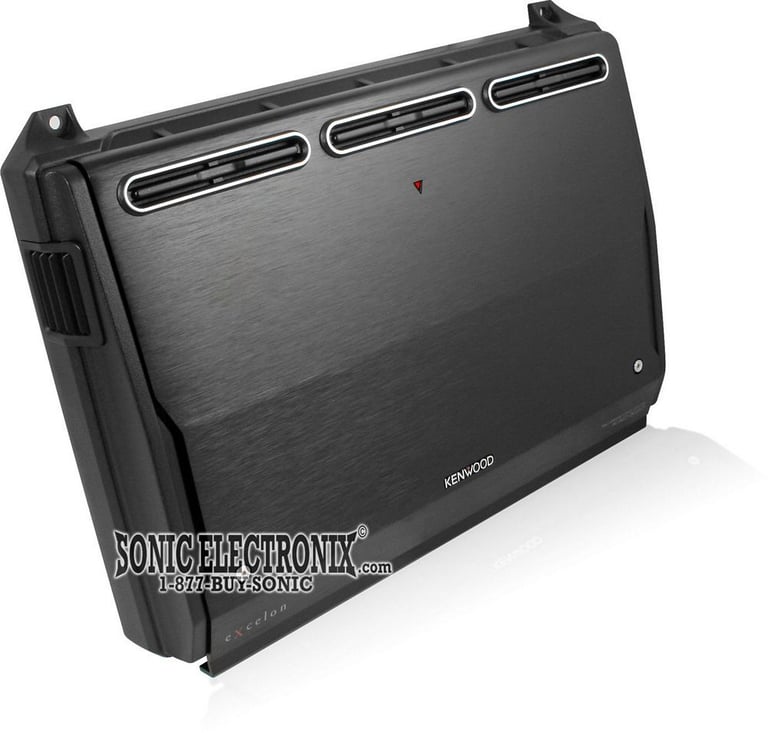

Kenwood eXcelon KAC-X20

2-Channel Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

2-Channel Amplifier • 180 watts RMS x 2 chan. @ 4 ohm • 260 watts RMS x 2 @ 2 ohm • 2 ohm Load Capability • S/N Ratio: 105 dB • CEA-2006 Compliment • Power MOS-FET Switching Power Supply

Learn more about the kacx20

We apologize

This item has been discontinued


Loading...
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
P152 main

Rockford Fosgate Punch P1 P152

160W Peak (80W RMS) 5.25" Punch Series 2 Way Coaxial 4-ohm Speakers

27

Product Highlights


2-Channel Amplifier • 180 watts RMS x 2 chan. @ 4 ohm • 260 watts RMS x 2 @ 2 ohm • 2 ohm Load Capability • S/N Ratio: 105 dB • CEA-2006 Compliment • Power MOS-FET Switching Power Supply

Description


Kenwood brand icon

Authorized dealer

  • 2-Channel Amplifier
  • Peak Power: 1000 watts
  • Power Handling:
    • 180 watts RMS x 2 @ 4 ohm
    • 260 watts RMS x 2 @ 2 ohm
    • 520 watts RMS x 1 @ 4 ohm (bridged)
  • 2 ohm Load Capability
  • Bass Boost Frequency: 40 Hz - 100 Hz
  • Frequency Response: 5 Hz - 70000 Hz
  • CEA-2006 Compliment
  • Line Output Terminals for Extension
  • Cast Aluminum Heat Sink
  • Power MOS-FET Switching Power Supply
  • Stereo,Mono Operation
  • Dimensions: 11-1/4" L x 14-15/16" W x 2-9/16" H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 2-year SonicElectronix.com warranty

Loading...
21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1
-7.02%

$529.91

List price $569.94

21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-13.10%

$729.90

List price $839.92

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-17.58%

$543.90

List price $659.92

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-11.80%

$343.91

List price $389.94

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
180 watts x 2 channel
RMS Power @ 2 ohms
260 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
520 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
520 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
High-Pass Crossover Frequency
40 - 200 Hz
Low-Pass Crossover Frequency
40 - 200 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
40 Hz - 100 Hz
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KAC-X20

Weight:

11.50lbs

Internal SKU:

kacx20

Internal Product ID:

8650

Product and How-to Videos


Customer Ratings & Reviews


Kenwood eXcelon KAC-X20 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.7
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Kenwood eXcelon KAC-X20

mannnnnnnnnnnnnnn i love it it works great has a built in fan and really good sounds as well to all kenwood lovers this is a great product to get!!!!!

By deontae on April 25, 2008

7 found this helpful


NICE!!

This is a very nice amp..the price is awesome and the sound is amazing. I have had many people complement me and many people who had systems that mine was better than that they paid more for.

By slammed on October 12, 2010

6 found this helpful


This amp is GREAT!

I haven't found anything wrong with this amp. I've had it for close to a year and love it and the price I paid was better than any other place I've looked at. Buy from Sonicelectronix you won't go wrong.

By nobo417 on July 3, 2009

6 found this helpful
