DC Audio Level 3 10 m2.1 D4

1800W Peak 10" Level 3 Series m2.1 Version Dual 4-Ohm Car Subwoofer - M2LV310D4

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1800W
• RMS Power: 900W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv310d4

We apologize

This item has been discontinued


Loading...
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

DMH-2000NEX main

Pioneer DMH-2000NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, Alexa (Sirius XM Ready)

2
TS-A6991F main

Pioneer TS-A6991F

1400W Peak (240W RMS) 6x9" A-Series 5-Way Coaxial 4-ohm Speakers

10
-13.34%

$129.99

List price $150.00

CV62BM main

Cerwin-Vega CV62BM

6.2” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-16.67%

$169.99

List price $203.99

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

Product Highlights


• Peak Power: 1800W
• RMS Power: 900W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 4 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket

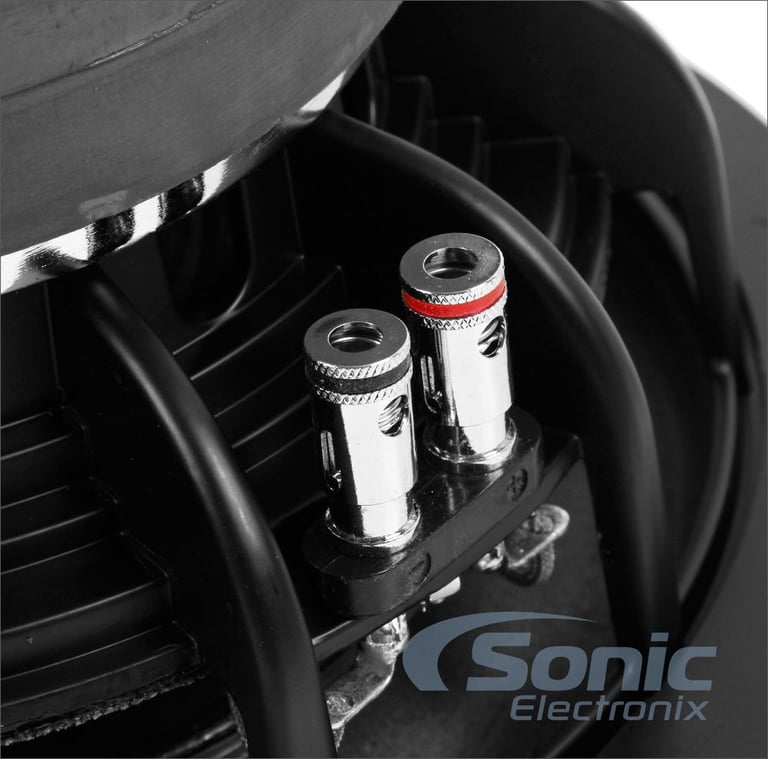

  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 6.25"
  • Mounting Hole Diameter: 9.35"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 10" T/S Parameters:

  • Electrical Q Value (Qes): 0.567
  • Mechanical Q Value (Qms): 7.66
  • Total Speaker Q Value (Qts): .528
  • Free Air Resonance (Fs): 38.5 Hz
  • Equivalent Compliance (Vas): 13.16 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 83.1 dB (86.6dB @ 2.83V)
  • Effective Piston Area (Sd): 324 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 190 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: .65 ft³
  • Suggested Ported Enclose: 1.0 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 3 10 m2.1 D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 3 10 m2.1 D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 3 10 m2.1 D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 3 10 m2.1 D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
