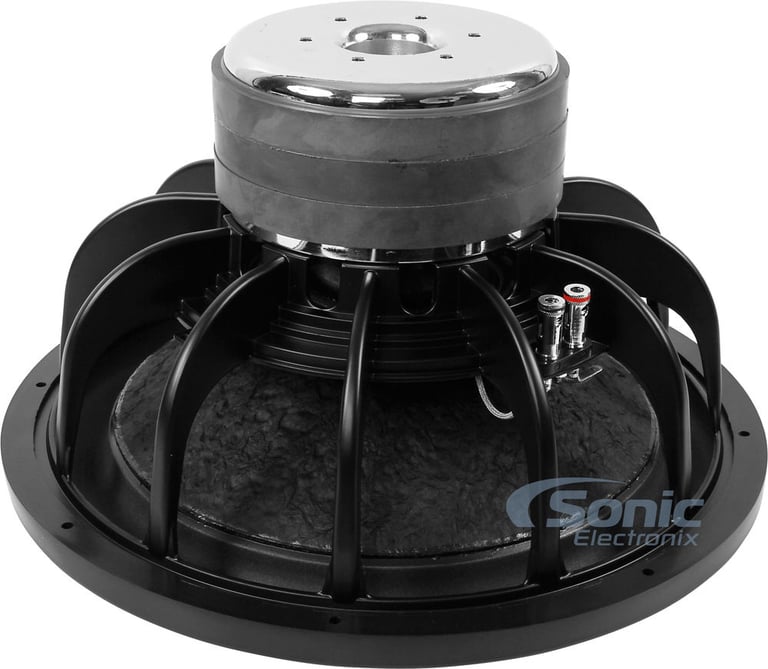

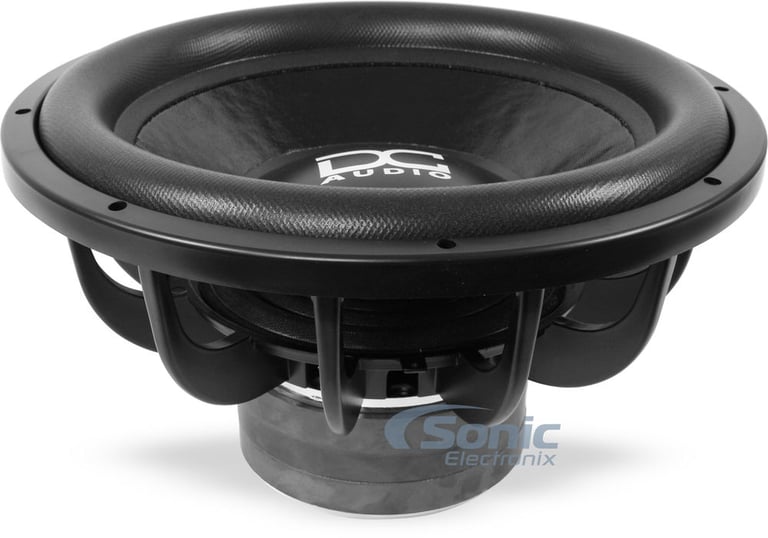

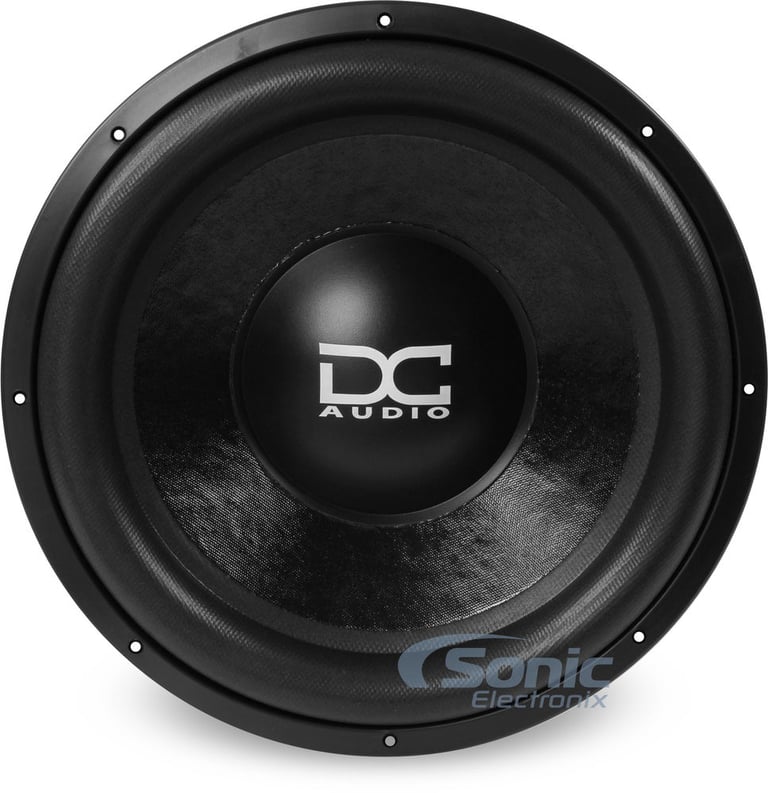

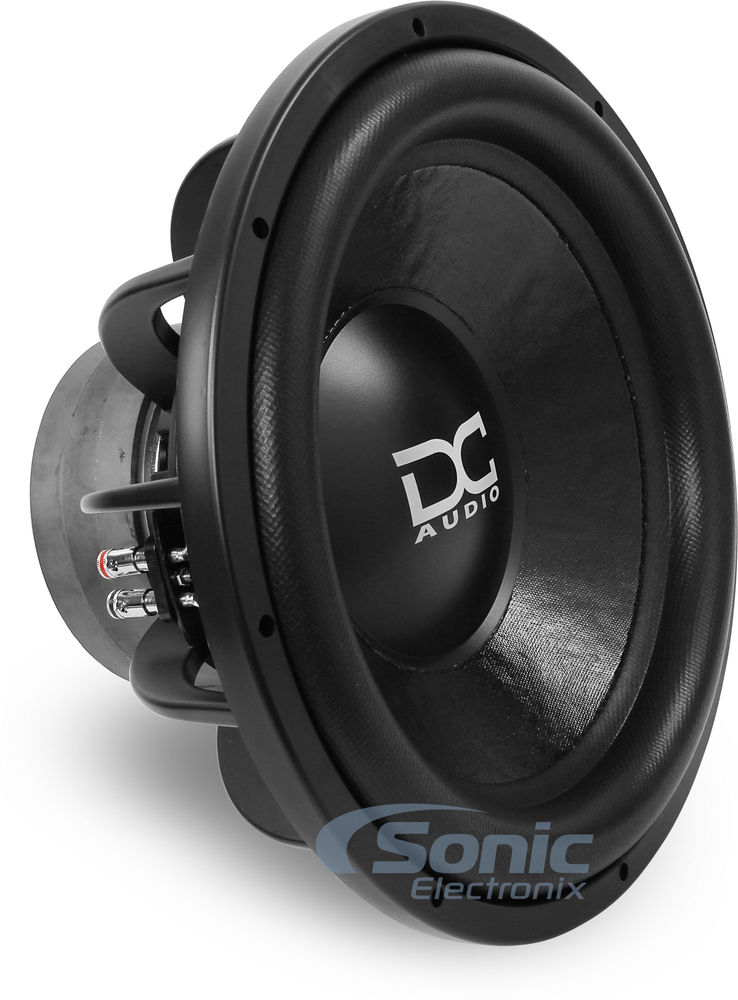

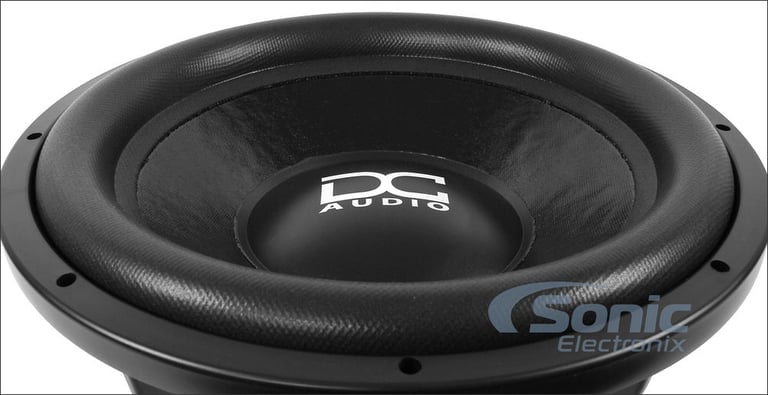

DC Audio Level 3 15 m2.1 D2

1800W Peak 15" Level 3 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV315D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1800W
• RMS Power: 900W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv315d2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

45
-21.92%

$17.95

List price $22.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

84
VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

S2-S68 main

Alpine S2-S68

460W Peak (150W RMS) 6x8" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

40
-16.69%

$149.95

List price $180.00

CLUB 864F main

JBL CLUB 864F (JBLSPKCB864F)

360W Peak (120W RMS) 6x8" Club Series 2 Way Coaxial 3-ohm Speakers

1
-21.44%

$109.95

List price $139.95

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

Product Highlights


• Peak Power: 1800W
• RMS Power: 900W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 15" Dual 2 ohm Level 3 Series m2.1 Version Car Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 900 watts
  • Recommended power range: 400 - 900 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • Dual 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 3" high temperature aluminum voice coil
  • Rubber mounting gasket
  • Chrome spring loaded push terminals
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 8"
  • Mounting Hole Diameter: 14"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 3 15" T/S Parameters:

  • Electrical Q Value (Qes): 0.706
  • Mechanical Q Value (Qms): 8.18
  • Total Speaker Q Value (Qts): .65
  • Free Air Resonance (Fs): 30.9 Hz
  • Equivalent Compliance (Vas): 84.88 liters
  • One-Way, Linear Excursion (Xmax): 23 mm
  • Efficiency (Ref SPL @ 1W): 87.3 dB (90.8dB @ 2.83V)
  • Effective Piston Area (Sd): 823 cm²
  • DC Resistance (Re): 3.6 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Force Factor (Bl): 17.2
  • Mechanical Compliance (Cms): .09 mm/N
  • Mechanical Mass (Mms): 295 g
  • Voice Coil Inductance (Le): 3.5 mH
  • Suggested Sealed Enclosure: 2.00 ft³
  • Suggested Ported Enclose: 3.00 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 3 15 m2.1 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 3 15 m2.1 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 3 15 m2.1 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 3 15 m2.1 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

Specifications & Details


Subwoofer Specifications
Series
Level 3 Series
Subwoofer Size
15"
Peak Power Handling
1800 watts
RMS Power Handling
900 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
87.3 dB
Xmax (millimeters)
23 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.00 cubic feet
Optimum Ported Box Volume
3.00 cubic feet
Top-Mount Depth (Mounting Depth)
8"
Cutout Diameter
14"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.9 Hz
Equivalent Compliance (Vas)
84.88 liters
Total Speaker Q Value (Qts)
.65
Electrical Q Value (Qes)
.706
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.18
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV315D2

Weight:

28.00lbs

Internal SKU:

m2lv315d2

Internal Product ID:

88156

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 3 15 m2.1 D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

great sub!!

bought 2 of these put in a 7 cubic foot box! sound great! can be heard all the way down the block!!

By Kirk on July 27, 2015

6 found this helpful


Great Sub

Ok guys. I’ve been playing my level 3’s for a couple of months now. Running them on 2 Skar 1500.1D strapped at 2 ohms in a temporary 5.98 cube ported box tuned at 34hz. They hit hard. Shakes the tundra well which has full interior kill Matt. The plan is to eventually have 4 of them in the truck. I would highly recommend these subs. They reproduce incredibly clean bass and move a fair amount of air while doing so. All of the demo’s I’ve done for friends say you can feel the bass go through your body and it’s so clean sounding. Looking forward to working with more dc products and the guys at sonic. Nobody beats sonic prices. Customer service is always there when needed.

By Anonymous on January 26, 2019

2 found this helpful


Impressed

I have purchased 2 of these so far. I have only used breakin power so far 200 rms to each coil. Almost done with the new custom ported box. Even with just break in power and the box they came with the sub were clean sounding and had a very smooth response. Had to feel the spider because you couldn’t even see the flex although you could here the lows hit. Can only imagine the response when they get the 3000 rms going into them at the end of the build. So impressed that I have now gutted my tundra and have decided that I will now install 4 of these. So more orders to come sonic and a big thank you for the pricing. Can’t beat It anywhere

By Anonymous on November 18, 2018




M2LV410D2 small

DC Audio Level 4 10 m2.1 D2

2800W Peak 10" Level 4 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV410D2

(1)

$454.99

List price $615.99

MDAB small

Scosche MDAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

(21)

$6.99

List price $8.95

M2LV312D1 small

DC Audio Level 3 12 m2.1 D1

1800W Peak 12" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV312D1

$296.00

List price $350.00

CBHVA small

Scosche voCALL CBHVA

Handsfree Bluetooth Speakerphone with Voice Announce Caller ID

$69.99

List price $79.99

SXV300V1,VRN-65HXB small

Soundstream VRN-65HXB + SiriusXM Tuner

Double DIN SiriusXM Ready Bluetooth In-Dash DVD/CD/AM/FM Car Stereo Receiver w/ 6.2" LCD Screen

(157)

$339.98

List price $359.98

CP8CK small

Rockford Fosgate CP8CK

8 Gauge Amp Install Kit

$34.99

List price $49.99

DOT0103 PINK small

Kogeto Dot Pink (LB4201)

360 Degree Panoramic Camera Lens for iPhone 4 & 4S

$17.99

List price $99.00

VX7022 small

Jensen VX7022 (Remanufactured)

Double DIN Multimedia Navigation Car Stereo w/ 6.2" TFT Touchscreen, SirusXM Radio Ready and Pandora Control

(11)

$229.95

List price $449.99

KST2504 small

Kicker KST2504 (46KST2504)

450W Peak (150W RMS) 1" KS-Series Silk Dome Car Tweeters with In-Line Crossovers

$119.99

List price $139.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2006 Ford E Series

1998 GMC Jimmy

1996 Mazda B2300

1992 GMC Sonoma

2009 Mazda CX-7

1978 BMW 320i

2011 Kia Sorento

1975 Mercury Monarch

1998 Ford Expedition

1991 Ford Bronco

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
