Name: MB Quart ONX4.80/500 (Factory Refurbished)
Brand: MB Quart
SKU: LS-onx480500-RB
Price: 149.99 USD
Availability: Discontinued

by MB Quart

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

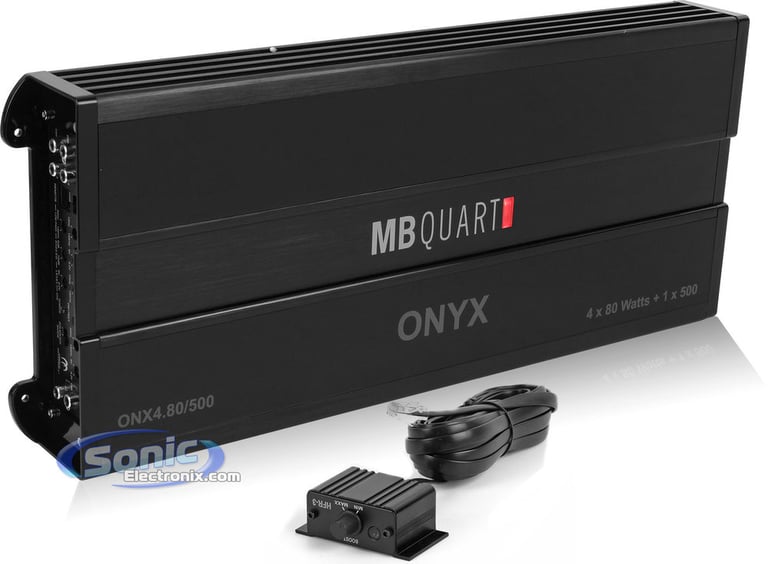

MB Quart ONX4.80/500 (Factory Refurbished) Image 1 — MB Quart ONX4.80/500 (Factory Refurbished)

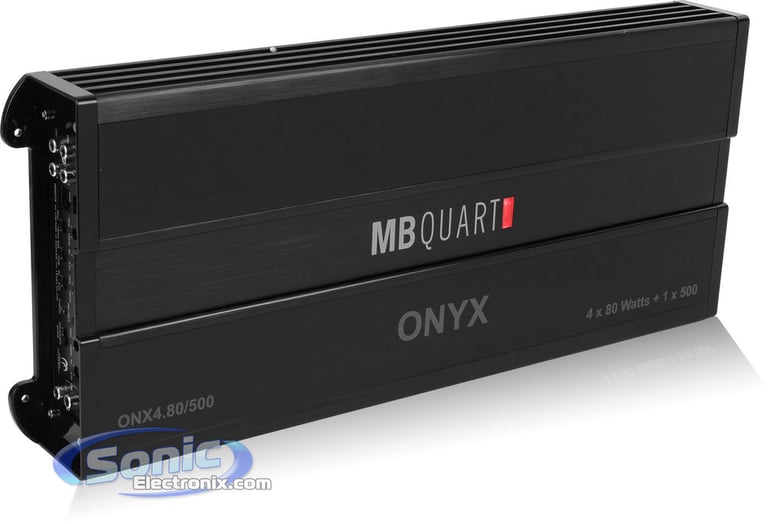

MB Quart ONX4.80/500 (Factory Refurbished) Image 2 — MB Quart ONX4.80/500 (Factory Refurbished)

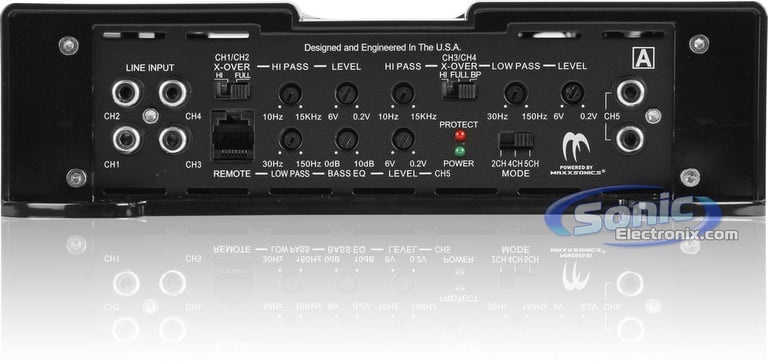

MB Quart ONX4.80/500 (Factory Refurbished) Image 3 — MB Quart ONX4.80/500 (Factory Refurbished)

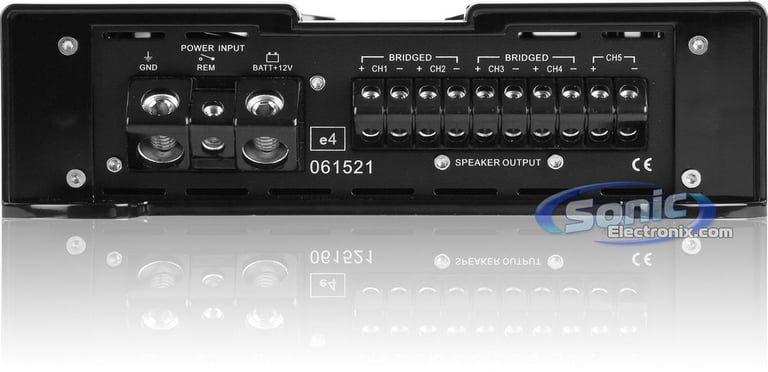

MB Quart ONX4.80/500 (Factory Refurbished) Image 4 — MB Quart ONX4.80/500 (Factory Refurbished)

MB Quart ONX4.80/500 (Factory Refurbished) Image 5 — MB Quart ONX4.80/500 (Factory Refurbished)

MB Quart ONX4.80/500 (Factory Refurbished) Image 6 — MB Quart ONX4.80/500 (Factory Refurbished)

MB Quart ONX4.80/500 (Factory Refurbished)-video

Product videos

Product highlights

• ONYX Series 5-Channel Car Amplifier
• 60W x 4 Chan @ 4 Ohm
• 120W x 4 Chan @ 2 Ohm
• MOSFET PWM Power Supply
• LED Power Indicators
• 4-Way Protection
• Aluminum Alloy Heatsink
• 3 Sets Of RCA Inputs

Learn more about the LS-onx480500-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Success is a Measurement of Quality and Power

The success of any car audio amplifier depends on system quality and construction, ease of installation and configuration, and sound enhancing features. MB Quart engineers built the all new Onyx series amplifiers from the ground up to be an affordable amplifier with the audiophile and performance enthusiast in mind. This series is composed of value-packed class A/B amplifiers that boast affordability without sacrifice to power or quality. All Onyx Amplifiers come clothed in a beautiful new age piano black finish which accents interiors and brings a whole new level of sophistication to swallow. To match, the line of Onyx Speakers shows off the same piano black finish applied to their polypropylene cone woofers. It’s a perfect match every time.

Speaking of features, Onyx amplifiers bring the full tuning spectrum to your fingertips with variable high-pass, low-pass and subsonic filters built-in. To increase endurance, MB Quart designed Onyx amplifiers with military grade printed circuit boards and built-in system diagnostics that keep these amps running strong. High speed MOSFET output devices are used in the power supply to give you the best watts-per-dollar ratio. It’s not hard to see how success has been written all over these amplifiers, though with a piano finish that looks that good, we know you will be staring.

ONYX Series 5-Channel Class A/B Car Amplifier
RMS Power Rating:
- 4 ohm: 60 watts x 4 chan. + 250 watts x 1 chan.
- 2 ohm: 120 watts x 4 chan. + 375 watts x 1 chan.
- 1 ohm: 500 watts x 1 chan. (5th Channel Only)
- Bridged, 4 ohm: 240 watts x 2 chan. (Channels 1-4)
CEA-2006 compliant amplifier
MOSFET PWM power supply

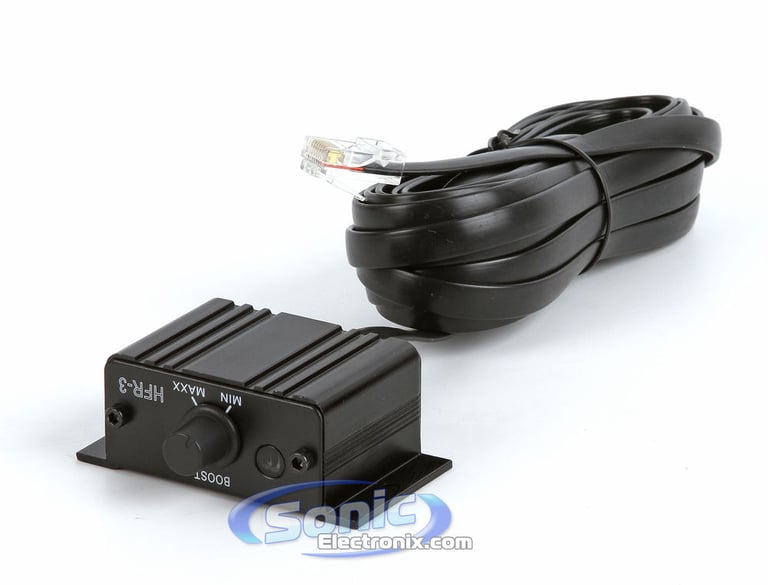

Wired remote bass level control included

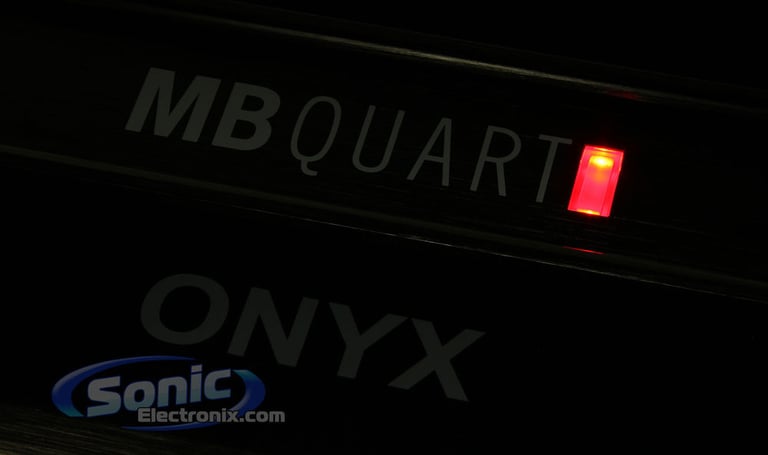

LED power indicators shows when turned on
LED Protection indicators show high voltage, low voltage, short circuit, hard clip, over heating, or DC fault condition
Adjustable Bass EQ (0-10 dB bass boost at 45 Hz)
4-way protection (DC, short, thermal, and overload)
3 sets of RCA inputs
5 channel operation
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Variable high-pass filter (10-15,000 Hz)
Variable low-pass filter (30-150 Hz)
Frequency response: 10-25,000 Hz
Damping Factor: >180
Signal-to-noise: >92dB
THD: 0.05%
Channel separation: >80dB
Variable input level control: 0.2V-6V
Fuse size: External 120 amp
Dimensions: 22"L x 9"W x 2-1/2"H
2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

120 watts x 4 channel

Bridged RMS Power

240 watts x 2 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

250 watts x 1 channel

RMS Power @ 2 ohms

375 watts x 1 channel

RMS Power @ 1 ohm

500 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

5-Channel

Total RMS Power Output

980 watts

Maximum Input Gauge Size

2 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

10 - 15,000 Hz

Low-Pass Crossover Frequency

30 - 150 Hz

Signal-to-Noise Ratio

>92 dB

Channel Separation

>80 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Fuse Rating

120A x 1

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
