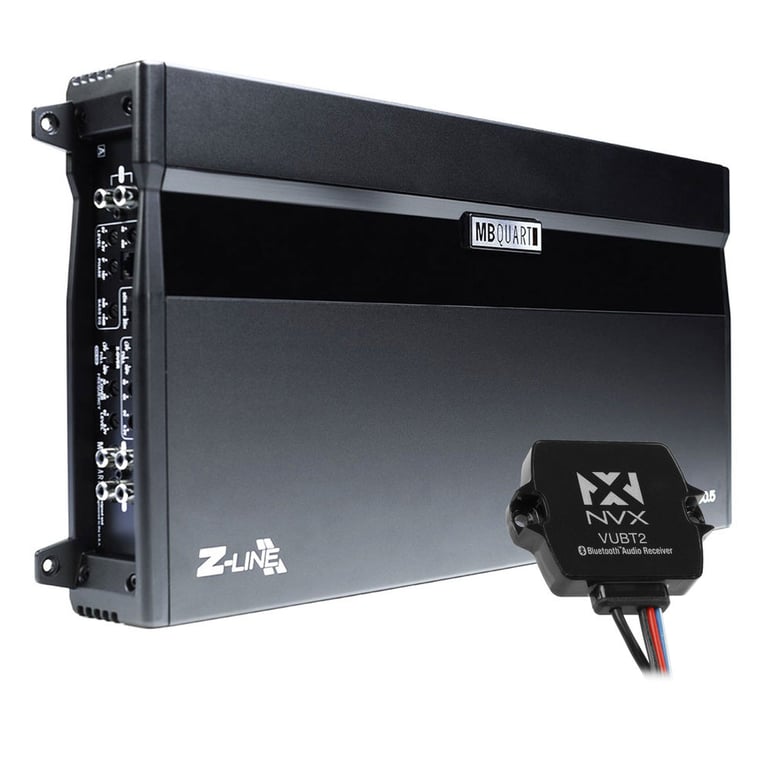

MB Quart ZA2-1500.5 w/ Universal Bluetooth Receiver

1500W RMS Z-Line Class-D 5-Channel 1-Ohm Stable Amplifier with Universal Bluetooth Audio Receiver

MB Quart
Shop all MB Quart
highlight-star-icon

• 60 Watts Peak x 4, 350 watts x 1 @ 4 ohm
• 100 watts x 4 chan., 750 watts x 1 chan @ 2 ohm
•1 ohm: 1,000 watts x 1 chan. only @ 1 ohm
• Total Peak Power: 1,400 Watts
• Built-in High and Low Pass Filters
• Heavy Duty Aluminum Alloy Heatsink
• NVX VUBT2 Universal Waterproof Bluetooth Receiver for Cars/Motorcycles/ATVs/Boats

Learn more about the za215005_vubt2

We apologize

This item has been discontinued


Loading...
40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

70-1732 main

Metra 70-1732

Factory Amplifier Bypass Harness for select 2007-2013 MDX

-45.01%

$32.99

List price $59.99

HON2MVL2 main

GROM Audio HON2MVL2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2010-2015 vehicles from Acura, Honda

AXBUCH-MDX main

Axxess AXBUCH-MDX

Install a New Car Stereo and Retain Backup Camera in select 2010-2013 MDX

-10.00%

$26.99

List price $29.99

Description


MB Quart brand icon

Authorized dealer

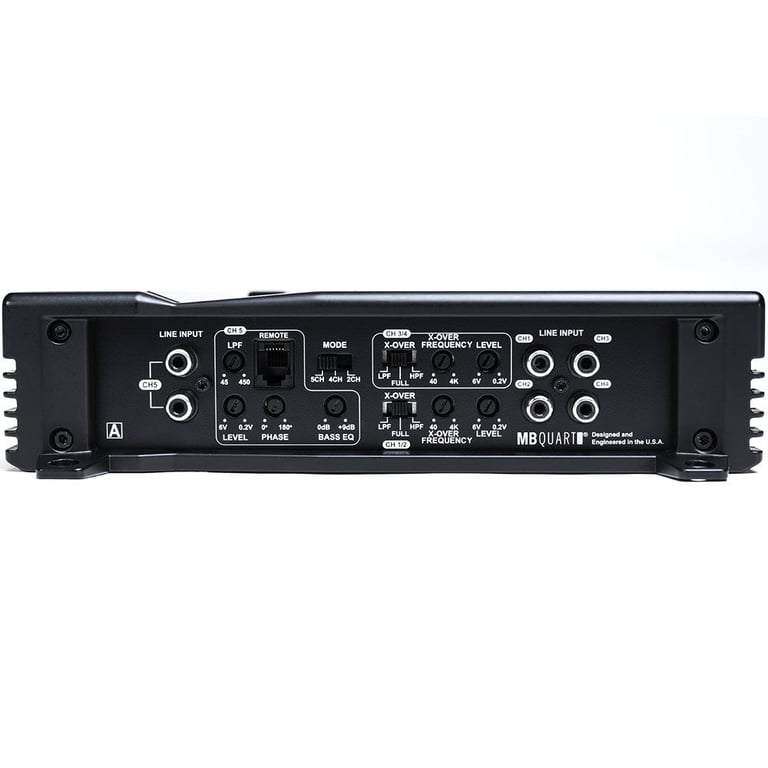

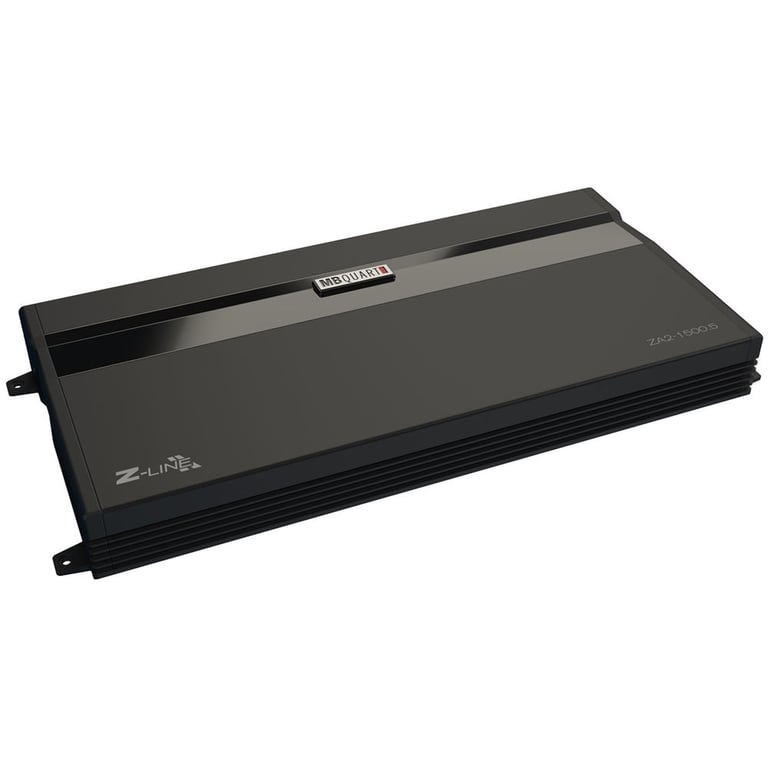

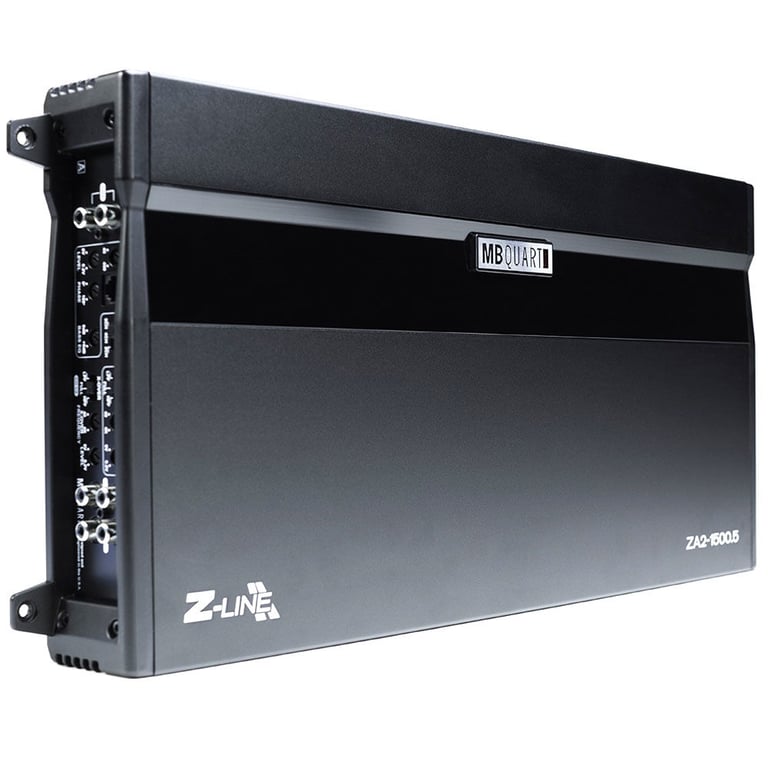

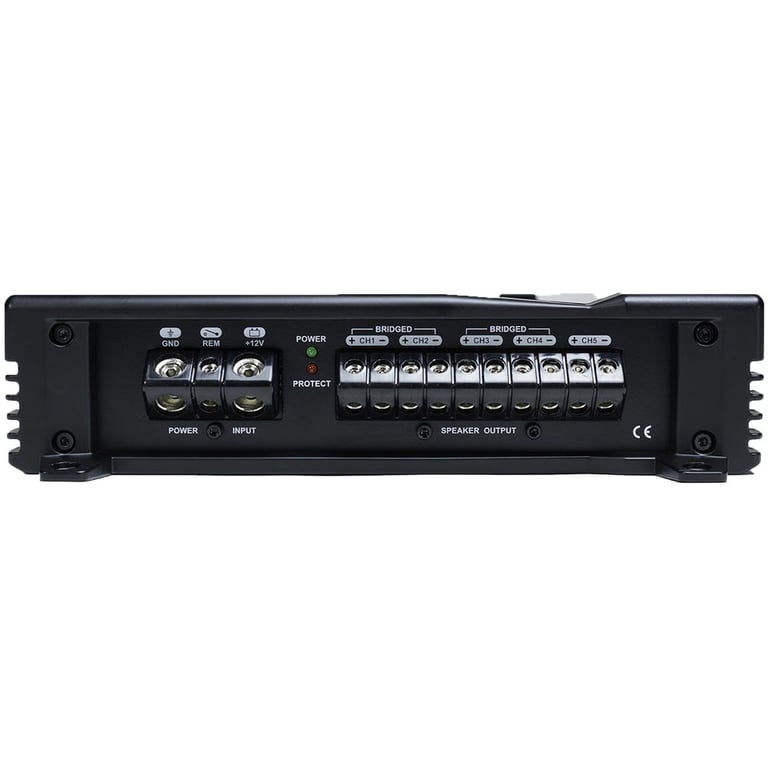

MB Quart ZA2-1500.5 (ZA21500.5)

1500W RMS Z-Line Class-D 5-Channel 1-Ohm Stable Amplifier with Bass Knob Included
Quantity: 1

General Features:

  • MBA Quart ZA2-1500.5
  • Class-Q1 (D) Full Range 5-Channel Amplifier with 1 ohm stable 5th channel
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan., 350 watts x 1 chan.
    • 2 ohm: 100 watts x 4 chan., 750 watts x 1 chan.
    • 1 ohm (Subwoofer channel only): 1,000 watts x 1 chan. only
    • 4 ohm, bridged: 300 watts x 2 chan., 500 watts x 1 chan.
  • Total Power Output: 1400 watts total (100W x 4 chan. at 2 ohm + 1000W x 1 chan. at 1 ohm)
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Frequency Response: 10 - 45,000 Hz
  • Total Harmonic Distortion (THD): <.05%
  • Signal to Noise Ratio: >90 dB
  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 -40 Hz, 12dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 50 Hz
  • Fuse Rating: 150 A x 1, external
  • 2-4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 23.38"W x 10.63"L x 3.25"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the ZA2-1500.5 product manual

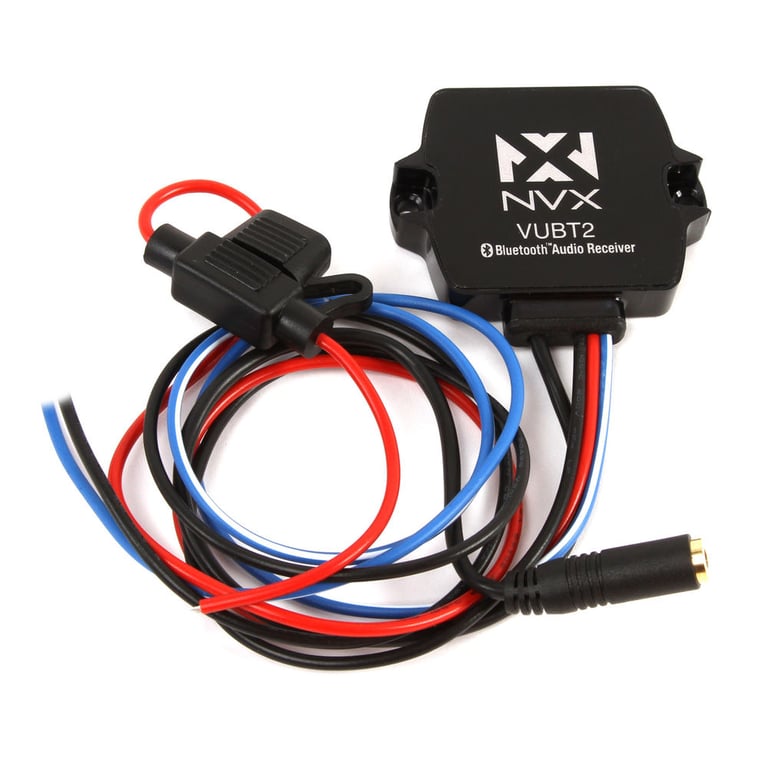

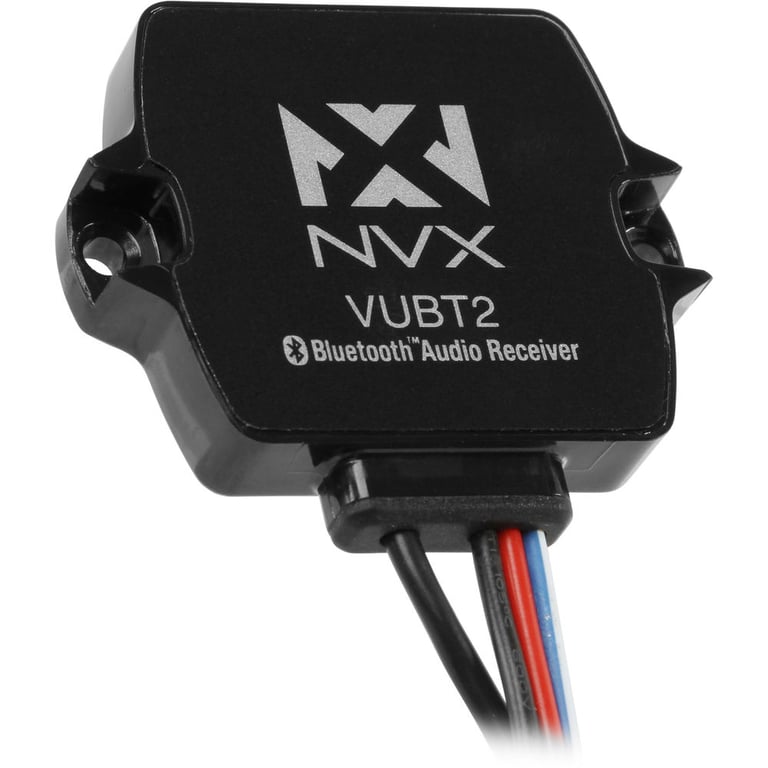

NVX VUBT2v2 (VUBT2 Version 2)

Universal Waterproof Bluetooth Audio Receiver for Cars, Vehicles, Motorcycles/ATVs & Marine/Boat Use (V-Series)
Quantity: 1

General Features:

  • Universal Waterproof Bluetooth Audio Receiver
  • Bluetooth Profile: A2DP (High-Quality, Stereo Audio)
  • Bluetooth Core Specification: Version 4.0 with aptX
  • Frequency Response: 20 Hz - 18 kHz (±1dB)
  • Outputs One Stereo Pair, Low-Level RCA Plugs
  • 12v Remote Turn on for Amplifiers
  • Output Voltage: 2V RMS
  • Signal to Noise Ratio: 93 dB (20 Hz - 20 kHz)
  • Input Operating Voltage: 8 - 28 VDC
  • Current Draw: 20 mA (at idle) / 32 mA (at full output)
  • Fuse Rating: 2A Mini ATC
  • Connection Range: Up to 35 ft / 11 m
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(10)

$259.99

List price $323.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$499.99

List price $600.00

HD900/5 small

JL Audio HD900/5

• 100 watts x 4 channel + 500 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 150 watts x 2 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 1.5 ohm Stable 5-Channel Amplifier

(23)

$1549.99

List price $1549.99

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$649.99

List price $779.98

Specifications & Details


Power Specifications - Full Range Channels
Peak Power @ 4 ohms
60 watts x 4 channel
Peak Power @ 2 ohms
100 watts x 4 channel
Bridged Peak/Max Power
300 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
350 watts x 1 channel
Peak Power @ 2 ohms
750 watts x 1 channel
Peak Power @ 1 ohm
1,000 watts x 1 channel
Amplifier Specifications
Series
Z-Line Series
Amplifier Class
SQ
Number of Channels
5-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 4,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
150A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA2-1500.5_VUBT2

Weight:

13.25lbs

Internal SKU:

za215005_vubt2

Internal Product ID:

137931

Customer Ratings & Reviews


MB Quart ZA2-1500.5 w/ Universal Bluetooth Receiver thumbnail image

5 star
88%
4 star
4%
3 star
8%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.7
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Clear as a cord

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

Links instantly clear as a cord long range cheap waterproof very nice

By Robert on January 25, 2016 Checkmark Icon Verified purchase

57 found this helpful


Amazingly clear and easy to wire up!

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

This thing is dead simple to wire up. What I really like about it is that it has a lead for amp "turn-on". Not only that, but it won't turn the amp on until it's playing music. That's great for saving battery. Not only that, but sounds crystal clear too!! I was pretty impressed actually. I'm using it in my '74 Duster as a temporary solution until I build a center console for a double din radio.

By Anonymous on June 29, 2019 Checkmark Icon Verified purchase

49 found this helpful


Great value well hidden

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

Love this device you can add a Bluetooth via headphone jack or on RCAs

By Anonymous on August 9, 2019 Checkmark Icon Verified purchase

48 found this helpful


Five stars

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

A well built robust Bluetooth adapter that is easily installed

By Anonymous on August 31, 2019

46 found this helpful


Awesome Product!!!

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

Bought for a custom audio setup on my Vulcan Mean Streak...without a head unit and wired to marine amp. Used the bluetooth connection for my phone and audio quality is perfect. Haven't tried the direct aux line-in wire, but I'm sure the quality is just as good since the wire is pretty thick. The bluetooth automatically connects every time without a problem once paired and connected. Awesome product for the price and functionality! Not sure how well it will hold up in rain, but it won't be directly exposed to the elements.

By Jeremy on March 18, 2017 Checkmark Icon Verified purchase

47 found this helpful


Great product

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

This is a great way to upgrade any deck with an aux in to blutooth keep in mind it will use the aux in permanently so if there's one on the back of the deck use it to keep the one in the front open for other devices... easy to install, great range, great value... only con is that it will not stream video... but great for audio...

By Matches on August 23, 2016

45 found this helpful


Exemplary performance

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

Installed into my kawasaki vaquero, works amazing. Installation was a hazzle due to poor wiring diagrams from my manufacturer but the device is self explanatory to install. Even w my dilema of no wires from my bike to match still made it work and the audio actually amplifies my old set up

By Jorge Cotty on August 25, 2016

45 found this helpful


Great Sound, Needs better instructions

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

I installed this item in my sister’s Kia Rio and it drastically updated her “non electic” (her words) car. I would recommend their plug in model (http://www.nvx.com/nubt1-universal-bluetooth-audio-receiver/) for a car instead. Installation, while not impossible, requires some basic knowledge of car wiring, and definitely some confidence. The “User Manual” is nothing more than a key for wire colors and a basic pairing description.
When wired correctly and securely, the sound quality is good, and feels like a good price for what you get. Overall, if using for a car, I would recommend the one linked above.

If purchasing for another audio source, the item is extremely compact and would be a great addition to any outdoor vehicle/entertainment device.

By Alphie on June 4, 2016

42 found this helpful


Great product

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

Works perfectly. Installed on my roadking special with Clarion amp and eq

By Dominic on November 29, 2017

41 found this helpful


Love it!

The following review is for VUBT2v2, which is a part of the bundle you are viewing.

Super simple to wire in, connects automatically for me when I turn the key in my car. Extremely clear, doesn't miss a beat!

By Aaron on February 25, 2017 Checkmark Icon Verified purchase

41 found this helpful




KAC-8401 small

Kenwood KAC-8401

(1)

$144.99

List price $249.99

KFC-1354S small

Kenwood KFC-1354S

5-1/4" 2-Way Sport Series Coaxial Car Speakers

(7)

$19.95

List price $40.00

OV4-600 small

Power Acoustik OV4-600

4-Channel Gothic Series Amplifier

$84.99

List price $168.99

LRx1.400 small

Audison LRx 1.400

900 watts, MonoBlock Amplifier

$324.99

List price $899.99

OV2-400 small

Power Acoustik OV2-400

2-Channel Gothic Series Amplifier

(2)

$63.99

List price $123.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Infiniti M45

1999 GMC Jimmy

2012 Acura MDX

2011 Honda Accord

1959 Chrysler Imperial

2012 Chevrolet Silverado 3500 HD

1991 Chrysler LeBaron

2013 Volkswagen Beetle

1992 Acura Integra

2008 Infiniti FX35

Vehicle
Store
Delete

2005 Harley Davidson FLHTI Electra Glide Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
