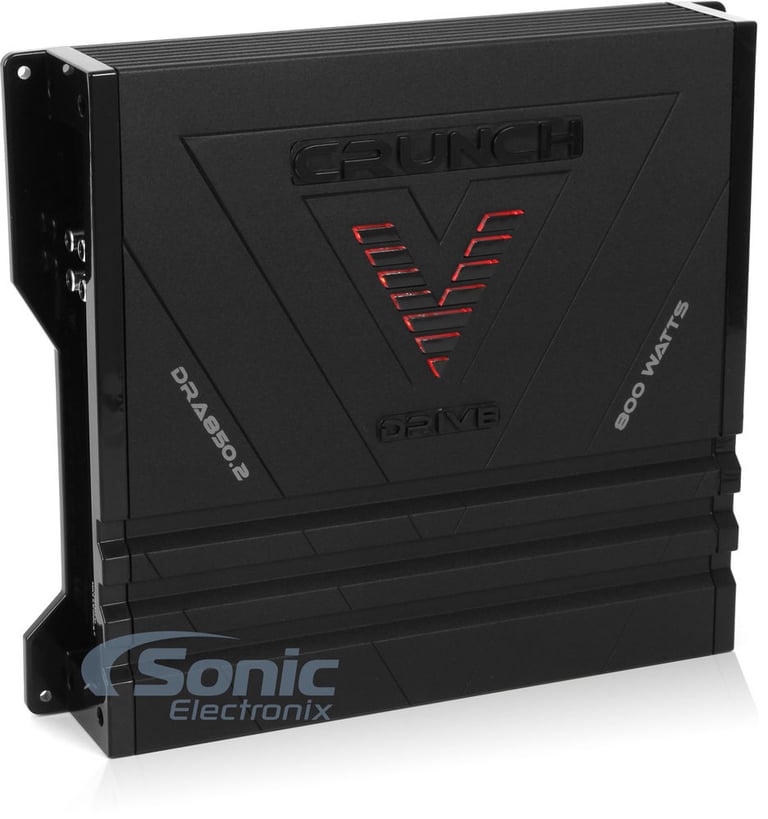

Crunch DRA850.2 (Factory Refurbished)

800W Max V-Drive Series 2-Channel Car Audio Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

• 800 Watts Max
• 400 Watts x 2 Chan. @ 2 Ohm
• 4-Way System Protection
• Selectable Highpass/Lowpass Filters

Learn more about the LS-dra8502-RB

We apologize

This item has been discontinued

Product Highlights


• 800 Watts Max
• 400 Watts x 2 Chan. @ 2 Ohm
• 4-Way System Protection
• Selectable Highpass/Lowpass Filters

Description


Crunch brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • V-Drive Series 2-Channel Class A/B Car Amplifier
  • Product is Factory Refurbished
  • Max Power Rating:
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 400 watts x 2 chan.
    • Bridged, 4 ohm: 800 watts x 1 chan.
  • SPEED-FETS, High Speed Pulse Width Modulated MOSFET power supply
  • V-Drive 3P Power supply with Twin-Coil Isolation Design (TCID) power supplies for maximum efficiency in converting 12volt power into huge watts through the amplifiers
  • Exponential variable-power supply (EXVP) for efficient DC to AC conversion
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 2/1 channel operation
  • Illuminated badge and heatsink
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (60-12,000 Hz)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 11"L x 9-1/2"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 90-day Manufacturer's warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 2 channel
RMS Power @ 2 ohms
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DRA850.2-RB

Weight:

6.40lbs

Internal SKU:

LS-dra8502-RB

Internal Product ID:

88893
