Planet Audio TRQ4.1600

1600W 4-Channel Torque Series Class AB Amplifier

Product videos
highlight-star-icon

• RMS Power: 200W x 4 @ 4 ohm, 300W x 4 @ 2 ohm
• Total Peak Power: 1600W
• Variable High and Low Pass Filters
• Dimensions: 9.5" W x 13.6875" L x 2.125" H

Learn more about the trq41600

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

Product Highlights


• RMS Power: 200W x 4 @ 4 ohm, 300W x 4 @ 2 ohm
• Total Peak Power: 1600W
• Variable High and Low Pass Filters
• Dimensions: 9.5" W x 13.6875" L x 2.125" H

Description


Planet Audio brand icon

Authorized dealer

Planet Audio Authorized Dealer

General Features:

  • Torque Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 4 chan.
    • 2 ohm: 300 watts x 4 chan.
    • Bridged, 4 ohm: 600 watts x 2 chan.
  • Max power output: 1600 watts

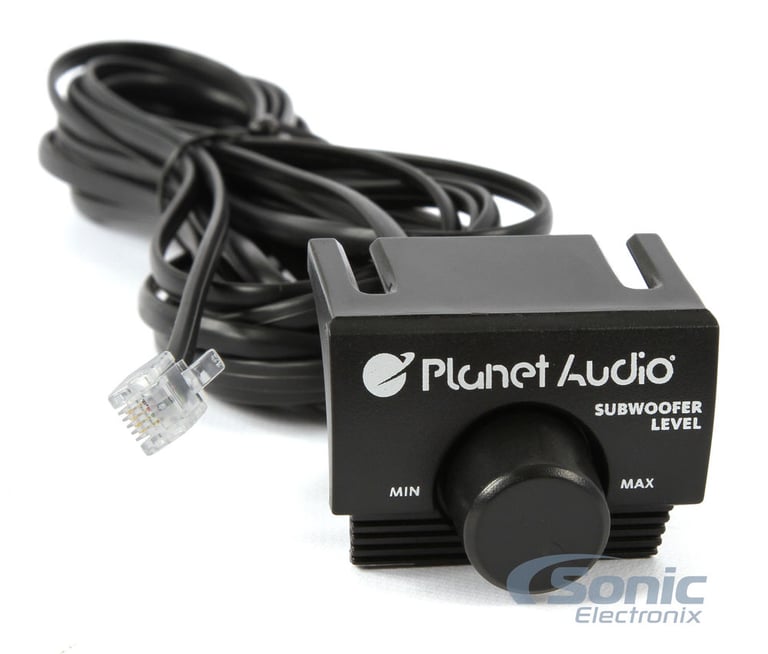

  • Wired remote bass level control included
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • Variable high-pass filter (50-500 Hz, 24 dB/octave)
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Thermal, overload and short circuit system protection
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 9.5"W x 13.6875"L x 2.125"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
200 watts x 4 channel
RMS Power @ 2 ohms
300 watts x 4 channel
Bridged RMS Power
600 watts x 2 channel
Amplifier Specifications
Series
Torque Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
87 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRQ4.1600

Weight:

10.00lbs

Internal SKU:

trq41600

Internal Product ID:

89187

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio TRQ4.1600 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
3
Value
4
Features
4
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

great deal!

I would like to say thank you for the product. It was the closest product to matching the spec that I desired. The price was also not bad at all either.
I installed the product replacing an Area 51 amp it fit almost exactly to the same spot as the other amp.
I did encounter small problem, however; the switch on the left side with four channel hook-up is off and has to be placed in the middle position. There is technically NO middle position. After moving it to the center position of the switch it worked great.
I did send a email but never received a reply.
other than that it is a nice product.

By Dwayne on March 12, 2016
