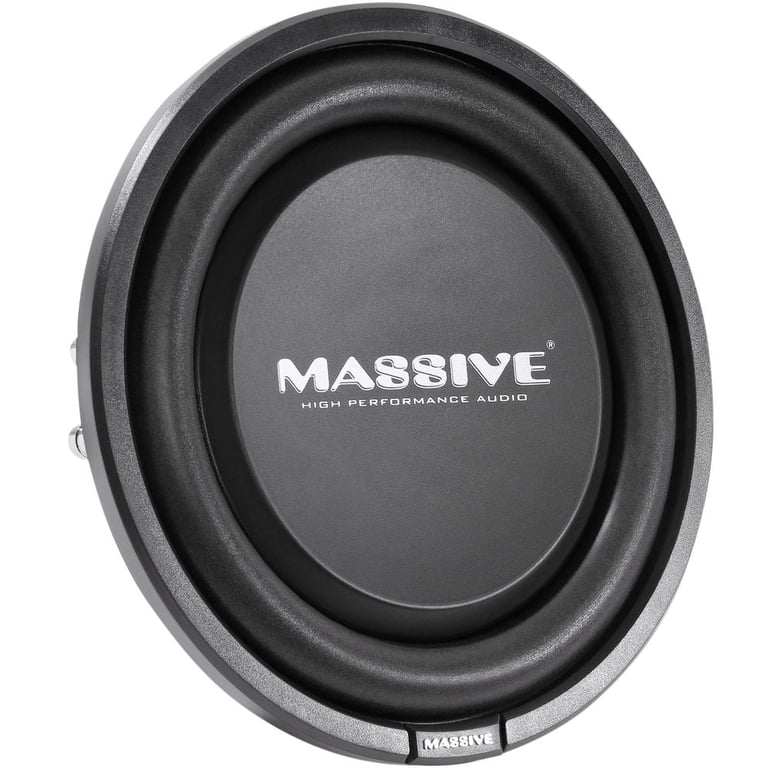

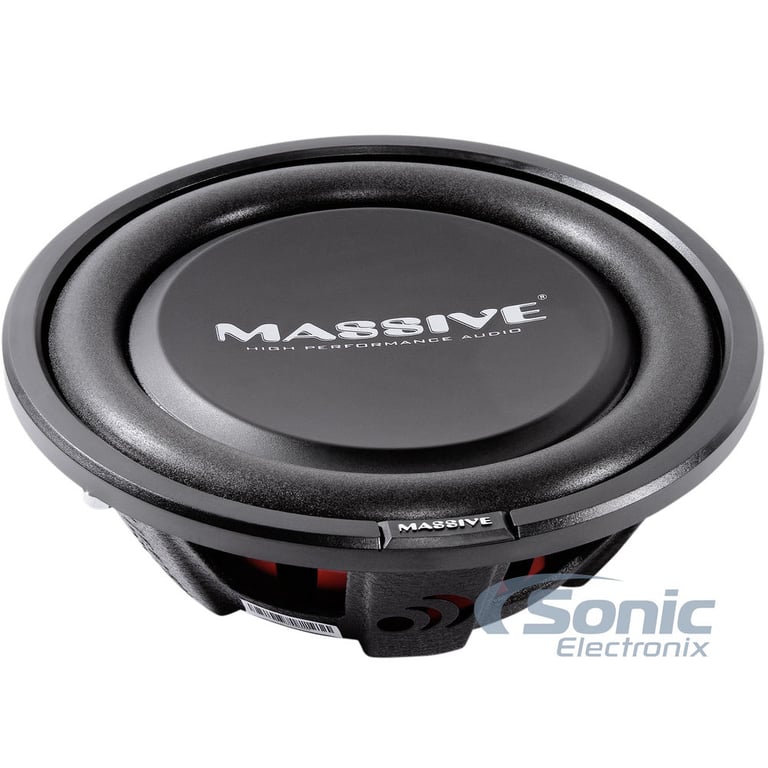

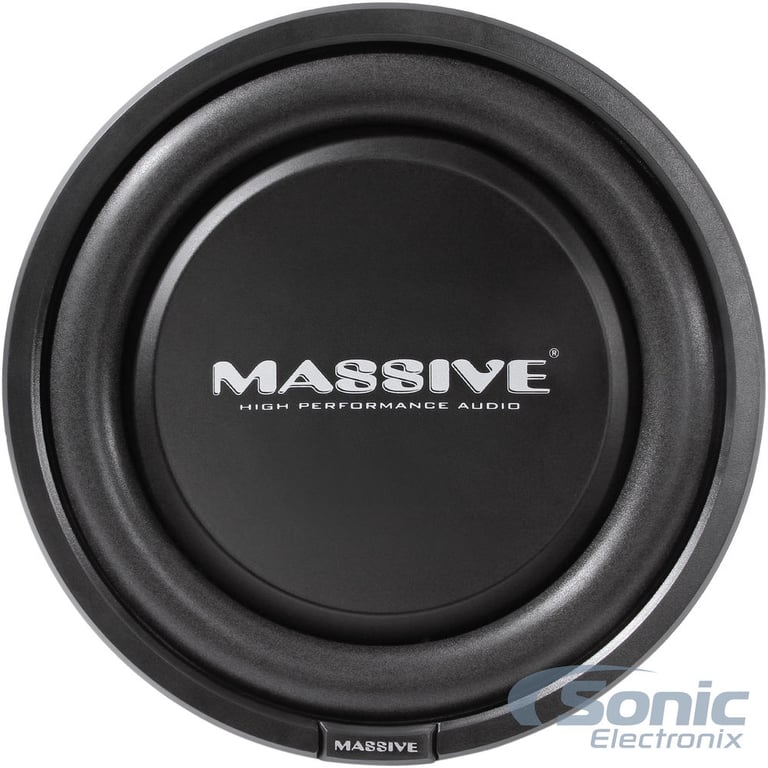

Massive Audio UFO10 (UFO 10)

600W Max (300W RMS) 10" Series Dual 4 ohm Shallow Mount Car Subwoofer

Product videos
highlight-star-icon

• 600W Max
• 300W RMS
• Injection Molded Polypropylene Cone
• Pressed Foam Surround
• Heavy Gauge Steel Basket
• Shallow Mount
• CEA-2031 Compliant Speaker

Learn more about the ufo10

We apologize

This item has been discontinued

Product Highlights


• 600W Max
• 300W RMS
• Injection Molded Polypropylene Cone
• Pressed Foam Surround
• Heavy Gauge Steel Basket
• Shallow Mount
• CEA-2031 Compliant Speaker

Description


Massive Audio brand icon

Authorized dealer

General Features:

  • 10" Dual 4 ohm UFO Series Shallow Mount Subwoofer
  • CEA-2031 Compliant speaker
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Injection molded polypropylene cone
  • Pressed foam surround
  • Shallow mount installation fits into tighter spaces and saves room
  • Poly cotton spider with woven round wire
  • Heavy gauge steel basket
  • 5-way binding post terminals
  • Dual 2.5" 4 ohm voice coils
  • High flux Y30 strontium magnet
  • Top-mount depth: 2.95"
  • Cutout diameter: 9.09"
  • Sensitivity: 82.5 dB
  • Resonance Frequency (Fs): 35.9
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Massive Audio UFO10 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Massive Audio UFO10 (UFO 10) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Massive Audio UFO10 (UFO 10) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Massive Audio UFO10 (UFO 10) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Massive Audio UFO10 (UFO 10) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
UFO Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
2.5"
Sensitivity
82.5 dB
Xmax (millimeters)
8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.77 cubic feet
Optimum Ported Box Volume
1.07 cubic feet
Top-Mount Depth (Mounting Depth)
2.95"
Cutout Diameter
10.31"
Shallow Mount Installation
Yes
Electromechanical Parameters
Free-Air Resonance (Fs)
35.9 Hz
Equivalent Compliance (Vas)
20.1 liters
Total Speaker Q Value (Qts)
1.56
Electrical Q Value (Qes)
2.24
Electrical Resistance of Voice Coil (Re)
3.4 ohms
Mechanical Q Value (Qms)
5.64
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

UFO10

Weight:

28.00lbs

Internal SKU:

ufo10

Internal Product ID:

90288

Product and How-to Videos


  • Dalek Massive @ Massive Audio Booth | CES 2014
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

JL replacement that bangs

So this shallow mount sub was purchased to replace a blown JL Audio 10WX-4. I was like a kid on Christmas Eve waiting for its arrival. I promptly unboxed and pulled the old JL and was going to mount the new sub, but had to widen the cutout (as expected). Once I got the cutout widened, I mounted this beast (I dialed in the JL J2 250 amp settings prior to widening the cutout). I wired everything up (sub at 2 ohm), made some micro adjustments to the amp and external crossover settings and was ready to rock and roll. This sub did not disappoint in any way, shape or form and sounds amazing!!! (I think it sounds better than the JL) This was a great choice and I’m glad I bought it. For a little old 10” sub, it played artists like Firehouse, Beastie Boys, Bass Mekanik, contemporary Christian, blues, 90s rap and some more genres flawlessly. It has some pretty good bump for being in a small sealed box. I actually think the JL amp is a little underpowered, but it still sounds amazing and so far, I am highly satisfied with this sub. If you’re thinking about buying it and are on the fence, DO IT!!!! You won’t be disappointed.

By Jeff on August 27, 2021 Checkmark Icon Verified purchase

21

found this helpful.
