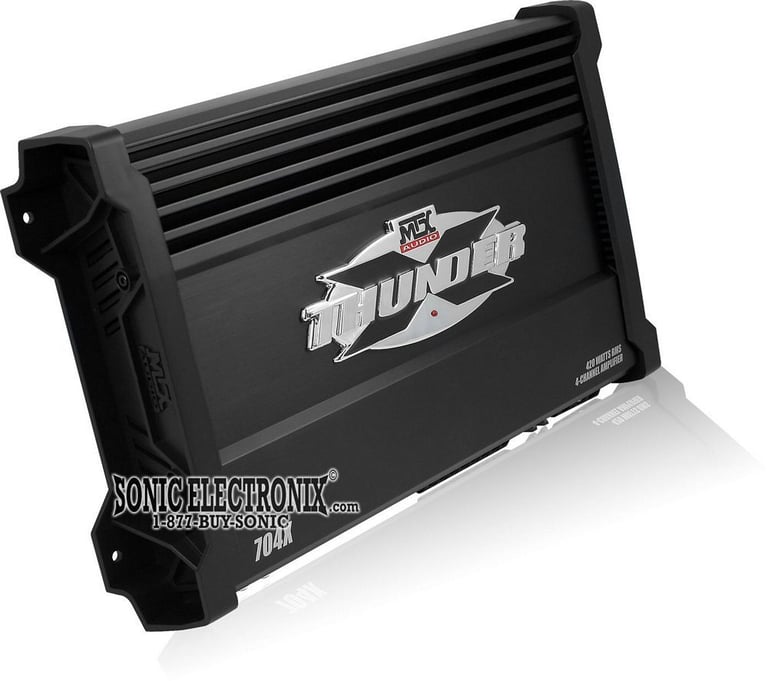

MTX Audio XThunder 704X

420W RMS, 4-Channel Amplifier X Thunder 704 X

MTX
Shop all MTX
Product videos
highlight-star-icon

X Thunder Series 4-Channel Class AB Car Amplifier • 70W x 4 chan. @ 4 ohm • 105W x 4 chan. @ 2 ohm • Stereo gain control • Heavy duty aluminum construction with large heat-sinks

Learn more about the 704x

We apologize

This item has been discontinued


Loading...
21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1
-7.02%

$529.91

List price $569.94

21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-13.10%

$729.90

List price $839.92

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-17.58%

$543.90

List price $659.92

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-11.80%

$343.91

List price $389.94

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

Product Highlights


X Thunder Series 4-Channel Class AB Car Amplifier • 70W x 4 chan. @ 4 ohm • 105W x 4 chan. @ 2 ohm • Stereo gain control • Heavy duty aluminum construction with large heat-sinks

Description


MTX brand icon

Authorized dealer

  • X Thunder Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 chan.
    • 2 ohm: 105 watts x 4 chan.
    • Bridged, 4 ohm: 210 watts x 2 chan.
  • Max power output: 840 watts
  • Patented Adaptive Class AB Technology
  • LED power indicator
  • Anodized Finish
  • Single channel operation
  • Chrome X Thunder Badge
  • Stereo gain control
  • Heavy duty aluminum construction with large heat-sinks
  • Variable high-pass filter (40-8000 Hz, 12 dB/octave)
  • Variable low-pass filter (40-800 Hz, 24 dB/octave)
  • Frequency response: 20-20000 Hz
  • Dimensions: 15" L x 9-1/8" W x 2-1/4" H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
105 watts x 4 channel
Bridged RMS Power
210 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
840 watts
Total RMS Power Output
420 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 8000 Hz
Low-Pass Crossover Frequency
40 - 800 Hz
Signal-to-Noise Ratio
75 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

704X

Weight:

11.00lbs

Internal SKU:

704x

Internal Product ID:

9036

Product and How-to Videos


Customer Ratings & Reviews


MTX Audio XThunder 704X thumbnail image

5 star
83%
4 star
0%
3 star
0%
2 star
17%
1 star
0%



Durability
4.2
Value
4.4
Features
4.2
Design
4.5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Meh

Had this amp for the past year and I didn't really have the right setup to test it's capabilities until I had gotten Rainbow Speakers this past spring, for a month or 2 everything sounded great 9/10 but idk if the speakers are too demanding, or if this thing is a bad in the heat as it is summer now but I suspect that this amp may be mediocre if you're looking for pure SQ, trading up and gonna probably pawn this thing to a friend.

By Kevin on July 24, 2012

5 found this helpful


Great Sound Quality

As far as sound goes this amp was built very well. I was originally looking for one that had a built-in fan because I mounted the amp in the trunk of my car, however I was able to get this amp for a really good price. The sound quality really impressed me. I have it running a pair of Boston Acoustics SX50 components and a pair of BA SL60 components. Just make sure that when you mount it you give it plenty of room to breath, if you mount it in an area without much air space (like I did originally) you'll most likely have some overheating issues. But once I moved so that the front of the amp was completely open to space, I haven't had a single problem with it. I would definitely recommend this amp.

By M. Conner on April 10, 2011

5 found this helpful


MTX amp is awesome.

i have this guy powering two kicker ks components and two kicker ks coaxial 6.5"s

it does an amazing job, my speakers sound super clear and loud. i definitely recommend. my only complaint is that my sub amp turns on about a second before this one, its really no big deal but thought i'd mention it. get it from sonic at the best price ever!

By jack on March 2, 2010

5 found this helpful


704x

this is a great amp... sounds amazing on my components

By chris on April 3, 2011

3 found this helpful


great amp for the price

i hav this amp hooked up to a pair of MTX 6x9's and a pair of MTX 5.25's..My system sounds great. The amp puts out pleanty of power with very little or almost no distortion. Highly recomended.

By Kadow on June 2, 2009

3 found this helpful


MTX Audio XThunder 704X

This is a solidly built amplifier. I have it pushing a pair of polk db 5.25's and 6x9's and they absolutely sing. I installed it all myself which was tough to do but i saved myself a good 100 bucks. The high pass filters come in handy when running the speakers because i'm able to make sure they don't blow or get pushed to hard. I ran it with a 4 gauge wire but im sure it would be okay to do it with 8 gauge.

By Hank on May 11, 2010

2 found this helpful
