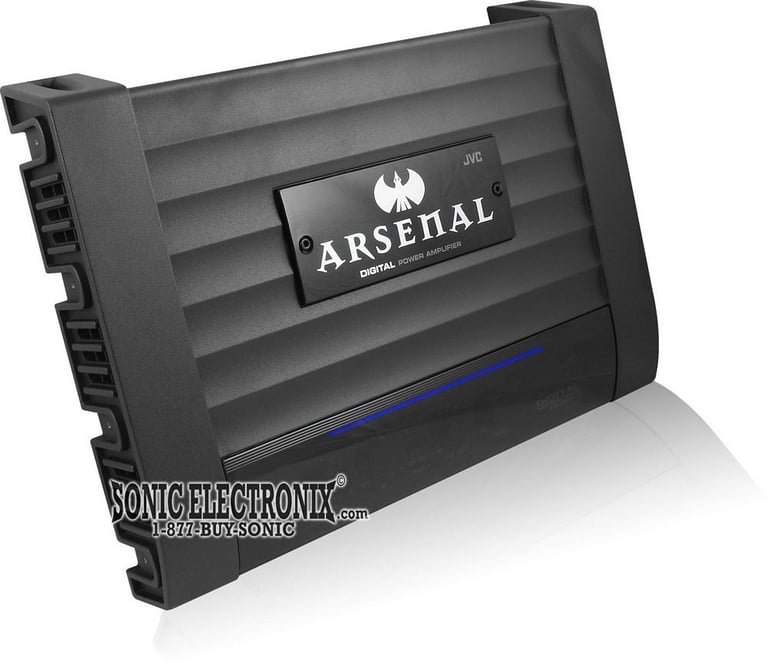

JVC Arsenal KS-AR7501D

1200W Max, Class D Monoblock Amplifier

JVC
Shop all JVC
Product videos
highlight-star-icon

** OFFER GOOD ONLY WHILE SUPPLIES LAST ** • Arsenal Series 1-Channel Class D Car Amplifier • 400W x 1 chan. @ 4 ohm • 700W x 1 chan. @ 2 ohm • 1000W x 1 chan. @ 1 ohm • 1200W x 1 chan. Max • 1 ohm Stable • Gold Plated RCA Input & Output(Pass Through) • CEA-2006 compliant amplifier

Learn more about the ksar7501d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
LEX5VT2 main

GROM Audio LEX5VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2006-2009 vehicles from Lexus, Toyota

1

$549.95

List price $559.95

HRN-AR-EXT2 main

iDataLink Maestro HRN-AR-EXT2 Extension Harness

Connect 2-Meter Extension Harness to Relocate Maestro AR and New Amplifier

-20.46%

$34.99

List price $43.99

AXDIS-TY1 main

Axxess AXDIS-TY1

Install New Car Stereo and Retain Steering Wheel Controls and Other Factory Features In select 2001-2015 vehicles from Toyota, Lexus

3
-10.27%

$235.99

List price $262.99

Product Highlights


** OFFER GOOD ONLY WHILE SUPPLIES LAST ** • Arsenal Series 1-Channel Class D Car Amplifier • 400W x 1 chan. @ 4 ohm • 700W x 1 chan. @ 2 ohm • 1000W x 1 chan. @ 1 ohm • 1200W x 1 chan. Max • 1 ohm Stable • Gold Plated RCA Input & Output(Pass Through) • CEA-2006 compliant amplifier

Description


JVC brand icon

Authorized dealer

  • Arsenal Series 1-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 700 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • Max power output: 1200 watts x 1 chan.
  • Pulse Width Modulated MOSFET Power Supply
  • Remote bass level input (remote level control sold separately)
  • Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
  • Single channel operation)
  • Variable Speaker Level Input
  • Stackable 4-Way Installation
  • Anti-pop and protection circuit
  • Phase Control (0/180°)
  • 1 ohm Stable

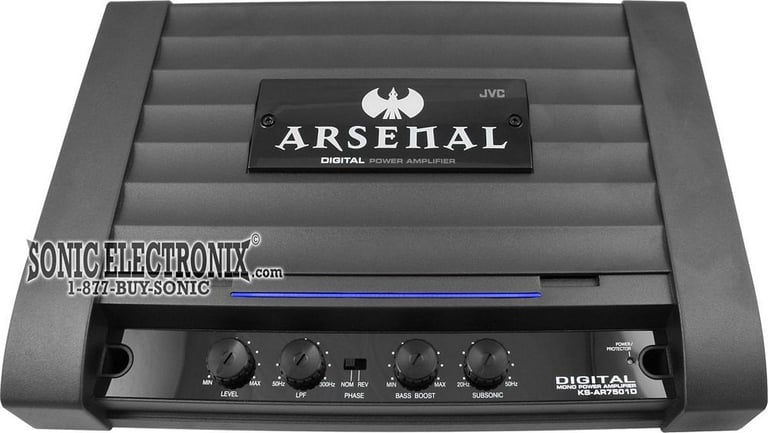

  • Large Top Mounted Rotary Controls

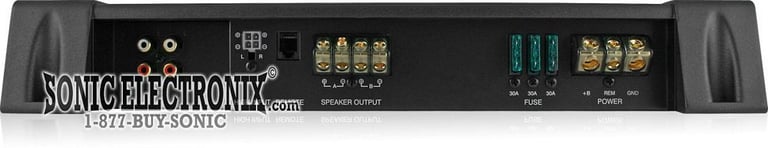

  • Gold Plated RCA Input & Output(Pass Through)
  • Angle Mount Gold-Plated Power & Speaker Terminals
  • Variable low-pass filter (50-300 Hz, 18 dB/octave)
  • Subsonic filter: 20-50 Hz
  • CEA-2006 compliant amplifier
  • Frequency response: 20-300 Hz
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
700 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 300 Hz
Subsonic Filter
20 - 50 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 3
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-AR7501D

Weight:

14.00lbs

Internal SKU:

ksar7501d

Internal Product ID:

9082

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


JVC Arsenal KS-AR7501D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Awsome!!!!!!!!!!!!

this amp is THE BEST that JVC has to offer. its rated at 1000 @ 1 omh but i got one amp for each of my two subs in a 92 honda civic hb.
