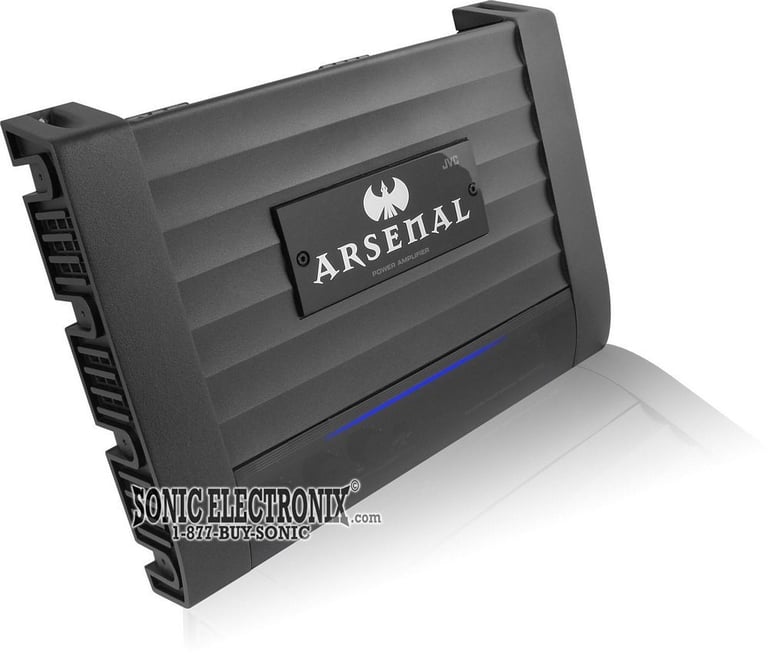

JVC Arsenal KS-AR7002

800W Max, 2-Channel Amplifier

JVC
Shop all JVC
Product videos
highlight-star-icon

** OFFER GOOD ONLY WHILE SUPPLIES LAST ** • 800 watts Max, 2-Channel Amplifier • Class AB Circuitry • 150 watts x 2 channels (4 ohm) • Pulse width modulated MOSFET Power Supply • Tri-mode Operation • Gold Plated RCA Input and Output Terminals (Pass Through) • Anti-Pop and Protection Circuit

Learn more about the ksar7002

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Limited time!
REF407F main

Infinity REF407F (INFSPKRF407FUS)

210W Peak (75W RMS) 4" Reference Series 2-Way Coaxial 3-ohm Speakers

-37.16%

$87.95

List price $139.95

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

17
Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

38
-29.45%

$59.96

List price $84.99

Limited time!
C2-400X main

JL Audio C2-400x

70W RMS 4" C2 Series 2-Way Coaxial 4-ohm Car Speakers

9
-13.16%

$164.99

List price $189.99

STAGE245F main

JBL Stage2 45F (STAGE245F)

100W Peak (50W RMS) 6.5" Stage2 Gen 2 Series 2 Way Coaxial Speakers

-27.55%

$49.99

List price $69.00

P142 main

Rockford Fosgate Punch P1 P142

120W Peak (60W RMS) 4" Punch Series 2 Way Coaxial 4-ohm Speakers

17

Product Highlights


** OFFER GOOD ONLY WHILE SUPPLIES LAST ** • 800 watts Max, 2-Channel Amplifier • Class AB Circuitry • 150 watts x 2 channels (4 ohm) • Pulse width modulated MOSFET Power Supply • Tri-mode Operation • Gold Plated RCA Input and Output Terminals (Pass Through) • Anti-Pop and Protection Circuit

Description


JVC brand icon

Authorized dealer

  • 800 watts Max, 2-Channel Class AB Circuitry Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 230 watts x 2 chan.
  • Tri-mode Operation
  • Pulse width modulated MOSFET Power Supply
  • Variable Speaker Level Input
  • Stackable 4-way Installation

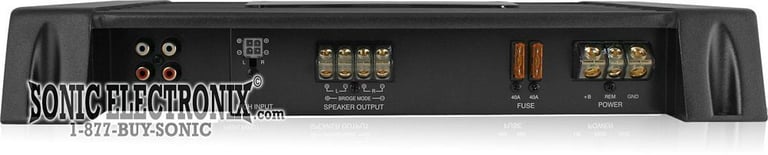

  • Gold Plated RCA Input and Output Terminals (Pass Through)
  • Angle-Mount Gold Plated Power and Speaker Terminals
  • Anti-Pop and Protection Circuit

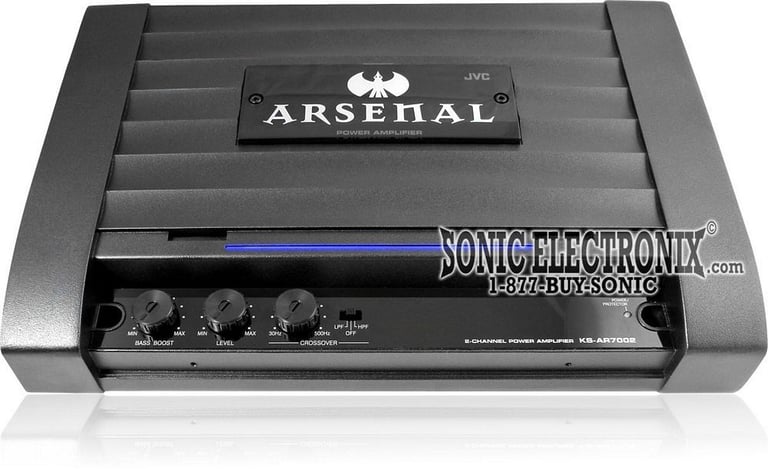

  • Top Mounted Large Rotary Controls
  • Dimensions: 15.75" L x 11.38" W x 2.38" H
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
230 watts x 2 channel
Bridged RMS Power
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
460 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Subsonic Filter
5 - 50000 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-AR7002

Weight:

11.00lbs

Internal SKU:

ksar7002

Internal Product ID:

9083
