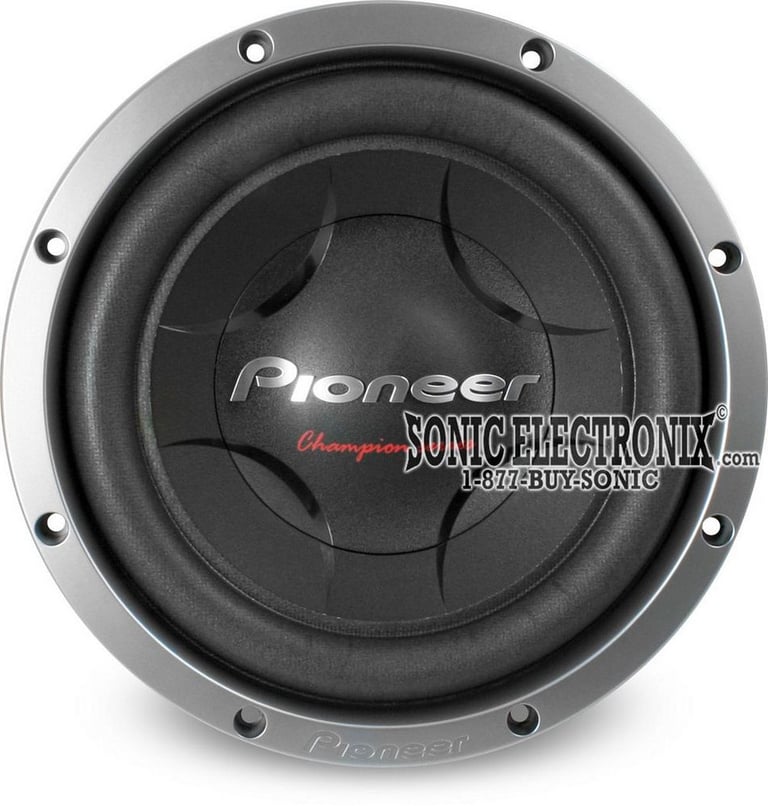

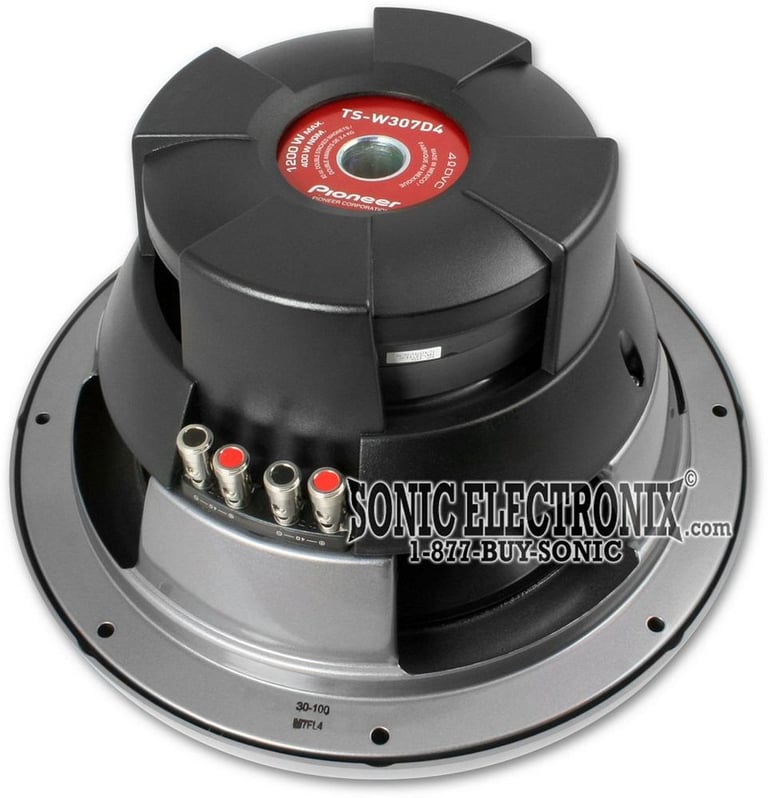

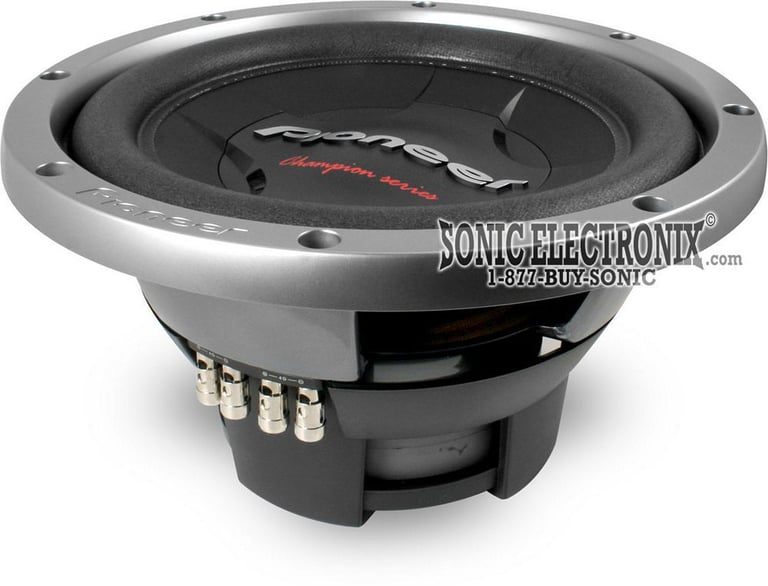

Pioneer TS-W307D4

1200W Max, 12" Dual 4 ohm Champion Series Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" Dual 4 Ohm Pioneer TS Series Subwoofer • 1200W Max • 400W RMS • Aramid fiber injection molded polypropylene composite cone • 3-Layer fiber woven radial surround • Integrated single-sided terminals • Aluminum voice coil bobbin

Learn more about the tsw307d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw311d4 thumbnail

Pioneer TS-W311D4

OUR PRICE: $84.99

View item

Loading...
APX-S8-FO1 main

iDataLink Maestro APX-S8-FO1 Dash Kit and Harness

APX 8" Floating Stereo Dash Kit and Harness for select 2011-2022 vehicles from Ford, Lincoln

1
-17.86%

$229.99

List price $279.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

C2-600 main

JL Audio C2-600

120W RMS 6" C2 Series 2-Way 4-ohm Component Speaker System

5
ADS-MRR main

iDataLink Maestro RR Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

35
-17.39%

$189.99

List price $229.99

Product Highlights


12" Dual 4 Ohm Pioneer TS Series Subwoofer • 1200W Max • 400W RMS • Aramid fiber injection molded polypropylene composite cone • 3-Layer fiber woven radial surround • Integrated single-sided terminals • Aluminum voice coil bobbin

Description


Pioneer brand icon

Authorized dealer

  • 12" Dual 4 Ohm Pioneer TS Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm
  • Aramid fiber injection molded polypropylene composite cone
  • 3-Layer fiber woven radial surround
  • Spring-compression binding posts
  • Integrated single-sided terminals
  • Aluminum voice coil bobbin
  • Dual 4-ohm voice coil
  • Dual stacked magnet with magnet cover
  • Frequency Response: 18-500 Hz
  • Sensitivity: 89 dB
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W311D4 thumbnail
(newest, current model)
Pioneer TS-W310D4 thumbnail
(previous model, replaced by Pioneer TS-W311D4)
Pioneer TS-W309D4 thumbnail
(previous model, replaced by Pioneer TS-W310D4)
Pioneer TS-W308D4 thumbnail
(previous model, replaced by Pioneer TS-W309D4)
Pioneer TS-W307D4 thumbnail
(previous model, replaced by Pioneer TS-W308D4)
Pioneer TS-W306DVC thumbnail
(previous model, replaced by Pioneer TS-W307D4)
Pioneer TS-W305DVC thumbnail
(previous model, replaced by Pioneer TS-W306DVC)
Pioneer TS-W304DVC thumbnail
(previous model, replaced by Pioneer TS-W305DVC 12" DVC)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W307D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W307D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W307D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W307D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
18 - 500 Hz
Sensitivity
89 dB
Xmax (millimeters)
9.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene with Aramid Fiber Composite
Woofer Surround
Fiber Woven Radial
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.65 cubic feet
Maximum Ported Box Volume
1.65 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W307D4

Weight:

16.00lbs

Internal SKU:

tsw307d4

Internal Product ID:
