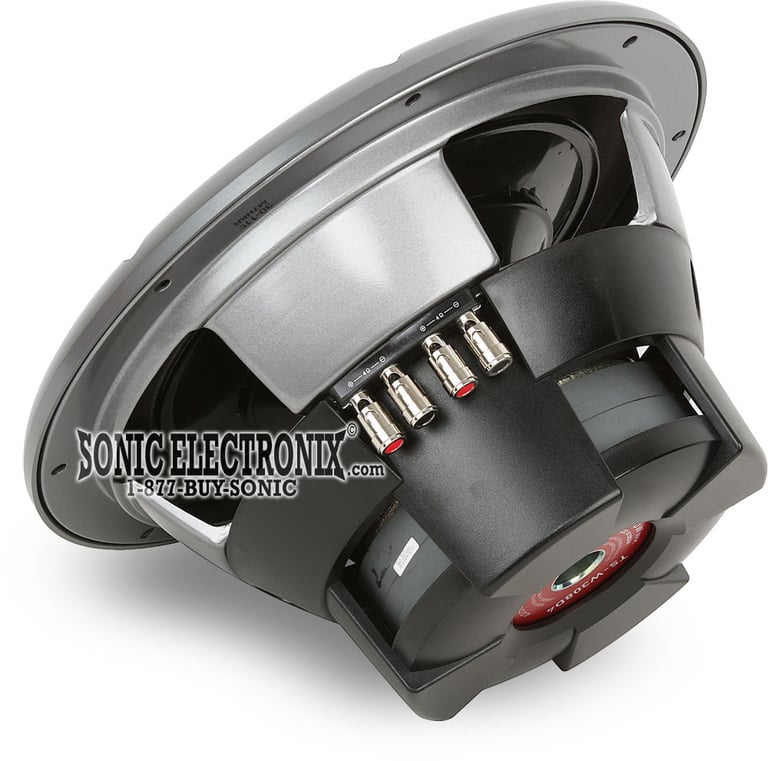

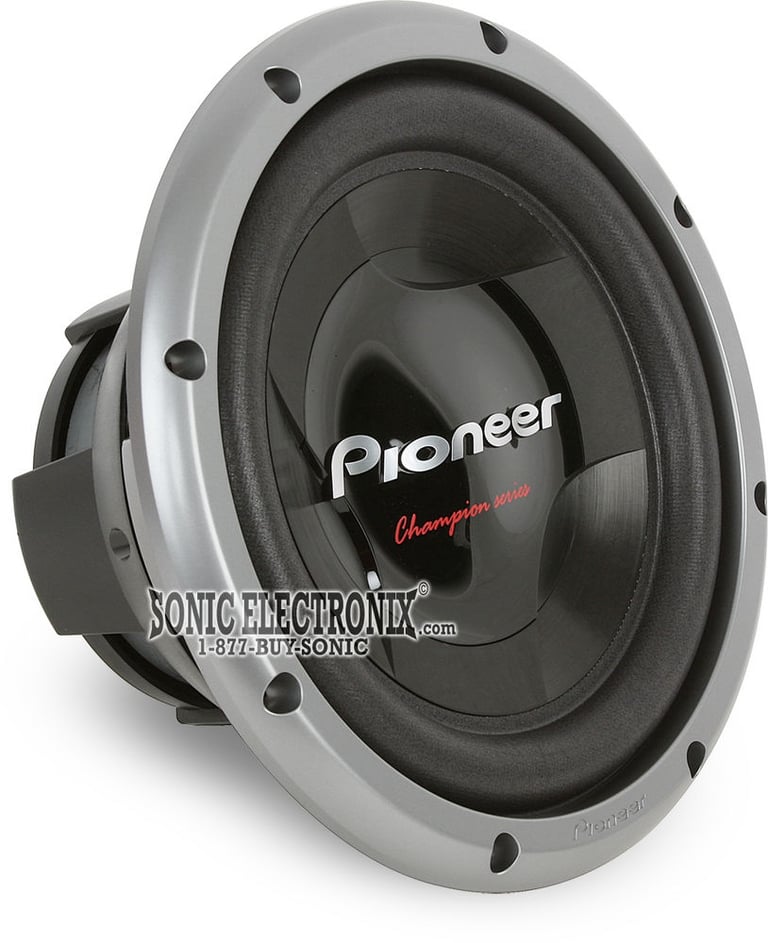

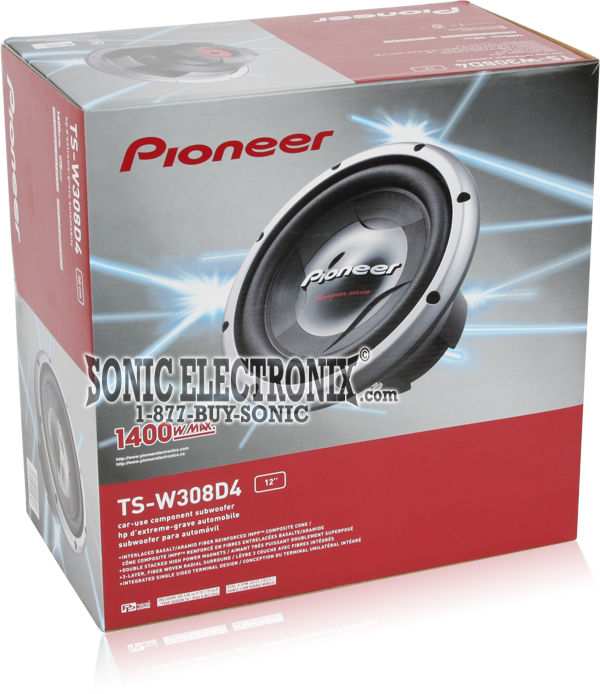

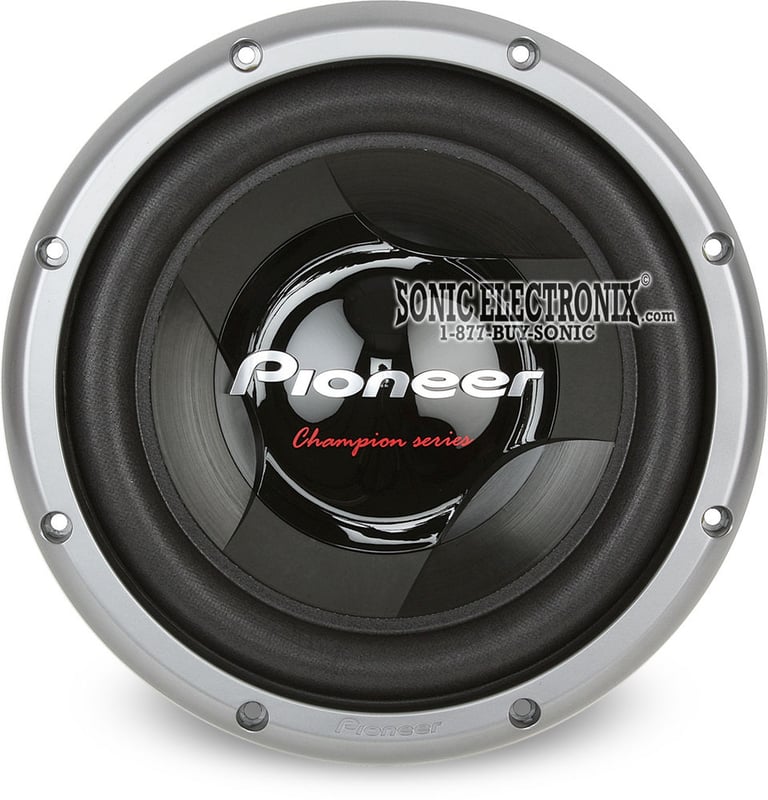

Pioneer TS-W308D4

12" Dual 4 ohm Champion Series Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" Champion Series Subwoofer • 1400 Watts Peak • 400 Watts RMS • Dual 4 ohm • Injection Molded Polypropylene (IMPP) Cone Woofer • Spring Compression Terminals • Dual Mass Magnet • Dual Voice Coil

Learn more about the tsw308d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw311d4 thumbnail

Pioneer TS-W311D4

OUR PRICE: $84.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

99-6503 main

Metra 99-6503 Dash Kit

Install a new Single-DIN car stereo in select 1998-2010 vehicles from Dodge, Chrysler, Jeep

17
-45.48%

$11.99

List price $21.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Product Highlights


12" Champion Series Subwoofer • 1400 Watts Peak • 400 Watts RMS • Dual 4 ohm • Injection Molded Polypropylene (IMPP) Cone Woofer • Spring Compression Terminals • Dual Mass Magnet • Dual Voice Coil

Description


Pioneer brand icon

Authorized dealer

  • 12" Dual 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm
  • Injection molded polypropylene (IMPP) cone woofer
  • Wide triple layer radial sound
  • Single-sided spring compression terminals
  • Dual voice coil
  • Dual mass magnet with magnet cover
  • Frequency response: 20-180 Hz
  • Sensitivity: 91 dB
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W311D4 thumbnail
(newest, current model)
Pioneer TS-W310D4 thumbnail
(previous model, replaced by Pioneer TS-W311D4)
Pioneer TS-W309D4 thumbnail
(previous model, replaced by Pioneer TS-W310D4)
Pioneer TS-W308D4 thumbnail
(previous model, replaced by Pioneer TS-W309D4)
Pioneer TS-W307D4 thumbnail
(previous model, replaced by Pioneer TS-W308D4)
Pioneer TS-W306DVC thumbnail
(previous model, replaced by Pioneer TS-W307D4)
Pioneer TS-W305DVC thumbnail
(previous model, replaced by Pioneer TS-W306DVC)
Pioneer TS-W304DVC thumbnail
(previous model, replaced by Pioneer TS-W305DVC 12" DVC)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W308D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W308D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W308D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W308D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 180 Hz
Sensitivity
91 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.05 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W308D4

Weight:

13.50lbs

Internal SKU:

tsw308d4

Internal Product ID:

16493

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W308D4 thumbnail image

5 star
73%
4 star
18%
3 star
3%
2 star
3%
1 star
3%



Durability
4.5
Value
4.7
Features
4.5
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

great subs

I have 2 of theys in a Sony ported box and thay hit hit head with a small sony amp I wound buy them again in a heartbeat

By donald on May 23, 2011

12 found this helpful


Nice

I personally have bought this and it is very reliable and sounds very nice and gives clean bass and sound.

By tyler on November 11, 2009

12 found this helpful


Great Price, Awesome Power

I have two of these subs in a custom sealed box under the rear seats of my silverado with about .8 cubic feet for each sub and they hit super hard!

By Gilberto on March 17, 2010

11 found this helpful


BOOOOOM

This sub slams I have it in a box i made tuned to 34 hz and people always asking if i have 2 12's but its only one

By andy on May 30, 2011

10 found this helpful


slappin

These speakers hit I have 3 of them in a 86 trans am running off a 1000 watt alpine bass so loud i turned down the amp.would by again

By d hess on January 27, 2011

9 found this helpful


Bringing the bass

These are fantastic subwoofers for the price. I have them connected up in their maximum power configuration and at times I believe my Suburban is going to explode before they blow. Very tight bass for anyone looking for an SQ configuration and I'm sure SPL'ers will drool at the pressure they produce.

By orphic on January 11, 2011

8 found this helpful


Great buy!

These two subwoofers are working great, great product at a great price would recommend them and I would buy them again.

By Leo on December 7, 2010

9 found this helpful


great speakers

I have two of these in my Jeep Cherokee. they have a lot of bass and can be tuned to be more like normal, but i prefer the bass. If I had the other speakers to go with them it would sound great. I've got stocks but need tweets and mids. I have older pioneer deck and older Jensen 460 amp, I built a custom box as per the spec sheet. I could probably get more out of them but over the years I have learned not to turn my gain up and save from fixing my amps.

By entice78 on October 3, 2010

9 found this helpful


Awesome Sub

Sound systems are supposed to be connected properly, under powering is not going to give you results, take into consideration your box quality, the type of materials used and if it is sealed properly. The frequency of the box needs to be measured and your amp needs to tune to the box frequency. wiring is another factor to look at, you cant be toying with 8 gauge power cables and normal speaker cables. This is an awesome sub, i tried sealed and then ported, the ported sounds way better (make sure to use the right size of port). Instructions and dimensions come with the package.

By Ryan on June 18, 2010

8 found this helpful


Justin James from Plaquemine, La

I bought four of these and put them on a power acoustik 5500 watt class D amp. They beat my trunk lose broke my rear view mirror I had bass out the a$$. But after around bout 7 month of beatin 2 of them went out. So I would recommend them if you put them on a smaller amp. If you wanna break s**t get the next level Pioneer.

By Justin on November 21, 2009

8 found this helpful




SC-GDB1448GC small

X Scorpion SC-GDB1448G / Hitron HDB48G

Ground Distribution Block

(1)

$4.99

List price $14.99

MG1387 small

Mean Green Alternators MG1387

High Output Alternator with V-Belt Pulley for select 1999-2006 vehicles from Dodge, Jeep

$519.99

List price $519.99

ZA2-1000.2 small

MB Quart ZA2-1000.2

1000W Max (500W RMS) ZA2 Series 2 ohm Stable 2-Channel Class-A/B Amplifier

(8)

$82.99

List price $239.99

HK897 small

MA Audio HK897 / HK898

(2)

$299.99

List price $491.99

XD-PCS4-2B small

JL Audio XD-PCS4-2B 4 Gauge Dual Amplifier Kit

4 AWG Premium Series Dual Amplifier Power Installation Kit

(2)

$299.99

List price $299.99

KFC-W3010 small

Kenwood KFC-W3010

12" Single 4 ohms Subwoofer

(1)

$49.99

List price $89.99

MG1392 small

Mean Green Alternators MG1392

High Output Alternator for select 2007-2009 Ram 1500 / 2500 / 3500 and Durango

$519.99

List price $519.99

AudK611 small

American International AudK611

Single DIN Stereo Dash Kit for select 1998-2005 vehicles from Audi (Black)

$18.99

List price $69.00

P500X1BD small

Rockford Fosgate Punch P500X1BD

500W RMS Class BD Punch Series Monoblock Car Amplifier

(14)

$389.99

List price $429.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Dodge Caravan

1989 Ford Bronco

2006 BMW M3

2007 Toyota Highlander

2003 Dodge Durango

2009 Bentley Continental

2012 Hyundai Accent

2017 Buick LaCrosse

2008 Honda S2000

2010 Audi A5

Vehicle
Store
Delete

2019 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
