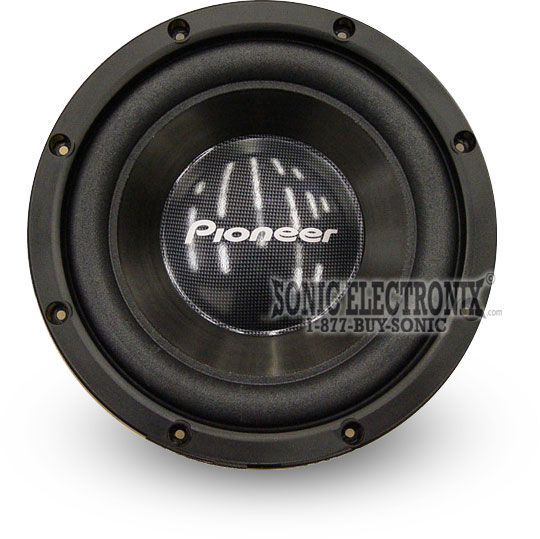

Pioneer TS-W305DVC 12" DVC

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" Dual 4-Ohm Voice Coil Component Sub Dual 4-ohm voice coils • Composite IMPP Cone using Interlaced Kevlar® brand • urethane surround • 800W peak / 400W RMS power handling • 18Hz - 2kHz frequency response • Voice Coil Cooling system

Learn more about the tsw305dvc

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw311d4 thumbnail

Pioneer TS-W311D4

OUR PRICE: $84.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-3006 main

Metra 82-3006

6" to 6.75" Speaker Mounting Adapter for select 2003-2024 vehicles from Chevrolet, GMC, Cadillac

23
-50.01%

$16.99

List price $33.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Product Highlights


12" Dual 4-Ohm Voice Coil Component Sub Dual 4-ohm voice coils • Composite IMPP Cone using Interlaced Kevlar® brand • urethane surround • 800W peak / 400W RMS power handling • 18Hz - 2kHz frequency response • Voice Coil Cooling system

Description


Pioneer brand icon

Authorized dealer

  • Dual 4-ohm voice coils for wiring flexibility
  • frequency response 18Hz - 2kHz
  • RMS power handling: 400 watts
  • peak power handling: 800 watts
  • Wide Roll, Three-Layer Fiber Woven Radial
  • Composite IMPP Cone using Interlaced Kevlar® brand
  • sensitivity 89 dB SPL
  • top mount depth 5-5/8"
  • sealed box volume 1.2 cubic feet
  • ported box volume 1.3 cubic feet
  • single reflex bandpass box volume 1.5 cubic feet
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W311D4 thumbnail
(newest, current model)
Pioneer TS-W310D4 thumbnail
(previous model, replaced by Pioneer TS-W311D4)
Pioneer TS-W309D4 thumbnail
(previous model, replaced by Pioneer TS-W310D4)
Pioneer TS-W308D4 thumbnail
(previous model, replaced by Pioneer TS-W309D4)
Pioneer TS-W307D4 thumbnail
(previous model, replaced by Pioneer TS-W308D4)
Pioneer TS-W306DVC thumbnail
(previous model, replaced by Pioneer TS-W307D4)
Pioneer TS-W305DVC thumbnail
(previous model, replaced by Pioneer TS-W306DVC)
Pioneer TS-W304DVC thumbnail
(previous model, replaced by Pioneer TS-W305DVC 12" DVC)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W305DVC 12" DVC Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W305DVC 12" DVC Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W305DVC 12" DVC Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W305DVC 12" DVC Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
18 - 2000 Hz
Sensitivity
89 dB
Woofer Surround
Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
11-1/8"

Item Details


Manufacturer:

Model Number:

TS-W305DVC

Weight:

15.00lbs

Internal SKU:

tsw305dvc

Internal Product ID:

2875
