Pioneer TS-W309D4

12" Dual 4 Ohm Champion Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" Champion Series Subwoofer • Dual 4 ohm • 1400 Watts Max • 400 Watts RMS • IMPP Cone • Dual Layer Elastic Polymer Surround • Large Double Stacked High Energy Magnets • Spring Loaded Push Terminals

Learn more about the tsw309d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw311d4 thumbnail

Pioneer TS-W311D4

OUR PRICE: $84.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

Product Highlights


12" Champion Series Subwoofer • Dual 4 ohm • 1400 Watts Max • 400 Watts RMS • IMPP Cone • Dual Layer Elastic Polymer Surround • Large Double Stacked High Energy Magnets • Spring Loaded Push Terminals

Description


Pioneer brand icon

Authorized dealer

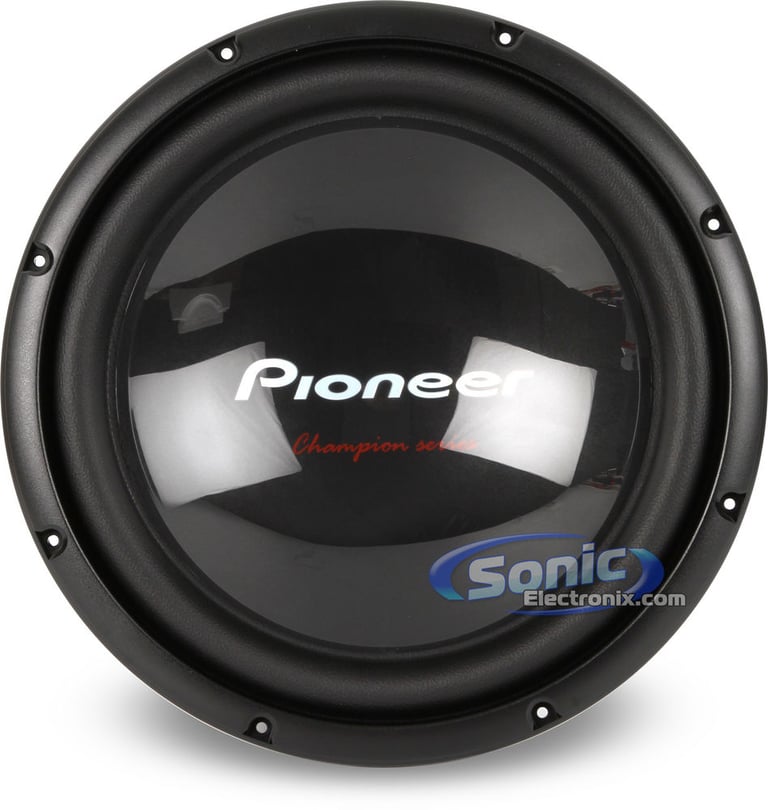

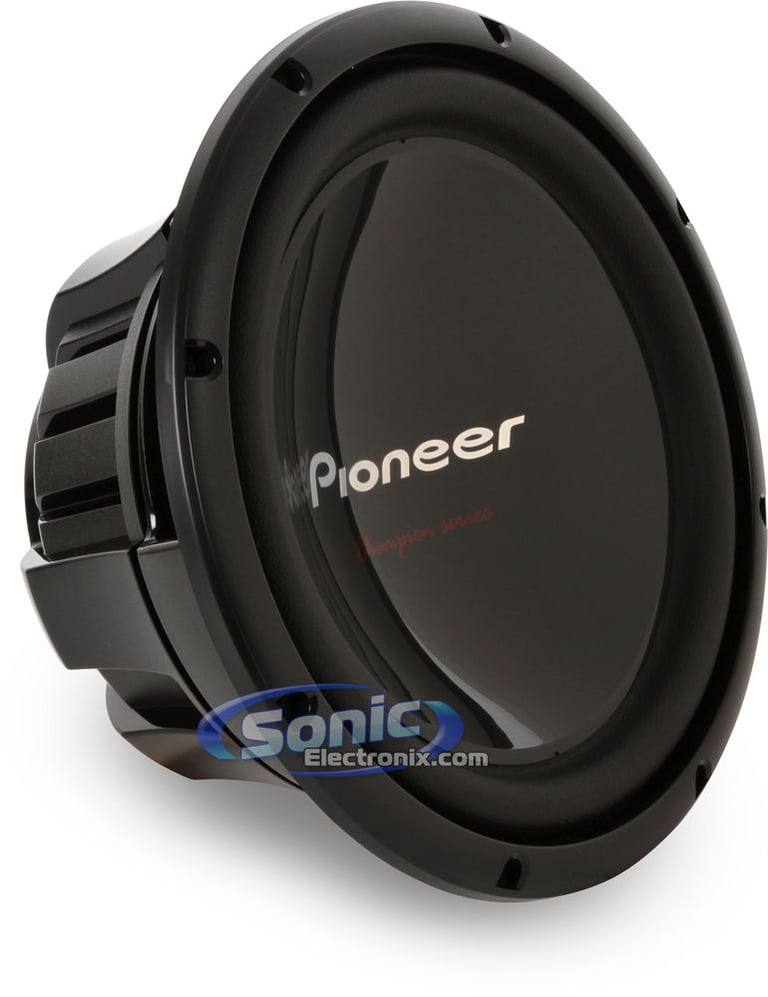

  • 12" Dual 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1,400 watts
    • RMS: 400 watts
  • Impedance: Dual 4 ohm
  • Seamless Injection Molded Polypropylene (IMPP) composite cone

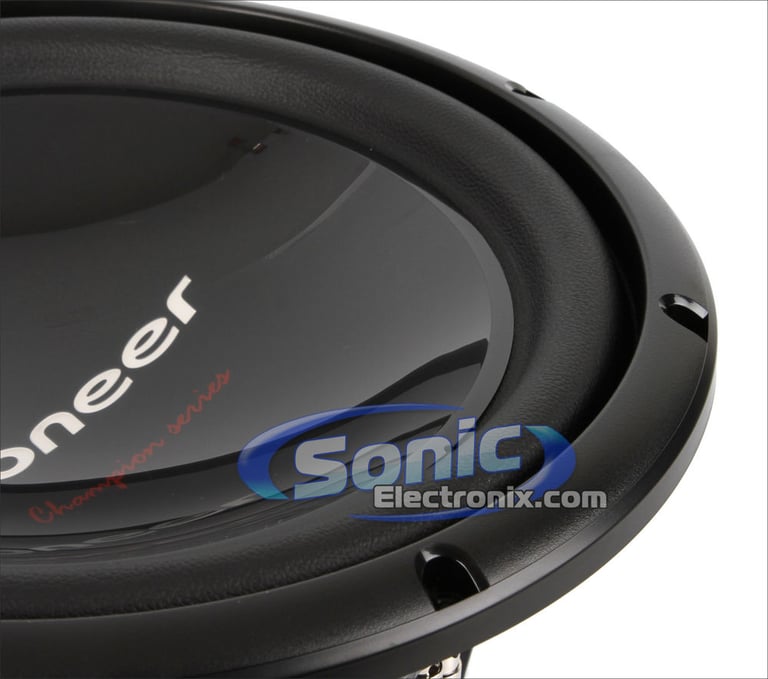

  • Dual layer, fiber reinforced elastic polymer surround

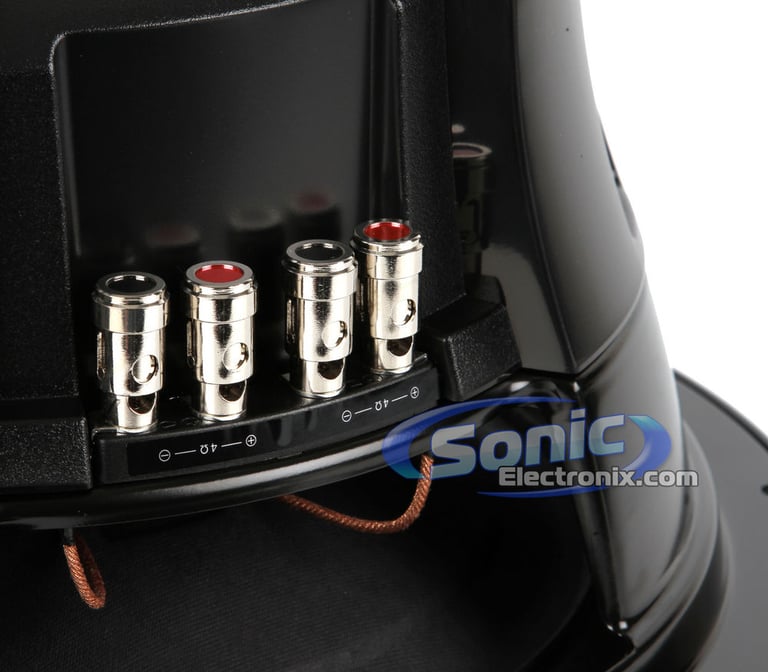

  • Large spring loaded, push style binding posts
  • High temperature voice coil

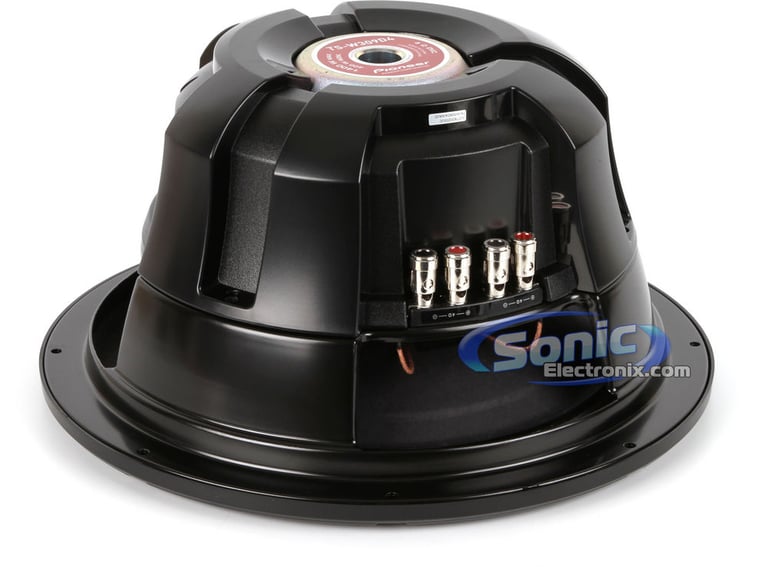

  • Large double stacked high energy magnets
  • Designed for sealed, ported, or bandpass enclosures
  • Recommended enclosure volume:
    • Sealed: 1.25 cu. ft
    • Ported: 1.5 cu. ft
    • Bandpass: 0.9 cu. ft in front / 0.9 cu. ft in rear
  • Frequency response: 20-220 Hz
  • Sensitivity: 94 dB
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer TS-W311D4 thumbnail
(newest, current model)
Pioneer TS-W310D4 thumbnail
(previous model, replaced by Pioneer TS-W311D4)
Pioneer TS-W309D4 thumbnail
(previous model, replaced by Pioneer TS-W310D4)
Pioneer TS-W308D4 thumbnail
(previous model, replaced by Pioneer TS-W309D4)
Pioneer TS-W307D4 thumbnail
(previous model, replaced by Pioneer TS-W308D4)
Pioneer TS-W306DVC thumbnail
(previous model, replaced by Pioneer TS-W307D4)
Pioneer TS-W305DVC thumbnail
(previous model, replaced by Pioneer TS-W306DVC)
Pioneer TS-W304DVC thumbnail
(previous model, replaced by Pioneer TS-W305DVC 12" DVC)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W309D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W309D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W309D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W309D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 220 Hz
Sensitivity
94 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W309D4

Weight:

15.00lbs

Internal SKU:

tsw309d4

Internal Product ID:

32834

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W309D4 thumbnail image

5 star
66%
4 star
23%
3 star
6%
2 star
4%
1 star
2%



Durability
4.4
Value
4.6
Features
4.6
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great Value

Powerful output. Has a big bang for the bucks. Thank you.

By Richard on January 11, 2013

16 found this helpful


great value

first off i fell in love with pioneer sub woofers back in 2008. I started with a 12" w307d4. It pounded. Then i had two 12" w308d4 they pounded. Now i hav the two 12" w309d4. Man the pound i have them hooked up to a hfi hifonics 1000D amp wired down to one ohm. I can be heard frm a block away, when i pull in gas stations i shake their store. i would reconmend getin a 3/4 mdf box though for better sound, up to a month ago i had a 1/2 mdf box and it sounded great for a while but after a few months i noticed my screws was half way out my 1/2 box from bangin so hard. So now i hav a 3/4 mdf box and its even louder. Would reconmend this sub for every one you cant go wrong. Wnd dont do like i did by buyin a crappy box buy a good sub box for these awsume subs. you wont be disapointed.

By BIG D on October 3, 2011

16 found this helpful


Great subs

Installed these in a friends camry and wow they go low and hit hard!! Needs more power than the 600 rms that we have going to them now! Would recommend a hifonics 1500 rms brutus or something of equal power!! Real power

By BYRON on September 8, 2011

13 found this helpful


Excellent speakers for the money, one of the best 12's

This speaker is banging, got 2 hooked up at 2 Ohm to a 2200 watt Power Acoustik and man let me tell you these thangs bang, replaced them from 2 15's Kicker CVR and I am so happy. They sound just like them but just running less power. Highly recommend. God Bless Yall!!!!!

By Follow God People on February 28, 2011

12 found this helpful


Decent speakers for the money

Decent speakers for the money. I was hoping for more boom out of them, but they are good. Pushing them with a Memphis Audio PR1000.1 @ 1ohm in a ported box.

By eggie on February 19, 2012

10 found this helpful


great sub

This has been a great durable sub. I have owned different subs in my life time, plus install professionally. For the price this is a sub you want to consider. yes there are better ones out there at a bigger price tag. I have 2 running @ 2ohm x 1 @ 1000w. they can handle alot more, but your ears might not. Mine started hurting so turned the bass down on EVERYTHING. My system is very modest compared to others so i havent given the subs all they can handle. I know one thing, I got behind a person and they gave me a finger saying I was number 1, the bass was so loud.

By jacob on June 3, 2012

9 found this helpful


Great Product

Running a rather crappy amp for quite a while, this subwoofer made my amp seem quite decent. With the right ported box size this will hit hard. Overall it lasted almost two years, until I upgraded.

By ricki on November 19, 2012

8 found this helpful


Best Choice

Let me first say how impressed i am with these speakers i have three of them powered by a hifonics 1700 watt and when i tell you that people hear me before they see me. Not only are they loud but its a deep quality sounding bass i am going to be honest i wanted rockford fosgate P3's or T1's but a friend talked me into getting these instead and i would put my three championship 12's up against any of those and would give them hell

By kasey on September 8, 2012

8 found this helpful


these subs hit hard

They are incredibly loud! Lows are super intense.

By Austin on November 4, 2011

7 found this helpful


great value

I will recommend this sub, it has low frequencies, very low. I put three of them in the same box, great pounding bass. Still at breaking period, but it produce already amazing sound!!!

By faatauira on August 16, 2011

8 found this helpful




E1-2 small

FiiO E1 (White) Headphone Amplifier with In-Line Remote

Headphone Amplifier Designed for iPod and iPhone with In-Line Remote

$18.99

List price $39.99

89448P small

Motorola Folio Case for Xoom

Portfolio Style Case for Motorola Xoom Tablet w/ Different Viewing Options (89448P)

$21.99

List price $39.99

CCA748 small

Clarion CCA-748-600

iPod Audio/Video Connection Cable Adapter for Select Clarion Receivers

(4)

$29.99

List price $59.99

95-7318 small

Metra 95-7318 Dash Kit

Install a new Double-DIN car stereo in select 2005-2006 Spectra and Spectra5 (Black)

(2)

$11.99

List price $24.99

S3m Grayed Jade small

Klipsch Image S3m - Grayed Jade

In-Ear Stereo Headphones Headset Earbuds with Universal In-Line Controler & Smartphone Microphone

$24.99

List price $49.99

VZ509 small

Clarion VZ509 (VZ-509)

Single DIN In-Dash 7" TFT-LCD Touchscreen Monitor with DVD/CD/MP3 Player, USB and Remote

(5)

$399.99

List price $799.99

CVP69_ACC_KIT small

Cerwin-Vega CVP69 with Speaker Installation Kit

150W RMS 6"X9" Full Range Coaxial Speaker + 6x9" Speaker Baffles, Sound Dampening, Roller, and Panel Removal Kit

(189)

$145.66

List price $212.69

MRV-M1200 small

Alpine MRV-M1200

2400W Peak (1200W RMS) Class-D Monoblock Amplifier with Remote Bass Knob Included

(4)

$359.99

List price $450.00

WCC1500.1 small

West Coast Customs WCC1500.1 by MB Quart

1500W Monoblock WCC Series Class D Amplifier (Same as MB Quart OA750.1)

(17)

$119.99

List price $179.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Cadillac SRX

2011 Mazda Tribute

1990 Cadillac DeVille

2000 Saturn SC2

2002 Volvo V70

2009 Kia Rio5

2002 Daewoo Lanos

2016 Subaru Crosstrek

2003 BMW 540i

1993 Cadillac DeVille

Vehicle
Store
Delete

2019 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
