JL Audio XD500/3v2 | 500 Watt Class-D 3-Channel Amplifier

JL Audio XD500/3v2

500W XDv2 Series 3-Channel Class D System Amplifier with High-Speed NexD Switching Design

500W XDv2 Series 3-Channel Class D System Amplifier with High-Speed NexD Switching Design

• RMS: 75 W x 2 + 180 W x 1 @ 4 ohms, 100 W x 2 + 300 W x 1 @ 2 ohms, 200 W x 1 @ 4 ohms Bridged
• NexD Switching Technology
• Differential Balanced Input Section
• Advanced Rollback Protection
• Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
• Detented, Calibrated Filter Freq. Potentiometer

SAVE when you bundle with select amp wiring kits:
Click Here to View Bundles!

List price $612.48
Save: $32.49

$579.99

In Stock. Only 3 Left! with warranty
vip-image
Thanks , You Pay:
Order within 20 hrs 27 mins to ship 7/26

Qualifies for free 2-day shipping

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for
4 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

BUNDLE AND SAVE (4 offers)

Purchase Select Amplifiers and Receive A Free $50 Sonic Gift Card! This offer cannot be combined with any other coupons or offers.

JL Audio XD500/3v2

100% off


Priced separately $629 99

Bundle Savings of $50 00

Total bundle price:

$579 99

Purchase a qualifying amplifier and receive a 50% discount on NVX XKIT42 True 4 Gauge OFC amplifier installation kit. Simply click the "Add Both to Cart" button. This offer cannot be combined with any other coupons or offers.

JL Audio XD500/3v2

50% off


Priced separately $679 98

Bundle Savings of $50 00

Total bundle price:

$629 98

For a limited time - while supplies last - get an instant 5% off the JL Audio Remote Bass Knob Control used to adjust the level of your amplifier from the front of the vehicle. This offer cannot be combined with any other offers.

JL Audio XD500/3v2

5% off


Priced separately $629 98

Bundle Savings of $2 50

Total bundle price:

$627 48

Get a FREE NVX XCAP1F 1.0 Farad Capacitor with the purchase of a select amplifier. Simply Click the "Add Both to Cart" button to the right. This offer cannot be combined with any other coupons or offers.

JL Audio XD500/3v2

100% off


Priced separately $669 98

Bundle Savings of $89 99

Total bundle price:

$579 99

DESCRIPTION
JL Audio

Authorized dealer

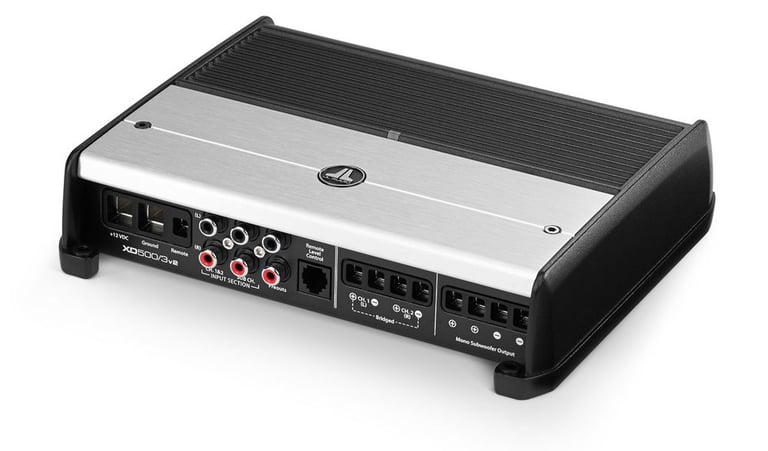

JL Audio XD500/3v2

JL Audio XD500/3v2 - XDv2 Series 3-Channel Class D System Amplifier

This flexible 3-Channel amplifier employs JL Audio's high-speed NexD switching design to achieve unprecedented efficiency and amazing power output in an ultra-compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious power, delivering a full 500W of continuous total power into a 2 ohm load (14.4V, 1% THD). Targeted specifically for an audiophile-grade subwoofer + two satellite system, the XD500/3v2 includes a variable mode high-pass filter and variable slope low-pass filter, both with a continuously variable cutoff frequency selection from 50-500 Hz. The XD500/3v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), you can control the volume of the subwoofer channel (Subwoofer Level) or of the entire XD500/3v2 from the front of the vehicle (Master Volume). This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

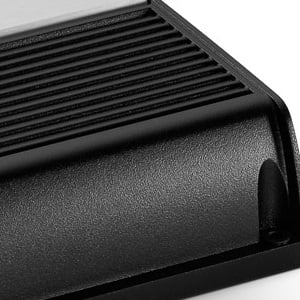

Advanced Rollback Protection

Advanced Rollback Protection

JL Audio's signature Advanced Thermal Rollback protection system eliminates annoying thermal shutdown events to keep the music playing, even under the most demanding conditions. Should the amplifier reach an unsafe operating temperature, a special circuit rolls back peak power output, without changing gain, until the amplifier cools down to a safe operating temperature. The red "Thermal" LED will light to indicate this condition has been reached. Once the amplifier cools down, the circuit restores full peak power output and the red "Thermal" indicator reverts to its normal state. The operation of Advanced Rollback Protection is inaudible in most cases.


NexD Switching Technology

NexD Switching Technology

From the same minds that gave us the technology found in the 'Slash' amplifiers, JL Audio has taken the simple fixed PWM design approach and enhanced it with a very high switching frequency. Full-range NexD amplifiers and channels feature a variable, ultra-high speed version of the NexD technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

JL Audio XD500/3v2



General Features:







  • XDv2 Series Class D 3-Channel Amplifier
  • RMS Power Rating @14.4V: Channel 1 - 2
    • 4 ohms: 75 watts x 2 chan.
    • 2 ohms: 100 watts x 2 chan.
    • Bridged 4 ohms: 200 watts x 1 chan.
  • RMS Power Rating @14.4V: Sub Channel
    • 4 ohms: 180 watts x 1 chan.
    • 3 ohms: 240 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • RMS Power Rating @12.5V: Channel 1 - 2
    • 4 ohms: 60 watts x 2 chan.
    • 2 ohms: 90 watts x 2 chan.
    • Bridged 4 ohms: 180 watts x 1 chan.
  • RMS Power Rating @12.5V: Sub Channel
    • 4 ohms: 180 watts x 1 chan.
    • 3 ohms: 240 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • NexD High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately
  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection

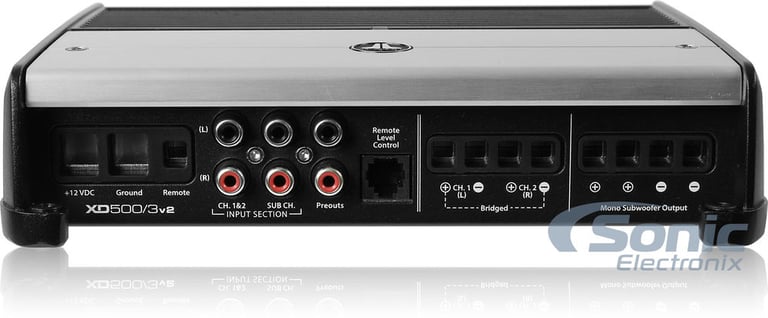

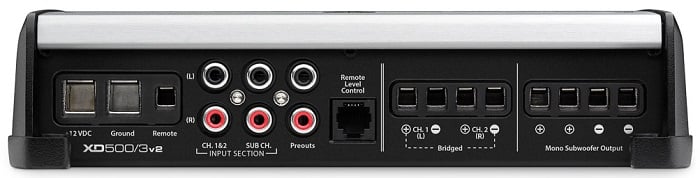

  • Differential Balanced RCA Input
  • Pass-through preamp RCA outputs

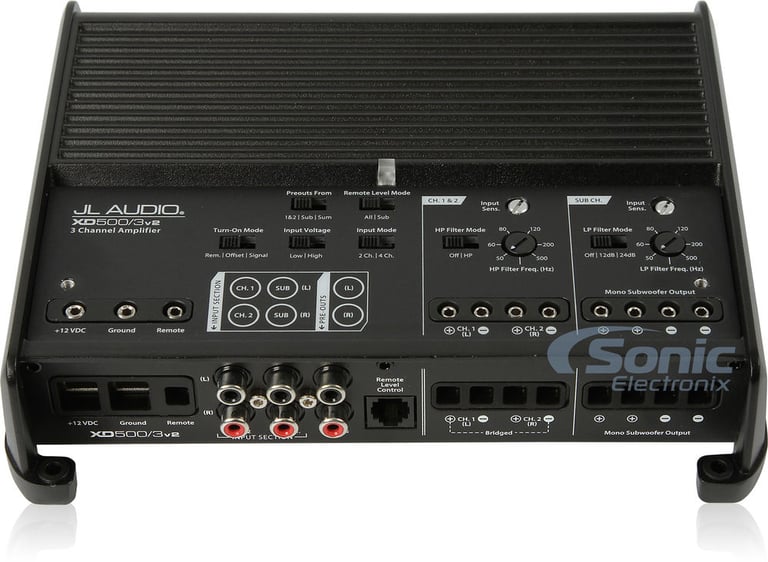

  • Selectable turn-on modes: REM / Offset / Signal
    • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
    • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
    • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Detented, Calibrated Filter Freq. Potentiometer
  • Selectable input mode: 2 Ch. / 4 Ch.
  • Ch 1&2: 12dB/octave Butterworth High-Pass
  • Sub Ch: 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley
  • Input sensitivity:

    •
    • Low level: 800mV - 8V
    • High level: 200mV - 2V
  • Frequency Response (Main): 12 - 22,000 Hz
  • Frequency Response (SubW): 10 - 1,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Damping Factor @4 ohms: >120 / 50 Hz
  • Selectable Filter Mode (Main): Off / HP
  • Variable cutoff filter: 50 - 500 Hz
  • Fuse Rating: 50A x 1 inline (not supplied)
  • 4 gauge OFC power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 4.20 lb
  • Dimensions: 7.09"W x 10.23"L x 2.05"H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty


Check out the JL Audio XD500/3v2 Owner's Manual

Product history:

JL Audio XD500/3v2 thumbnail
(newest, current model)
JL Audio XD500/3 thumbnail
(previous model, replaced by JL Audio XD500/3v2)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 2 channels
RMS Power @ 2 ohms
100 watts x 2 channels
Bridged RMS Power
200 watts x 1 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
180 watts x 1 channels
RMS Power @ 2 ohms
300 watts x 1 channels
Amplifier Specifications
Amplifier Series
XDv2 (JL Audio)
Marine Certified
No
Amplifier Class
D
Number of Channels
3
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
50A x 1
Total Fuse Rating
50
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
