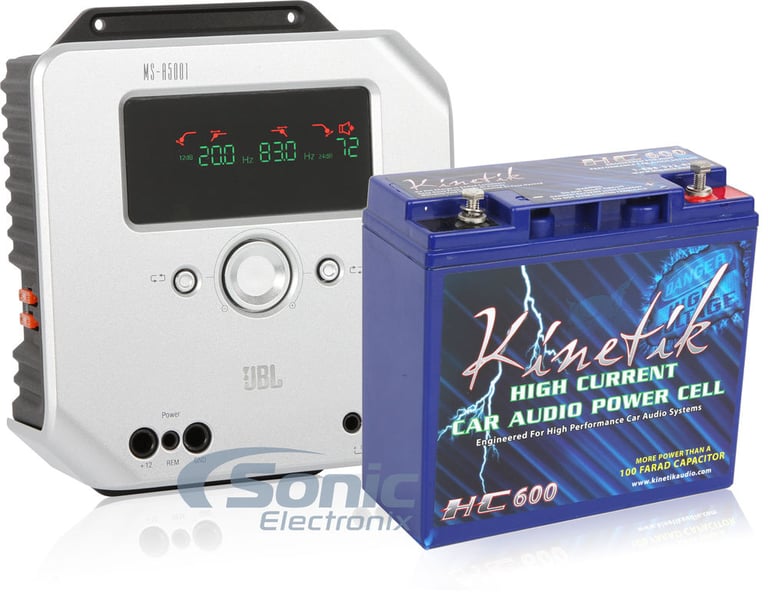

JBL MS-A5001 + Free Kinetik Car Audio Power Cell

500W True RMS, 1-Channel Monoblock Amplifier + 850 Amp Kinetik HC600 Car Audio Power Cell

JBL
Shop all JBL
Product videos
highlight-star-icon

• JBL MS-A5001 500W True RMS Monoblock Amplifier
• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Sophisticated Crossover Functions and Selectable Crossover Slopes
• Kinetik HC600 12V High Current Car Audio Power Cell
• Perfect for 600W Car Audio Stereo Systems
• Sealed Absorbed Glass Mat (AGM) Design

Learn more about the msa5001_hc600

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


• JBL MS-A5001 500W True RMS Monoblock Amplifier
• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Sophisticated Crossover Functions and Selectable Crossover Slopes
• Kinetik HC600 12V High Current Car Audio Power Cell
• Perfect for 600W Car Audio Stereo Systems
• Sealed Absorbed Glass Mat (AGM) Design

Description


JBL brand icon

Authorized dealer

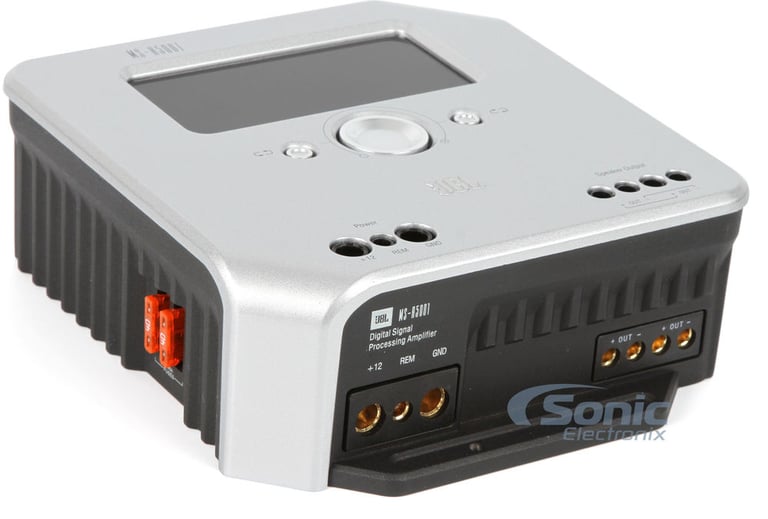

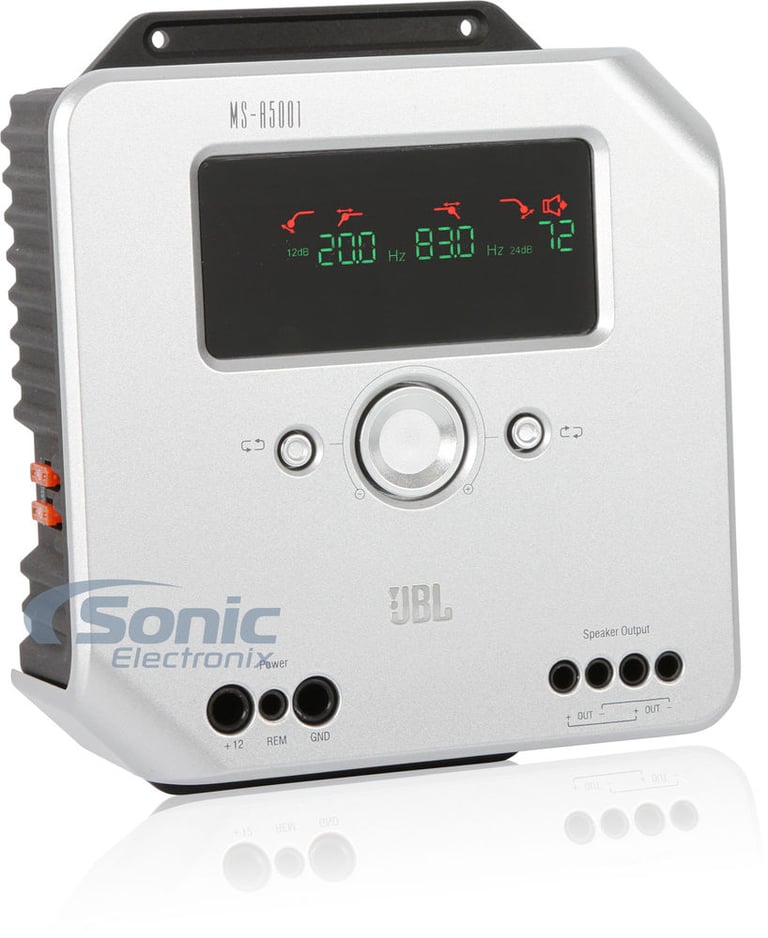

JBL MS-A5001

Sophisticated crossover functions

Each of the MS-A5001’s outputs can be low-pass, high-pass or band-pass (low and high) filtered. You can choose among 97 different crossover points between 20Hz and 20kHz, and select crossover slope rates of 6dB, 12dB and 24dB per octave. For further flexibility, crossover settings are completely independent for each output.

DSP technology

The MS-A5001 uses digital signal processing (DSP) for all input-mixer, crossover and output-level controls. Compared with analog crossover circuitry, DSP circuits produce extremely precise results with a minimum of audible artifacts.


Connects to any analog signal

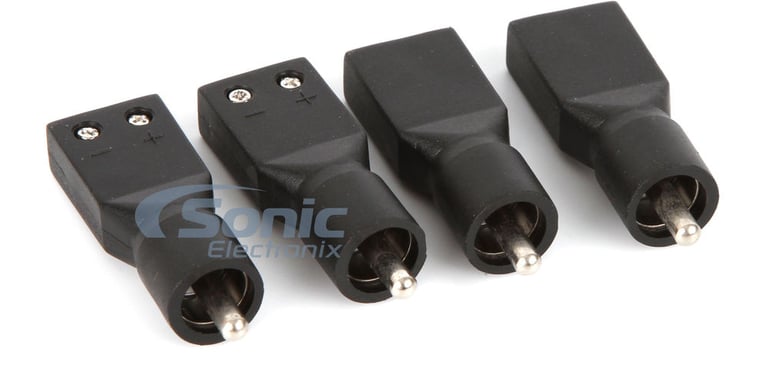

The MS-A5001 features RCA-to-bare-wire adapters to connect to all line-level and speaker-level inputs, and includes a selector switch for matching the amp’s input to the type of signal that it receives.

JBL MS-A5001

Digital input mixer

The MS-A5001’s digital input mixer simplifies configuration by allowing any input signal to be routed to either speaker output.




High Current Power Cell

The Kinetik 12-Volt HC600 Car Audio Power Cell features a sealed absorbed glass mat (AGM) design and is perfect for 600-watt car audio sound systems. It can be used as a replacement for your vehicles standard battery or as an additional battery to provide the extra power needed for a high performance aftermarket system. It's leak-proof design and no external vents allow this power cell to fit in most factory battery locations with no hazardous leaks. Kinetik's KHC600 Power Cell puts out 850 amps and 600 cranking amps with a 20 amp hour rating.




JBL MS-A5001

500W True RMS, 1-Channel Monoblock Amplifier with Digital Input Mixer and Graphical Status Display
Quantity: 1

General Features

  • MS Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 500 watts
  • Digital signal processing amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
  • Built-in display shows tone and gain settings
  • Soft Start Turn-on
  • Mono channel operation
  • "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Digital input-mixer control eliminates the need for Y adapters
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • CD for system setup included
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Level: 100mV-15V
  • Variable low-pass filter (20-270 Hz, 6, 12, or 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-270 Hz
  • Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H

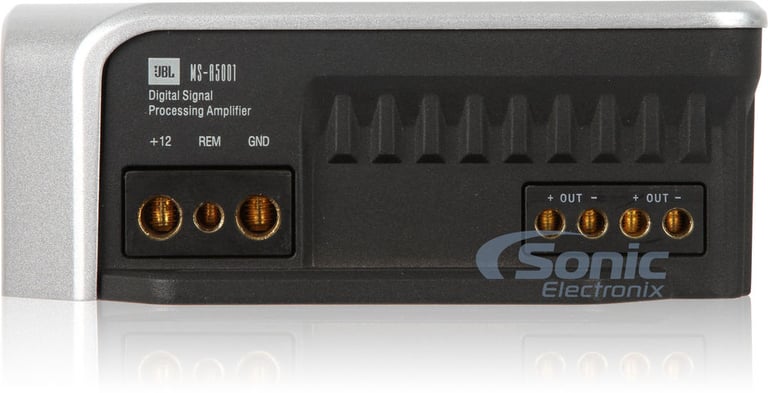

  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

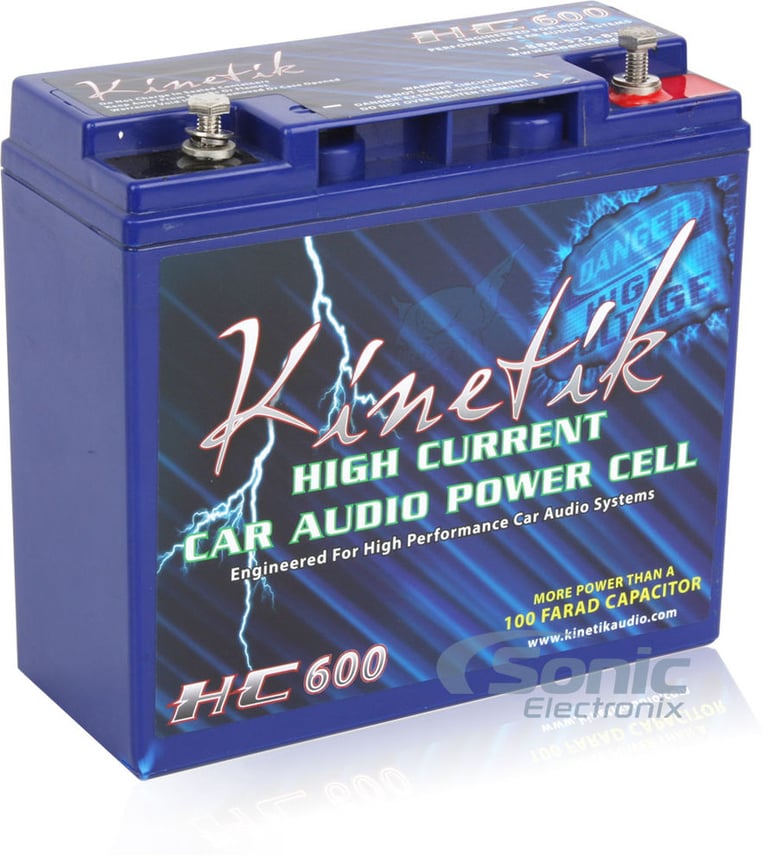

Kinetik HC600 (KHC600)

850 Amp 12V High Current Car Audio Power Cell
Quantity: 1

Battery Features

  • 12V High Current Car Audio Power Cell
  • Sealed absorbed glass mat (AGM) design
  • Can be used as a replacement for your vehicles standard battery
  • Can also be used as an additional battery to power your high-performance sound system
  • Perfect for 600W car audio stereo systems
  • Stores energy so you don't need a capacitor for your system
  • Leak-Proof, non-hazardous design
  • No external vents allow this battery to be mounted anywhere with no leaks
  • Fits in almost any factory battery location
  • Ultra low ESR
  • More plates for stronger energy density
  • Higher voltage under load
  • 100% Sealed and maintenance free
  • Tightly packed cells
  • Resists extreme heat & vibrations for ultimate performance
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Battery Specifications

  • Max burst amps: 850
  • Cranking amps: 600
  • Power: 600 watts
  • Ah: 20
  • Weight: 14 lbs
  • Dimensions: 3”D x 6-1/2”W x 7”H

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
MSA Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
20 - 270 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

MS-A5001_HC600

Weight:

20.50lbs

Internal SKU:

msa5001_hc600

Internal Product ID:

91725

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


JBL MS-A5001 + Free Kinetik Car Audio Power Cell thumbnail image

5 star
82%
4 star
13%
3 star
5%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

good product

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I have no complaints this product is great i would recommend This to anyone looking for easy Setup .

By frank on January 13, 2015

94 found this helpful


Great seller

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I advise!! Fast shipping!! I received my amp perfect!!

By JPFURCN on October 13, 2014

91 found this helpful


Simply Awesome

The following review is for MS-A5001, which is a part of the bundle you are viewing.

When I saw this amp and read up on it I had to have it. It's a lot of bang for the buck. Setup is scary simple. The digital circuitry and class D design is clean and second to none. I have this paired with a JBL P1224 in a ported box and it is much louder than I expected. Very nice.

By Geege on July 13, 2011

90 found this helpful


JBL MS A5001

The following review is for MS-A5001, which is a part of the bundle you are viewing.

This Amp is beautifully designed, easy to use and set up! I have it running one 10" JL W1 in a small sealed enclosure in my 2014 4runner. Power is clean and plenty of it. I highly recommend it for its design, flexibility, and clean power!

By Tony on September 20, 2014

86 found this helpful


Serious power, I love the amp for the value

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I paired this with two 10" GTO JBL 528 subs wired in parallel, 4 ohm, and it hits so freaking hard, my jeep bounces! Seriously, this is a great amp for the cost. I also own JL Audio and can't tell the difference.

By Scott on January 14, 2015

86 found this helpful


Nice Amplifier!

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I am using this for a pair of Pioneer TS-W260S4 subwoofers and a Kenwood Excelon 998 in a 2003 F-150.

This was a huge improvement over the OEM installation, and I am really enjoying the punch that these deliver!

The installation and setup of the amplifier went well enough without any major issues.

By Mr Sparkie on September 11, 2014

81 found this helpful


great little amp

The following review is for MS-A5001, which is a part of the bundle you are viewing.

The shipping was fast and packaged appropriately. The only minor inssue I ran into during installation was the remote input. The input had a 1.5 hex instead of 2.5, so the supplied Allen wrench wouldn't fit. I would suggest reading the book a couple of times b4 setup. I have it pushing a Fi Audio X10 in a 1.3 ported enclosure tuned at 33hz. It sounds better than when I had the kicker zx750.1 pushing it. I'll have to update this review once I have it for awhile to give opinion on durability.

By Rolando on February 17, 2015

78 found this helpful


Awesome features

The following review is for MS-A5001, which is a part of the bundle you are viewing.

Purchased this amp for the features. Upon arrival, it did not work. I hooked up my Kicker and completely forgot about it. Sonic has a great warranty, so I sent it back- even after the warranty had expired. They gave me another even, so I hooked it up and mounted it on the box, as my box has an amp rack. I blew the screen. It still works great but I can't change anything on the amp as I cant see what I am doing without the digital display. Shame on me for that one!

By Jason on December 27, 2014

76 found this helpful


jbl ms-a5001

The following review is for MS-A5001, which is a part of the bundle you are viewing.

Awesome amp for the money. Pushing 2 rockford fosgate p1. Sounds amazing.

By jensen on May 12, 2014

78 found this helpful


great amp

The following review is for MS-A5001, which is a part of the bundle you are viewing.

This amp is great easy to use and set up nothin bad to say about it

By lil a on April 2, 2015

73 found this helpful




D8-B6S-32GB small

Dynavin D8-B6S-32GB

Custom-fit Digital Multimedia Receiver With 10” Screen for VW Passat B6 2005-2010

$699.99

List price $699.99

LA890 small

Legacy LA890 American Legacy II Series

(2)

$124.99

List price $249.99

ADP F T-Top (Black) small

Wet Sounds ADP F T-Top (Black)

Fiberglass T-Top Factory Mounting Brackets with Black Speaker Top Plates and Retro Kit

$149.99

List price $189.99

RSV-S5 small

XS Power Titan8 (RSV-S5)

2500W 20Ah Lithium Titanate Oxide Battery

$749.99

List price $789.99

70-5603 small

Metra 70-5603 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1995-2004 vehicles from Ford, Lincoln, Mazda

(4)

$16.99

List price $27.99

07-17-JEEP-WRANGLER-KRESPKG small

Kicker CS Series Roll Bar Factory Speaker Replacement Package

Fits select 2007-2018 vehicles from Jeep

(198)

$106.94

List price $164.97

RP5-GM51 small

PAC Radio PRO5 RP5-GM51 Wiring Interface

Install a new car stereo and retain steering wheel controls in select 2014-2019 vehicles from Chevrolet, GMC, Cadillac

(3)

$183.99

List price $459.00

CA-DR1130 small

Kenwood eXcelon CA-DR1130

Dashboard camera hard-wired kit for extended Parking Mode

(1)

$39.00

List price $45.00

H752_2 small

Cerwin Vega H752 (2-Pairs, 4-Total)

1000W Peak (160W RMS) 5.25” HED Series Coaxial Car Speakers (2-Pairs)

(5)

$139.98

List price $167.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1998 Nissan Maxima

2012 Mitsubishi Eclipse

2000 Hyundai Accent

2012 Chevrolet Suburban 2500

2006 Honda Civic

2010 Mitsubishi Lancer

2006 Audi A4

2008 Ford Crown Victoria

2006 Kia Sorento

2024 Honda Pilot

Vehicle
Store
Delete

2012 Harley Davidson FLHT Electra Glide Standard

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
