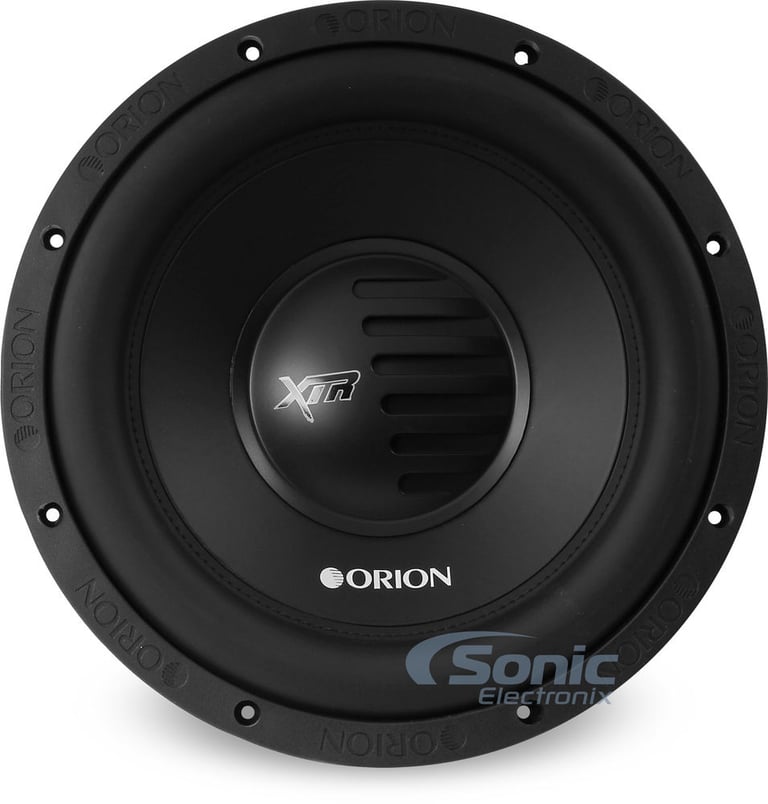

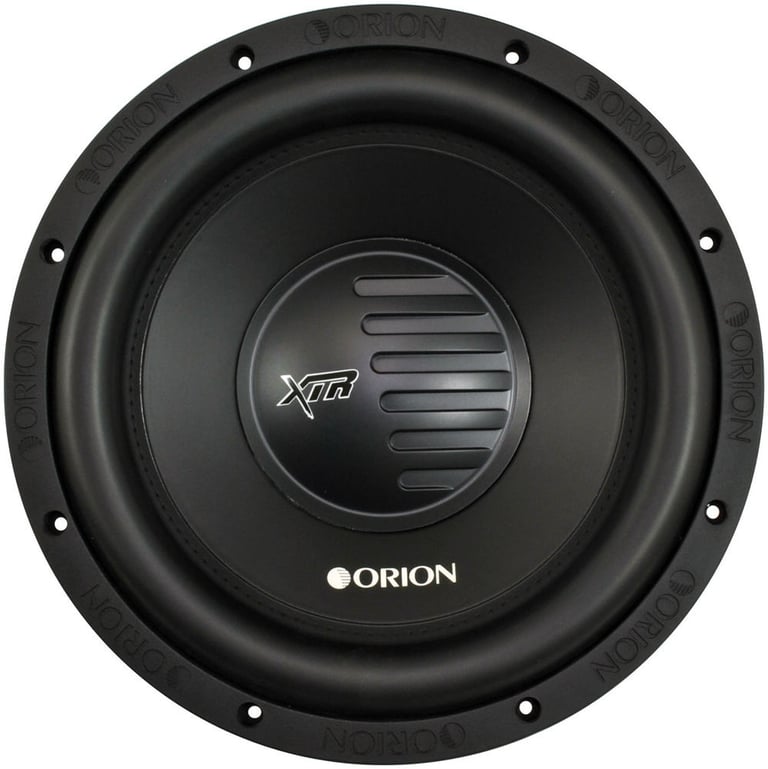

Orion XTR122D

2400W 12" XTR Series Dual 2-ohm Car Subwoofer

Orion
Shop all Orion
Product videos
highlight-star-icon

• RMS Power: 600W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 87.38 dB
• Frequency response: 20 - 250 Hz

Learn more about the xtr122d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• RMS Power: 600W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 87.38 dB
• Frequency response: 20 - 250 Hz

Description


Orion brand icon

Authorized dealer

General Features

  • XTR Series Dual 2 ohm Subwoofer
  • Power Handling:
    • MAX: 2400 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 600 watts RMS
  • Polypropylene dust cap - moisture and UV resistant
  • Oversized Nitrile-butadiene rubber surround
  • Paper woofer cone

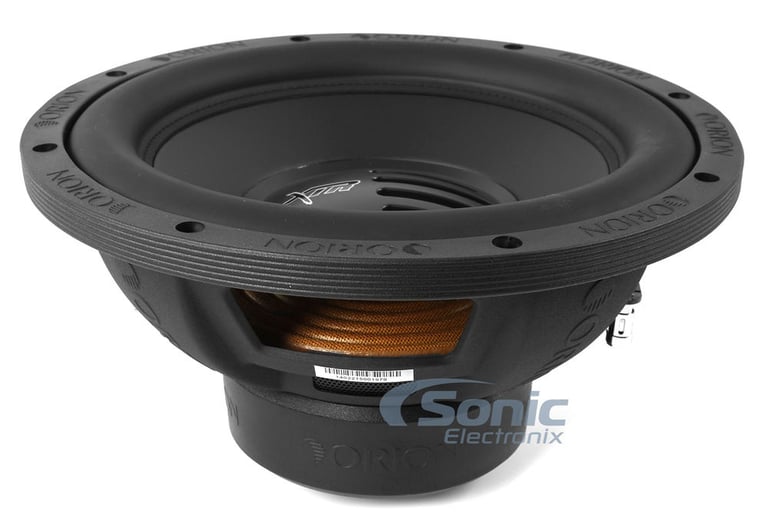

  • Custom stamp steel frame
  • Kapton voice coil former
  • TT steel front plate
  • Large ceramic magnets

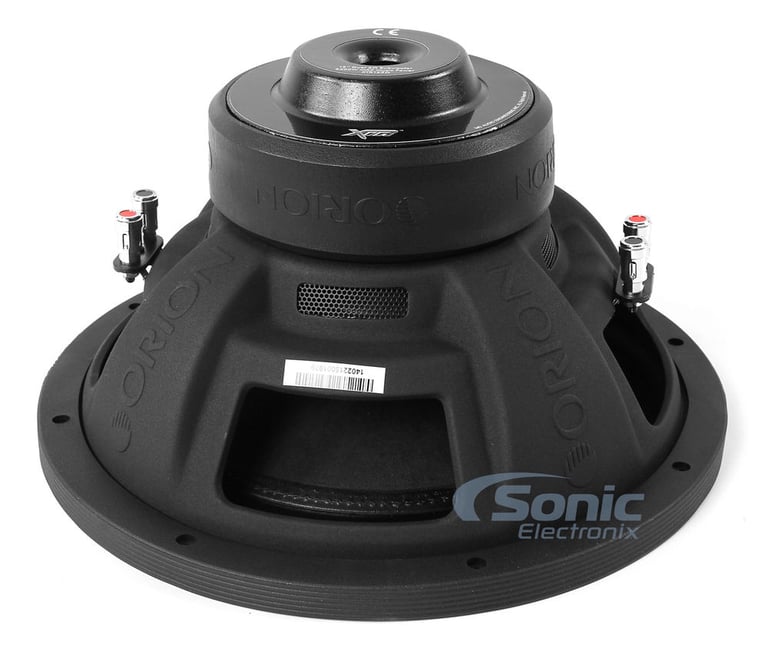

  • Steel back plate/pole piece T yoke assembly
  • 1.125" bottom end vent
  • PVC magnet protector
  • High temperature copper dual voice coil
  • Interlaced conex spider with stitched and looped tinsel leads
  • PVC trim ring decor

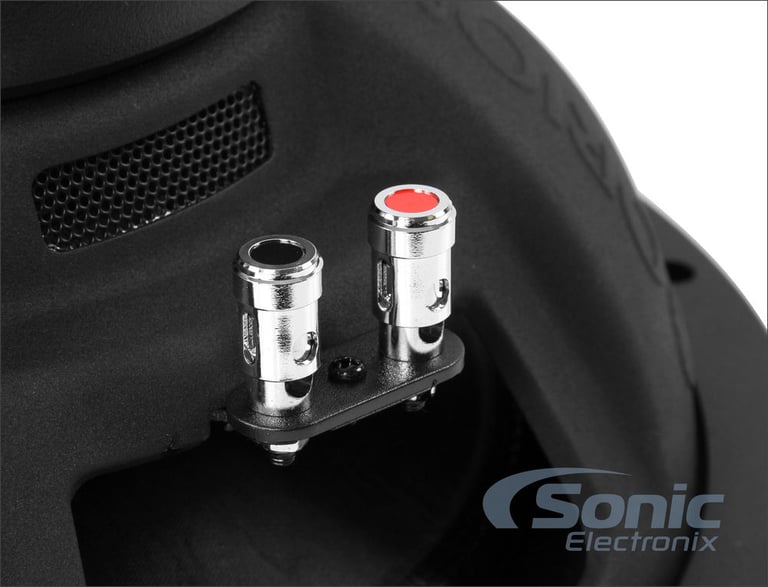

  • Spring loaded push terminals
  • Frequency response: 20 - 250 Hz
  • Sensitivity: 87.38 dB
  • Xmax: 12.075 mm
  • Top-Mount Depth: 6.22"
  • Cutout Diameter: 10.91"
  • Driver Displacement: 0.077 ft³
  • Recommended sealed enclosure: 1.50 ft³
  • Recommended ported enclosure: 1.50 ft³
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Orion XTR122D Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Orion XTR122D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Orion XTR122D Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Orion XTR122D Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(18)

$199.96

List price $279.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(82)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-LCSV212D4 small

Sundown Audio LCS 12 v.2 D4 12" (LCS12V2D4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Paper cone
• Foam surround
• Sensitivity: 87.4 dB

(3)

$99.99

List price $209.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
XTR Series
Subwoofer Size
12"
Peak Power Handling
2400 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 250 Hz
Sensitivity
87.27 dB
Xmax (millimeters)
12.075 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Dark Gray
Woofer Composition
Paper
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.50 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
6.22"
Cutout Diameter
10.91"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.10 Hz
Equivalent Compliance (Vas)
71.785 liters
Total Speaker Q Value (Qts)
0.526
Electrical Q Value (Qes)
0.549
Electrical Resistance of Voice Coil (Re)
3.82 ohm
Mechanical Q Value (Qms)
12.849
Efficiency Bandwidth Product (EBP)
44
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XTR122D

Weight:

16.60lbs

Internal SKU:

xtr122d

Internal Product ID:

92816
