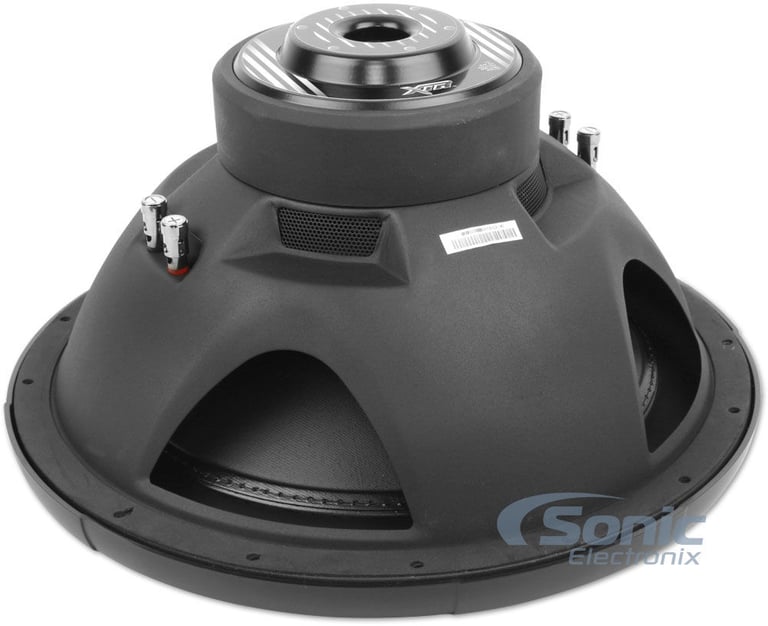

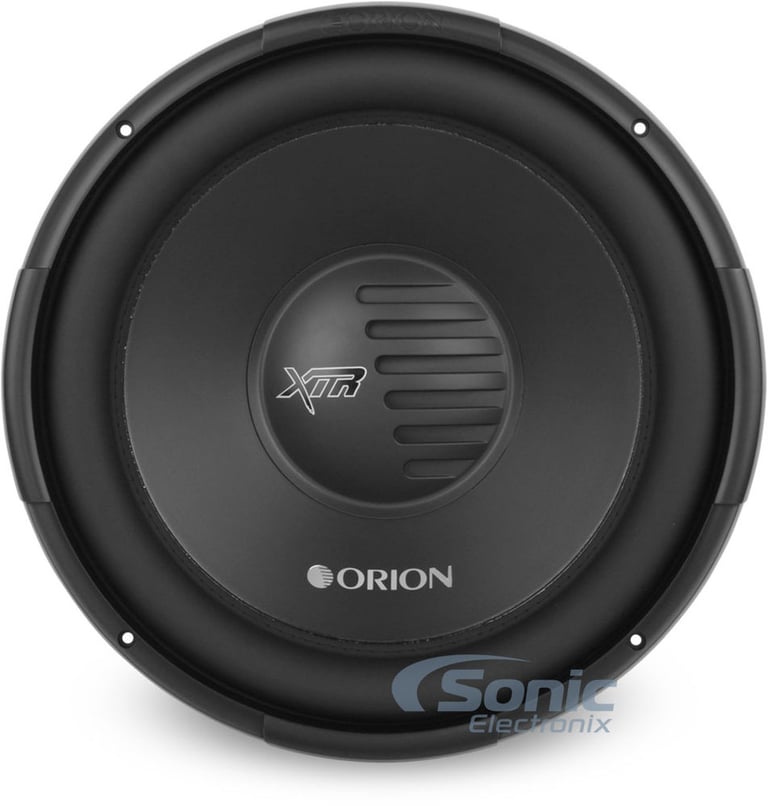

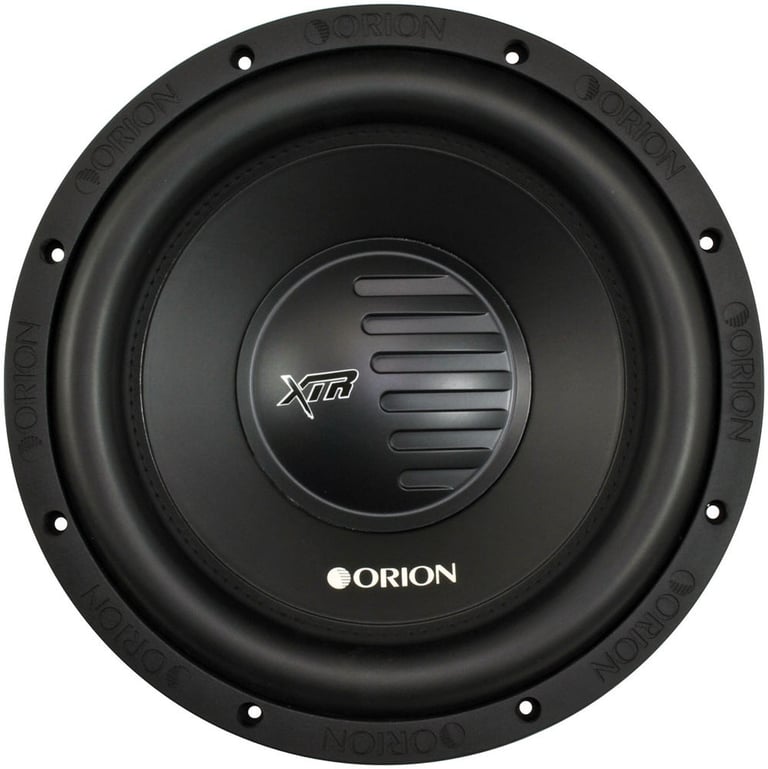

Orion XTR152D

3000W 15" XTR Series Dual 2-ohm Car Subwoofer

Orion
Shop all Orion
Product videos
highlight-star-icon

• RMS Power: 750W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 89.26 dB
• Frequency response: 20 - 250 Hz

Learn more about the xtr152d

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1366S main

Kenwood KFC-1366S

520W Peak (60W RMS) 5.25" Sport Series 2 Way Coaxial 4-ohm Car Speakers

3
-38.75%

$49.00

List price $80.00

Product Highlights


• RMS Power: 750W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 89.26 dB
• Frequency response: 20 - 250 Hz

Description


Orion brand icon

Authorized dealer

General Features

  • XTR Series Dual 2 ohm Subwoofer
  • Power Handling:
    • MAX: 3000 watts
    • RMS: 750 watts
  • Polypropylene dust cap - moisture and UV resistant
  • Oversized Nitrile-butadiene rubber surround
  • Paper woofer cone
  • Custom stamp steel frame
  • Kapton voice coil former
  • TT steel front plate
  • Large ceramic magnets
  • Steel back plate/pole piece T yoke assembly
  • 1.125" bottom end vent
  • PVC magnet protector
  • High temperature copper dual voice coil
  • Interlaced conex spider with stitched and looped tinsel leads
  • PVC trim ring decor
  • Spring loaded push terminals
  • Frequency response: 20 - 250 Hz
  • Sensitivity: 89.26 dB
  • Xmax: 12.363 mm
  • Top-Mount Depth: 8.54"
  • Cutout Diameter: 13.59"
  • Driver Displacement: 0.143ft³
  • Recommended sealed enclosure: 2.00ft³
  • Recommended ported enclosure: 3.00ft³
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Orion XTR152D Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Orion XTR152D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Orion XTR152D Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Orion XTR152D Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

MVH-S622BS main

Pioneer MVH-S622BS

Double DIN Digital Media Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-10.00%

$179.99

List price $200.00

BE7ACP.XC main

Boss Elite BE7ACP.XC

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and Backup Camera (SiriusXM Ready)

-16.67%

$329.99

List price $395.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
XTR Series
Subwoofer Size
15"
Peak Power Handling
3000 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 250 Hz
Sensitivity
89.26 dB
Xmax (millimeters)
12.363 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Dark Gray
Woofer Composition
Paper
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.00 cubic feet
Optimum Ported Box Volume
3.00 cubic feet
Top-Mount Depth (Mounting Depth)
8.54"
Cutout Diameter
13.59"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23.80 Hz
Equivalent Compliance (Vas)
137.950 liters
Total Speaker Q Value (Qts)
0.412
Electrical Q Value (Qes)
0.458
Electrical Resistance of Voice Coil (Re)
3.91 ohm
Mechanical Q Value (Qms)
9.803
Efficiency Bandwidth Product (EBP)
35
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XTR152D

Weight:

35.30lbs

Internal SKU:

xtr152d

Internal Product ID:

92822
