Name: Wet Sounds SD4
Brand: Wet Sounds
SKU: sd4
Price: 799.99 USD
Availability: Discontinued

by Wet Sounds

About
Similar Products
Specs & Details
Reviews
Add-ons
Related Searches

Product highlights

• RMS: 185W x 4 @ 4 ohm, 340W x 4 @ 2 ohm, Bridged: 685W x 2 @ 4 ohm
• Total RMS Power: 1370 watts
• Wet Sounds unique transformer
• Advanced Intelligent Microprocessor Control
• Top mounted crossover controls
• Dimensions: 9.82" W x 13.50" L x 2.70" H

Learn more about the sd4

NVX - Worth the Envy - Direct to Consumer Car Audio

Description

Authorized dealer

Wet Sounds SD4 Sinister Series Full-Range 4 Channel Class D Amplifier

Conformal Coated PCB Boards Wet Sounds HT-6

The Sinister amplifiers are the highest power to size amplifiers anywhere in the world for car or marine use. The Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D Power Supplies combined with Wet Sounds MAXED Power supply. The MAXED power supply is a patent pending technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier. What this means to you. Less current draw, less strain on the electrical system, less generated heat. All this results in more play time! The Sinister amplifiers share one size full cast aluminum chassis for all models making installation a breeze and the ability to have a clean install.

Industry Leading High Quality Build

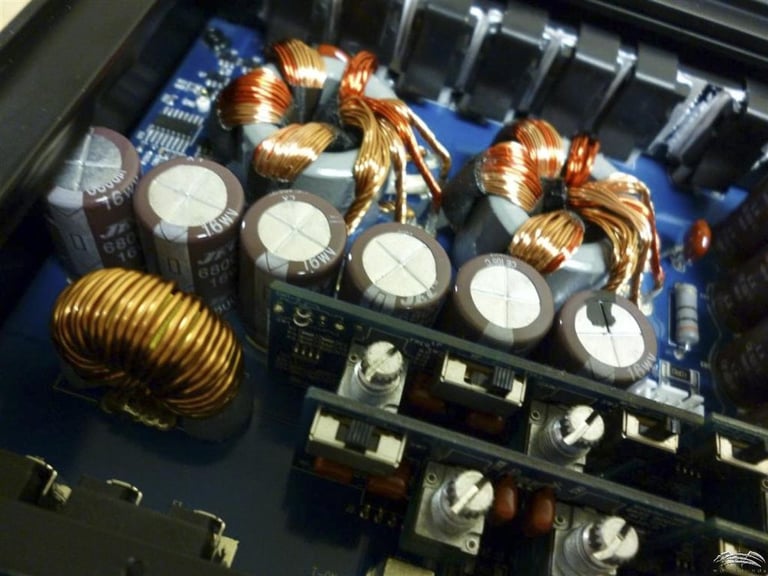

Sinister amplifiers feature a fully conformal coated 4 layers pcb board, single side power, speaker & input section, & top mounted controls with removable cover. In addition, high pass/low pass/full range crossovers, flexible inputs source selection for single or multiple RCA channel input, & removable speaker plugs make the Sinister Series a proper amp for proper installs.

Microprocessor Controlled Amplifier Wet Sounds HT-6

Built to Last

The Sinister amplifiers are not only extremely powerful but also intelligent with a built in microprocessor controller for over voltage protection, under voltage protection, DC offset & speaker short protection, as well as thermal rollback to ensure consistent play in the harsh environments. Wet Sounds has taken every measure to ensure that their amplifiers are Built to Last.

Customizable to Personal Preference

Sinister amplifiers have a back lit Wet Sounds shield logo with selectable illumination for red, white or blue that can be mounted horizontally or vertically. This is perfect for installations where you are not having to re-wire just to get the logo straight. The Wet Sounds shield logo badge not only looks great but also provides the amplifier status through its acrylic spacer.

General Features:

Sinister Series Full Range 4-Channel Class D Marine Amplifier
RMS Power Rating:

4 ohm: 185 watts x 4 chan. @ 60A
2 ohm: 340 watts x 4 chan. @ 123A
Bridged, 4 ohm: 685 watts x 2 chan. @ 122A

Total RMS power output: 1370 watts
Wet Sounds Unique Transformer Design Called MAXED Power Supply
Advanced Intelligent Microprocessor Control

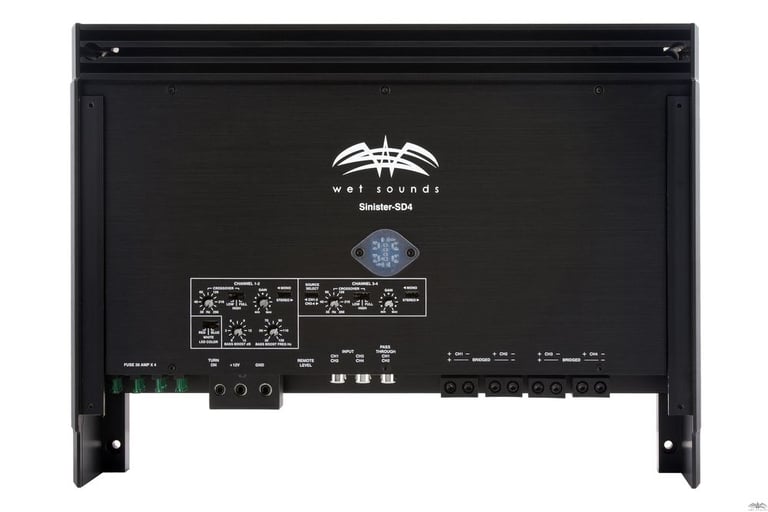

Top Mounted Crossover Controls
Remote Level Control Included
Auto Turn On Sense Capability
Thermal Rollback Technology
Fully Balanced Inputs
Built In Raised Feet
RCA Pass Through
Four Layer PCB
Top mount back lit 3 way LED Badge Light

Red, White, & Blue
Horizontal or Vertical Placement
Provides Amplifier Status

Removable Speaker Plugs

Designed to accept a 12 AWG - 16 AWG wire

High Level Speaker Input (requires adapter)

Please contact Wet Sounds for Information

Input Sensitivity: Variable from 200mV to 6.1V
Frequency Response: 8Hz - 50,000 Hz
Bass Boost: 0db - 12.5 dB @ 27Hz - 110Hz
High-Pass Crossover Frequency: 30Hz - 300 Hz
Low-Pass Crossover Frequency: 30Hz - 300 Hz
S/N Ratio (A wtg) : >90dB >113dB
CEA 2006 Compliant
4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 9.82"W x 13.50"L x 2.70"H
Authorized Internet Dealer
2 Year Manufacturer's Warranty
