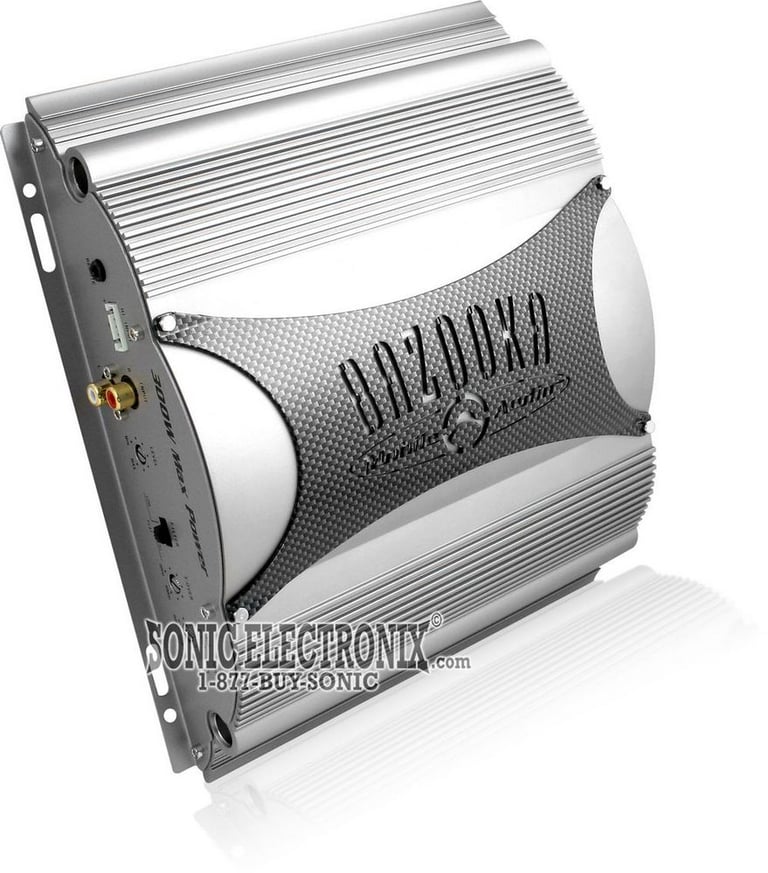

Bazooka ELA60.2

300W Max, 2-Channel Amplifier

Bazooka
Shop all Bazooka
Product videos
highlight-star-icon

EL Series 2-Channel Class A/B Car Amplifier • 300W Max Power Output • RMS Output: 95W x 2 @ 2 ohm, 70W x 2 @ 4 ohm • Tri-Mode Capable • Built-in LP/HP crossover • Aux Output

Learn more about the ela602

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Product Highlights


EL Series 2-Channel Class A/B Car Amplifier • 300W Max Power Output • RMS Output: 95W x 2 @ 2 ohm, 70W x 2 @ 4 ohm • Tri-Mode Capable • Built-in LP/HP crossover • Aux Output

Description


Bazooka brand icon

Authorized dealer

  • EL Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 2 chan.
    • 2 ohm: 95 watts x 2 chan.
    • Bridged, 4 ohm: 195 watts x 1 chan.
  • Max power output: 300 watts x 1 chan.
  • Remote bass level input (ELA-BCM remote level control sold separately)
  • LED power indicators
  • Bass Boost: 0-12 dB bass boost at 45 Hz
  • 3-way Protection: Thermal, Short Circuit, Overload
  • Tri-Mode Capable: for example, this allows you to run a pair of mid and tweeters in stereo and a subwoofer in mono mode at the same time.
  • High- / Speaker-level inputs
  • Auxiliary output: allows easy daisy chain connection to an EL Bazooka Class D Amplifier or Amplified Bass Tube
  • Built-in HP/LP Crossover: 60 - 400 Hz
  • Power Fusing: protects the amplifier against short circuits and excessive current
  • Type of Heatsink (example: Heavy duty aluminum alloy heatsink or High-density split-dome convection heat sink for extreme heat dissipation)
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Frequency response: 20 - 22 kHz
  • Efficiency: 90 dB
  • Dimensions: 8-1/2"L x 10-1/4"W x 2-5/8"H
  • 8-gauge power and groud leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 2 channel
RMS Power @ 2 ohms
95 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
190 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
190 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.03%
Speaker Level Inputs
Yes
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 400 Hz
Low-Pass Crossover Frequency
60 - 400 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 1

Item Details


Manufacturer:

Model Number:

ELA60.2

Weight:

7.00lbs

Internal SKU:

ela602

Internal Product ID:

9325

Product and How-to Videos


Customer Ratings & Reviews


Bazooka ELA60.2 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
4.5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

Good Clean Power

This amp has such a tiny footprint that I hid it under the rear deck of my saturn, and nobody knows any wiser. It offers clean power to a sub, a pair of speakers, or it can even power all 3 at the same time. Regardless, it gets loud enough with the MA audio 12" single sub enclosure to tick off the neighbors, and that's at half volume. Clean signal, decent features, and good looks make this amp worth checking out.

By Steve on December 5, 2007

11 found this helpful


pritty good amp

its small and looks good. easy to use and has some nice features to tune your bass easily. Overall its not a bad amp if your only powering a small sub.

By Lynette on October 12, 2007

10 found this helpful
